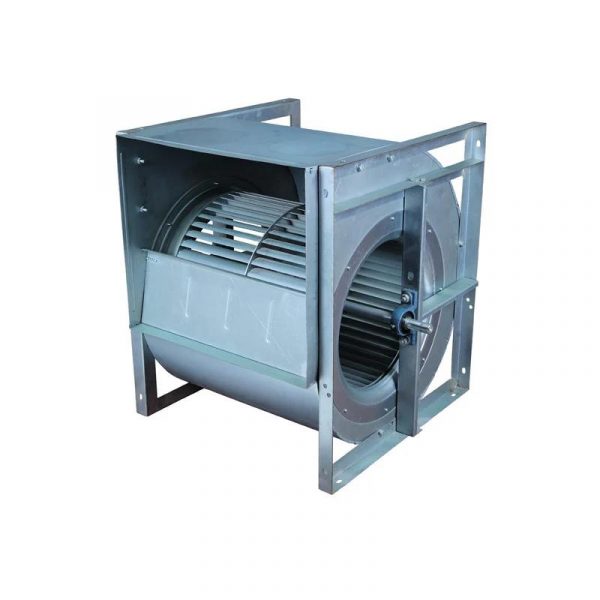

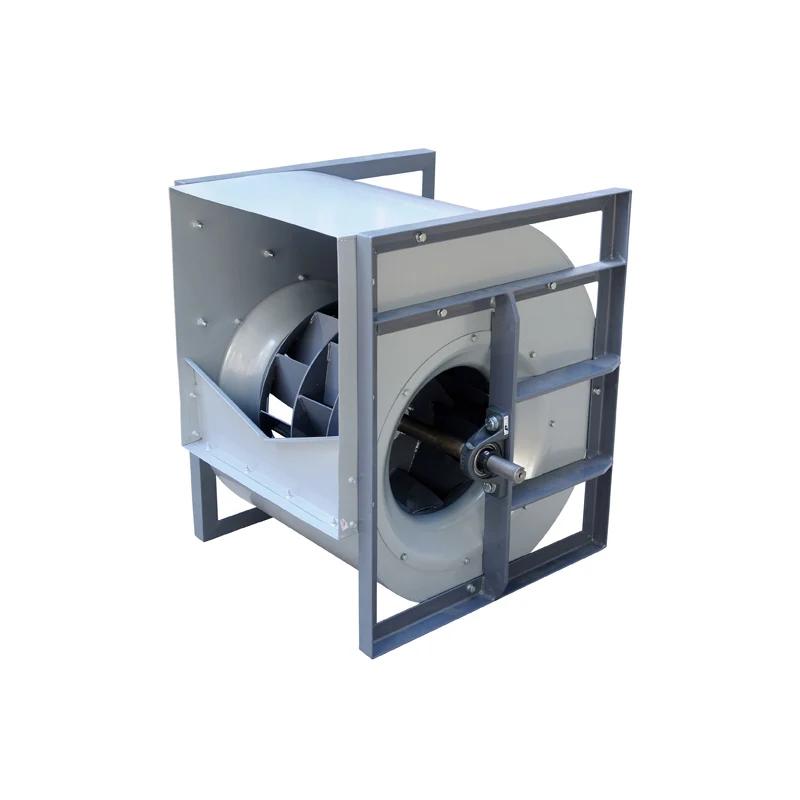

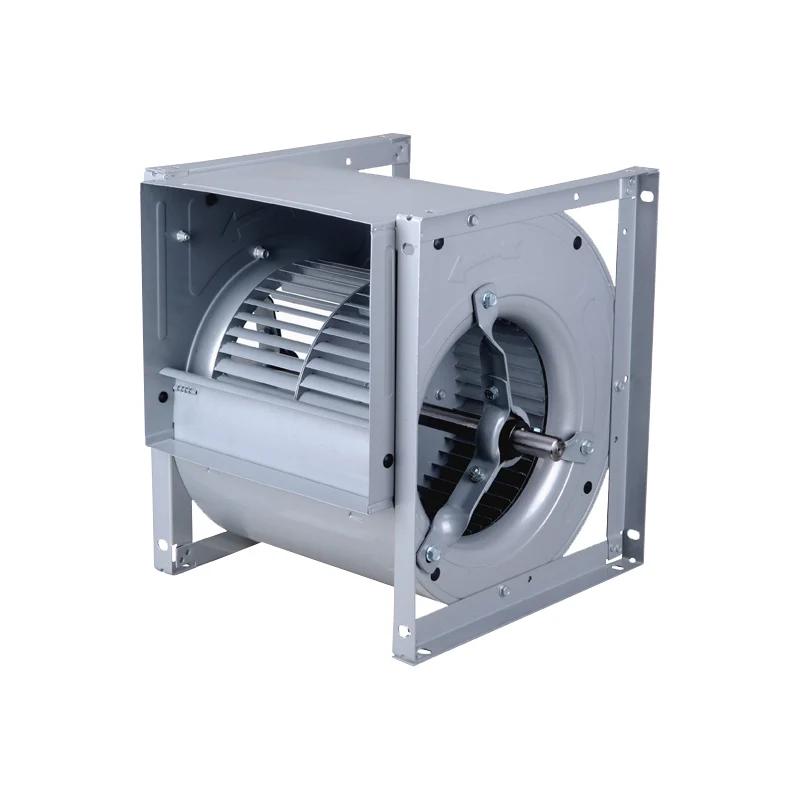

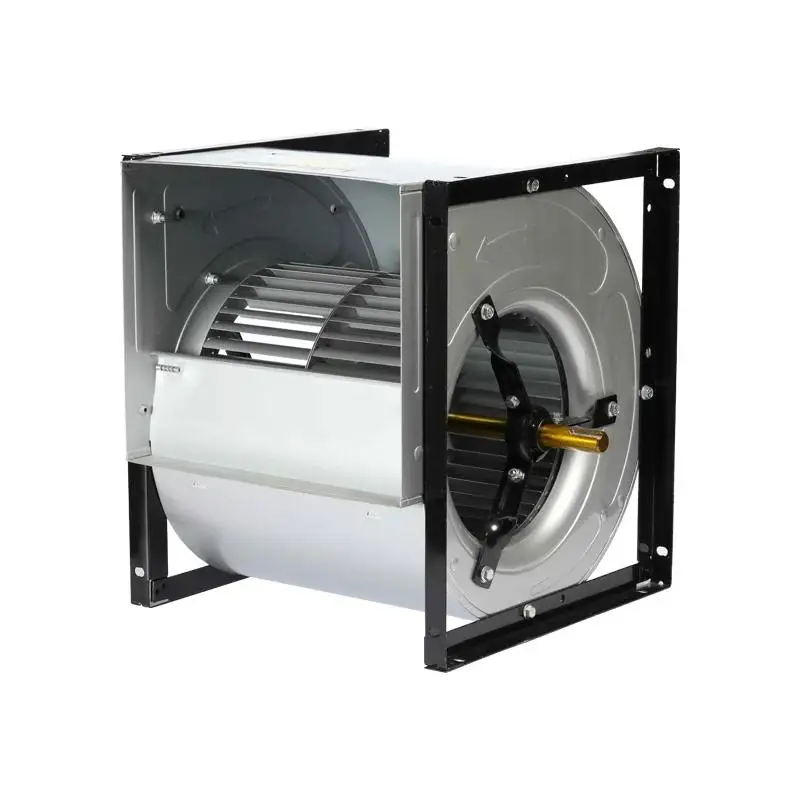

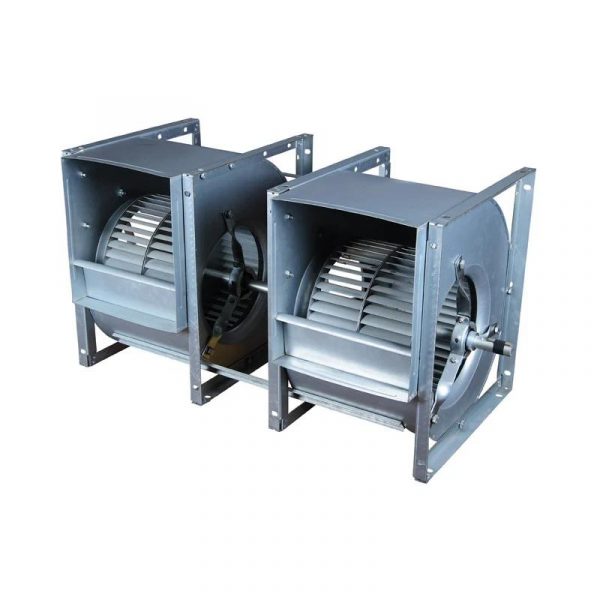

LONGWELL Direct Drive Centrifugal Fan, Industrial HVAC Blower, 220V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 220V/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Category: Tags: , ,
CategoryADH Centrifugal blowers
TagsCentrifugal FanCommercial Building VentilationExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the ADH Centrifugal blowers range. The Fan Selector lists every LONGWELL commercial blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search commercial blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Types :

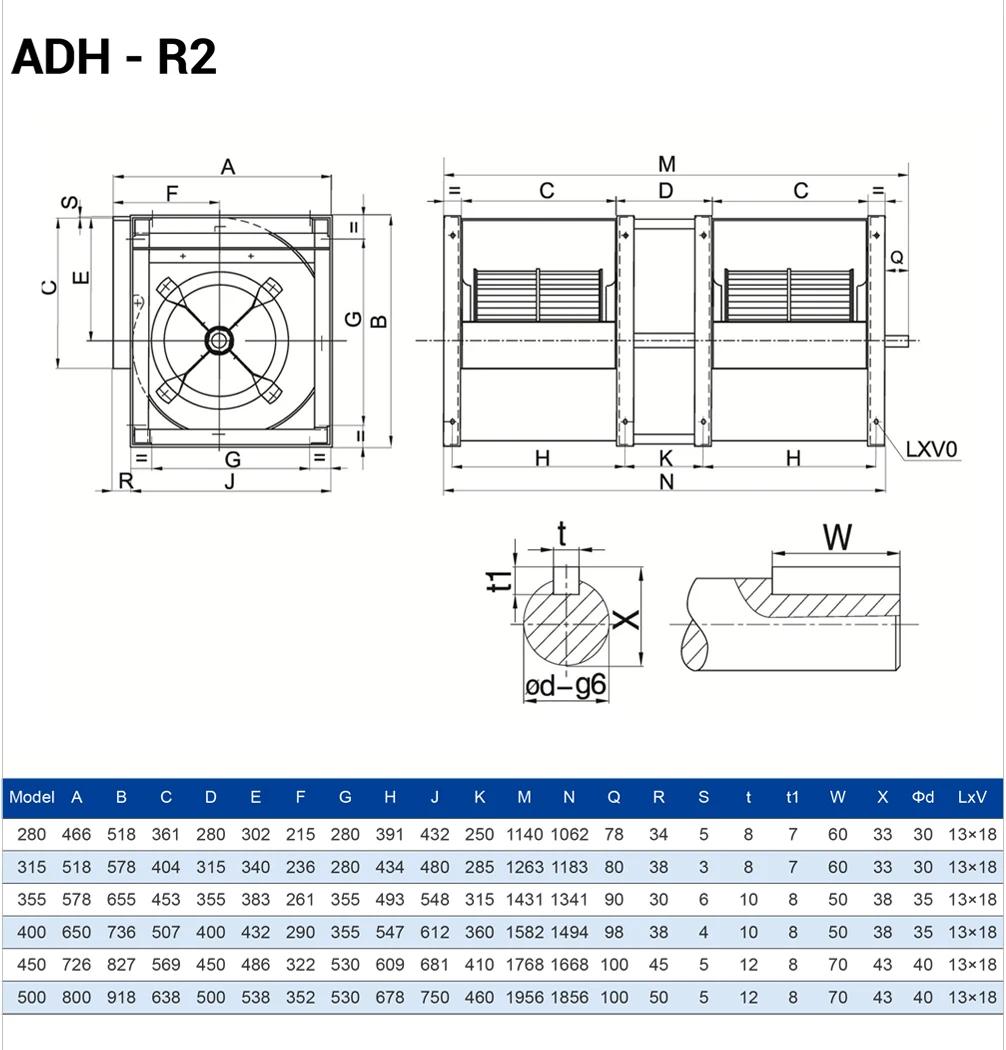

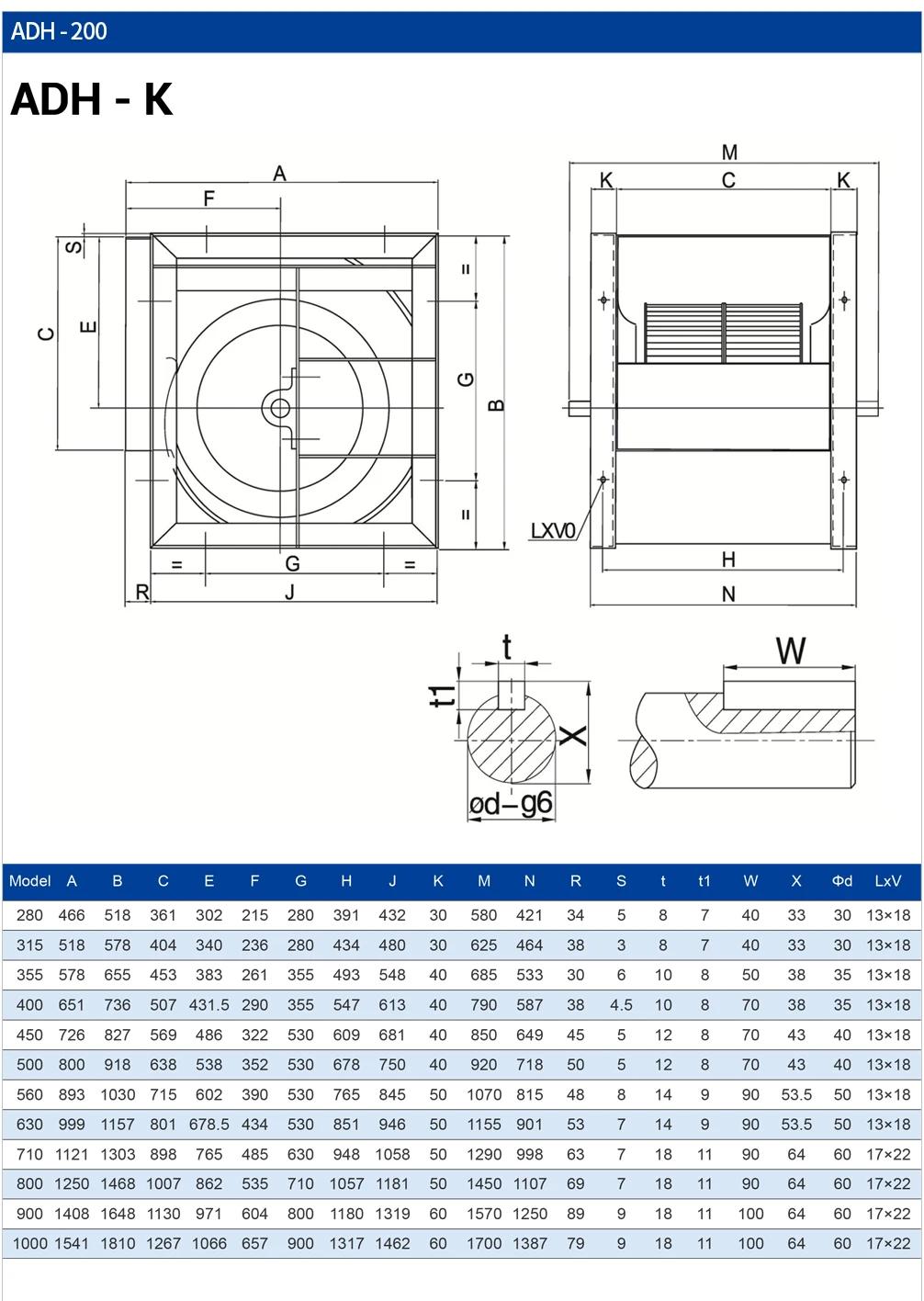

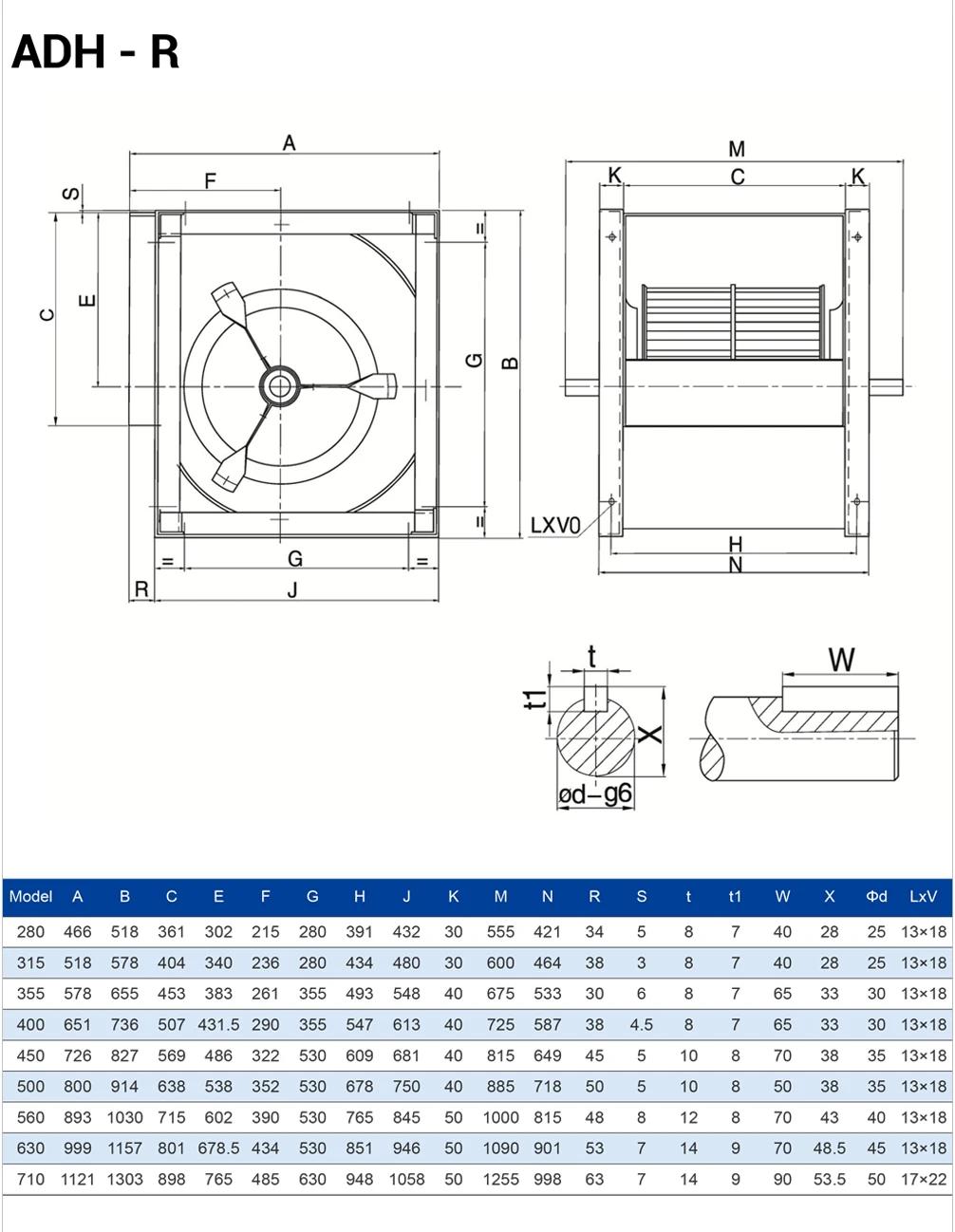

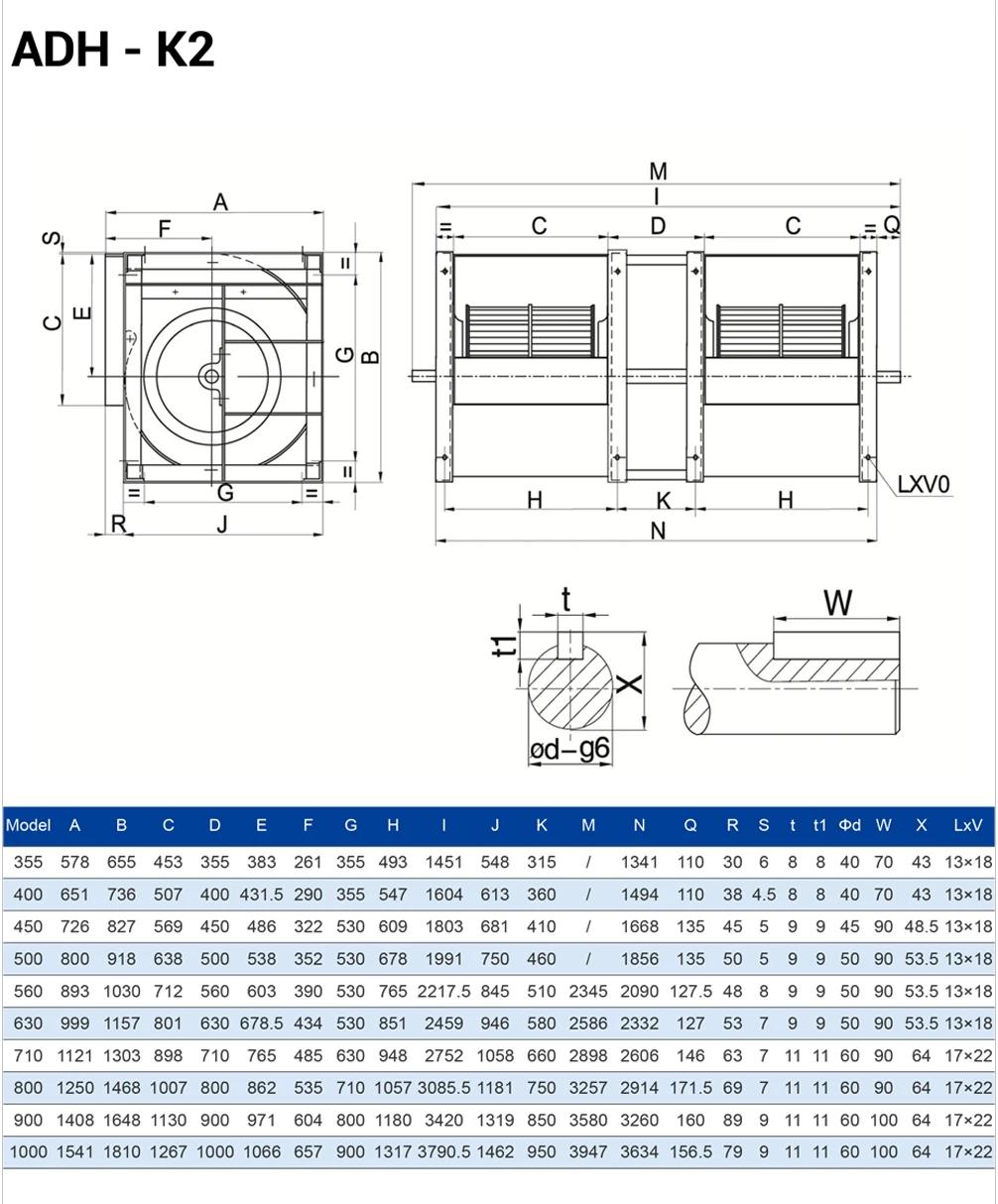

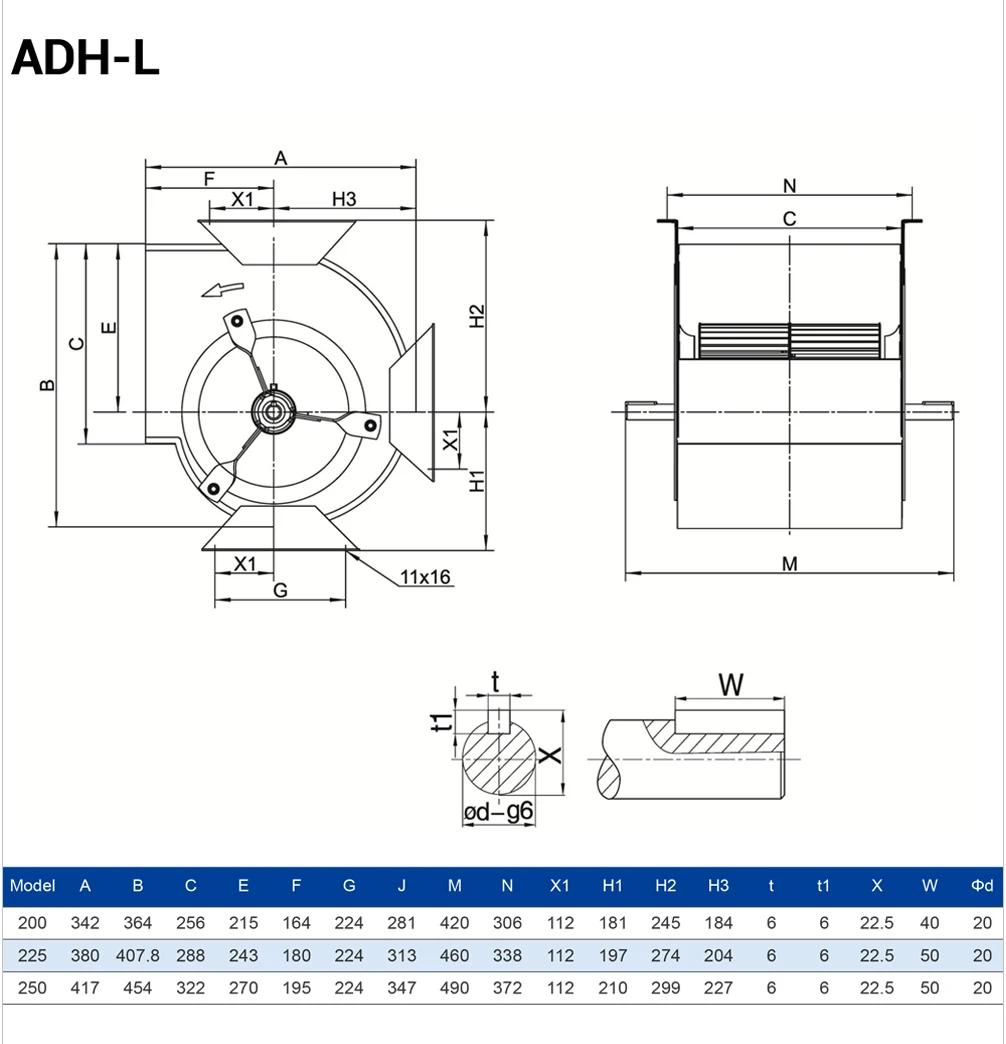

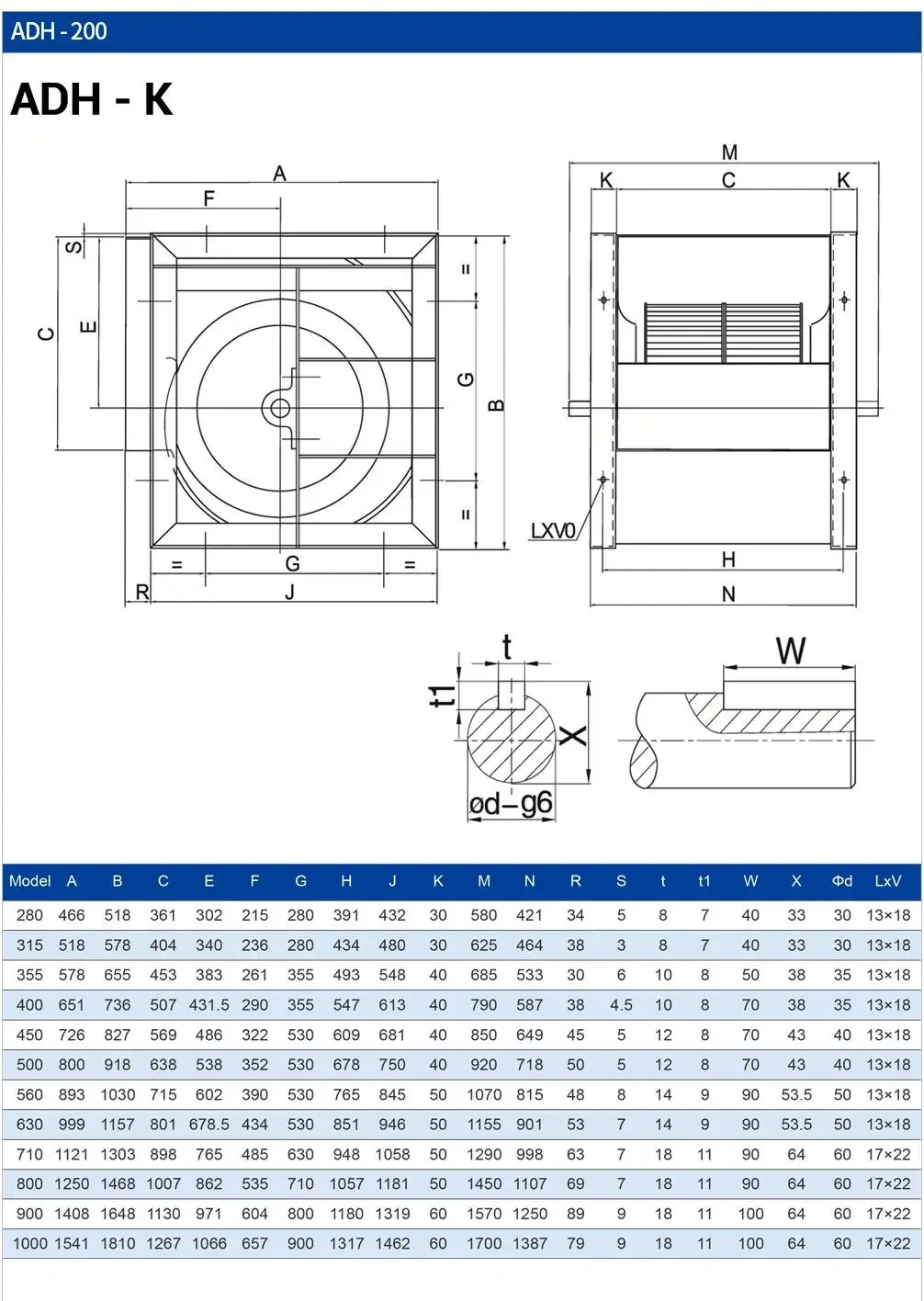

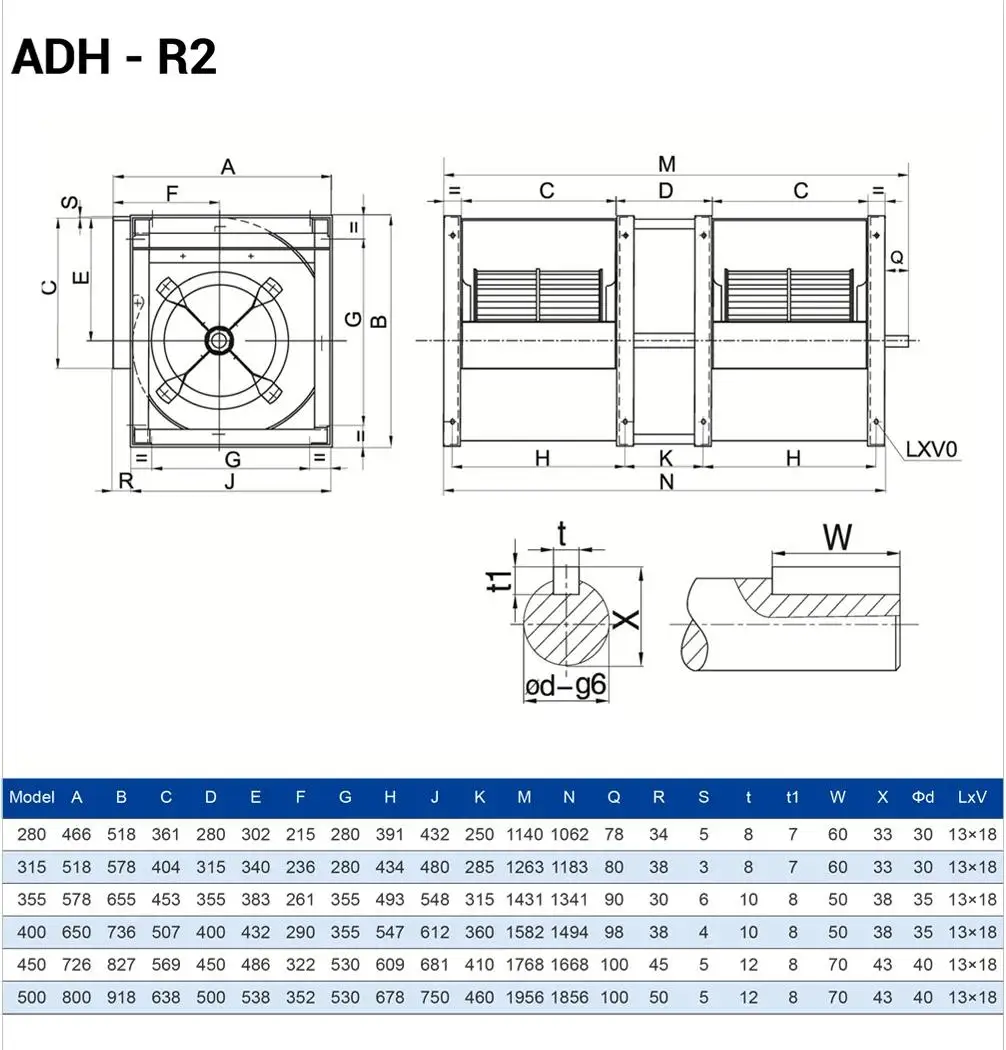

ADH Series Centrifugal Blower
Frequency :

50/60 Hz
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Iron
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

Longwell
model number

ADH Series Centrifugal Blower
warranty

1 Year
After-sales Service Provided

Online support
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Product name

Industrial Centrifugal Fans
Amb,Temp

-20 to +60℃
Voltage

220V/380V
Application

Exhaust Ventilation hotels Garment Shops Building Material Shops
Usage

High Pressure Blowing
Feature

High Efficiency
Motor

AC Motor
Size

Customer's Request
Certification

CCC
Selling units

Single item
Single package size

10X10X10 cm
Single gross weight

10.000 kg
