LONGWELL Industrial Fan, Industrial Ventilation Fan, 110V, 25 W, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems

Name: LONGWELL Industrial Fan, Industrial Ventilation Fan, 110V, 25 W, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 110V/220V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 19

Category: Bathroom Exhaust Fans Tags: Exhaust Fan, External Rotor Motor, Home Kitchen Bathroom Ventilation

CategoryBathroom Exhaust Fans

TagsExhaust Fan External Rotor Motor Home Kitchen Bathroom Ventilation

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name *

Work Email *

Phone/ WhatsApp *

Estimated order quantity

Message

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Bathroom Exhaust Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search exhaust fan models →

Description

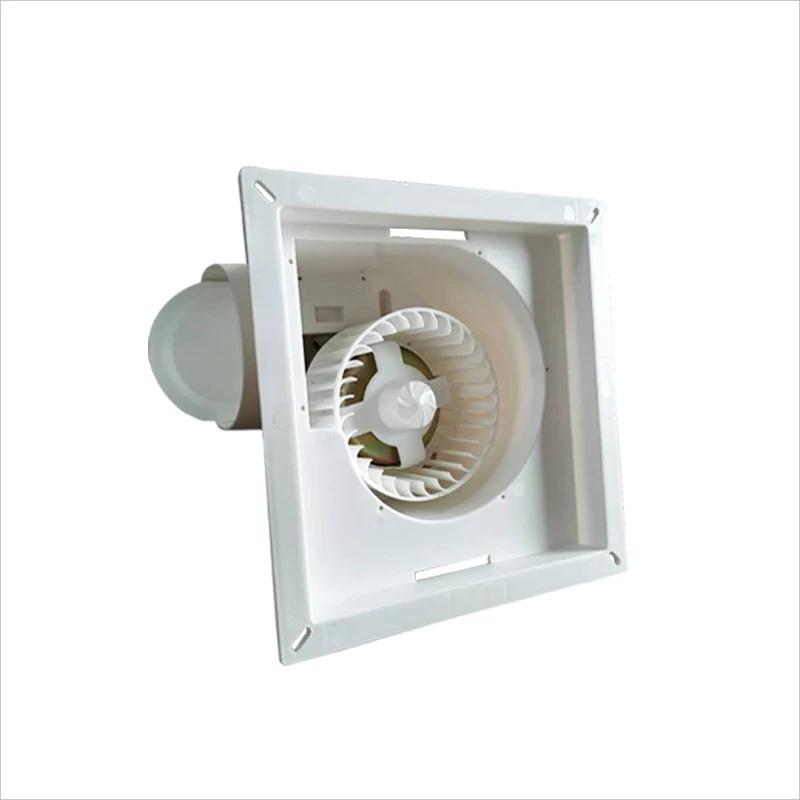

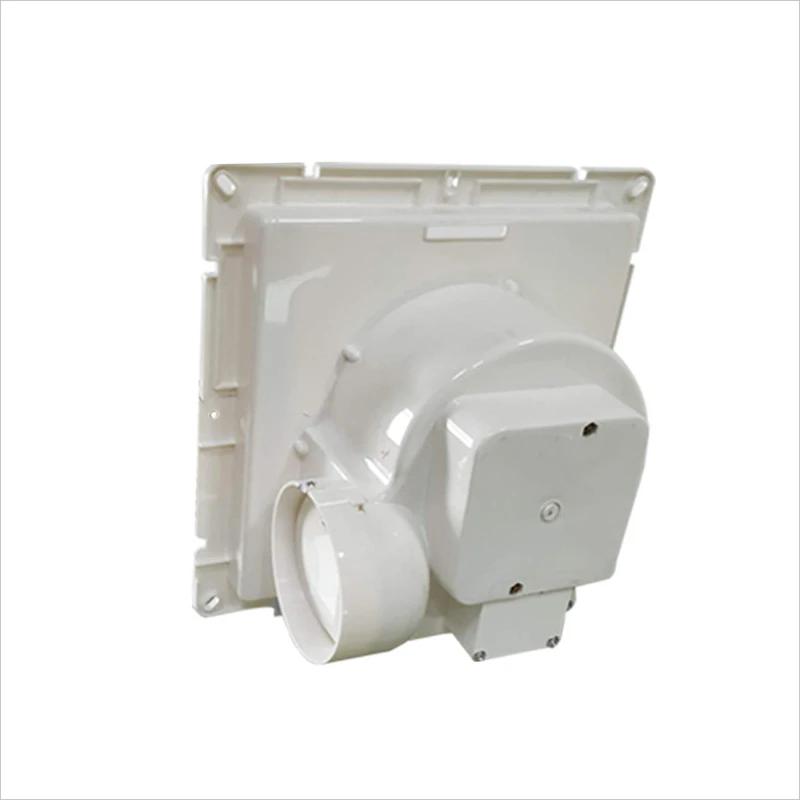

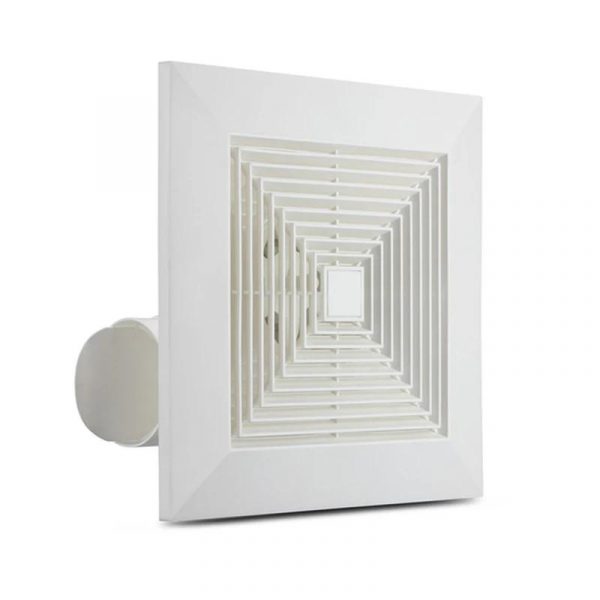

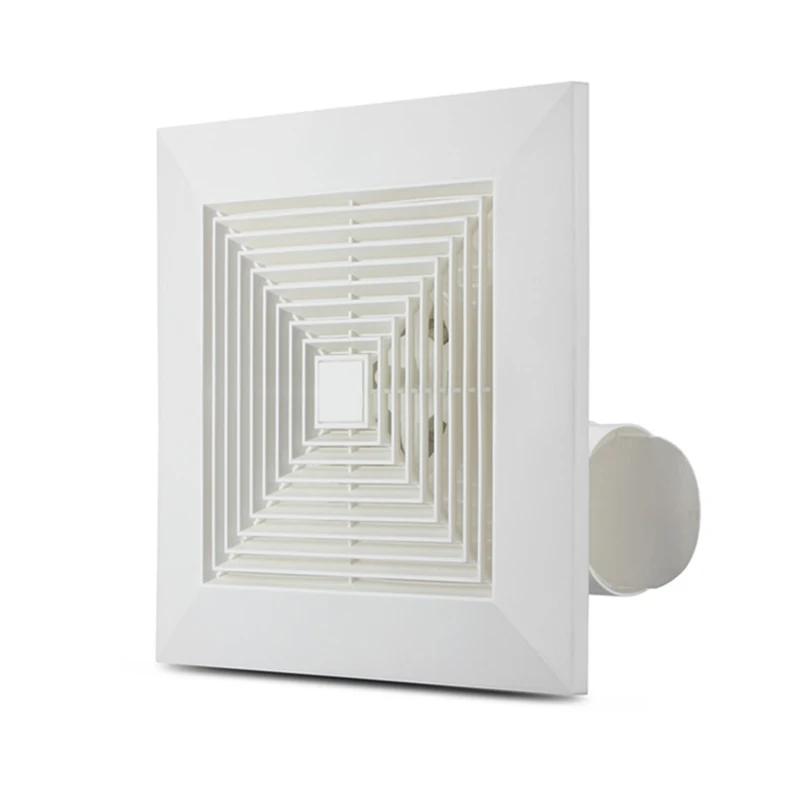

Types :	Smallpox Straight Row Ventilating Fan with Multiple Size /8/10/12 Inches and Power Choices 25~40W,Low Noise Level
Voltage Ranges :	110V,220V
Frequency :	50/60 Hz
Diamter :	200-350mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type	Wall Fan
Voltage	110V/220V
Power Source	Electric
blade material	Carbon steel enclosure
bearing type	Ball Bearing
place of origin	ZHE
brand name	Longwell

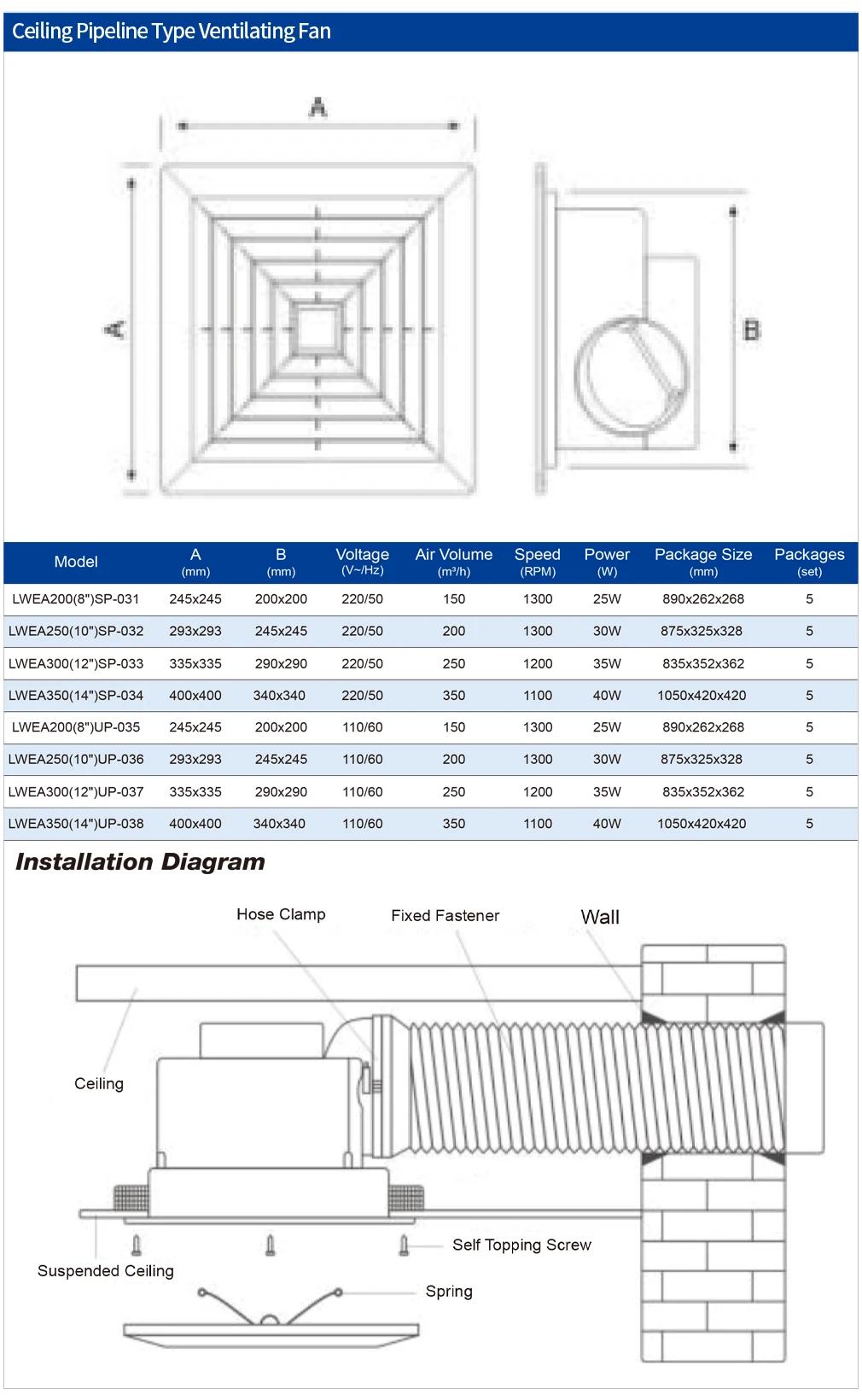

model number	LWEA200(8")SP-025, LWEA250(10")SP-026, LWEA300(12")SP-027, LWEA200(8")UP-028, LWEA250(10")UP-029, LWEA300(12")UP-030
warranty	1 Year
after-sales service provided	Video technical support
Material	STAINLESS STEEL
Type:	Exhaust Axial fan
Customized support:	OEM, ODM, OBM
Noise:	Less than 42db
Power	25~40w
Blade:	6pcs
Size:	8 10 12 inch
Application:	Hotels, Garment Shops, Building Material Shops,
Selling units	Single item
Single package size	80X40X40 cm
Single gross weight	5.000 kg
