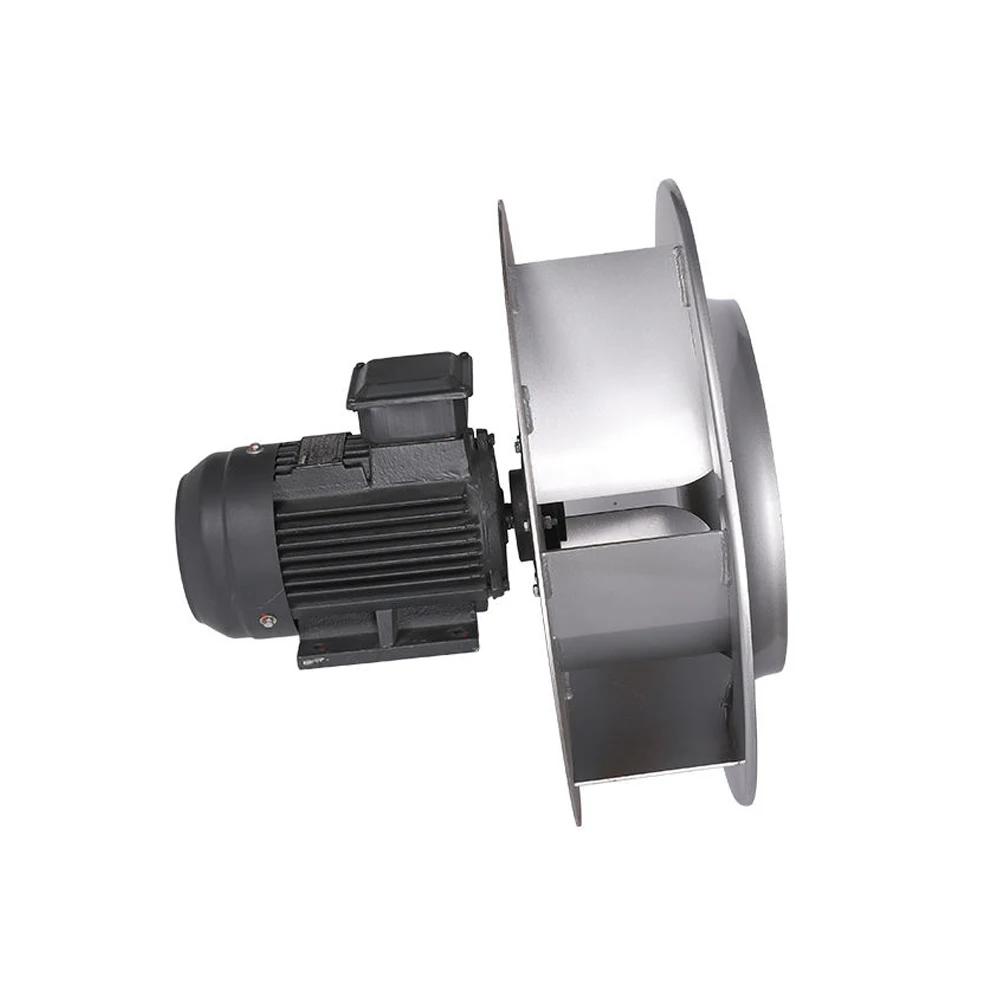

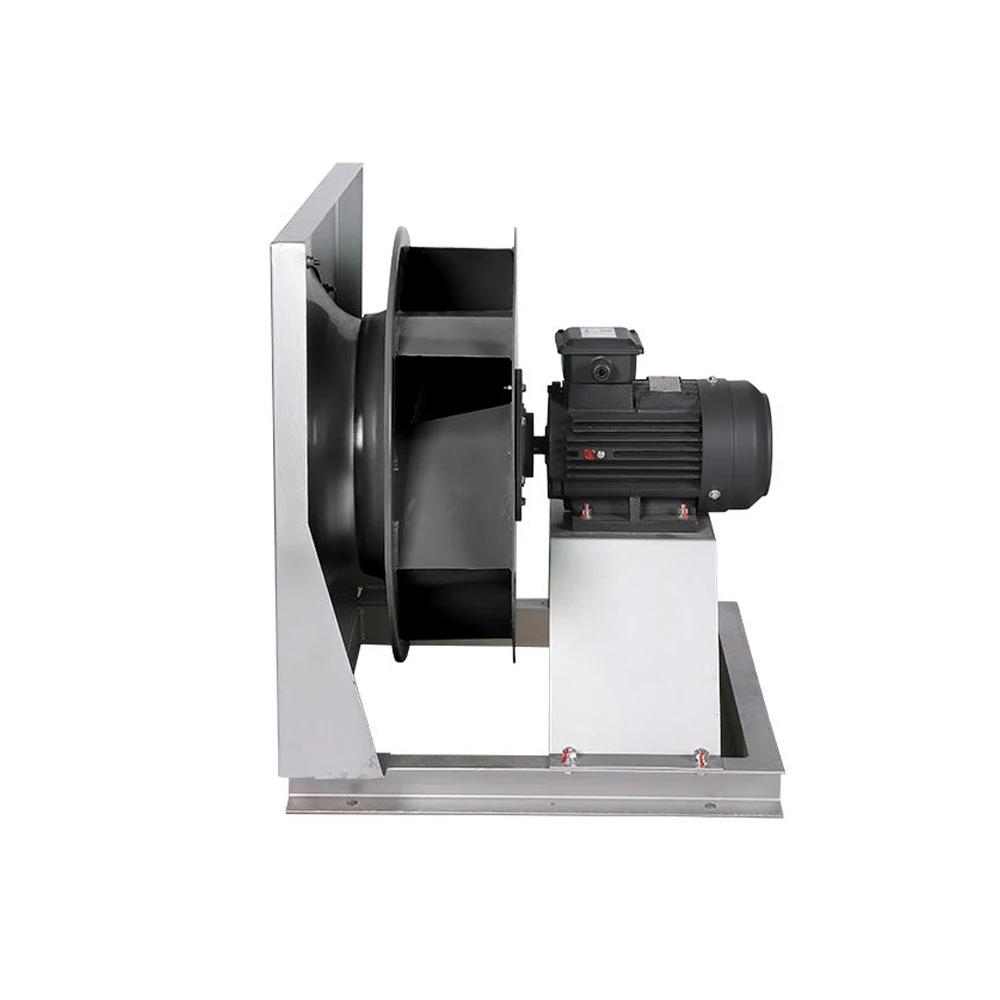

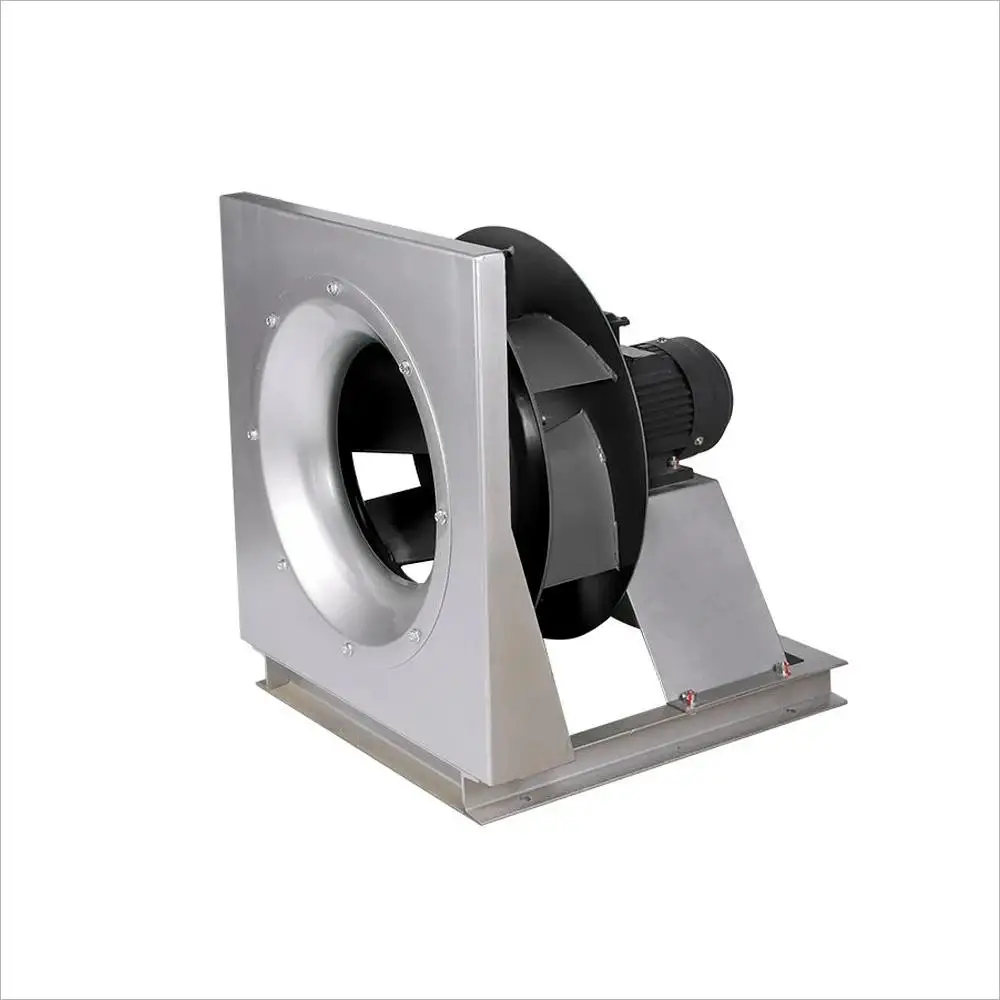

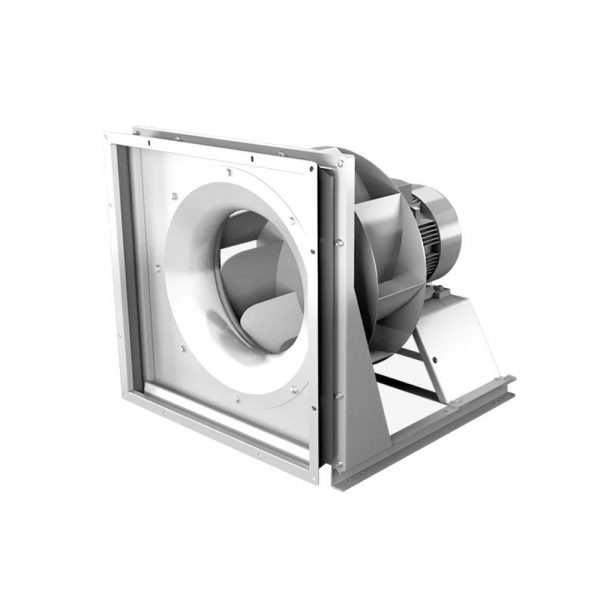

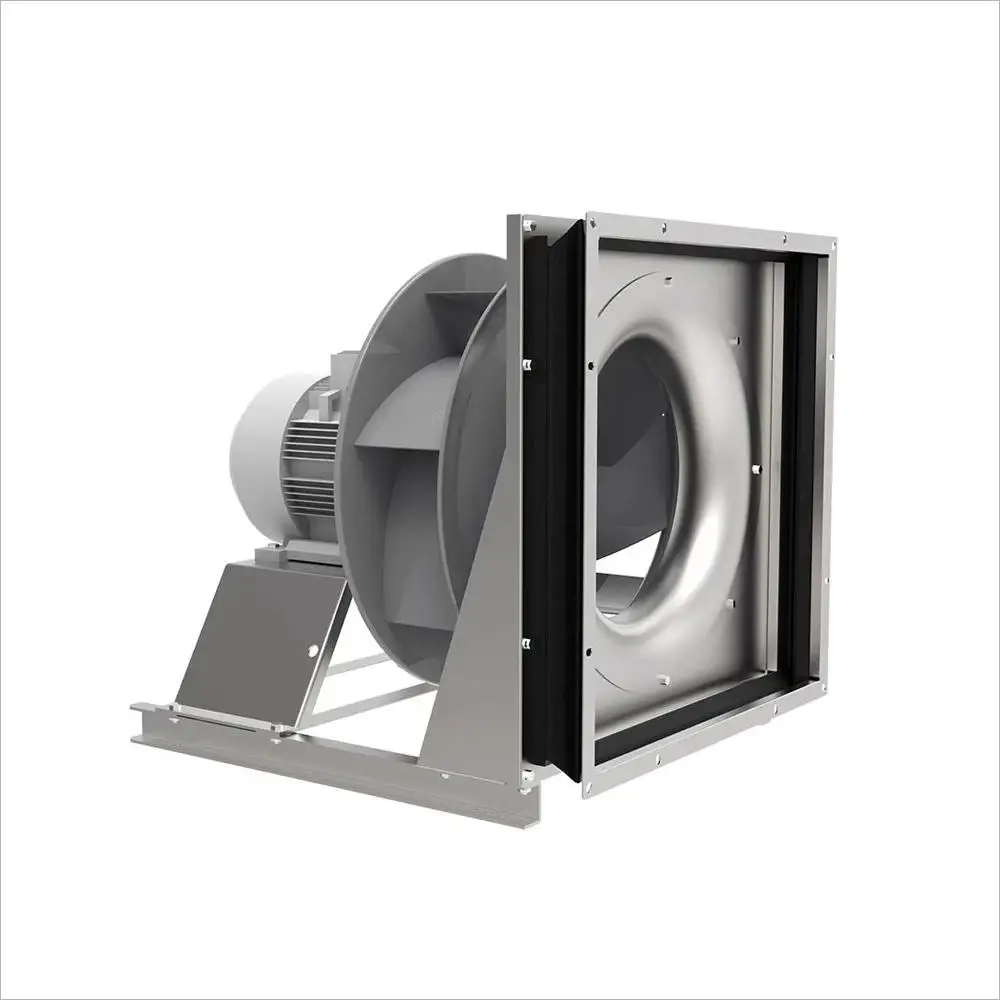

LONGWELL Plug Fan, EC Centrifugal Blower Fan, 380V, for AHU, HVAC Systems, Cold Storage – RLM800MM

Name: LONGWELL Plug Fan, EC Centrifugal Blower Fan, 380V, for AHU, HVAC Systems, Cold Storage – RLM800MM
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 380V(as requiremnts)

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 500

Specifications

Motor: Internal rotor motor
Speed: 4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller: Iron

Category: AHU Plug Fan Tags: Air Handling Units, Centrifugal Fan, External Rotor Motor

CategoryAHU Plug Fan

TagsAir Handling Units Centrifugal Fan External Rotor Motor

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the AHU Plug Fan range. The Fan Selector lists every LONGWELL AHU plug fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search AHU plug fan models →

Description

Types :	RLM800mm air exchanger AHU high volume Centrifugal exhaust fan blower for air conditioning system
Frequency :	50/60 Hz
Diamter :	800mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage	380V(as requiremnts)
speed	4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material	Iron
customized support	OEM, ODM, OBM
mounting	FREE STANDING
place of origin	Zhejiang, China
brand name	LONGWELL
model number	RLM 800mm
warranty	1 Year
After-sales Service Provided	Video technical support
Material	Stainless Steel, Plastic, aluminum alloy, Steel
Type	Air handle units usage plug fans
power input	380V(as requiremnts)
Impeller material	Iron
Direction	Clockwise
Bearing	Ball Bearing
Approvals	CE,CCC
Motor type	Internal rotor motor
Insulation	B/F
Application	HVAC,AHU
Diameter of Impeller	800MM
Selling units	Single item
Single package size	100X100X70 cm
Single gross weight	70.000 kg
