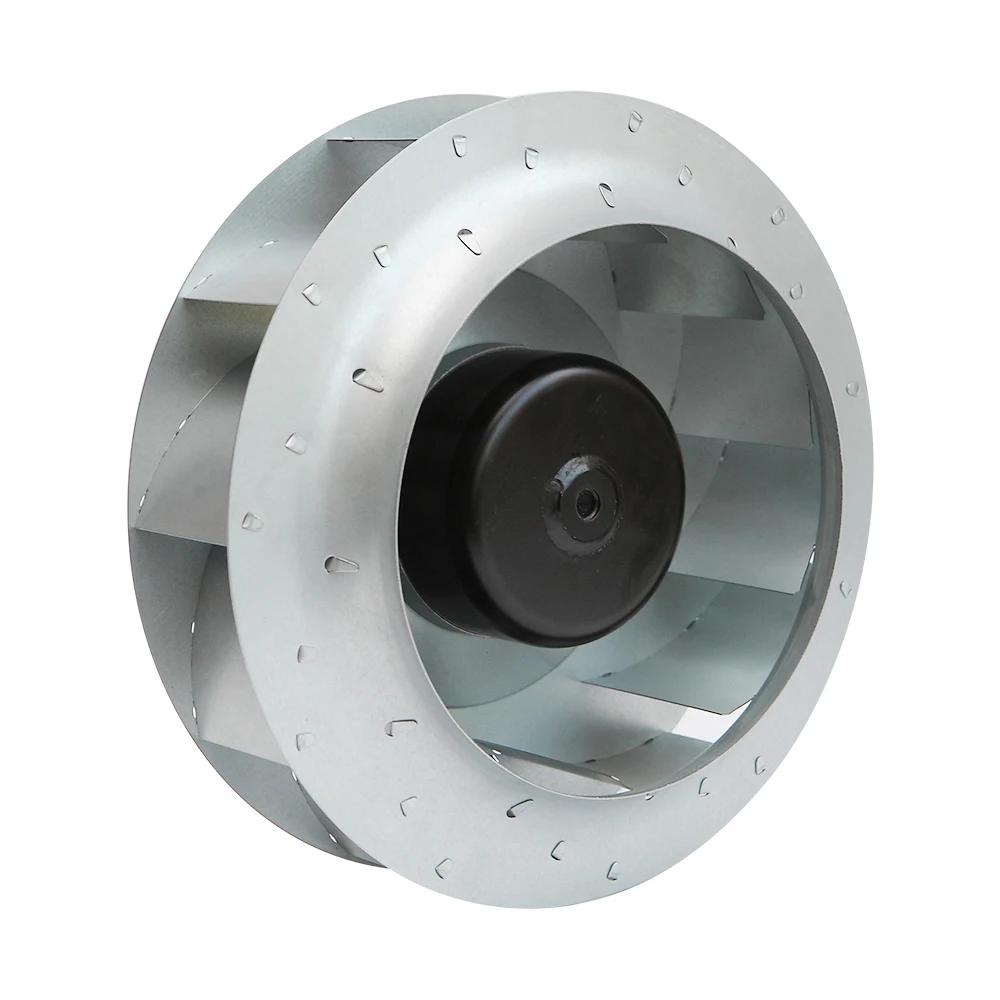

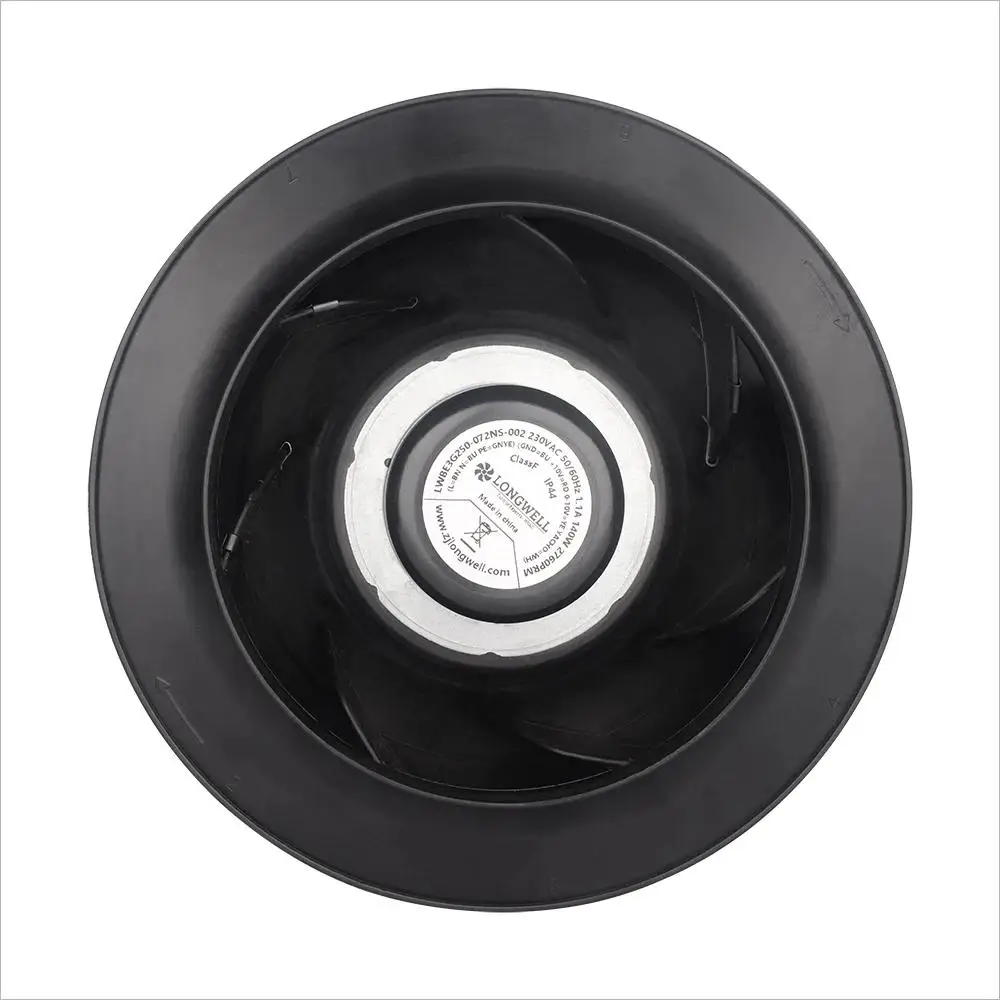

LONGWELL 250mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, Galvanized Steel, for Cold Storage, Air Purifiers, HVAC Systems

$ 100

Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsBackward Curved Centrifugal FanEC MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

250mm EC plastic Galvanized backward curved centrifugal blower 230v EC Fan
Voltage Ranges :

115V,230V
Frequency :

50/60 Hz
Diamter :

250mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

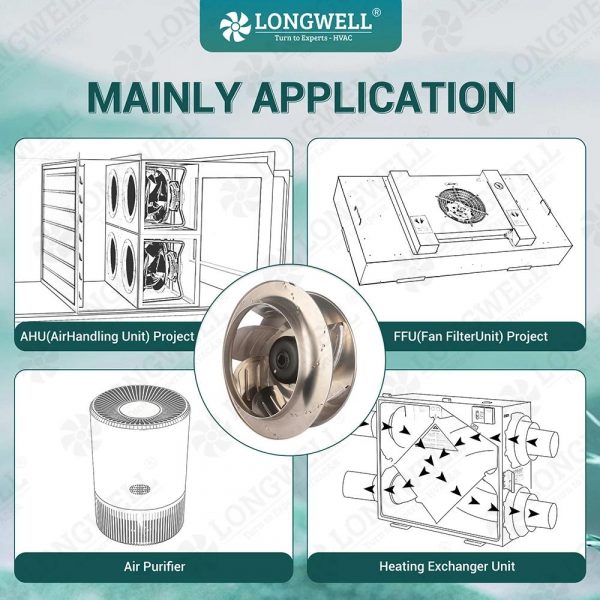

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
