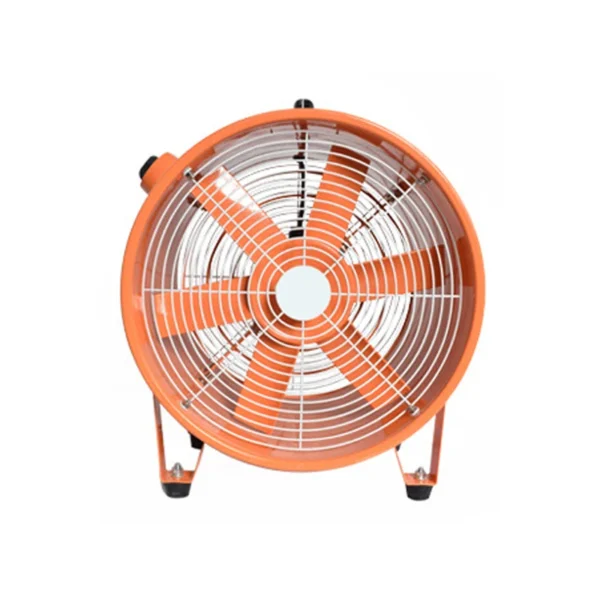

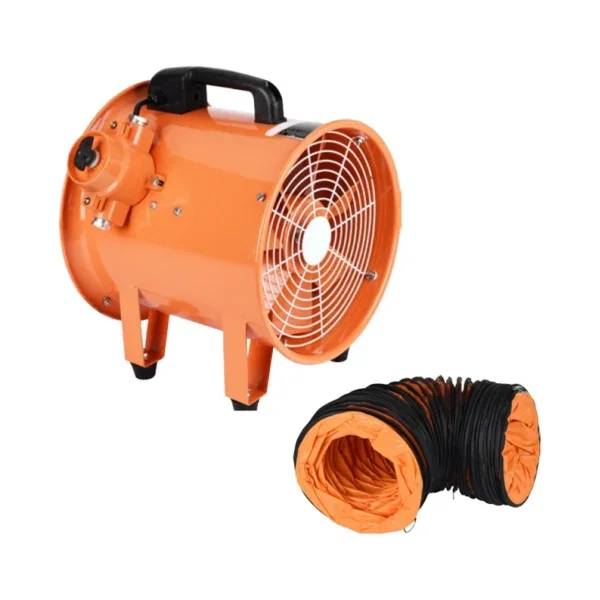

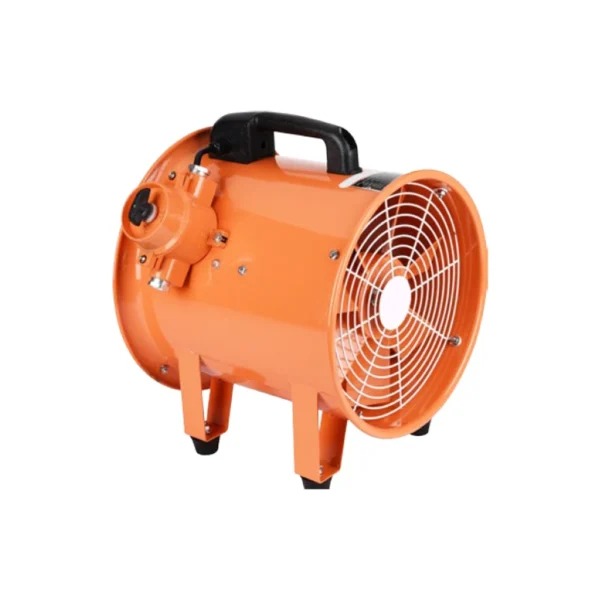

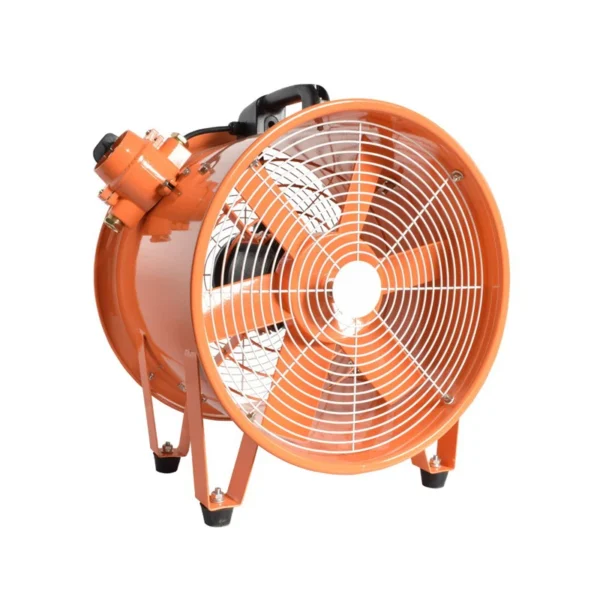

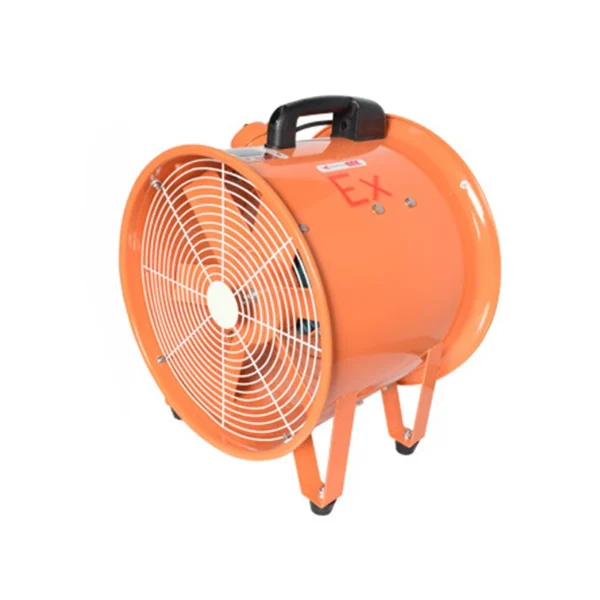

LONGWELL Axial Fan, Industrial Axial Ventilation Fan, 220V, Stainless Steel

Voltage 220V/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 65

Category: Tags: , ,
CategoryProof Axial Fan
TagsInline Duct FanMobile ApplicationsPortable Ventilator
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Proof Axial Fan range. The Fan Selector lists every LONGWELL proof axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search proof axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Model
diameter
(mm)
Air volume
(m²/h)
Static pressure
(Pa)
Speed
(r/min)
Frequency
(Hz)
Power
(kw)
Voltage
(V)
LWA-200S(T)M-03E
190
1500-2100
250-420
2800
50/60
0.15
220/380
LWA-250S(T)M-04E
240
2700-3300
300-450
2800
50/60
0.25
220/380
LWA-300S(T)M-05E
290
2720-3300
350-500
2800
50/60
0.37
220/380
LWA-350S(T)M-05E
340
4840-4840
550-600
2800
50/60
0.55
220/380
LWA-400S(T)M-05E
390
5860-6840
750-800
2800
50/60
0.9
220/380
LWA-500S(T)M-03E
490
6800-10000
185-200
1450
50/60
0.75
220/380

Recommend Products

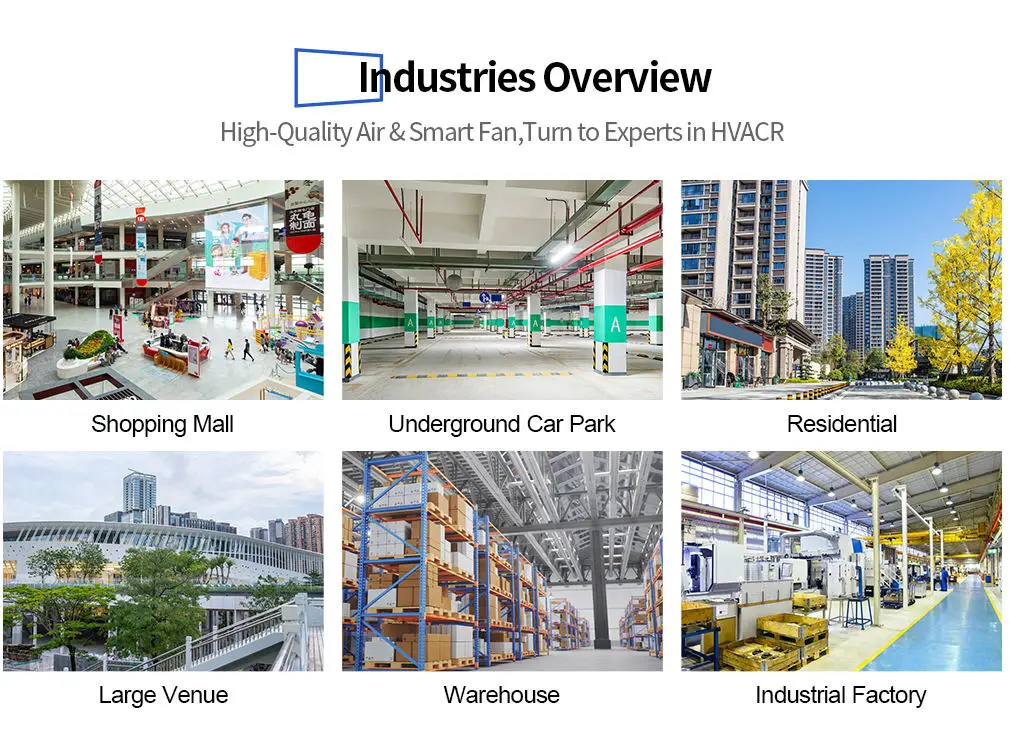

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Voltage

220V/380V
Type

Duct Axial Fan
Material

Stainless Steel
blade material

Stainless Steel
mounting type

Free Standing
bearing type

Ball Bearing
