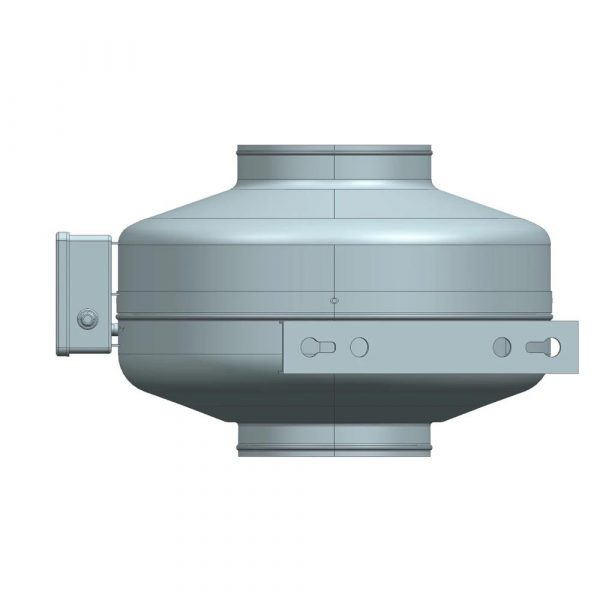

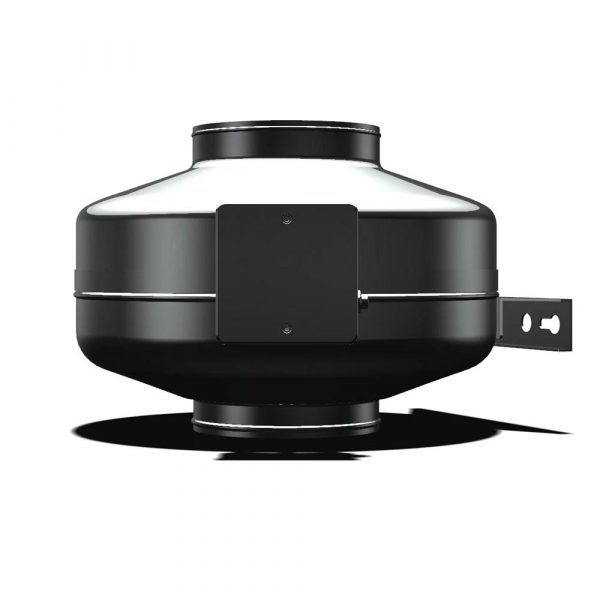

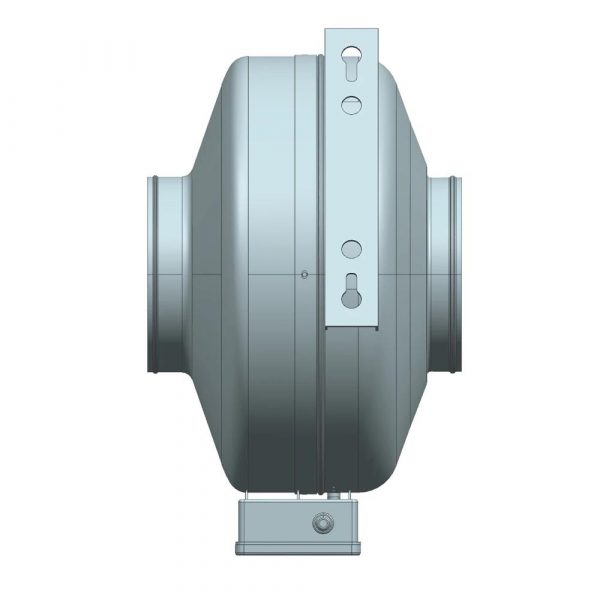

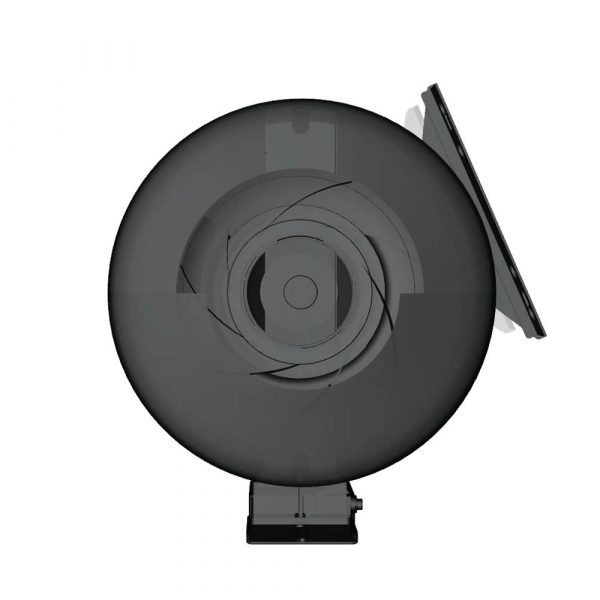

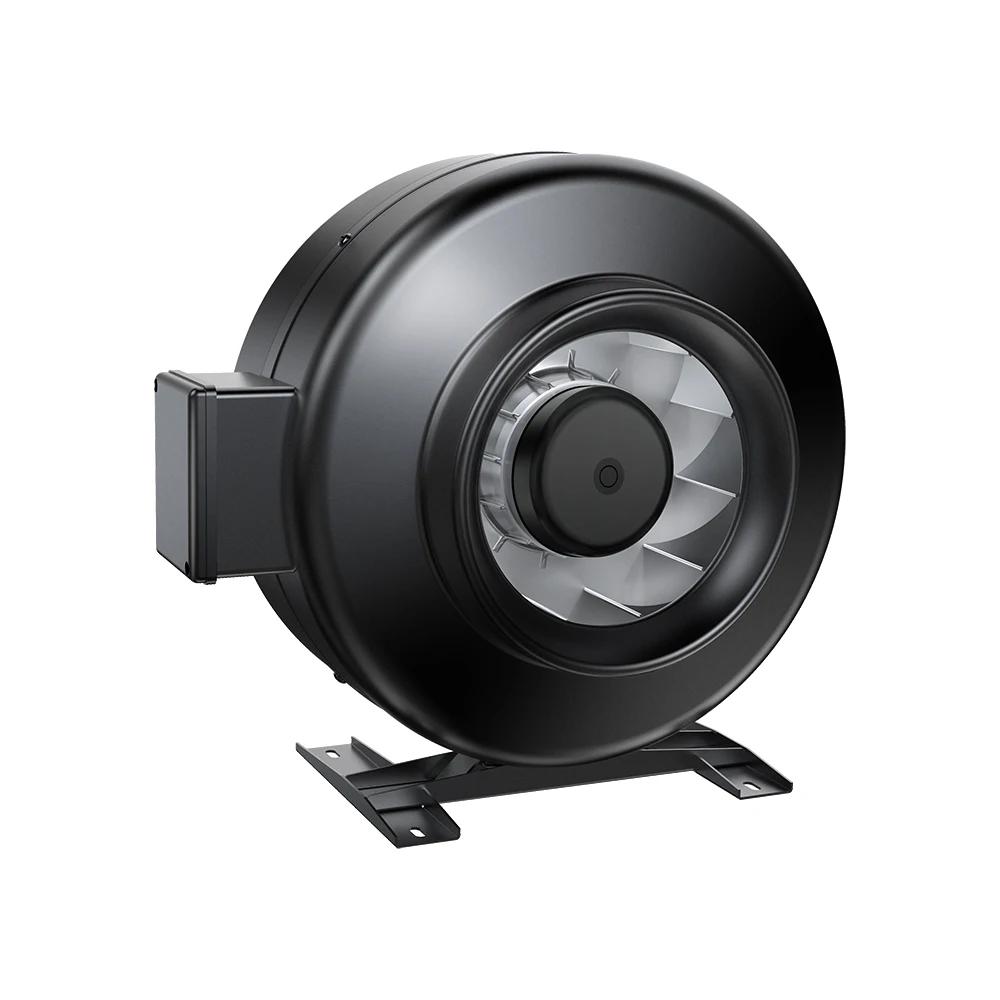

LONGWELL EC Inline Duct Fan, Exhaust Ventilation Fan, 120V – LWDE-100
$ 35
Your specifications go straight to a sales engineer — no spam, never shared.
|
Diameter of impeller:
|
133mm,146mm
|
||||||
|
Material :
|
Plastic
|
||||||
|
Voltage ：
|
AC 115V/230V
|
||||||
|
Air Flow :
|
Up to 730 m³/h
|
||||||
|
Air Pressure :
|
Up to 580Pa
|
||||||
|
Input Power :
|
79 – 298 W
|
||||||
| Blade Material | Plastic |
|---|---|
| Voltage | 120V/60HZ |
| electric current type | DC |
| customized support | OEM, ODM, OBM |
| mounting | Duct Fan |
| place of origin | Zhejiang, China |
| brand name | LONGWELL |
| model number | LWDE-100 |
| warranty | 1 Year |
| After-sales Service Provided | Free spare parts |
| Type | 4 inch EC inline duct fan |
| Power input | EC 110/230V |
| Pasing material | Metal |
| Direction | Clockwise |
| Bearing | Ball Bearing |
| Approvals | CE,CCC.ETL |
| Amb,Temp | -25 to +60℃ |
| Insulation | B/F |
| Application | Grow tent,greenhouse,exhaustor |
| Selling units | Single item |
| Single package size | 25X25X21 cm |
| Single gross weight | 7.000 kg |
