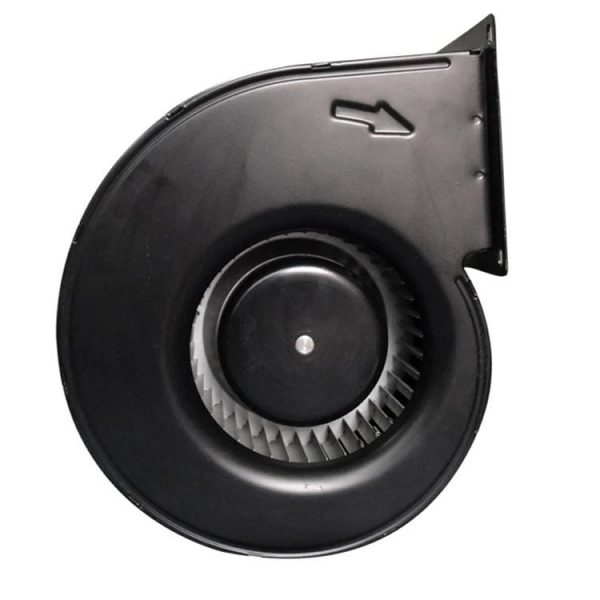

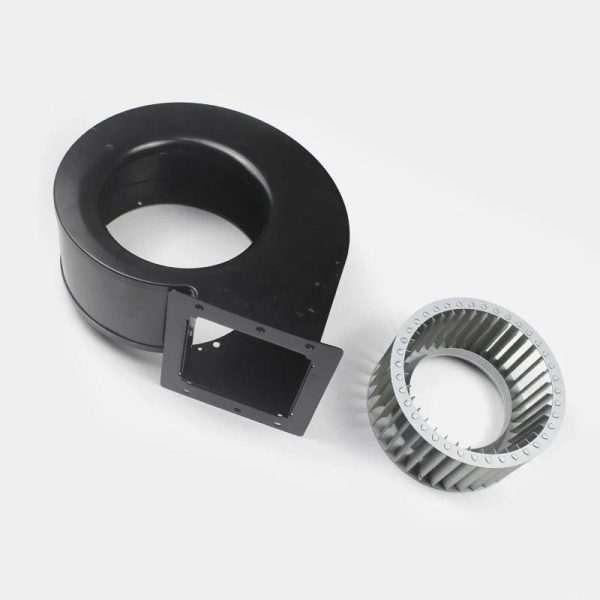

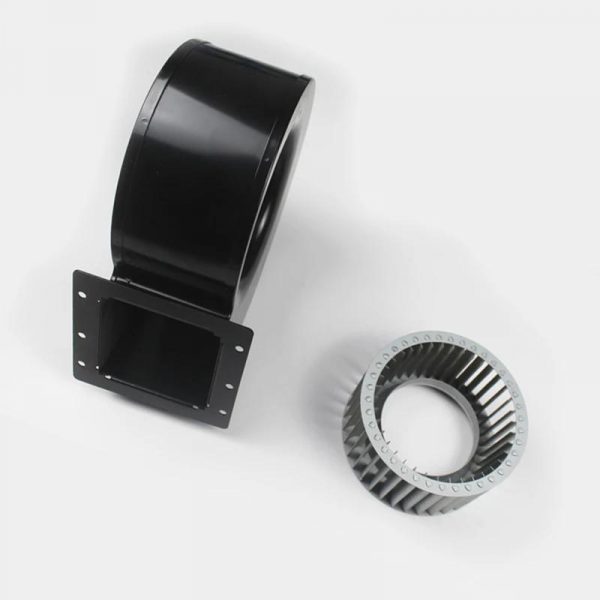

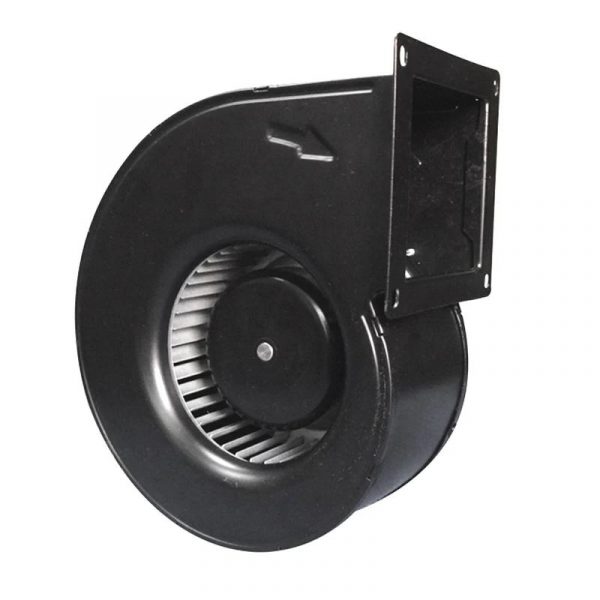

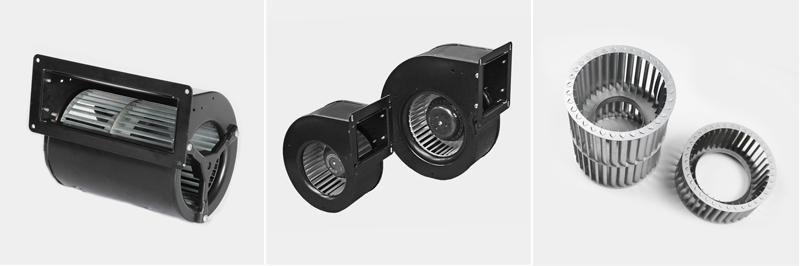

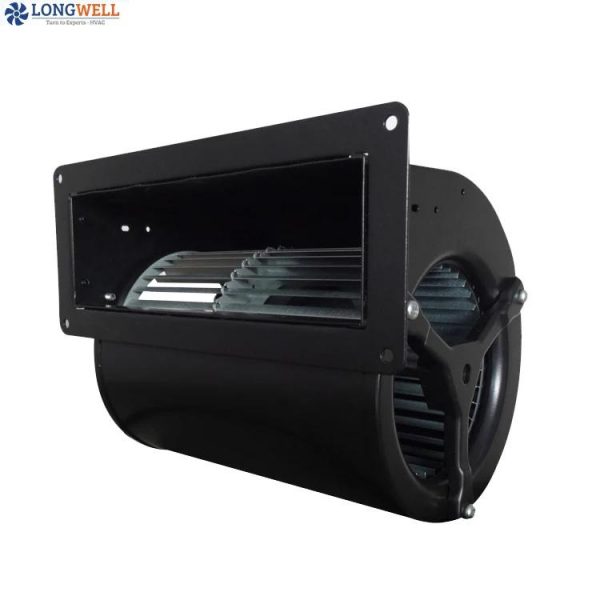

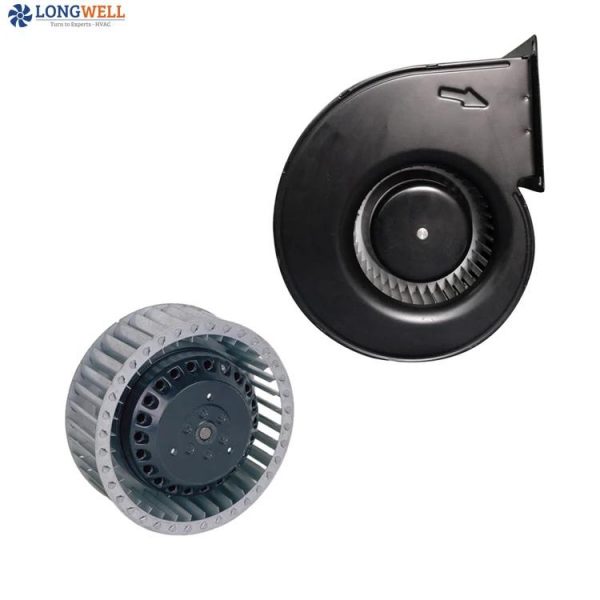

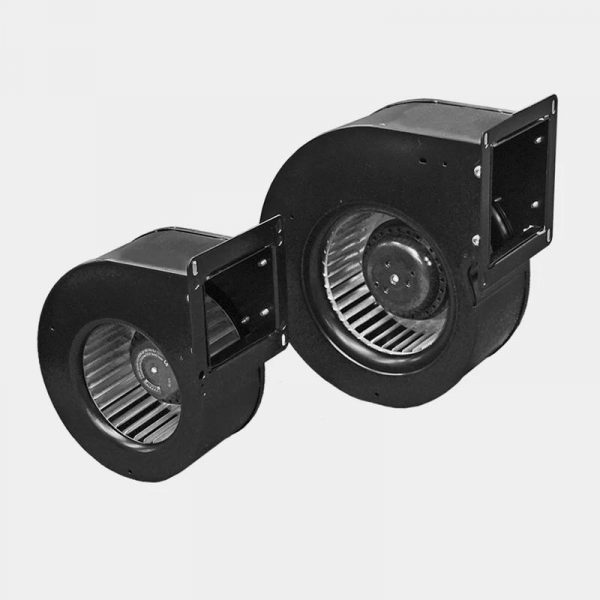

Product Description
- Size :120mm~180mm
- Voltage : 230 V / 115V ( 50Hz / 60 Hz )

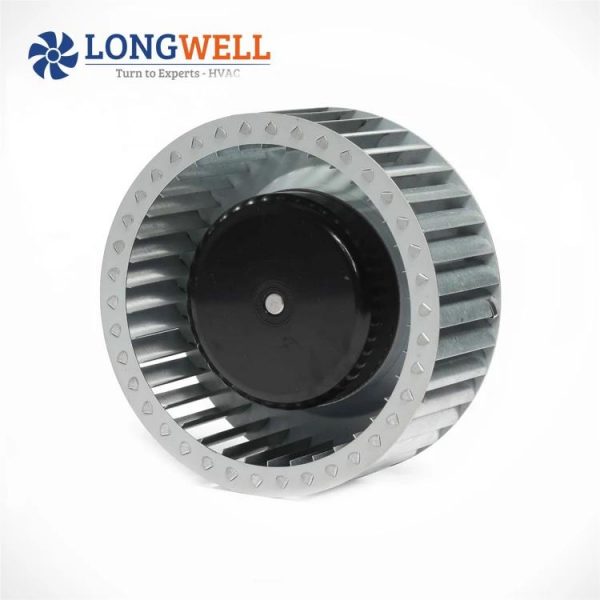

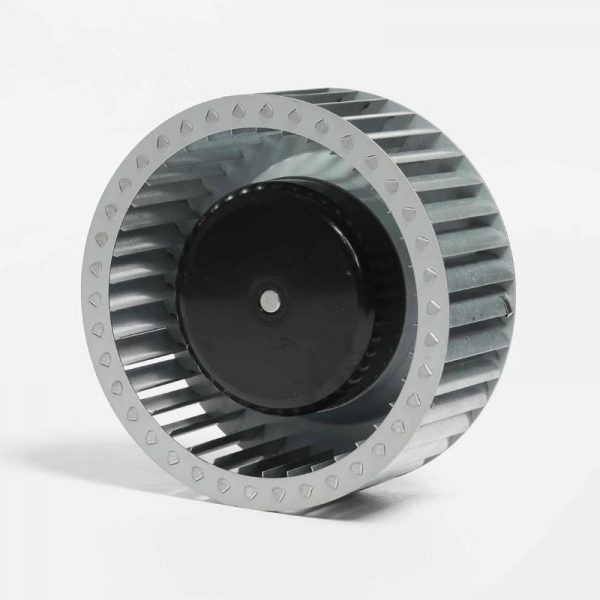

- Impeller Material: Galvanized Sheet Steel;
- Housing Material : Cast Iron / Galvanized Metal;
- Protection: Thermal Overload Protector(TOP)wired internally;
- Type of Protection: IP44;
- Direction of Rotation: Clockwise,see on the lead;
- Bearing Type: Ball Bearing;
- Approvals: CE,UL,CCC;
- Operation Model: (S1);
- Amb.Temp: -10~+60℃;
- Motor Insulation: B/F.
| Model | Voltage | Frequency | Power | Current | Speed | Air Flow | Air pressure | Noise | Capacitor |
| V | V | W | A | RPM | m³/h | Pa | dBA | μF | |
| LWFBSH120-4E | 230 | 50 | 45 | 0.2 | 1460 | 255 | 400 | 53 | 2 |
| LWFBSH120-2E | 230 | 50 | 81 | 0.37 | 2670 | 135 | 190 | 60 | 2 |
| LWFBSH133-4E | 230 | 50 | 48 | 0.21 | 1470 | 260 | 405 | 55 | 2 |
| LWFBSH133-2E | 230 | 50 | 85 | 0.39 | 2680 | 140 | 210 | 62 | 2 |
| LWFBSH140-4E | 230 | 50 | 55 | 0.26 | 1470 | 230 | 230 | 56 | 2 |
| LWFBSH140-2E | 230 | 50 | 110 | 0.51 | 2680 | 430 | 460 | 63 | 3 |
| LWFBSH150-4E | 230 | 50 | 55 | 0.35 | 1460 | 295 | 315 | 59 | 3 |
| LWFBSH150-2E | 230 | 50 | 110 | 0.76 | 2650 | 525 | 545 | 65 | 6 |
| LWFBSH160-4E | 230 | 50 | 69 | 0.36 | 1460 | 435 | 355 | 59 | 3 |
| LWFBSH160-2E | 230 | 50 | 203 | 0.91 | 2460 | 610 | 585 | 53 | 6 |

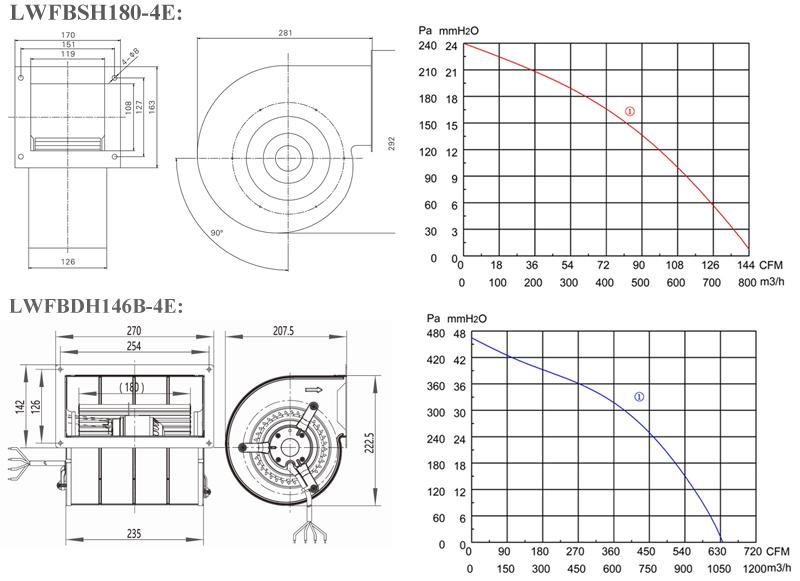

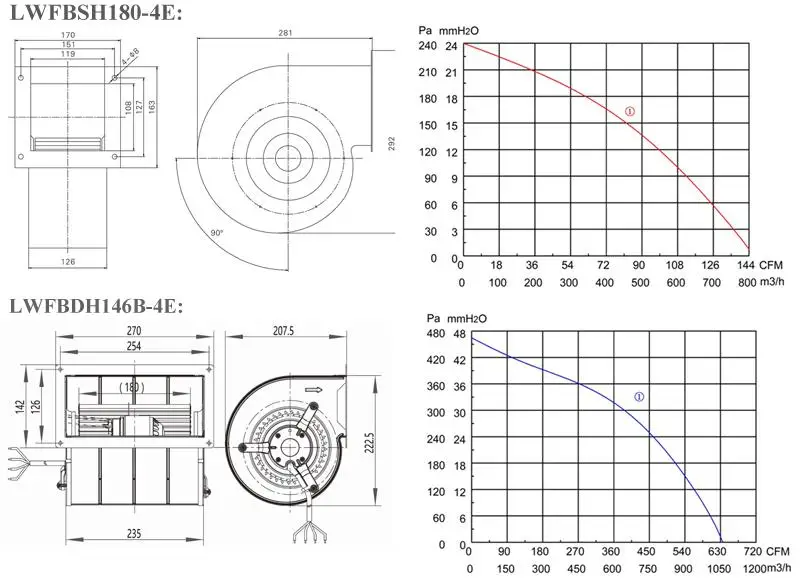

| LWFBSH180-4E | 230 | 50 | 145 | 0.66 | 1400 | 810 | 240 | 63 | 4 |
| LWFBSH180-4D | 380 | 50 | 145 | 0.36 | 1400 | 810 | 240 | 63 | / |
| LWFBDH120-4E | 230 | 50 | 105 | 0.48 | 1720 | 460 | 310 | 60 | 2 |
| LWFBDH133A-4E | 230 | 50 | 180 | 0.81 | 1500 | 650 | 390 | 68 | 4 |
| LWFBDH133B-4E | 230 | 50 | 260 | 1.16 | 1450 | 960 | 435 | 68 | 6 |
| LWFBDH146B-4E | 230 | 50 | 280 | 1.25 | 1350 | 1050 | 465 | 69 | 8 |
Inquiry Us ,please click here .

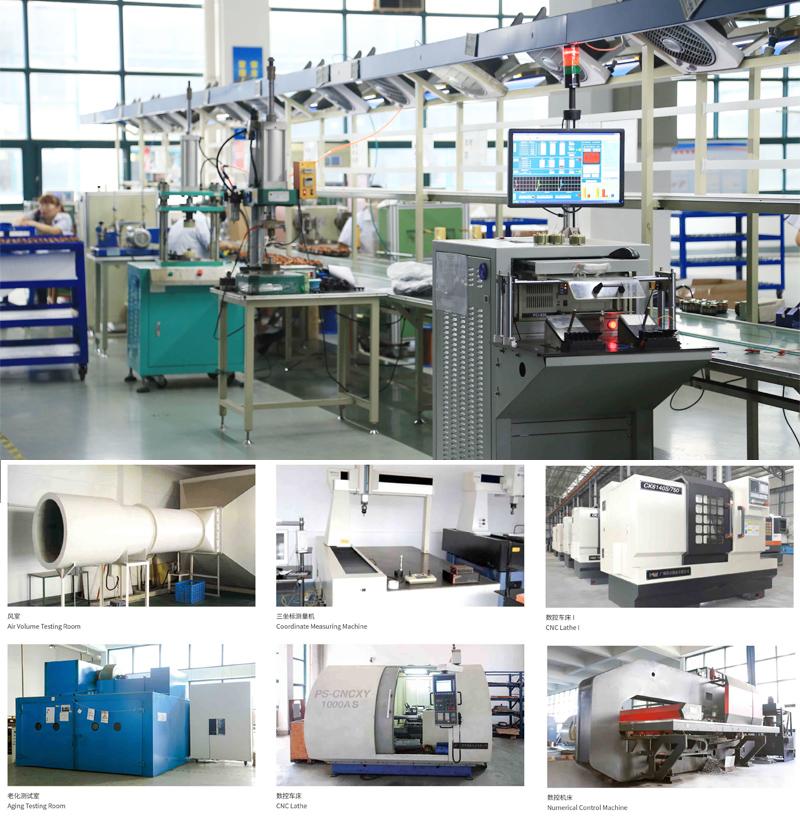

Company Information
Longwell co.,ltd are typically purchased as OEM solutions by manufacturering companies or as aftermarket solutions and replacement parts for HVAC,FCU,FFU,AHU system .

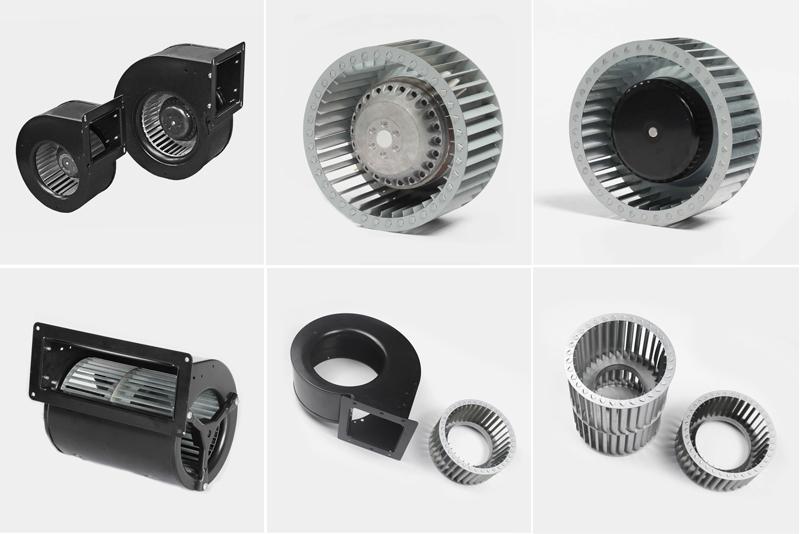

Customers can select form the large variety of preexisting products developed by Longwell including but not limited to :
AC motorized centrifugal fans & blowers ;
Brushless DC/EC motorized backward / forward centrifugal fans & blowers ;
cross flow fan / wheel / blower with motor ( plastic or metal metal ) ;
axial fans / blades with plastic or metal material ;
Shaded Pole Motors ;
Duct fans ;
Parts or assemble parts or repair parts for HVAC,AHU,FCU,FFU,etc.
Buying Guides
Packaging & Shipping

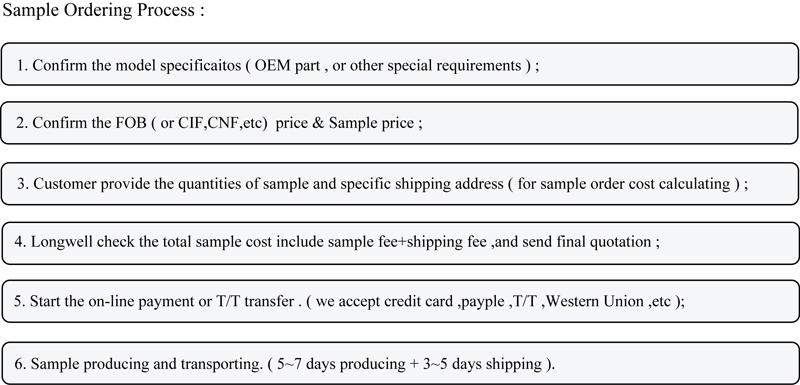

- Sample :7~10 days ;
- Bulk order : 18~23 days after receiving order information .

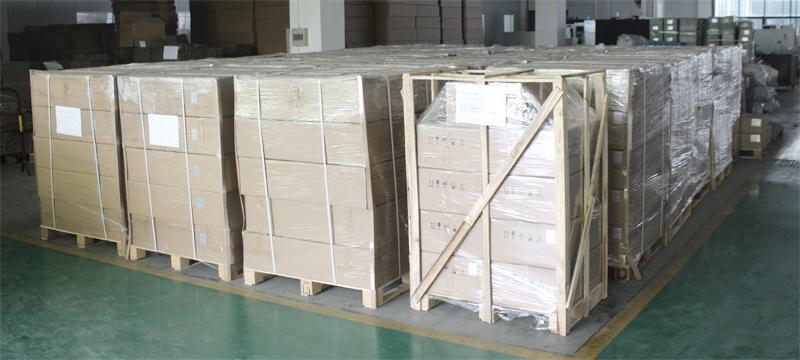

- Package : Standard exporting package , carton with pallet . ( package can be customized )
- Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .
