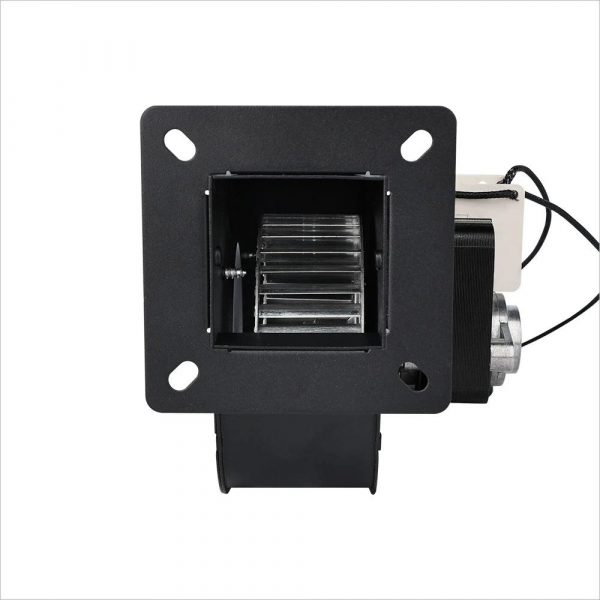

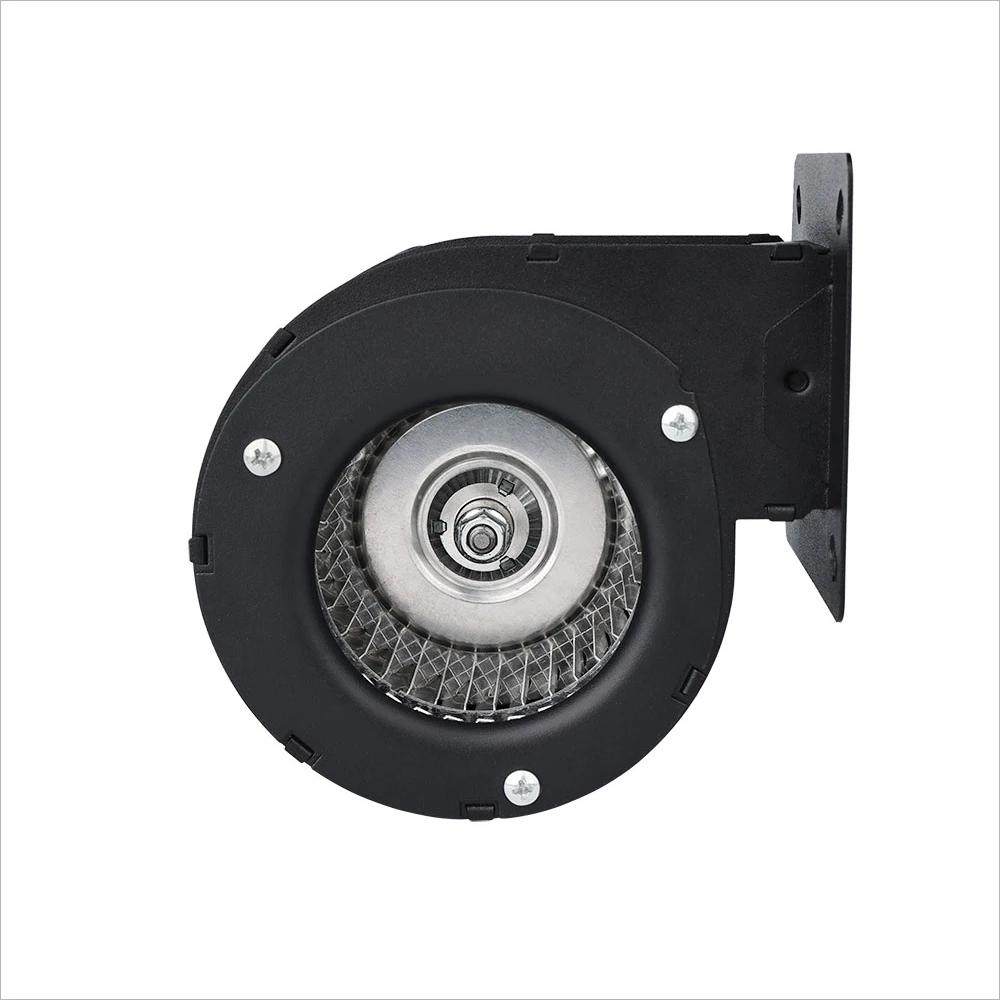

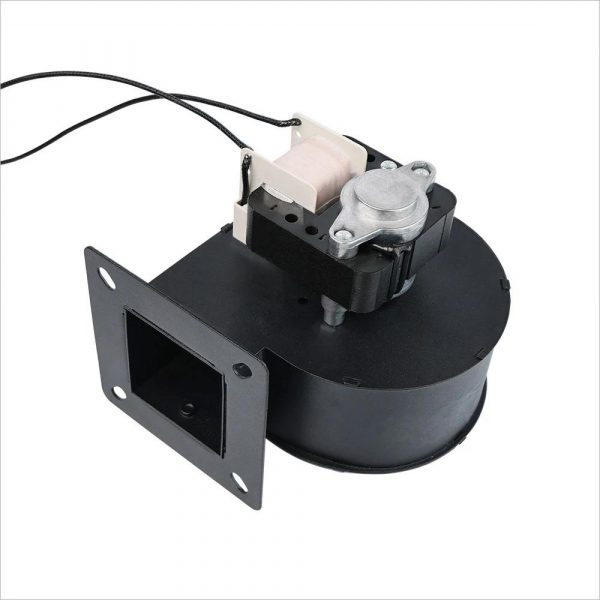

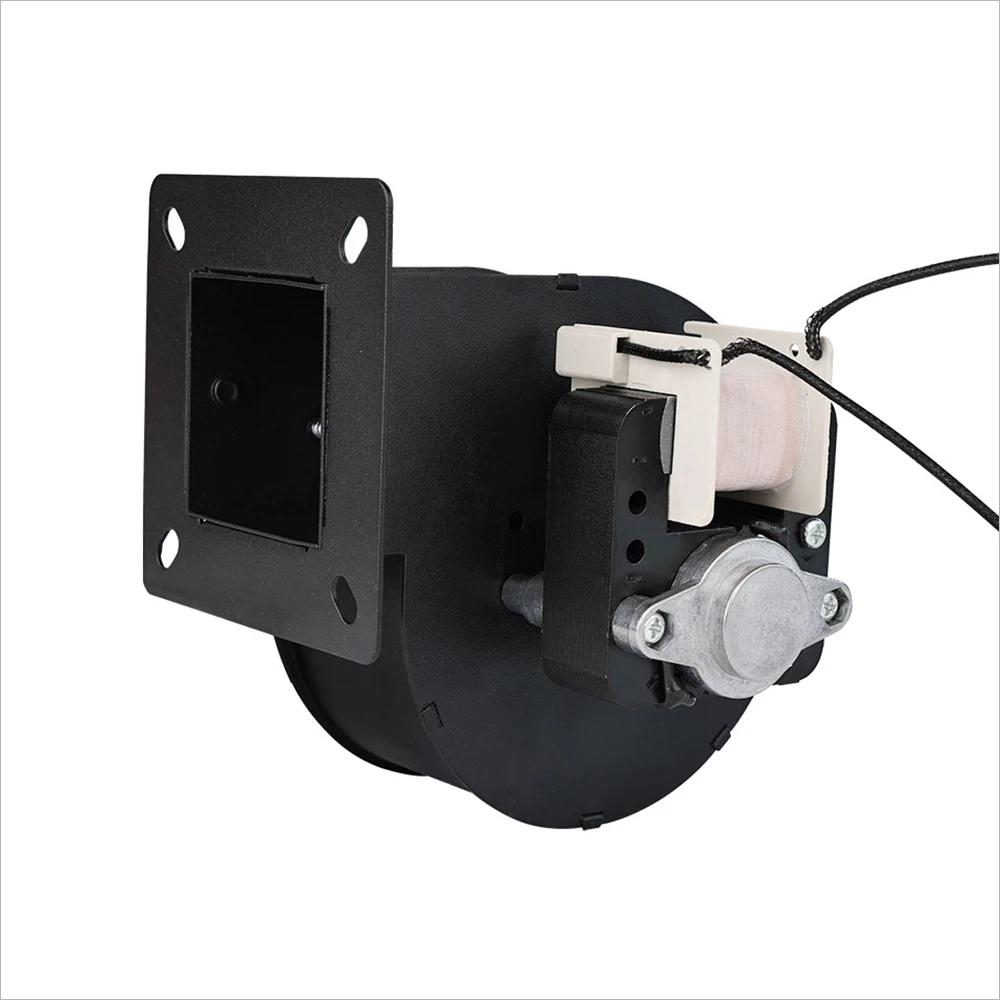

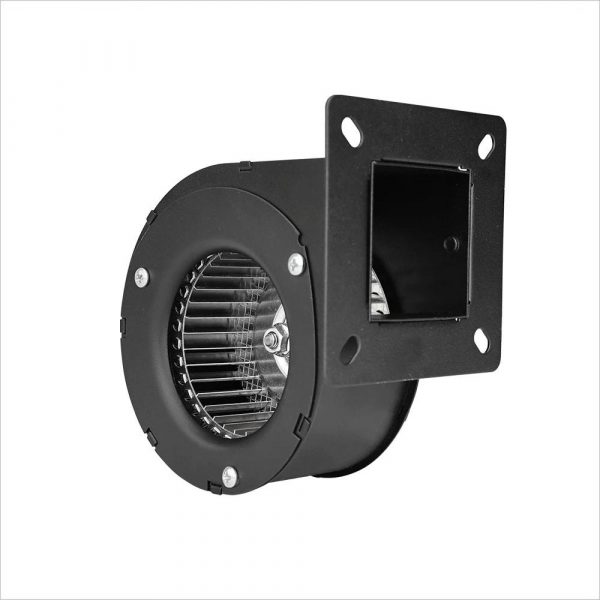

LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 22 W, for Boilers, Gas Transmission – LWGA22S-01

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsBoiler ApplicationsCentrifugal Blower FanGas Blowers
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Voltage:
AC 220V/50Hz
Phase Number:
Single-phase
Number of Poles:
2 Poles
Insulation Class:
F
Material:
Galvanized sheet
Bearing:
Ball bearing
Direction of Rotation:
C.W (From the blade end)
Application:
Pellet stove,charcoal stove,heating boiler,etc.

Recommend Products

Product Applications

Company Profile

Certifications

FAQ

Why Choose Us

Other Products

Additional information

Voltage

220V
Blade Material

Galvanized sheet
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWGA22S-01
warranty

1 Year
After-sales Service Provided

Online support
Product name

Blower Fan
power input

220V
Power

22W
Usage

Gas Blower
Application

Gas Transmission
Feature

High Efficiency
Material

Galvanized sheet
Speed

custom
Keyword

gas blower
Motor

Copper Motor
Selling units

Single item
Single package size

5X5X5 cm
Single gross weight

5.000 kg
