AT 15-11LK — Belt-Driven Forward-Curved Centrifugal Blower
The LONGWELL AT 15-11LK is a forward-curved (multi-wing) centrifugal blower from the AT belt-driven commercial range. Per the AT series type code, 15 is the impeller diameter designation and 11 the impeller width designation; Construction type LK (AT series type code). The casing measures 569×609 mm housing (dimensions A–B below). Because the fan is belt-driven, the duty point is set by the pulley ratio you choose — the figures below are the operating envelope printed on the AT 15-11 catalogue performance chart, not a single rated point.
LONGWELL states the AT series covers 1,000–40,000 m³/h overall, and is characterised by compact construction, high efficiency and low noise. Catalogue performance is quoted at standard conditions (inlet pressure 101.325 kPa).
Performance envelope
| Volume flow rate | 1,600 – 12,000 m³/h |
| Total pressure Pt | 150 – 1,300 Pa |
| Rotational speed | 600 – 1,500 rpm |
| Impeller power | 0.25 – 5.5 kW |
| Sound pressure level | 70 – 90 dB(A) |
| Total efficiency η | up to 60% |
The catalogue performance chart shows a separate LK–RK duty zone for the K build, which extends above the standard L–R zone.
Send us your required airflow and static pressure and our engineers will return the matching speed, pulley set and motor rating.
Dimensions (mm)
| A | 569 mm |
| B | 609 mm |
| C | 404 mm |
| D | 342 mm |
| E | 495 mm |
| I | 570 mm |
| J | 373 mm |
| K | 399 mm |
| L | 423 mm |
| M | 71.8 mm |
| N | 264 mm |
| W | 40 mm |
| X | 33 mm |
| X1 | 197 mm |
| X2 | 211 mm |
| X3 | 201 mm |
| H1 | 380 mm |
| H2 | 309 mm |
| H3 | 272 mm |
| d | 30 mm |
| t | 8 mm |
| t1 | 7 mm |
Letter codes correspond to the AT series dimensional drawing shown below. All values from the LONGWELL AT series catalogue.

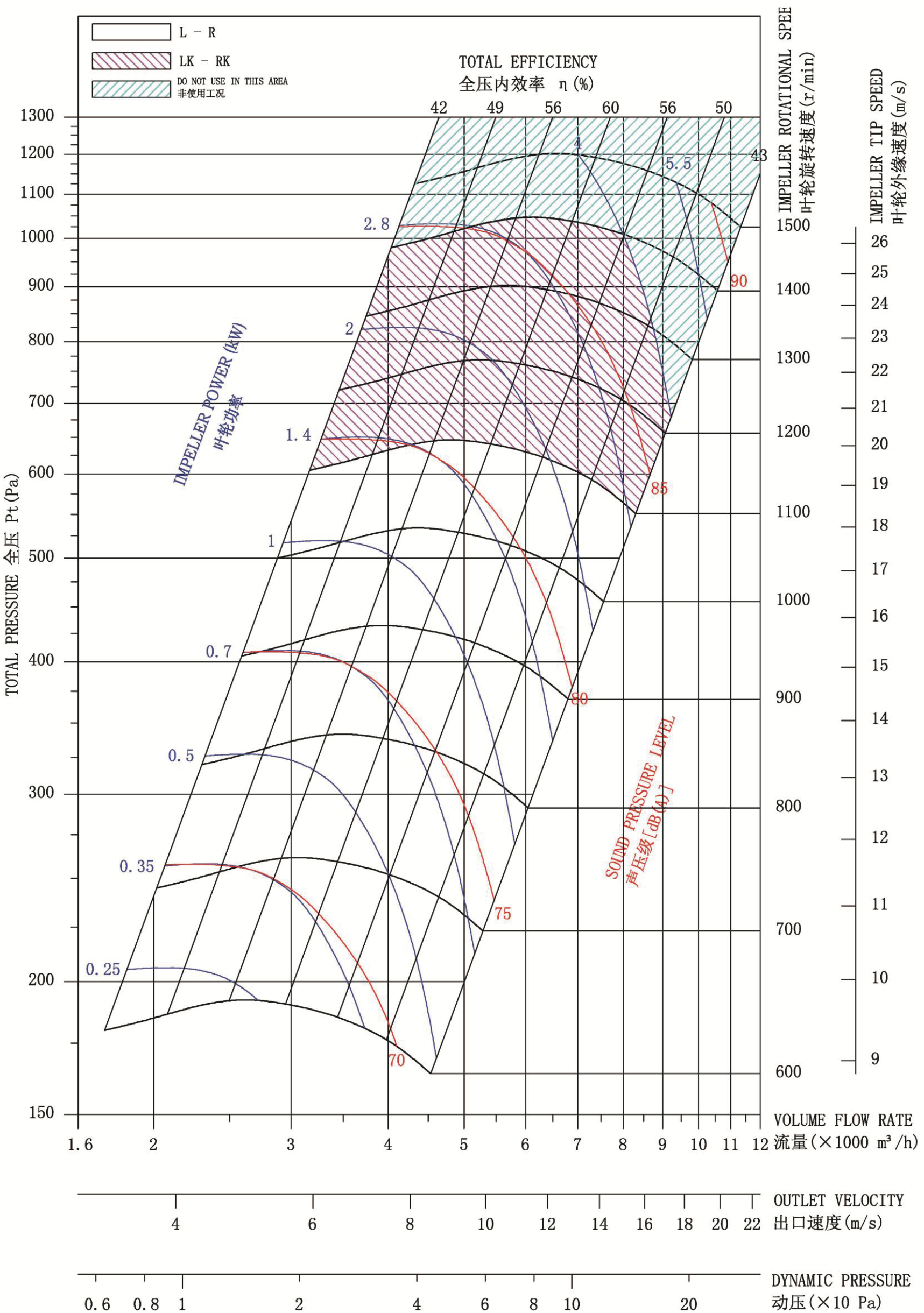

Performance curves

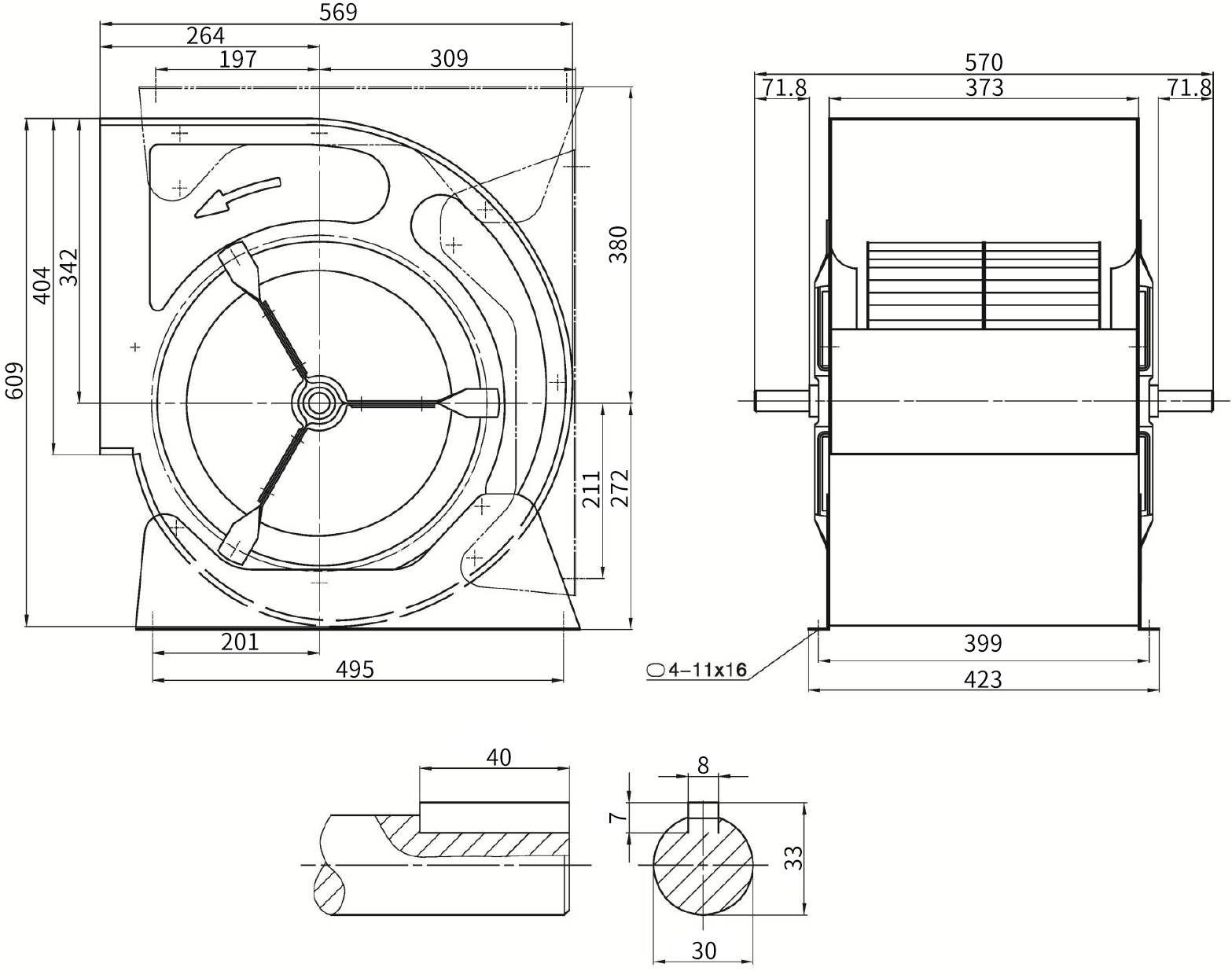

Dimensional drawing
