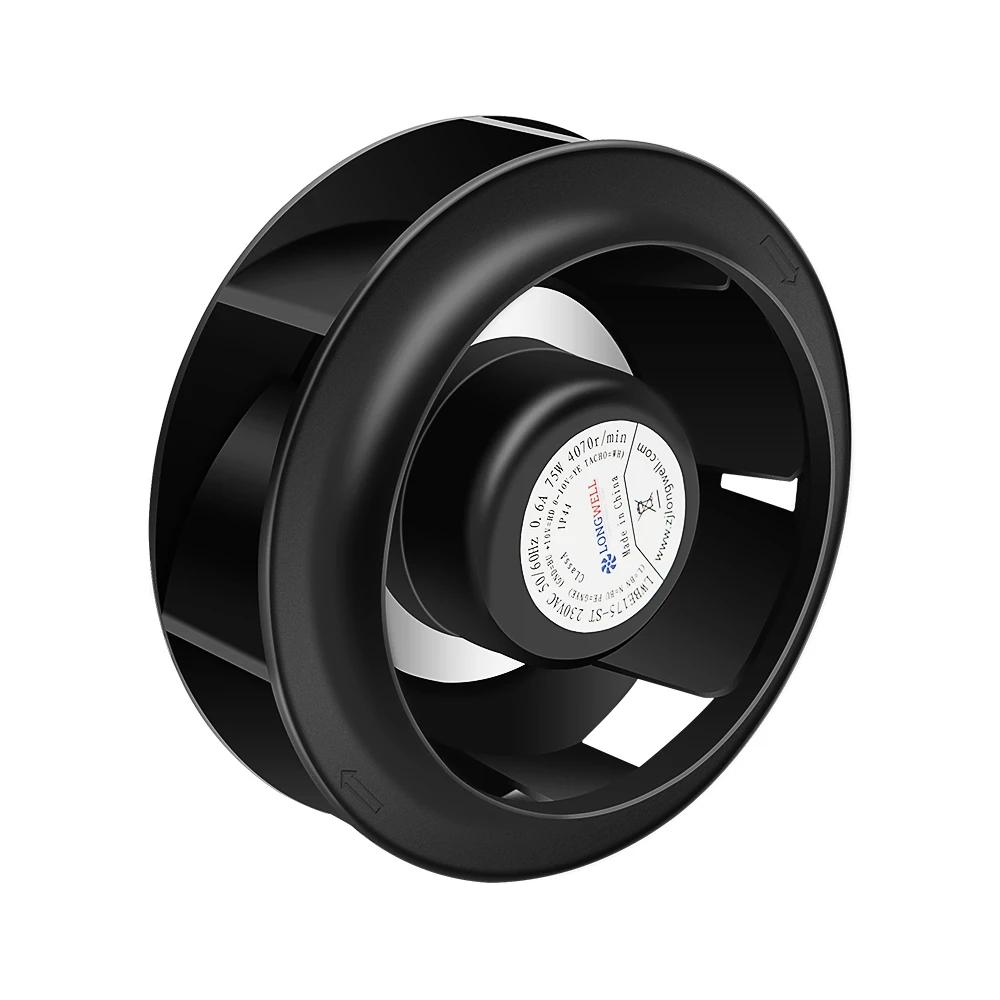

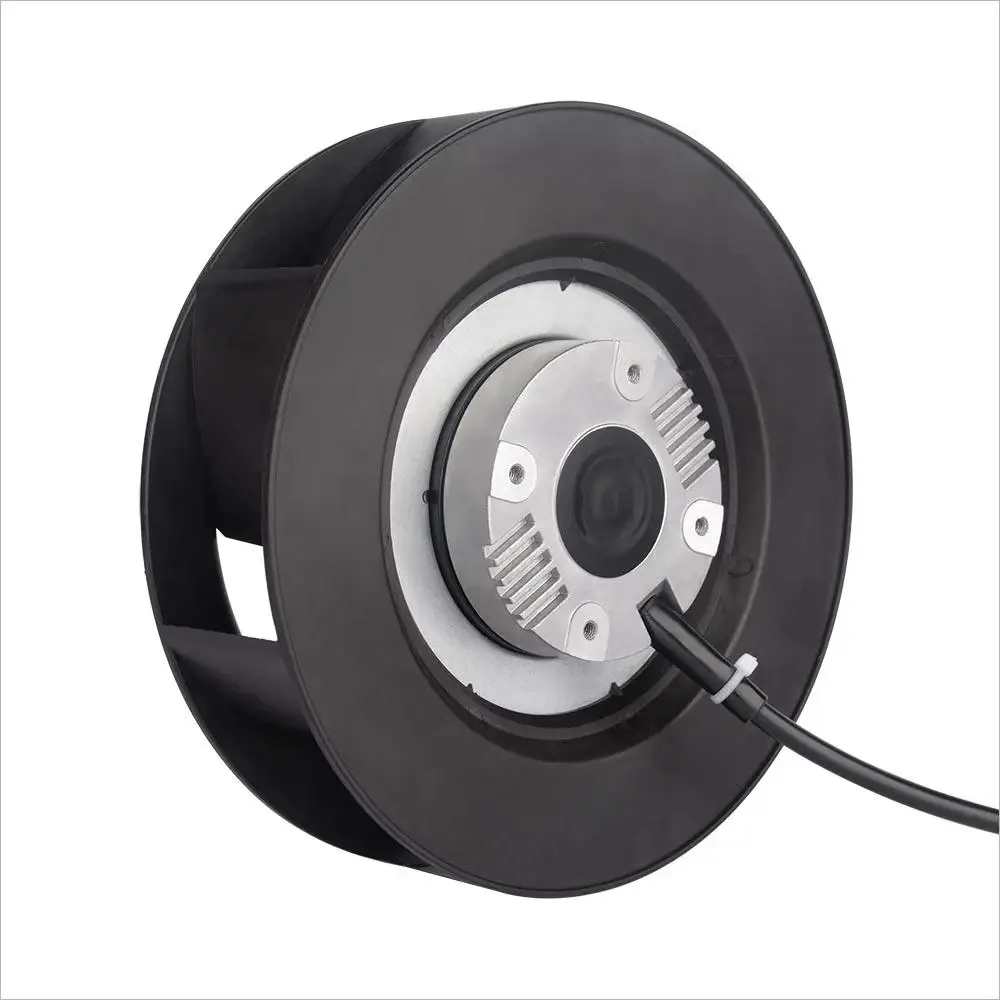

LONGWELL 175mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, Low Noise, for AHU, Cold Storage, Air Purifiers

$ 80

Category: Tags: , ,
CategoryCentrifugal Fans
TagsAir Handling UnitsCentrifugal FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Fans range. The Fan Selector lists every LONGWELL centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

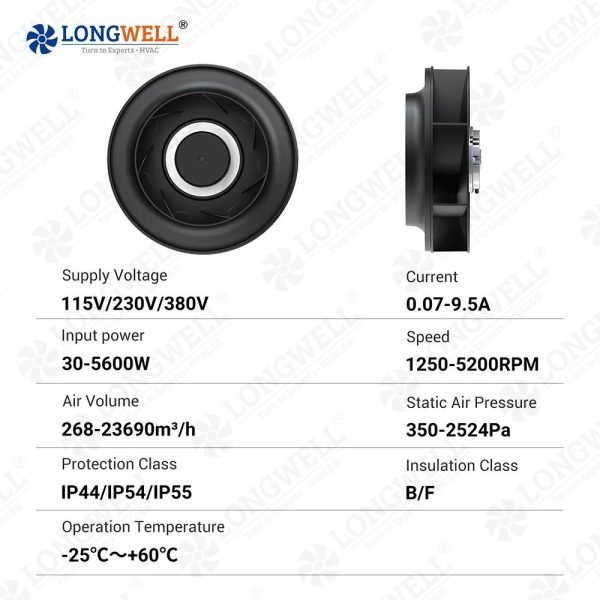

Description

Types :

175mm EC centrifugal fan low noise High-performance centrifugal fan for use in air handling
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

175mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

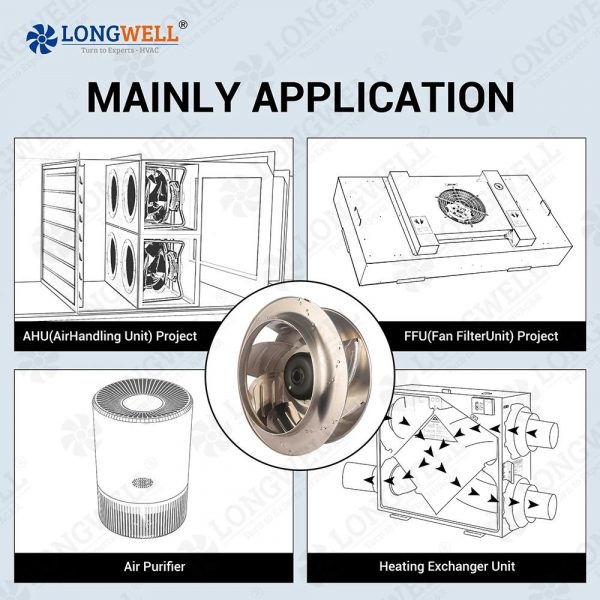

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 175mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, Low Noise, for AHU, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

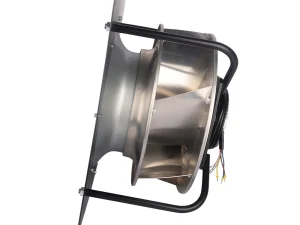

LWKXF2A Volute Casing General Ventilation Fan/LWKXF2B Kitchen Exhaust DedicatedLWKXF2A Volute Casing General Ventilation Fan/LWKXF2B Kitchen Exhaust DedicatedView & InquireLONGWELL 350mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, 1100 W, for AHU, FFU, Data Center CoolingLONGWELL 350mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, 1100 W, for AHU, FFU, Data Center Cooling4 in230 V4000 RPMView & InquireLONGWELL AT 15-15R Belt-Driven Forward-Curved Centrifugal Blower — 1,500–18,000 m³/h, up to 1,500 PaLONGWELL AT 15-15R Belt-Driven Forward-Curved Centrifugal Blower — 1,500–18,000 m³/h, up to 1,500 Pa575×619 mm1 m³/hMotor selected to duty — 220/380/415 V availableView & InquireLONGWELL 102mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP54, 2812 m³/h Airflow, 515 Pa Static Pressure – LWBA4E355-102NS-02LONGWELL 102mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP54, 2812 m³/h Airflow, 515 Pa Static Pressure – LWBA4E355-102NS-02102 mm2812 m³/h230 VDatasheet, curve & drawing →LONGWELL 102mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 380V IP54, 2936 m³/h Airflow, 464 Pa Static Pressure – LWBA4D400-102NT-03LONGWELL 102mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 380V IP54, 2936 m³/h Airflow, 464 Pa Static Pressure – LWBA4D400-102NT-03102 mm2936 m³/h380 VDatasheet, curve & drawing →LONGWELL 280mm Centrifugal Blower Fan, Industrial Centrifugal FanLONGWELL 280mm Centrifugal Blower Fan, Industrial Centrifugal Fan280 mmView & InquireLONGWELL 72mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 1184.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G225-072PS-02LONGWELL 72mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 1184.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G225-072PS-0272 mm1184.5 m³/h230 VView & InquireLONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 505 m³/h Airflow, 402 Pa Static Pressure – LWFA2E133-092DS-02LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 505 m³/h Airflow, 402 Pa Static Pressure – LWFA2E133-092DS-0292 mm505 m³/h230 VDatasheet, curve & drawing →LONGWELL 72mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 854.9 m³/h Airflow, 875.5 Pa Static Pressure – LWFE3G190-072PS-02LONGWELL 72mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 854.9 m³/h Airflow, 875.5 Pa Static Pressure – LWFE3G190-072PS-0272 mm854.9 m³/h230 VView & InquireLONGWELL 220mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for AHU, Cold Storage, Air PurifiersLONGWELL 220mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for AHU, Cold Storage, Air PurifiersView & Inquire
