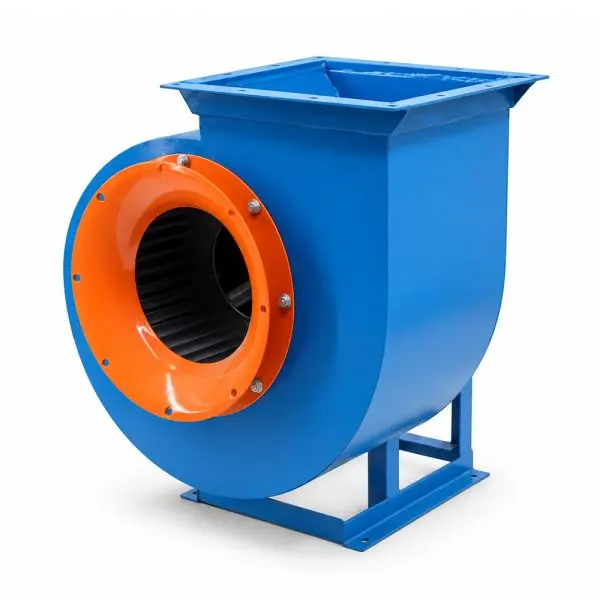

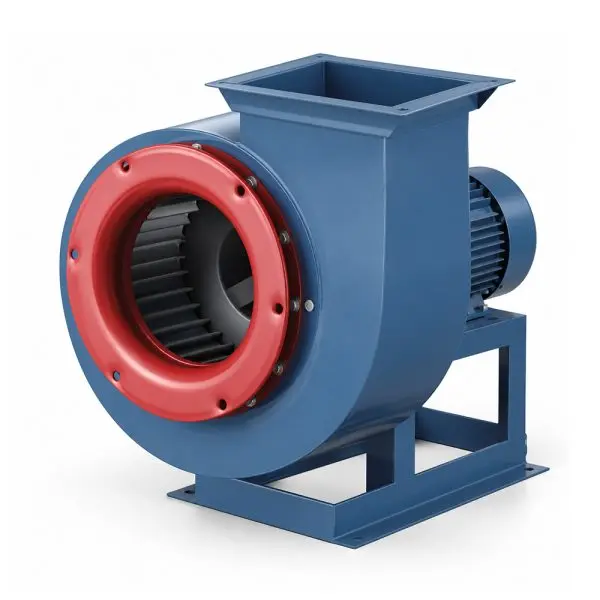

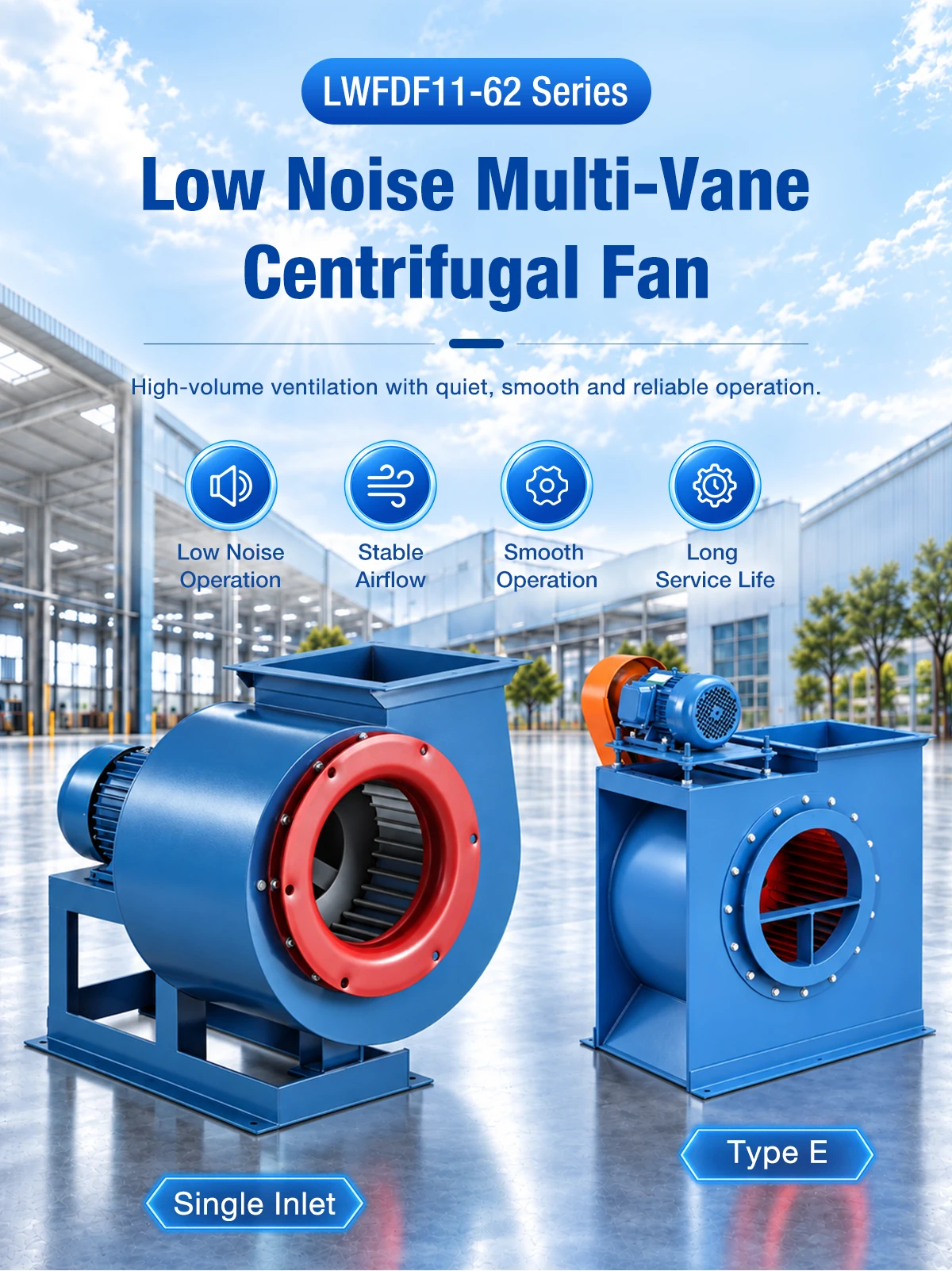

Low-noise Multiple-vane Centrifugal Fan
High-volume ventilation with quiet, smooth and reliable operation. Engineered for commercial canteens, hotels, plastics machinery, and chemical equipment requiring strict acoustic standards.
Why Choose the LWFDF11-62 Series
Built for high-volume ventilation and quiet operation, combining multiple-vane aerodynamics with rugged carbon steel construction.
Multiple-Vane Impeller
Densely arranged forward-curved blades move high volumes of air efficiently for ventilation, heat removal, and steady exhaust systems.
Thickened Carbon Steel
Fine craftsmanship spray painting provides wear and corrosion resistance, creating a ruggedly reinforced, shockproof housing structure.
All-Copper Motor
Precision machine-wound with high-grade, thick copper wire for stable running, low temperature rise, and long life.
Flexible Configurations
Multiple casing layouts and discharge orientations make equipment integration easier across diverse plant layouts.

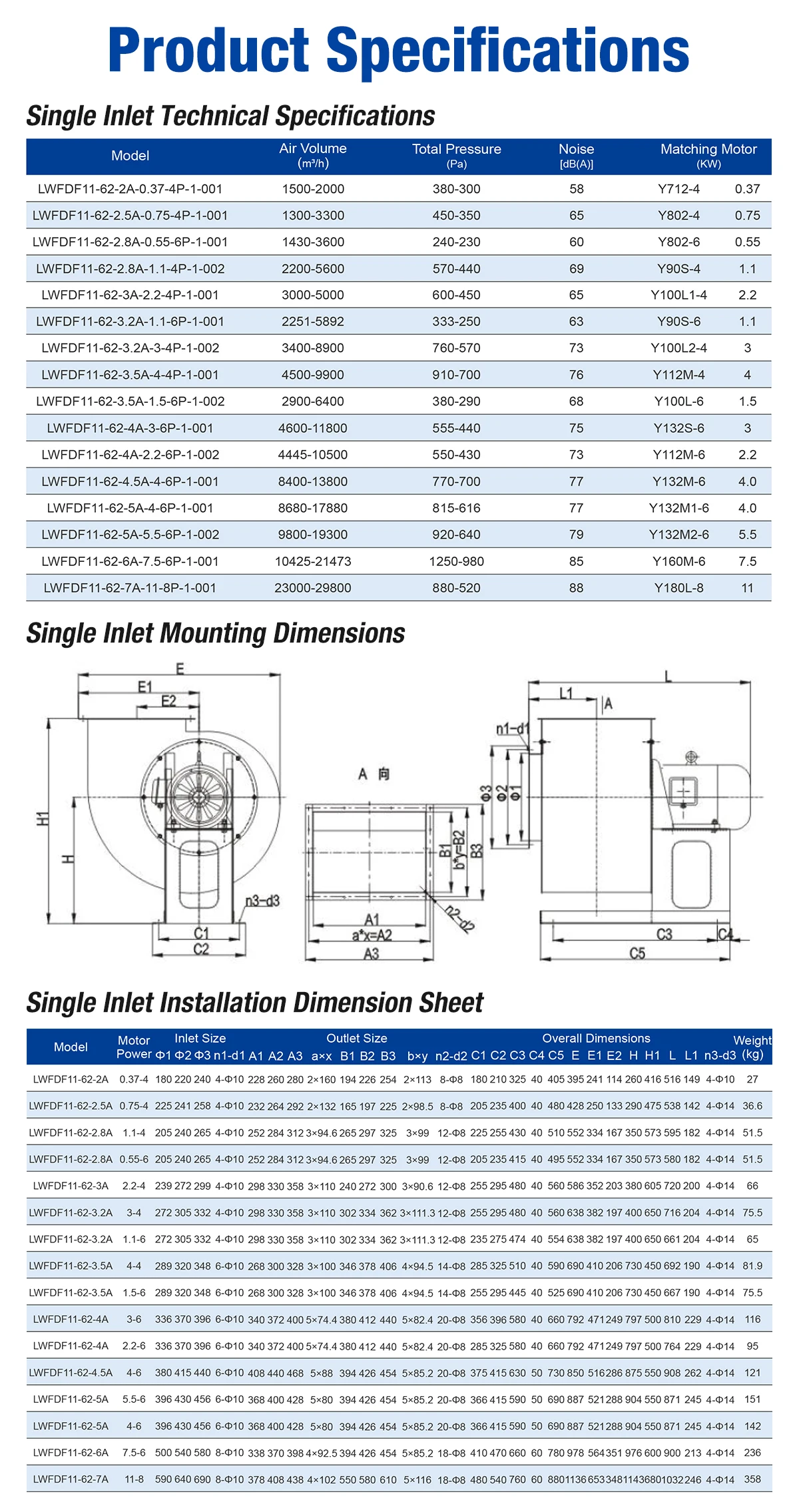

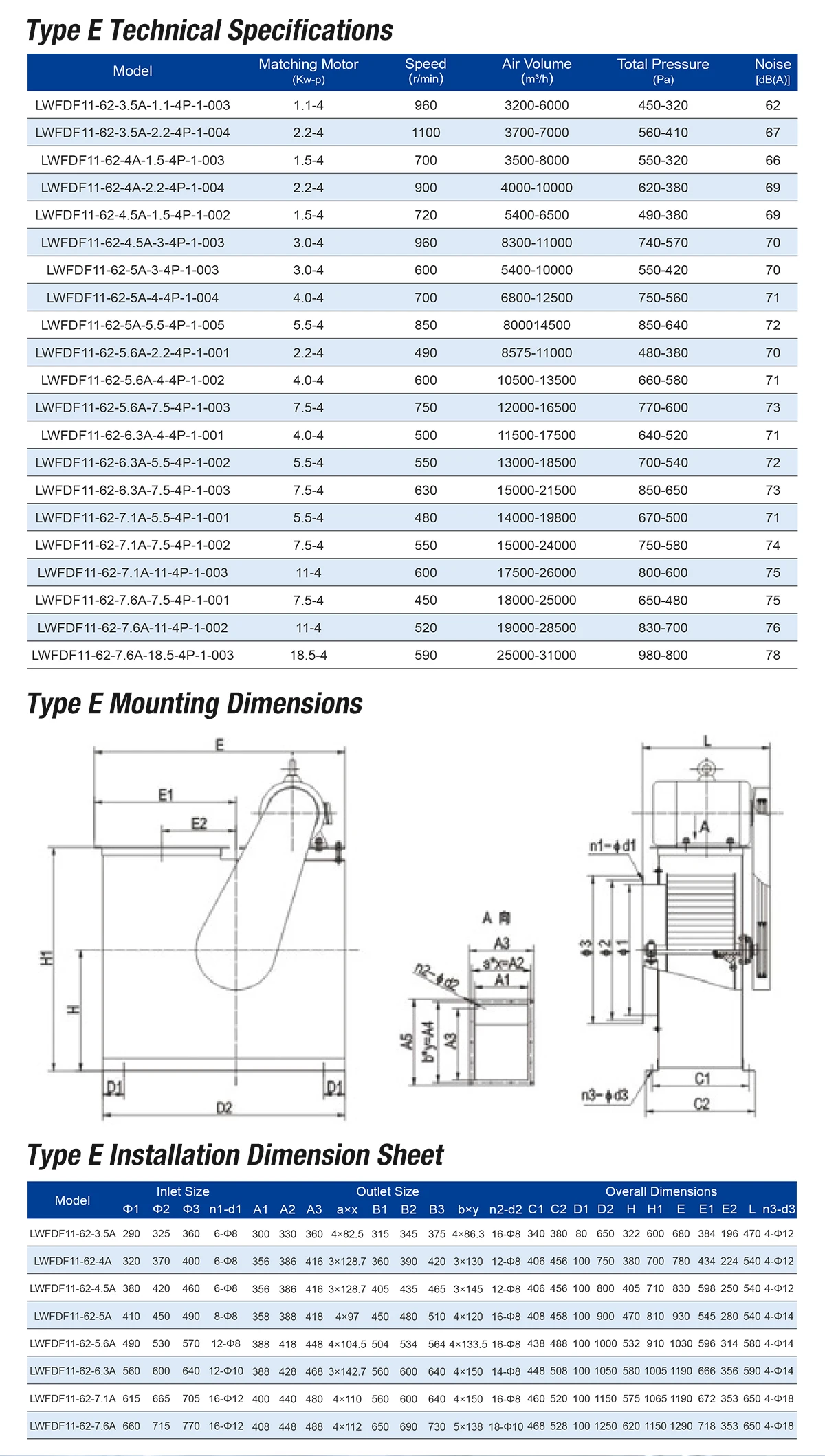

Product Specifications
Comprehensive technical parameters, performance ratings, and mounting dimensions for the LWFDF11-62 series.
| Model | Voltage (V) | Speed (r/min) | Power (kW) | Air Volume (m³/h) | Total Pressure (Pa) | Noise [dB(A)] |
|---|---|---|---|---|---|---|
| LWFDF11-62-1.5A-0.37-2P-1-001 | 220 | 2800 | 0.37 | 700-800 | 912-720 | ≤72 |
| LWFDF11-62-1.5A-0.37-2P-3-002 | 380 | 2800 | 0.37 | 700-800 | 912-720 | ≤72 |
| LWFDF11-62-2A-1.1-2P-1-001 | 220 | 2800 | 1.1 | 1900-2500 | 1200-959 | ≤74 |
| LWFDF11-62-2A-1.1-2P-3-002 | 380 | 2800 | 1.1 | 950-1850 | 410-294 | ≤67 |
| LWFDF11-62-2A-0.25-4P-1-003 | 220 | 1450 | 0.25 | 1900-2500 | 1200-959 | ≤74 |
| LWFDF11-62-2A-0.25-4P-3-004 | 380 | 1450 | 0.25 | 950-1850 | 410-294 | ≤67 |
| LWFDF11-62-2.25A-1.5-2P-1-001 | 220 | 2800 | 1.5 | 2690-3550 | 1510-1213 | ≤75 |
| LWFDF11-62-2.25A-1.5-2P-3-002 | 380 | 2800 | 1.5 | 1349-2010 | 430-372 | ≤68 |
| LWFDF11-62-2.25A-0.37-4P-1-003 | 220 | 1450 | 0.37 | 2500-3800 | 1510-1213 | ≤75 |
| LWFDF11-62-2.25A-0.37-4P-3-004 | 380 | 1450 | 0.37 | 1349-2010 | 430-372 | ≤68 |

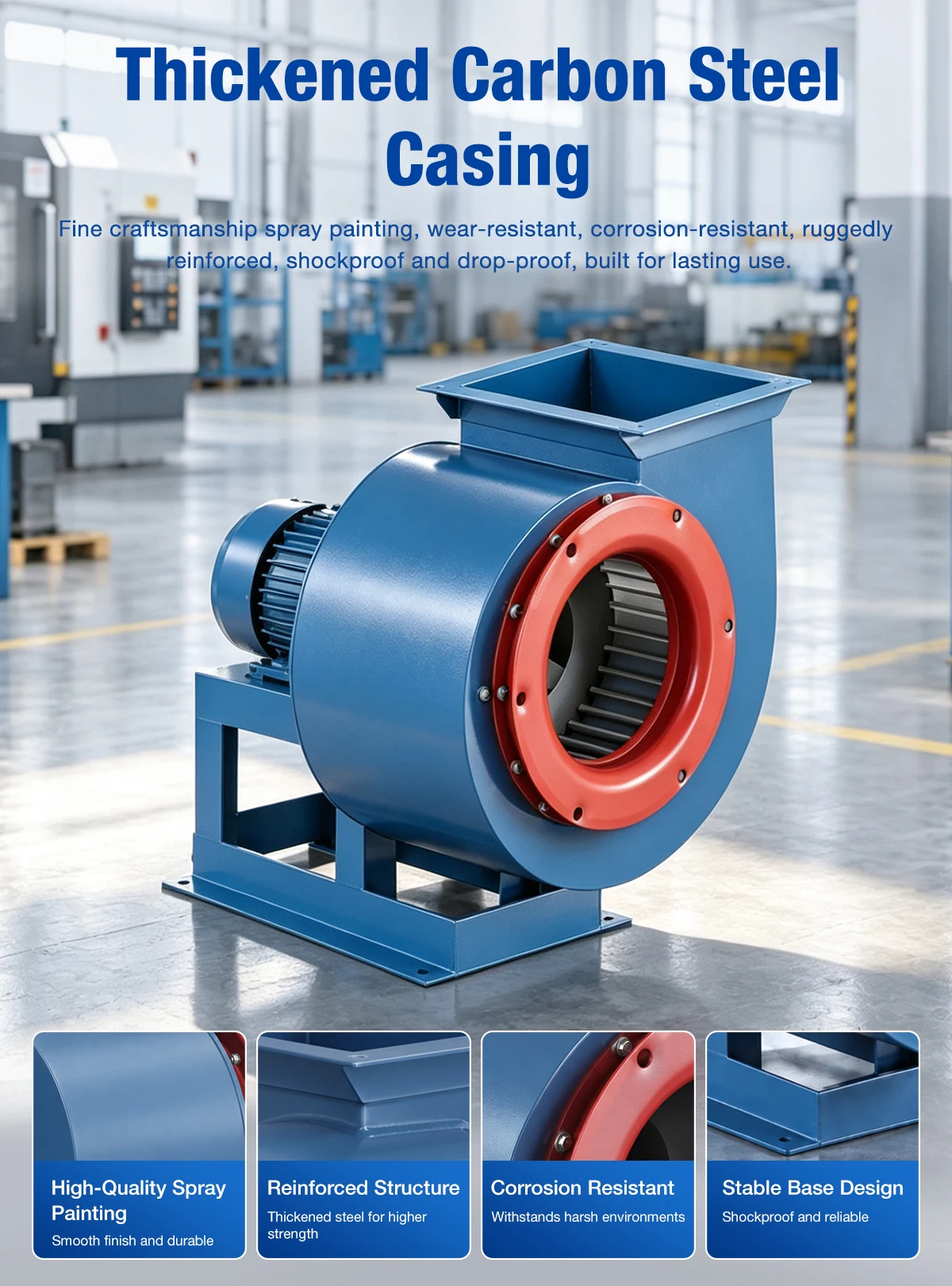

Thickened Carbon Steel Casing
Fine craftsmanship spray painting provides wear-resistant and corrosion-resistant protection, creating a ruggedly reinforced, shockproof and drop-proof housing built for lasting use.
Engineered to endure moisture and heavy industrial workloads while maintaining structural rigidity.
- Wear-resistant surface — stays in great condition in harsh environments
- Corrosion-resistant coating — withstands moisture and challenging conditions
- Ruggedly reinforced — sturdy structure for long-term reliability

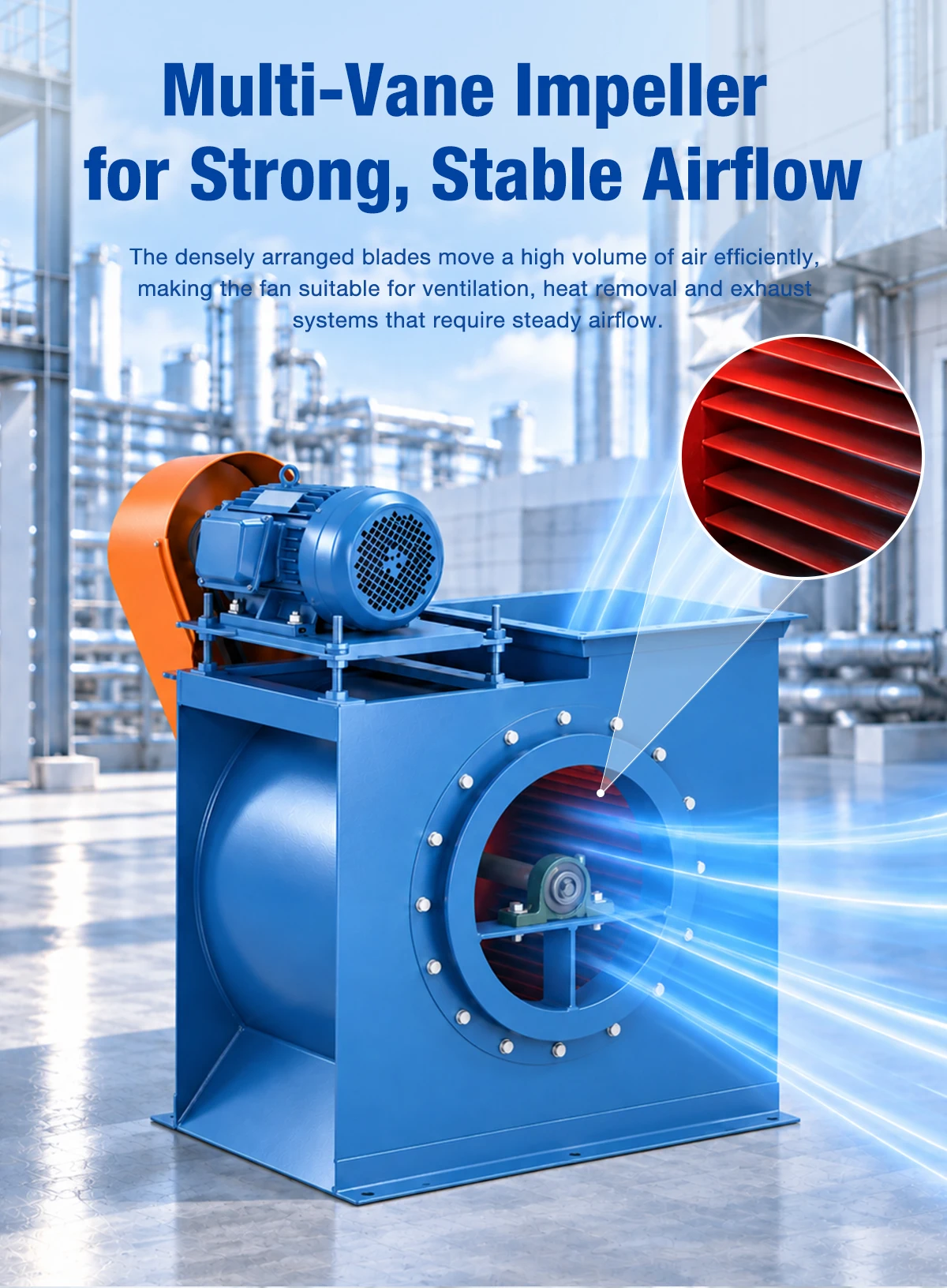

Multi-Vane Impeller for Strong, Stable Airflow
The densely arranged blades move a high volume of air efficiently, making the fan suitable for ventilation, heat removal and exhaust systems that require steady airflow.
Optimized blade geometry ensures smooth fluid dynamics and minimized internal turbulence.
- Densely arranged blades — moves high volumes of air efficiently
- Heat removal capability — ideal for high-temperature equipment exhaust
- Steady airflow delivery — maintains consistent pressure across systems

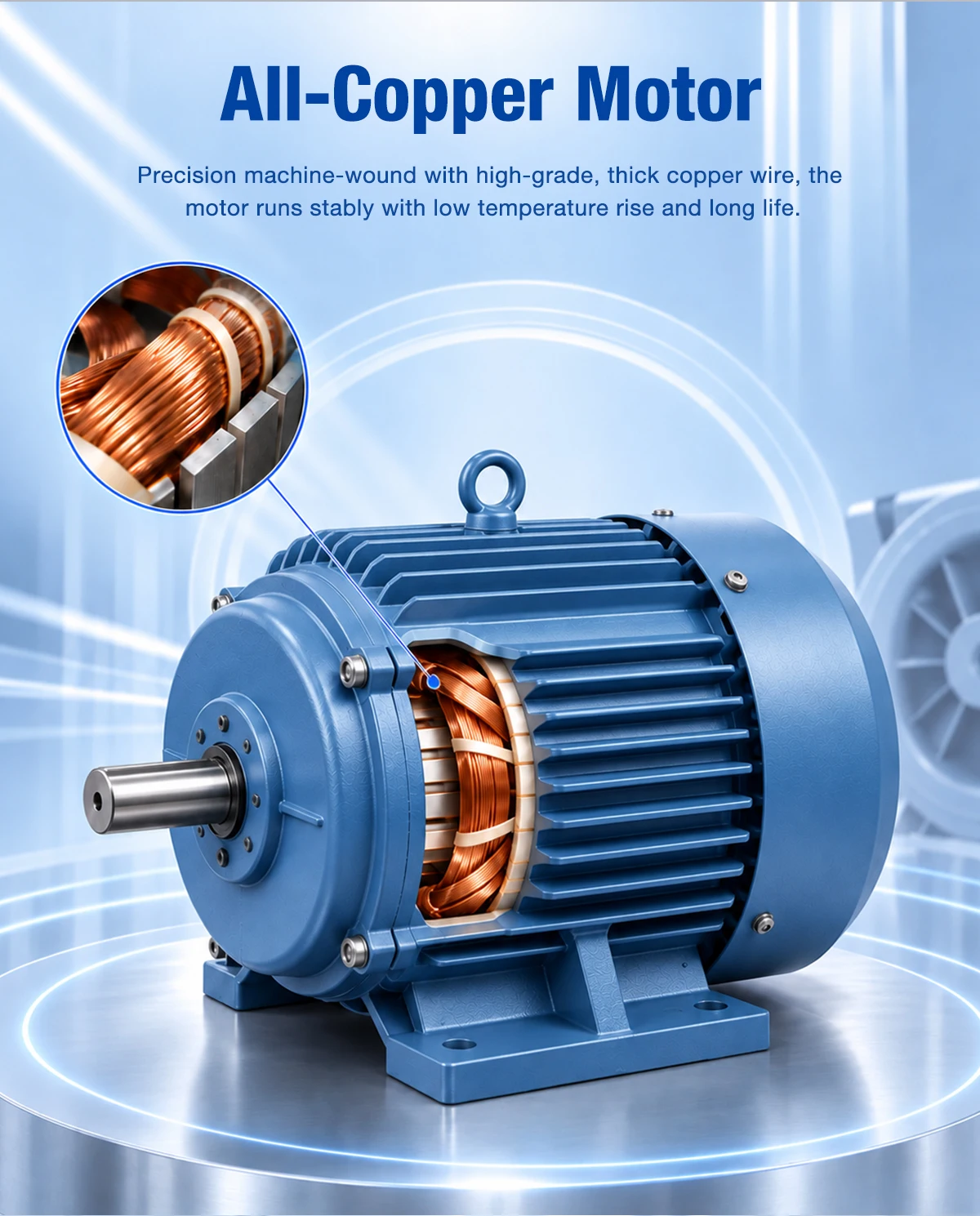

All-Copper Motor
Precision machine-wound with high-grade, thick copper wire, the motor runs stably with low temperature rise and long life.
Provides dependable power output under continuous industrial and commercial duty cycles.
- Precision machine-wound — high-grade, thick copper wire windings
- Low temperature rise — ensures extended thermal endurance
- Stable operation — dependable power for heavy-duty running

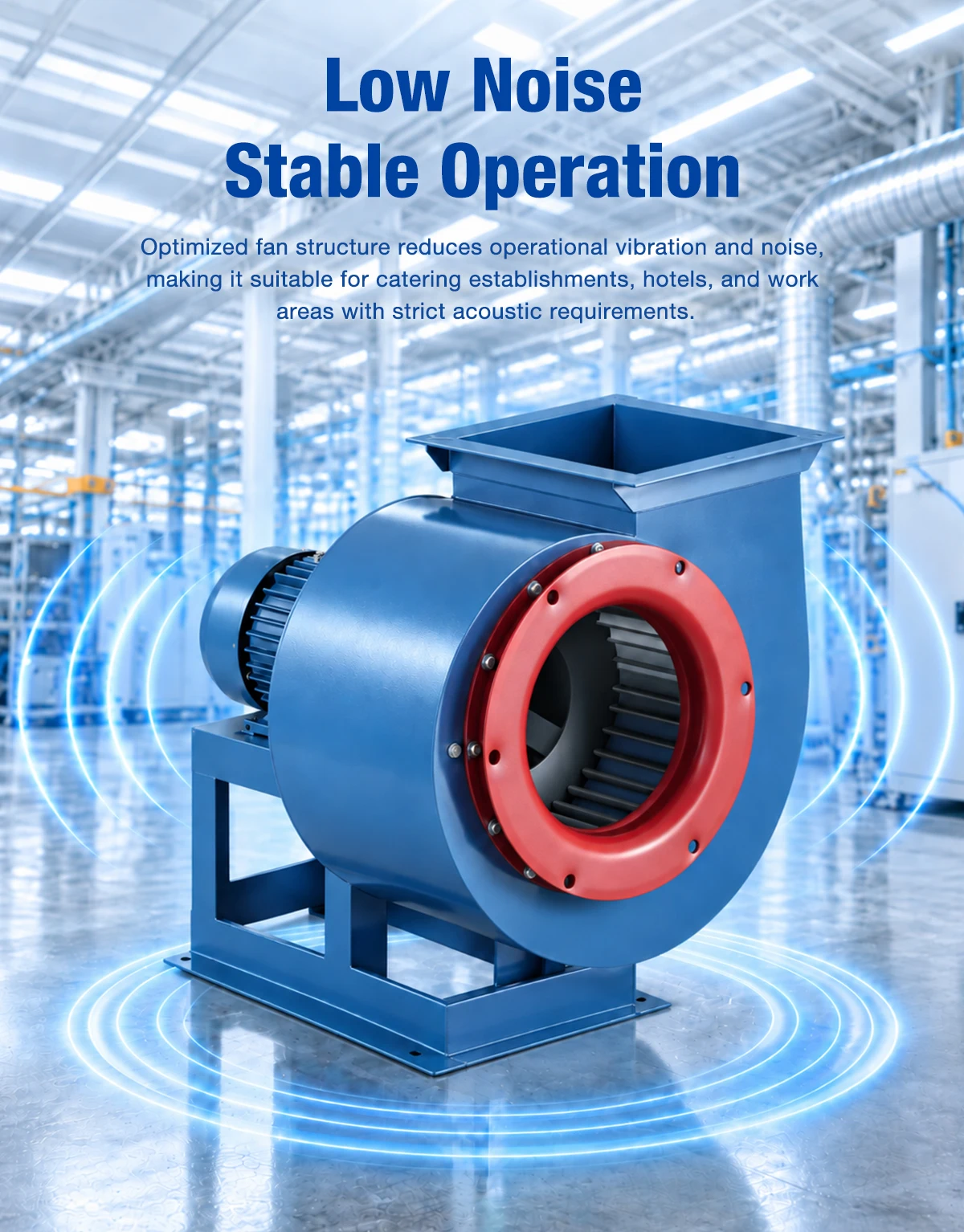

Low Noise Stable Operation
Optimized fan structure reduces operational vibration and noise, making it suitable for catering establishments, hotels, and work areas with strict acoustic requirements.
Balanced rotating components ensure quiet performance without sacrificing ventilation capacity.
- Optimized structure — significantly reduces operational vibration
- Acoustic compliance — ideal for hotels and catering establishments
- Strict acoustic standards — quiet and reliable workflow

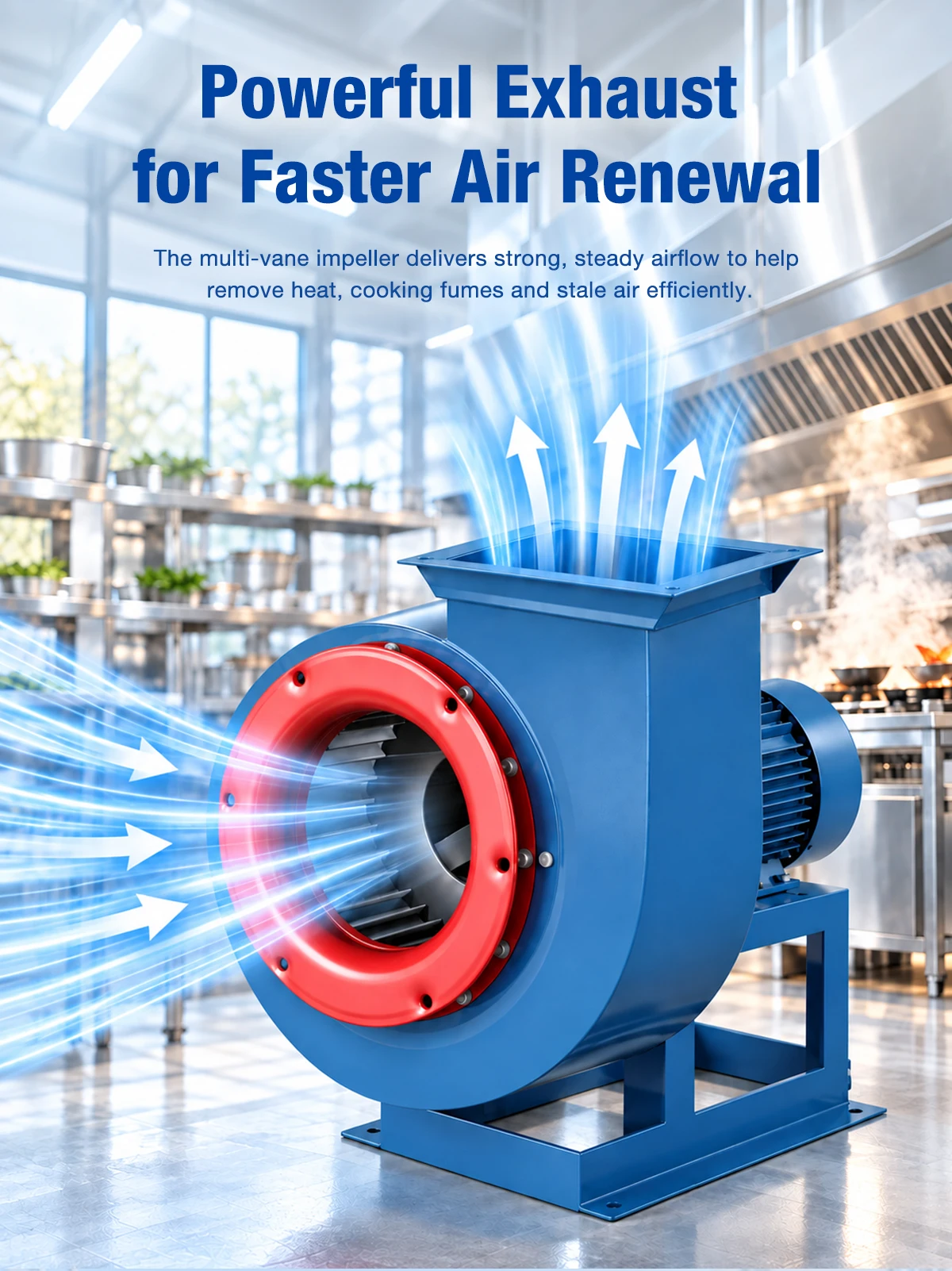

Powerful Exhaust for Faster Air Renewal
The multiple-vane impeller delivers strong, steady airflow to help remove heat, cooking fumes and stale air efficiently.
Accelerates indoor air exchange cycles to maintain fresh and breathable working environments.
- Rapid air renewal — quickly clears stale air and fumes
- Efficient extraction — removes heat and cooking odors effectively
- Strong steady output — maintains continuous indoor climate control

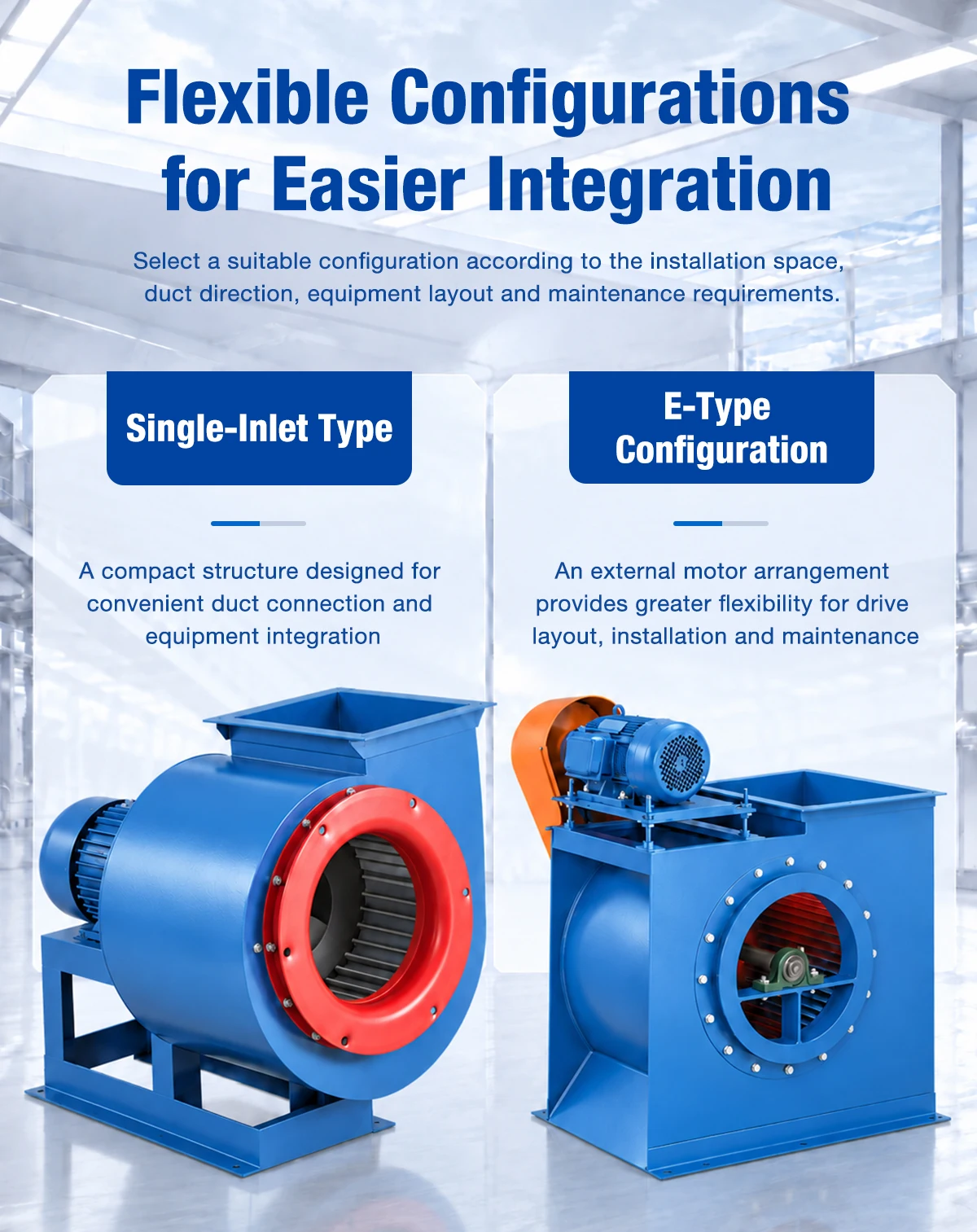

Flexible Configurations for Easier Integration
Different projects require different installation layouts. The LWFDF11-62 Series offers flexible casing configurations and discharge angles to help match equipment space, duct arrangement and project requirements.
Engineered to streamline field assembly and system connection across diverse plant constraints.
- Flexible casing layouts — adapts to tight mechanical spaces
- Easier equipment integration — matches various duct arrangements
- Project adaptability — customizable orientation for specific site needs
Wide Industrial Applications
High-volume ventilation with quiet, smooth and reliable operation across specialized machinery and commercial facilities.
Chemical Machinery
Reliable fume extraction and ventilation support for chemical processing units.
Commercial Canteens
High-volume heat and steam extraction for large institutional kitchens.
Grain Machinery
Pneumatic conveying and air drying support for agricultural grain processing.
Hotels & Restaurants
Quiet ventilation and exhaust management for hospitality facilities.
Plastics Machinery
Cooling and auxiliary air supply for plastic extrusion and molding lines.
Commercial Exhaust
Reliable air renewal and odor control for busy commercial spaces.
LONGWELL — Trusted Industrial Fan Manufacturer Since 1990
Founded in 1990 in Yuyao, Ningbo — the heart of China’s advanced manufacturing belt — LONGWELL has grown from a precision fan component workshop into a vertically integrated ventilation technology group. Today we engineer AC, DC and EC fan and motor systems with 4,000 m²+ of manufacturing floor, dedicated aerodynamics and CFD simulation labs, and a global export network spanning Europe, the Americas and Asia-Pacific.
From material selection to final balancing, every LONGWELL fan is built on automated lines, computer-balanced impellers and 100% run-test before shipment. We are certified to ISO 9001:2015 and ISO 14001, with CE, UL/ETL, RoHS and EAC compliance, and performance tested to the AMCA 210/211 method.
Production & Delivery
Automated lines, computer-balanced impellers and 100% run-test ensure every LWFDF11-62 fan ships ready for installation.
Global Market & Client Preference
LWFDF11-62 series is the preferred centrifugal fan for HVAC distributors, equipment manufacturers and OEM clients across Europe, the Middle East, Southeast Asia, and South America.
Trusted by Leading Global HVAC Brands
24+ HVAC OEMs and equipment builders rely on LONGWELL for industrial centrifugal fans every year.
Complete Range of Professional & Certified
LONGWELL fans are independently certified to international quality, safety and energy-efficiency standards.
Related Products
Other LONGWELL industrial fan families for ventilation, HVAC, and equipment cooling applications.
Industrial Axial Fan
High-volume axial airflow for general industrial and HVAC ventilation.
View Product →
Industrial Mist Fan
Cooling and humidification mist fans for outdoor and workshop spaces.
View Product →
Industrial Ceiling Fan
Large-diameter ceiling fans for massive space air destratification.
View Product →
Industrial Exhaust Fan
Heavy-duty exhaust fans designed to extract heat, fumes and stale air.
View Product →
Industrial Wall Fan
Wall-mounted personnel cooling and localized ventilation solutions.
View Product →Frequently Asked Questions
Quick technical answers regarding the LWFDF11-62 low-noise multiple-vane centrifugal fan series.
What distinguishes the LWFDF11-62 series from standard centrifugal fans?
The LWFDF11-62 series integrates advanced multiple-vane aerodynamics with an acoustically tuned housing, delivering exceptionally high air volume while maintaining strict low-noise performance.
How does the multiple-vane impeller benefit ventilation performance?
The precisely spaced forward curved blades ensure smooth pressure generation and prevent airflow separation, securing consistent ventilation output across complex duct networks.
What integration benefits do the flexible housing configurations offer?
The series provides adaptable discharge orientations and housing layouts, enabling engineers to match tight mechanical spaces, cabinet enclosures, and specific duct connections effortlessly.
What materials are used for the motor and housing?
The housing utilizes heavy-gauge carbon steel treated with a protective spray finish for superior corrosion and wear resistance, paired with a machine-wound all-copper motor.
Is the LWFDF11-62 fan appropriate for acoustically sensitive environments?
Yes. Internal vibration damping and acoustic optimization make it well-suited for hotels, commercial canteens, and public buildings requiring quiet continuous operation.
What type of motor is equipped in this centrifugal fan?
It is equipped with an industrial-grade all-copper motor featuring low temperature rise, high electrical efficiency, and long-term 24/7 reliability.
Need a Quote or Custom Specs?
Tell us your airflow, static pressure, and installation requirements — our engineers will size the right LWFDF11-62 model and quote within 24 hours.
