LONGWELL 133mm Centrifugal Blower Fan, Industrial Centrifugal Fan, PWM Control, for FFU – LW-133MM

Voltage 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 58

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal
Category: Tags: , ,
CategoryIndustrial Centrifugal Fans
TagsAir Filtration SystemsBrushless MotorCentrifugal Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fans range. The Fan Selector lists every LONGWELL industrial centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search industrial centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

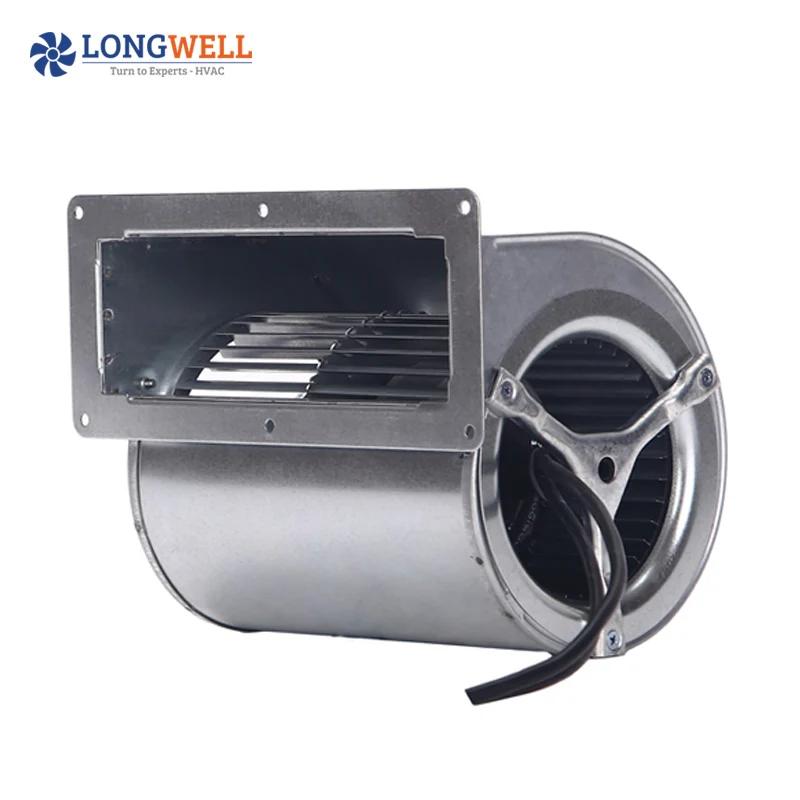

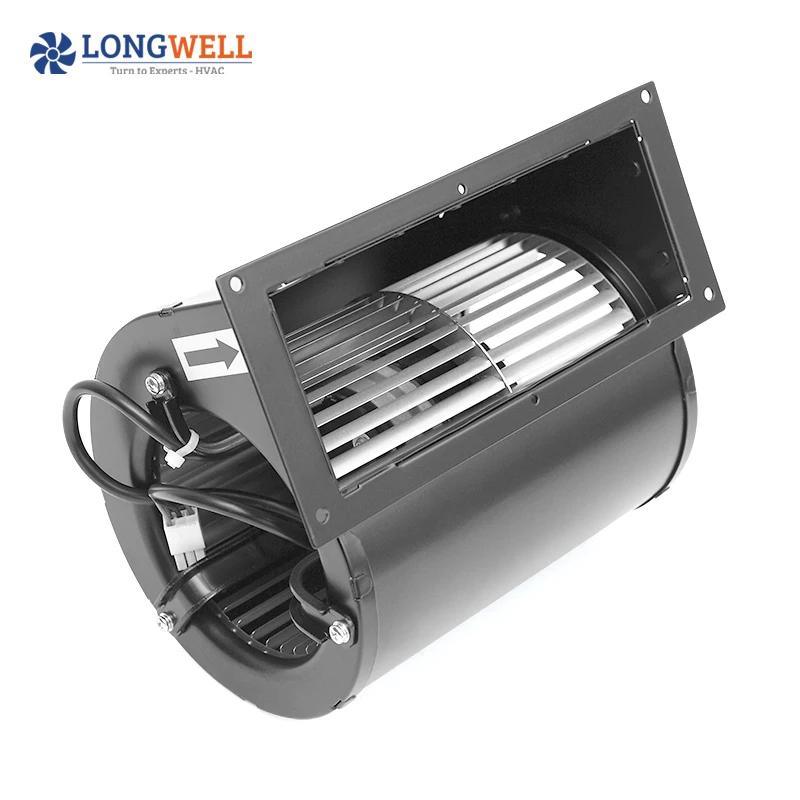

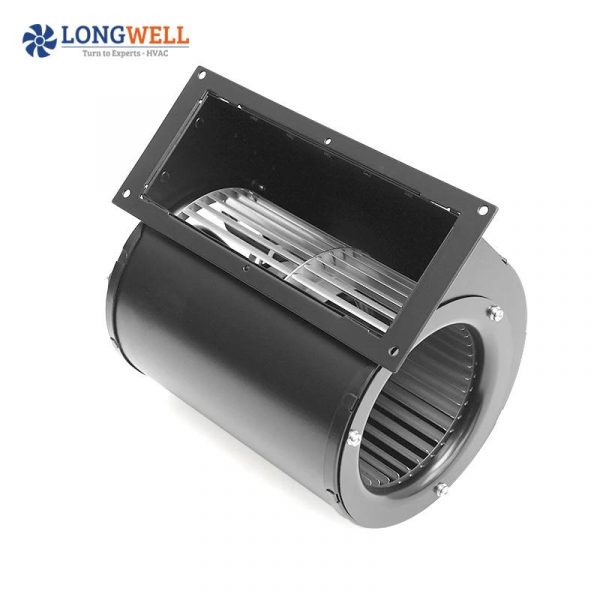

133 mm diameter DUAL INLET  industrial centrifugal fan

Product Description
Model Number :   LWFD -133mm Dual inlet Forward curved centrifugal fan blower
Motor Type :  BLDC Motor Blade Material :  Galvanized Metal
Operation Model :  S1 Insulation Class :  IP 44
Speed control:  Continuously variable speeed Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

LWFD-133

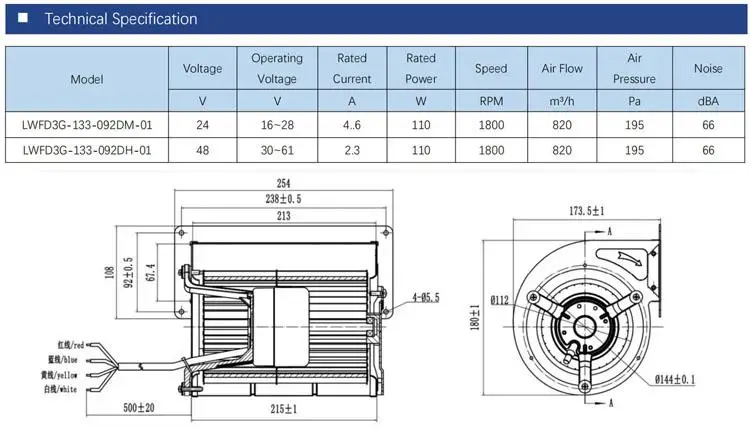

LWFD-133(2)

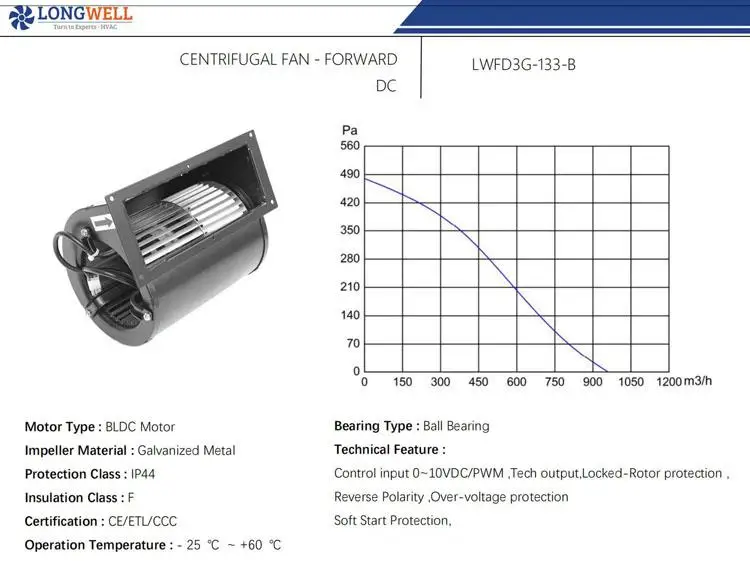

LWFD-133(3)

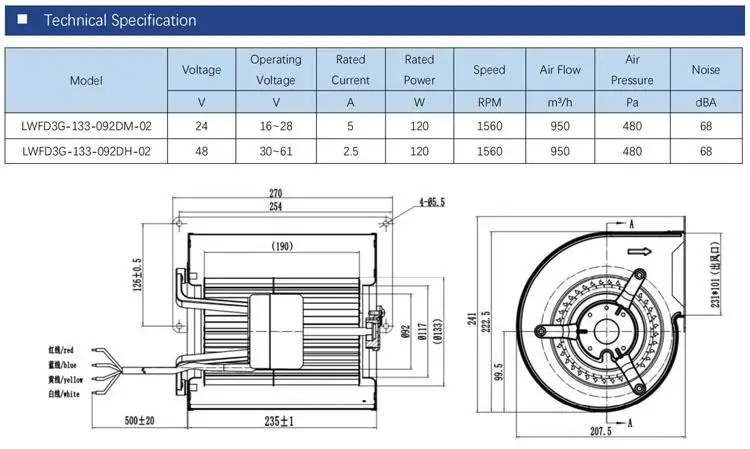

LWFD-133(4)

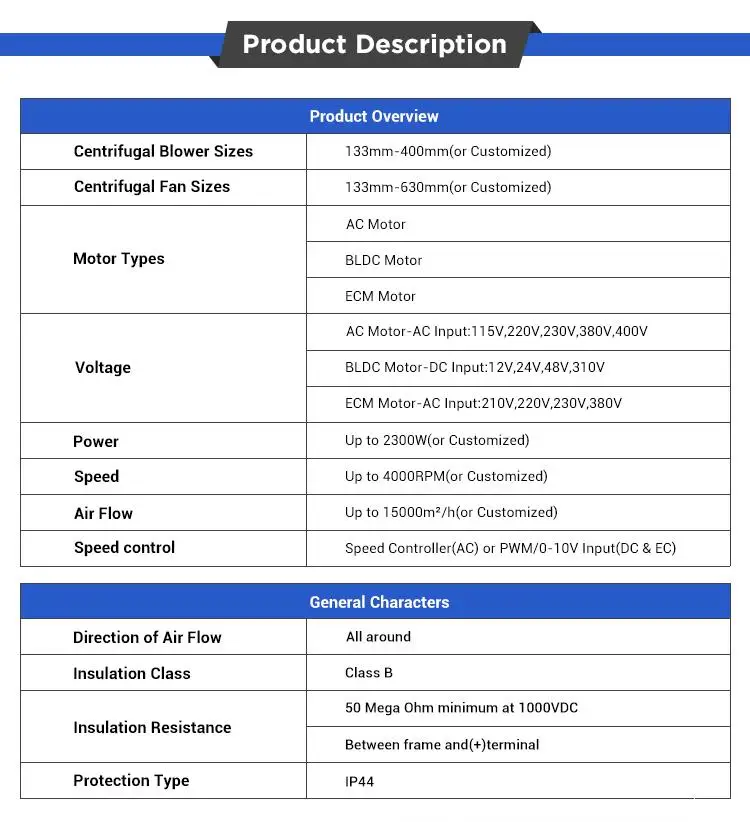

backward (5)

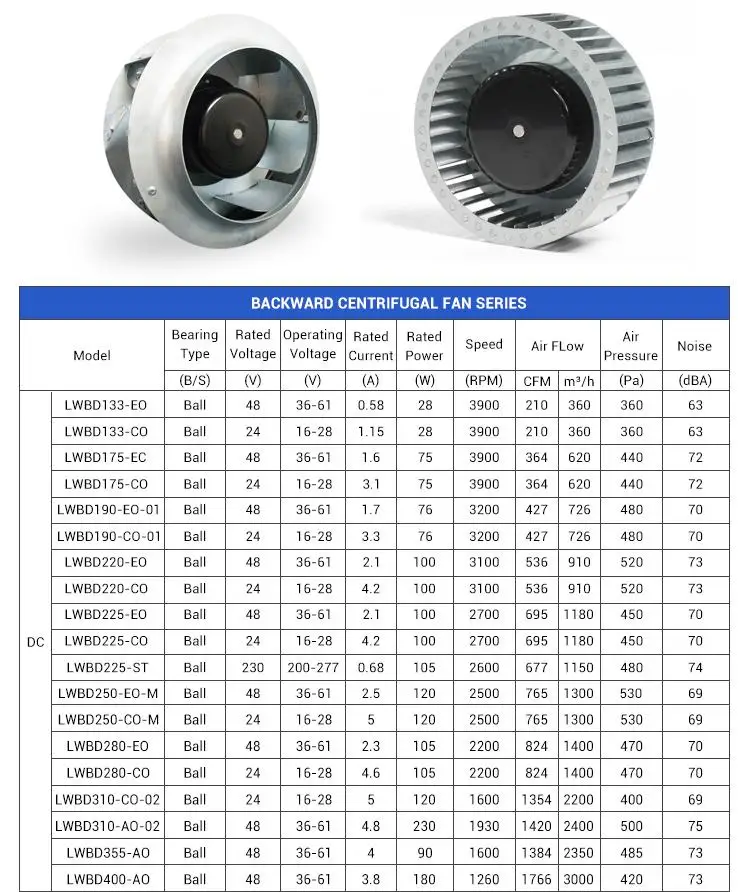

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

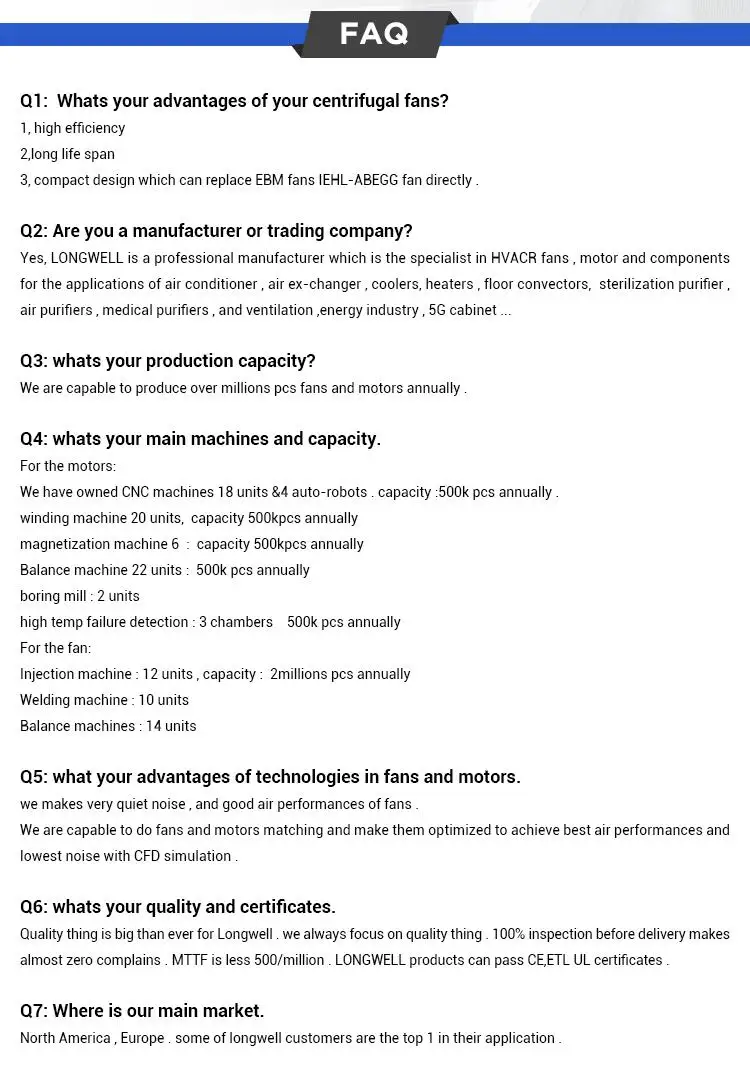

FAQ

backward (21)

backward (1)





Additional information

Voltage

24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

STAINLESS STEEL
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LW-133mm
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan blower
power input

DC 24/48 Motorized
Impeller material

Galvanized Metal
Direction

Clockwise
Bearing

Ball Bearing
Motor type

AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Application

FFU ,AIR VENTILATION
Speed Control

0~10V/ PWM
Selling units

Single item
Single package size

40X35X30 cm
Single gross weight

4.000 kg
