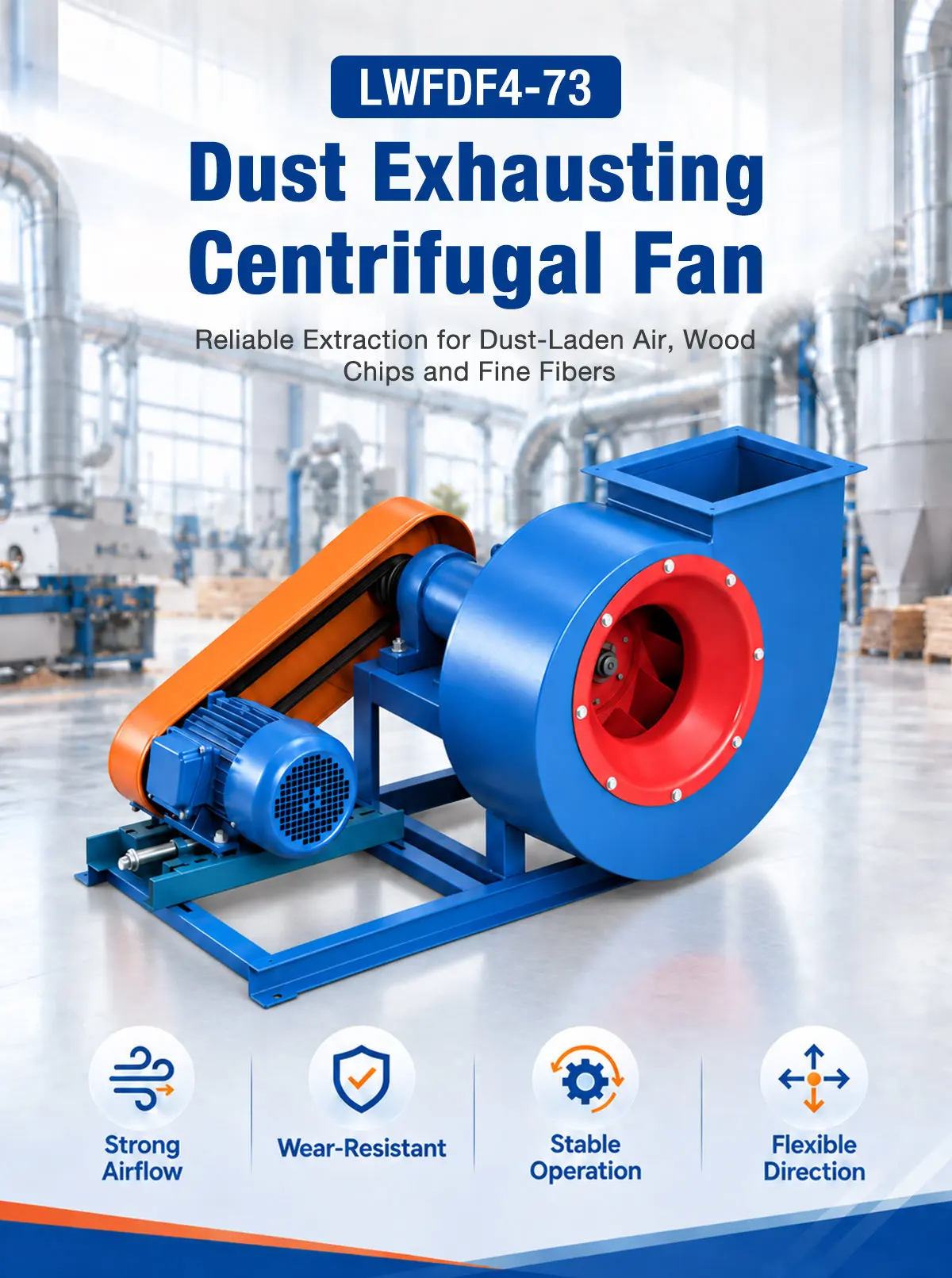

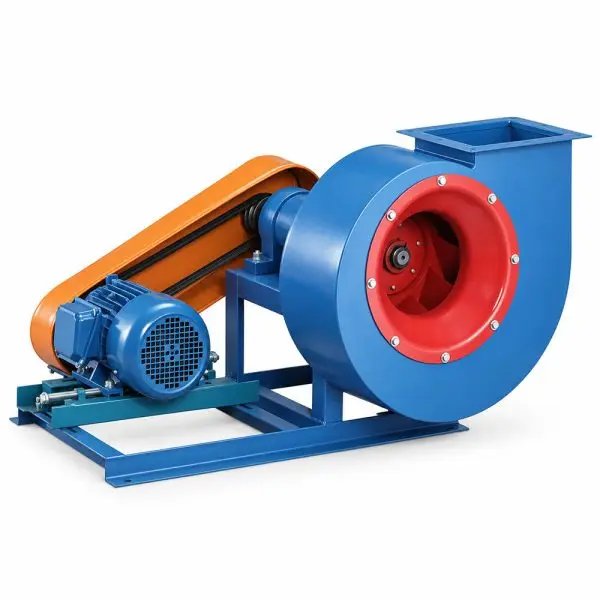

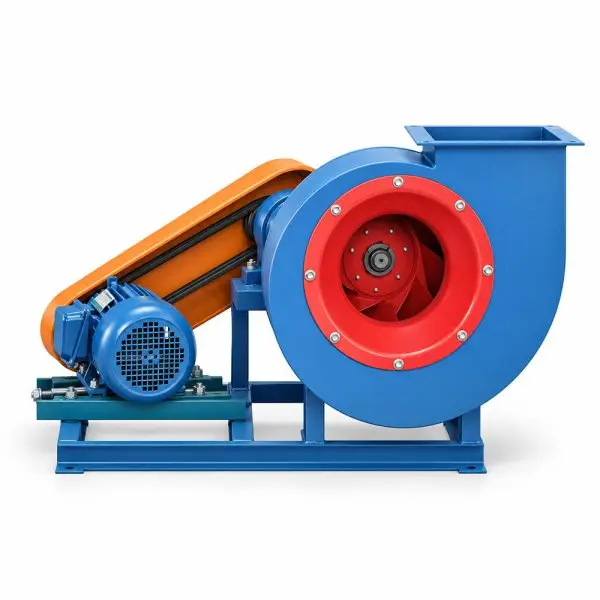

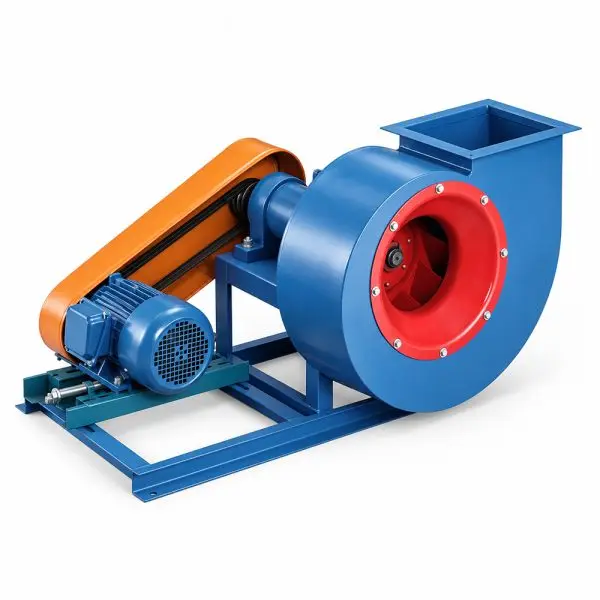

Dust Exhausting Centrifugal Fan
Engineered for reliable extraction of dust-laden air, wood chips, and fine fibers across continuous industrial operations.
Key Features at a Glance
A heavy-duty belt-drive ventilation platform built to withstand the continuous abrasion of material conveying.
Product Specifications

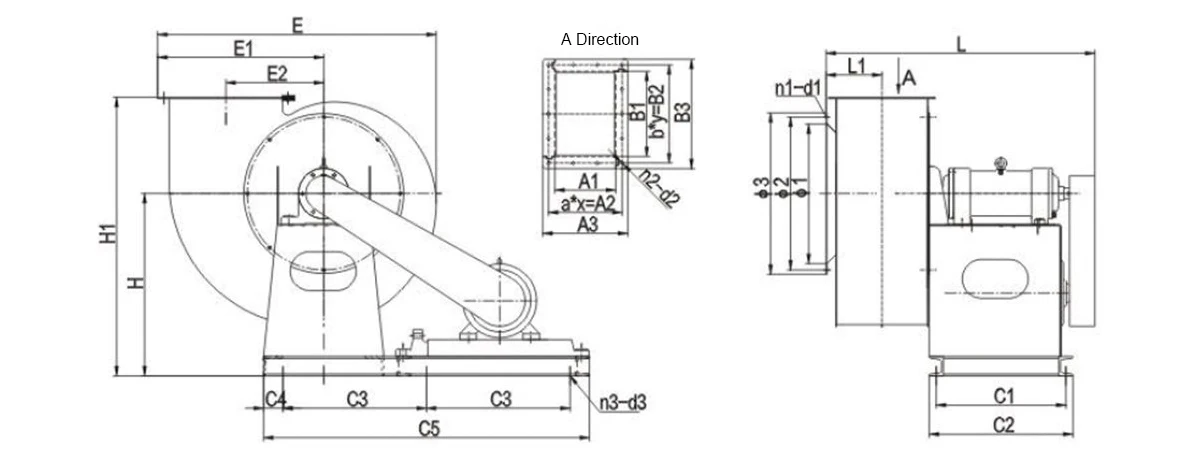

Complete performance parameters, outline drawings, and dimensional data for the LWFDF4-73 series.
| Model | Φ1 | Φ2 | Φ3 | n1-d1 | A1 | A2 | A3 | a×x | B1 | B2 | B3 | b×y | n2-d2 | C1 | C2 | C3 | C4 | C5 | E | E1 | E2 | H | H1 | L | L1 | n3-d3 | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LWFDF4-73-3.6A | 360 | 394 | 416 | 8-Φ10 | 226 | 264 | 295 | 2×132 | 275 | 313 | 341 | 4×78.3 | 12-Φ8 | 334 | 370 | 370 | 50 | 840 | 718 | 428 | 252 | 470 | 718 | 690 | 144 | 6-Φ12 | 93 |
| LWFDF4-73-4.5A | 450 | 490 | 512 | 16-Φ10 | 315 | 345 | 373 | 3×115 | 348 | 380 | 408 | 5×76 | 16-Φ8 | 394 | 430 | 415 | 50 | 930 | 885 | 525 | 315 | 560 | 860 | 870 | 186 | 6-Φ14 | 160 |
| LWFDF4-73-5.5A | 560 | 610 | 640 | 16-Φ10 | 383 | 413 | 441 | 5×82.6 | 438 | 470 | 498 | 5×94 | 20-Φ8 | 594 | 630 | 500 | 50 | 1050 | 1093 | 642 | 392 | 700 | 1082 | 935 | 221 | 6-Φ14 | 192 |
| Model | Speed (r/min) | Matching Motor (kW-p) | Flow Rate (m³/h) | Total Pressure (Pa) |
|---|---|---|---|---|
| LWFDF4-73-3.6A-7.5-2P-1-001 | 4000 | 7.5-2 | 4250-7760 | 3138-1863 |
| LWFDF4-73-3.6A-4-2P-1-002 | 3150 | 4.0-2 | 3100-5750 | 1863-1127 |
| LWFDF4-73-3.6A-2.2-2P-1-003 | 2500 | 2.2-2 | 2640-4870 | 1225-735 |
| LWFDF4-73-3.6A-1.5-2P-1-004 | 2240 | 1.5-2 | 2380-4350 | 1029-588 |
| LWFDF4-73-3.6A-0.75-2P-1-005 | 1800 | 0.75-2 | 1930-3510 | 637-392 |
| LWFDF4-73-3.6A-0.75-4P-1-006 | 1600 | 0.75-4 | 1725-3150 | 490-294 |
| LWFDF4-73-4.5A-15-2P-1-001 | 3550 | 15-2 | 7400-13500 | 3922-2255 |
| LWFDF4-73-4.5A-7.5-2P-1-002 | 2800 | 7.5-2 | 5800-10500 | 2451-1422 |
| LWFDF4-73-4.5A-2.2-2P-1-003 | 1800 | 2.2-2 | 3700-6800 | 980-588 |
| LWFDF4-73-4.5A-1.1-4P-1-004 | 1400 | 1.1-4 | 2900-5300 | 608-362 |
| LWFDF4-73-5.5A-22-2P-1-001 | 2800 | 22-2 | 10600-19350 | 3665-2175 |
| LWFDF4-73-5.5A-11-2P-1-002 | 2240 | 11-2 | 8400-15350 | 2314-1372 |
| LWFDF4-73-5.5A-5.5-2P-1-003 | 1800 | 5.5-2 | 6800-12400 | 1471-872 |
| LWFDF4-73-5.5A-3-2P-1-004 | 1400 | 3-2 | 5260-9650 | 902-539 |
| LWFDF4-73-5.5A-1.5-4P-1-005 | 1120 | 1.5-4 | 4220-7700 | 578-343 |
Strong Airflow Reliable Pressure
Designed to move process air steadily through ducted extraction and ventilation systems.
Engineered to maintain robust suction velocities, the LWFDF4-73 delivers air volumes ranging from 1,725 m³/h to 19,350 m³/h. The geometry of the scroll housing ensures that extraction power remains stable, easily overcoming the static resistance created by collection bins, duct elbows, and filtration units.
- Efficient Air Intake — captures airborne particulate right from the source
- Stable Discharge — up to 3,922 Pa of reliable total pressure
- Duct-system Ready — minimizes performance drops over long pipe runs

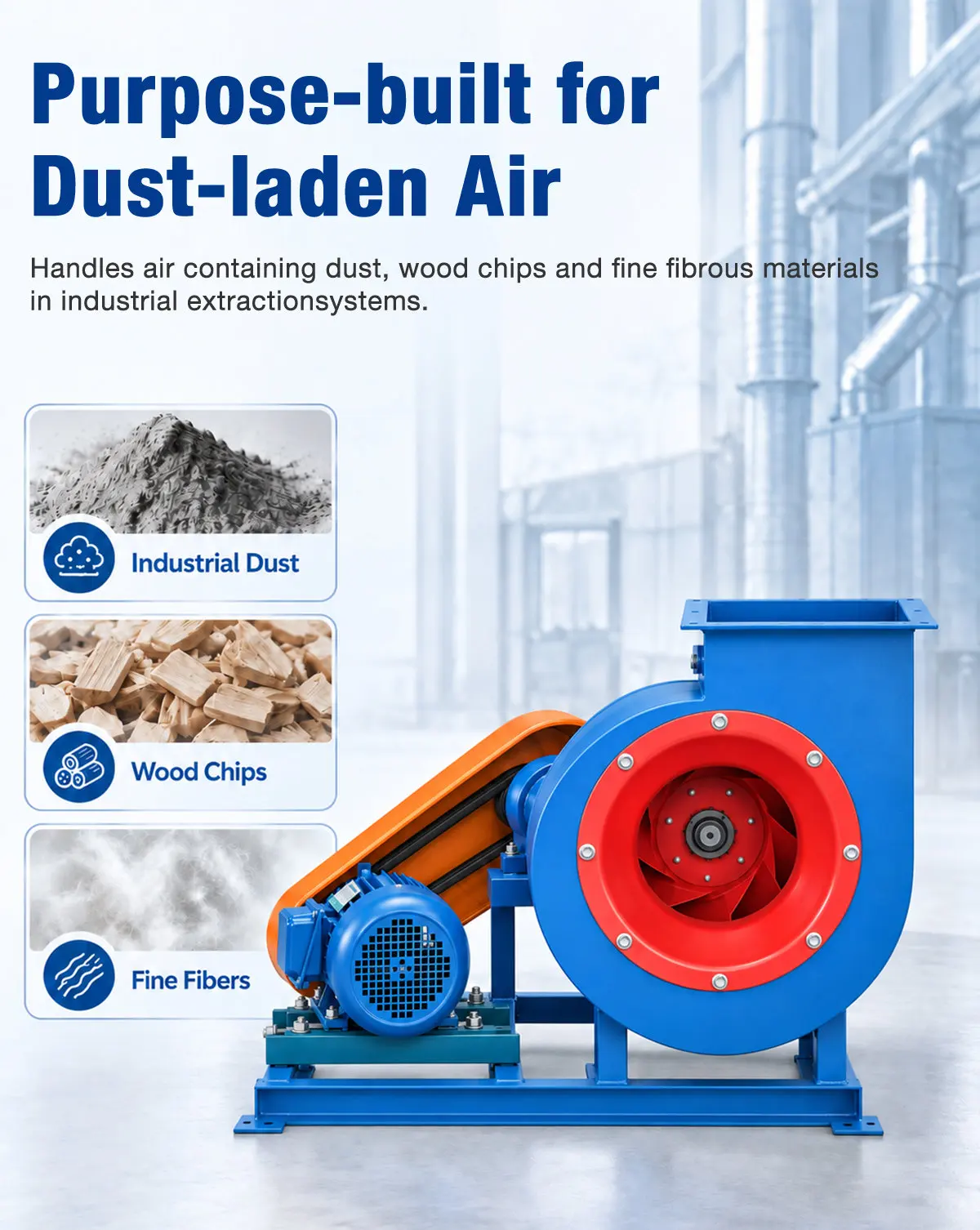

Purpose-built for Dust-Laden Air
Handles air containing industrial dust, wood chips, and fine fibrous materials in extraction systems.
Unlike standard blowers that clog easily, this fan utilizes an open impeller geometry tailored for material handling. It safely propels abrasive and fibrous materials through the casing without snagging, maintaining balance and preventing unexpected shutdowns.
- Industrial Dust — clears grinding and sanding particulate efficiently
- Wood Chips — open blade passages prevent wood scrap blockages
- Fine Fibers — resists lint and textile fluff accumulation

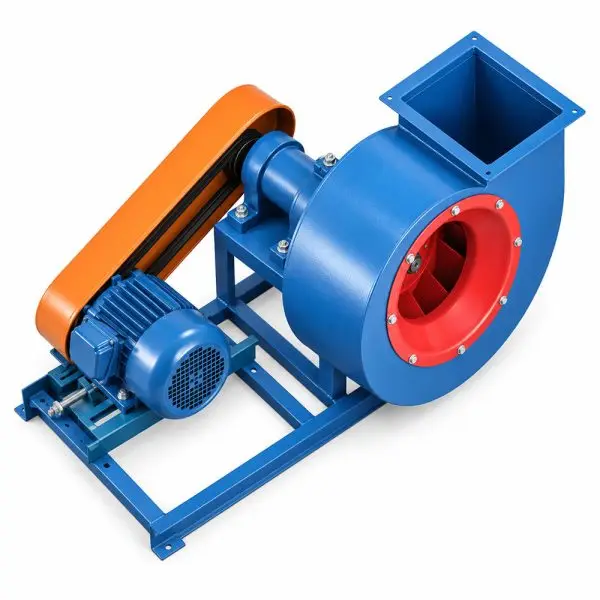

Durable Carbon Steel Casing
A reinforced structure and protective painted finish support dependable long-term operation.
Material conveying is inherently abrasive. The LWFDF4-73 is fabricated from thickened carbon steel plates to endure the continuous impact of dust and wood chips. A tough, corrosion-resistant exterior coating further protects the metal against harsh plant environments, extending the operational lifespan of the entire unit.
- Reinforced Fan Housing — thickened carbon steel casing for high strength and stability
- Protective Painted Finish — corrosion-resistant coating for harsh working environments
- Rigid Steel Base — stable and durable support for continuous operation

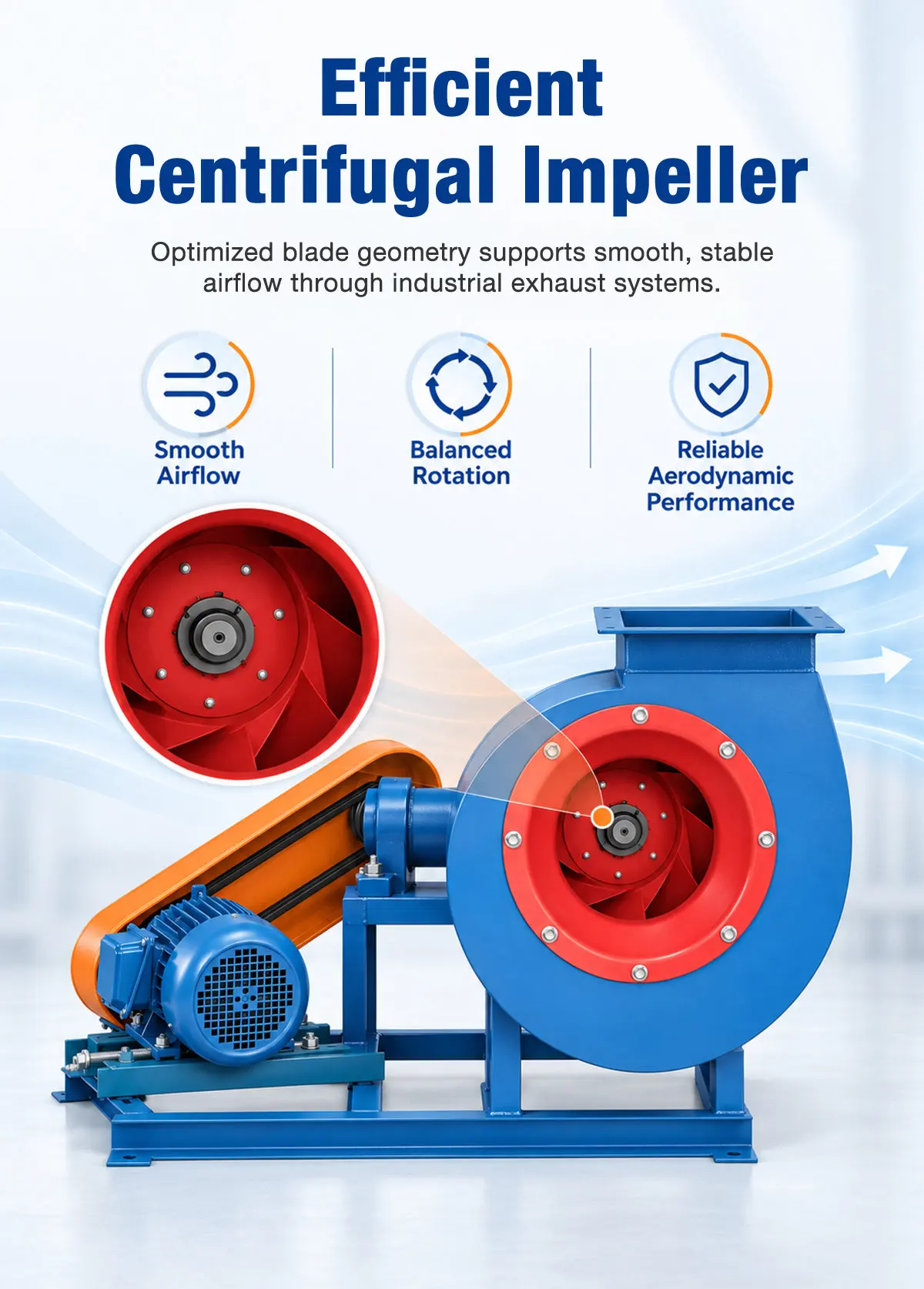

Efficient Centrifugal Impeller
Optimized blade geometry supports smooth, stable airflow through industrial exhaust systems.
Every impeller is precision-welded and rigorously balanced before assembly. This aerodynamic profiling not only ensures that high-velocity air carries debris out effectively without separating, but it also dramatically reduces mechanical vibration that typically leads to premature bearing failure.
- Smooth Airflow — engineered to prevent aerodynamic stall under load
- Balanced Rotation — eliminates eccentric shaking during high-speed runs
- Reliable Aerodynamic Performance — consistent extraction power over time

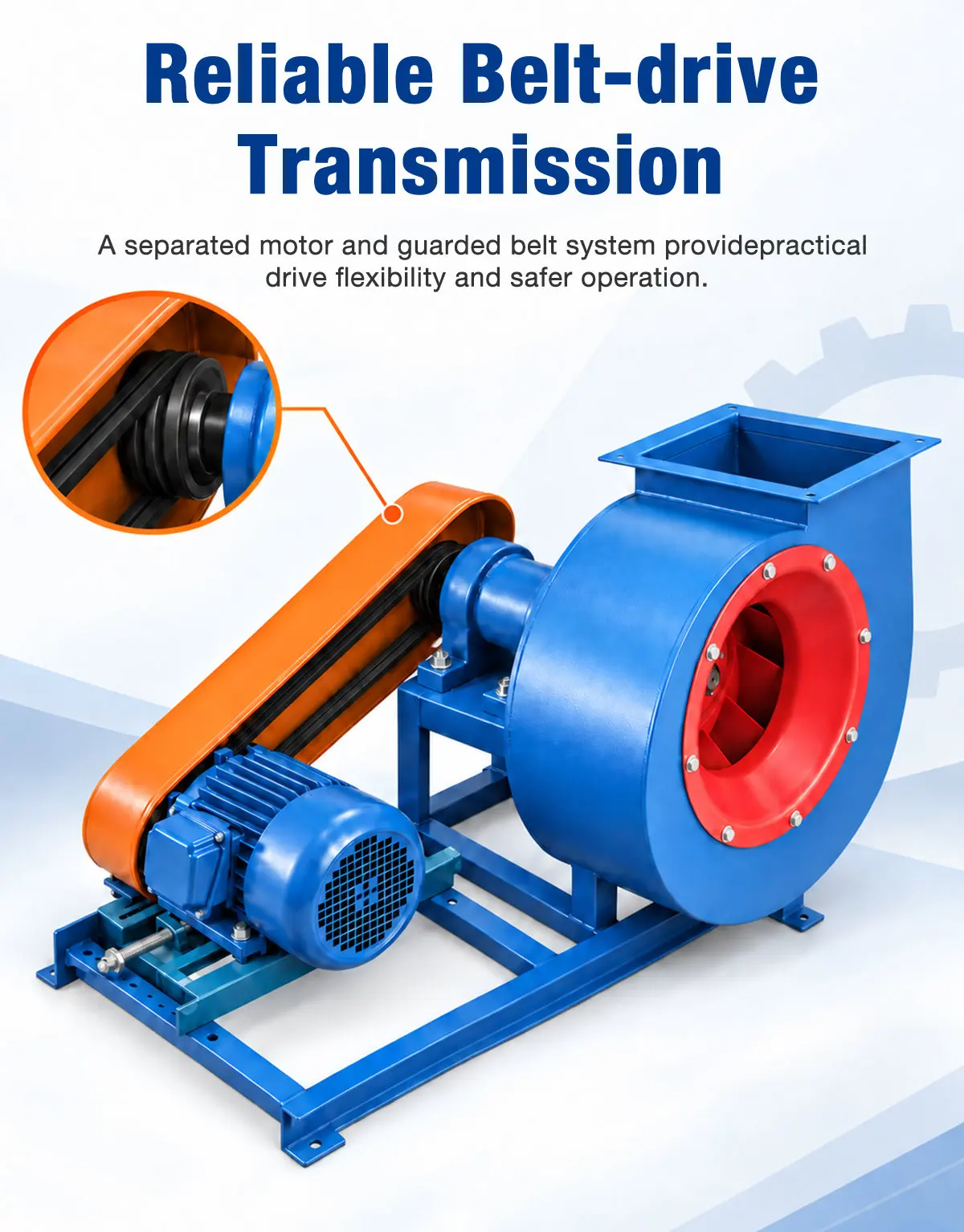

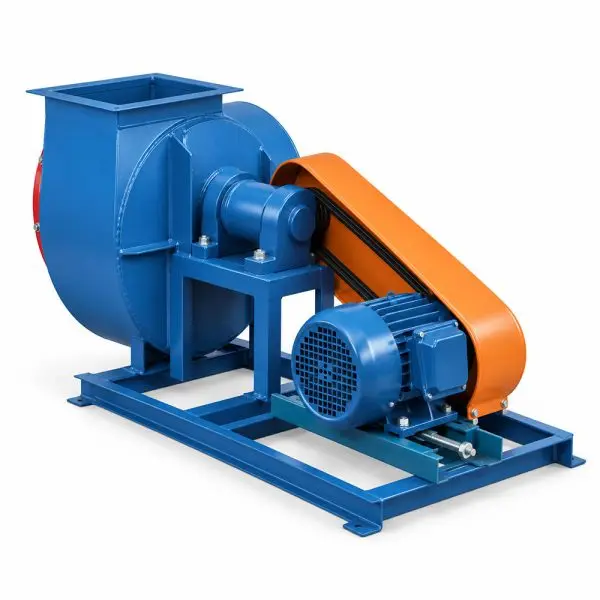

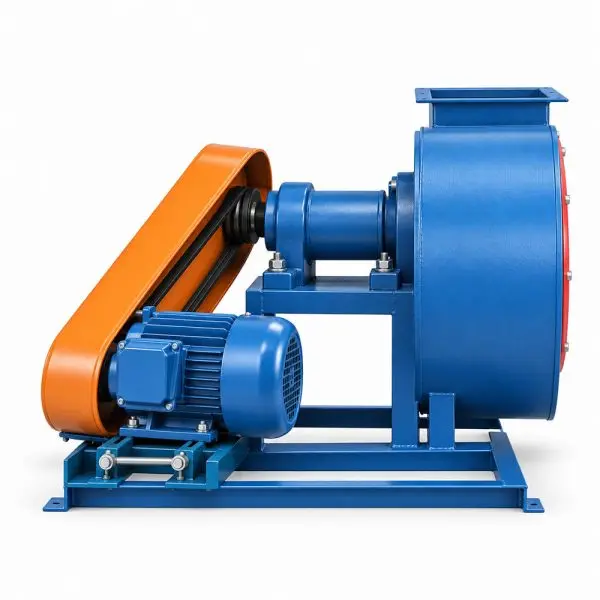

Reliable Belt-drive Transmission
A separated motor and guarded belt system provide practical drive flexibility and safer operation.
Mounting the motor completely outside the contaminated airstream eliminates the risk of overheating from dust blanketing the motor fins. The belt-drive configuration also permits fine-tuning of the fan’s RPM via pulley adjustments, allowing plant engineers to perfectly balance the exhaust rate against system demands.
- Separated Motor Layout — protects the motor from heavy particulate damage
- Drive Flexibility — easily modify fan speeds by swapping pulleys
- Safer Operation — fully guarded belt enclosure protects facility personnel

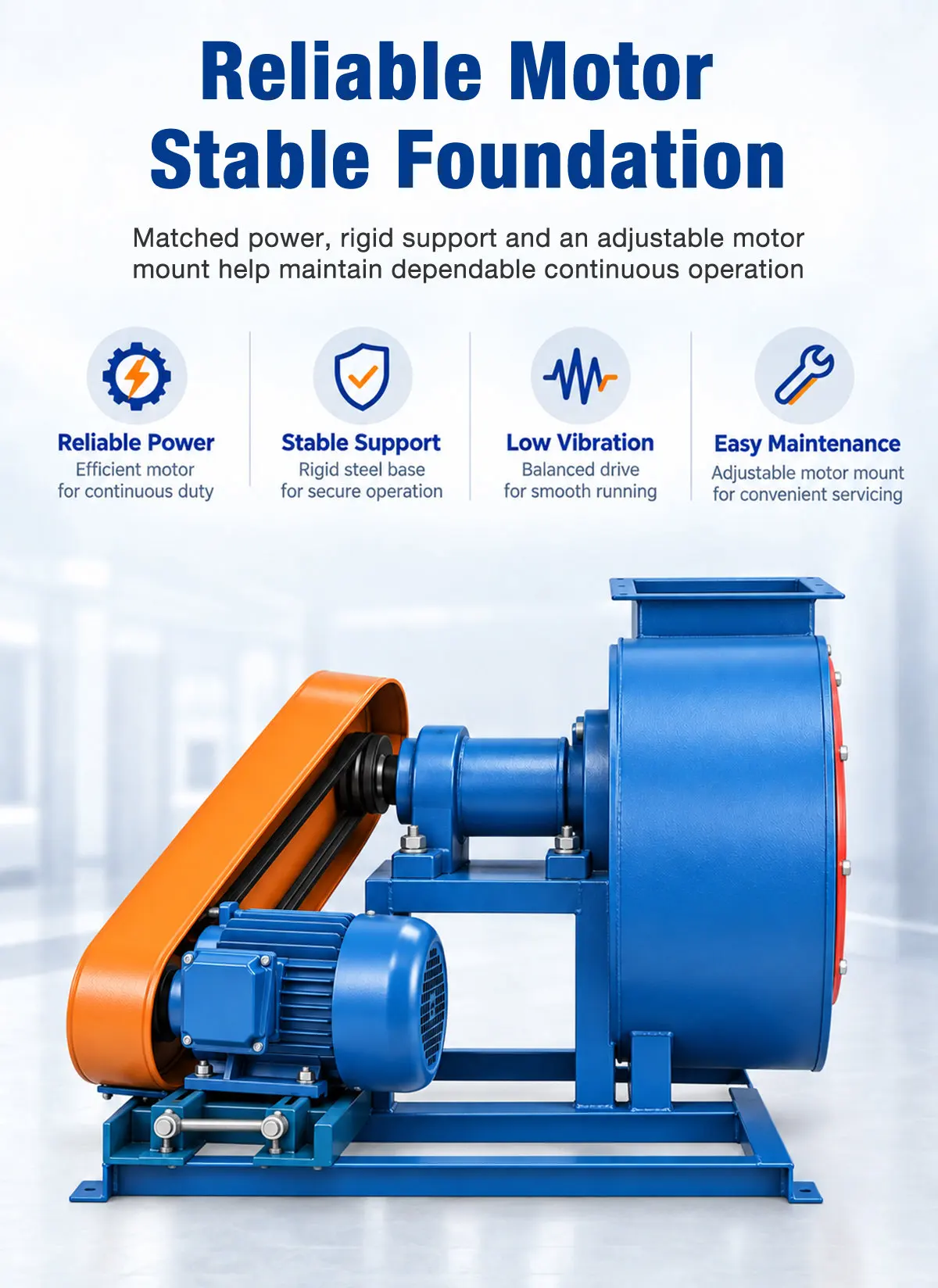

Reliable Motor & Stable Foundation
Matched power, rigid support, and an adjustable motor mount help maintain dependable continuous operation.
Supplied with robust industrial asynchronous motors (from 0.75 kW to 22 kW), the LWFDF4-73 is ready for uninterrupted heavy-duty shifts. The motor sits on sliding rails integrated directly into the heavy steel base frame, making belt tensioning and routine maintenance straightforward without unbolting the entire assembly.
- Reliable Power — efficient motor matched for S1 continuous duty
- Stable Support — rigid steel base for secure operation
- Easy Maintenance — adjustable motor mount for convenient servicing
Wide Industrial Applications
Built for dust extraction, process-air handling and general industrial ventilation.

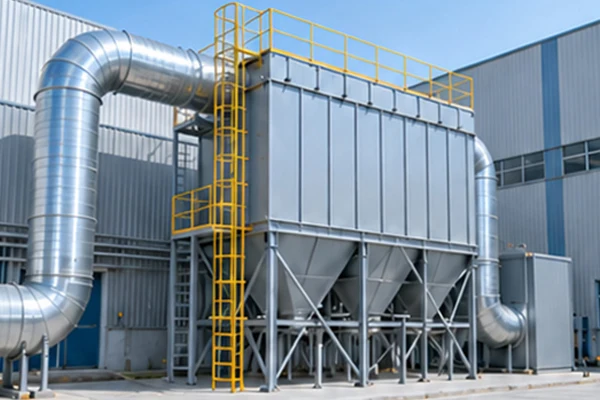

Dust Collection Systems
Provides high-suction velocity to pull industrial particulate into central filter bins.
Woodworking Workshops
Reliable extraction of sawdust, wood chips, and sanding dust from carpentry machinery.
Textile & Fiber Processing
Conveying fine airborne fibers, lint, and textile fluff without clogging the impeller.
Grain & Feed Processing
Strong static pressure for pneumatic conveying of granular agricultural materials.
Industrial Equipment Exhaust
Forced-air cooling and robust heat dissipation for production machinery and ovens.

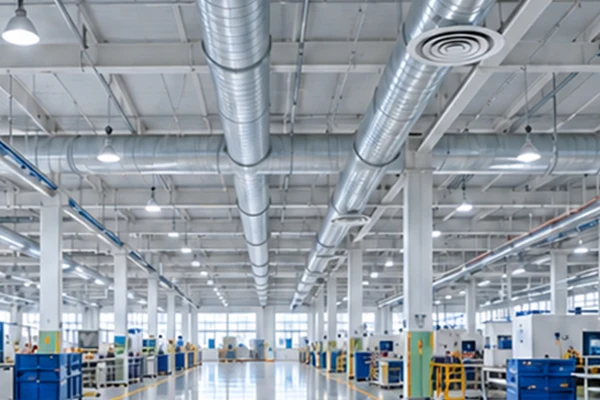

General Factory Ventilation
High-volume extraction to clear out heavy industrial smoke, heat, and stale air.
