LWFDF6-48 Dust Exhausting Centrifugal Fan

Name: LWFDF6-48 Dust Exhausting Centrifugal Fan
Brand: LONGWELL
SKU: LWFDF6-48
Availability: InStock

Category: Industrial Centrifugal Fan

CategoryIndustrial Centrifugal Fan

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fan range. The Fan Selector lists every LONGWELL centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search centrifugal fan models →

Description

Description

LWFDF6-48 Dust Exhausting Centrifugal Fan | LONGWELL

LWFDF6-48 Series

Dust Exhausting Centrifugal Fan

Engineered for air circulation, ventilation and exhaust applications requiring stable airflow, dependable pressure and continuous operation.

📈

High Airflow

⚙️

Stable Pressure

〰️

Low Vibration

💠

Multiple Configurations

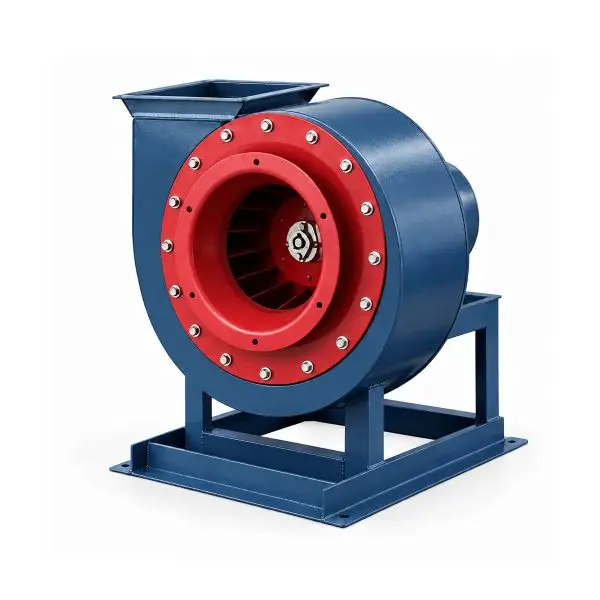

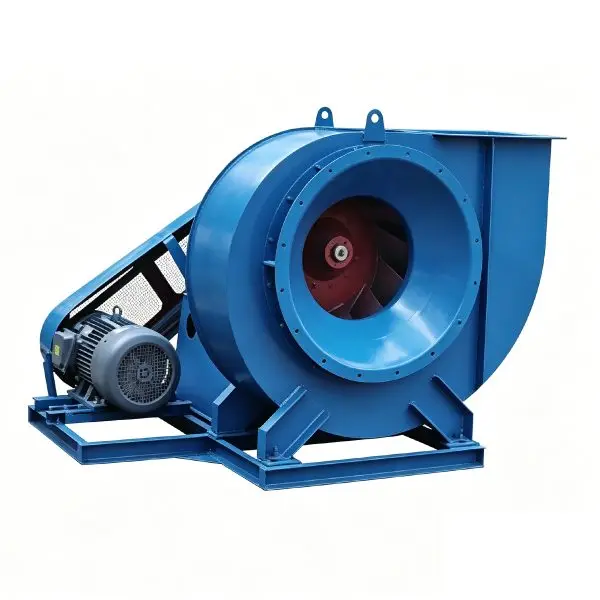

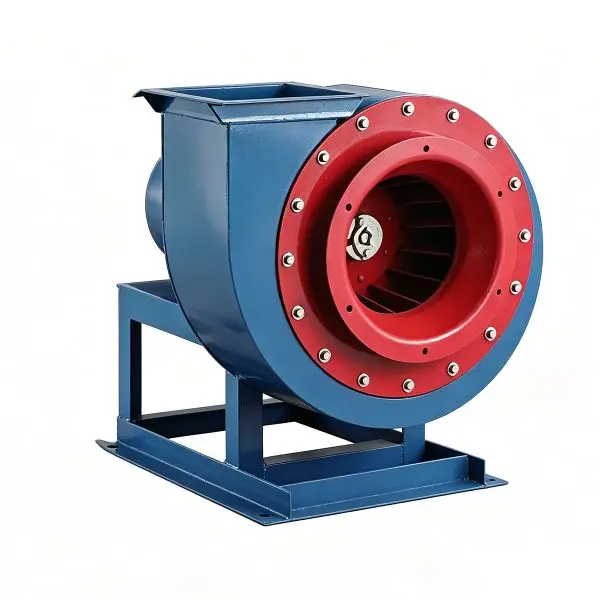

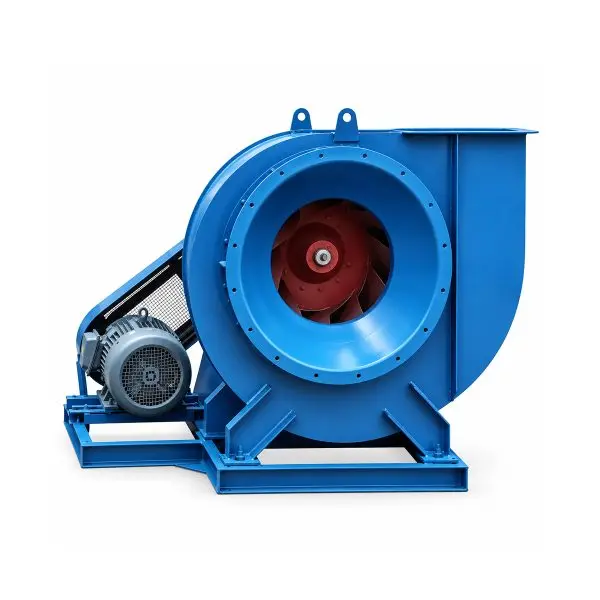

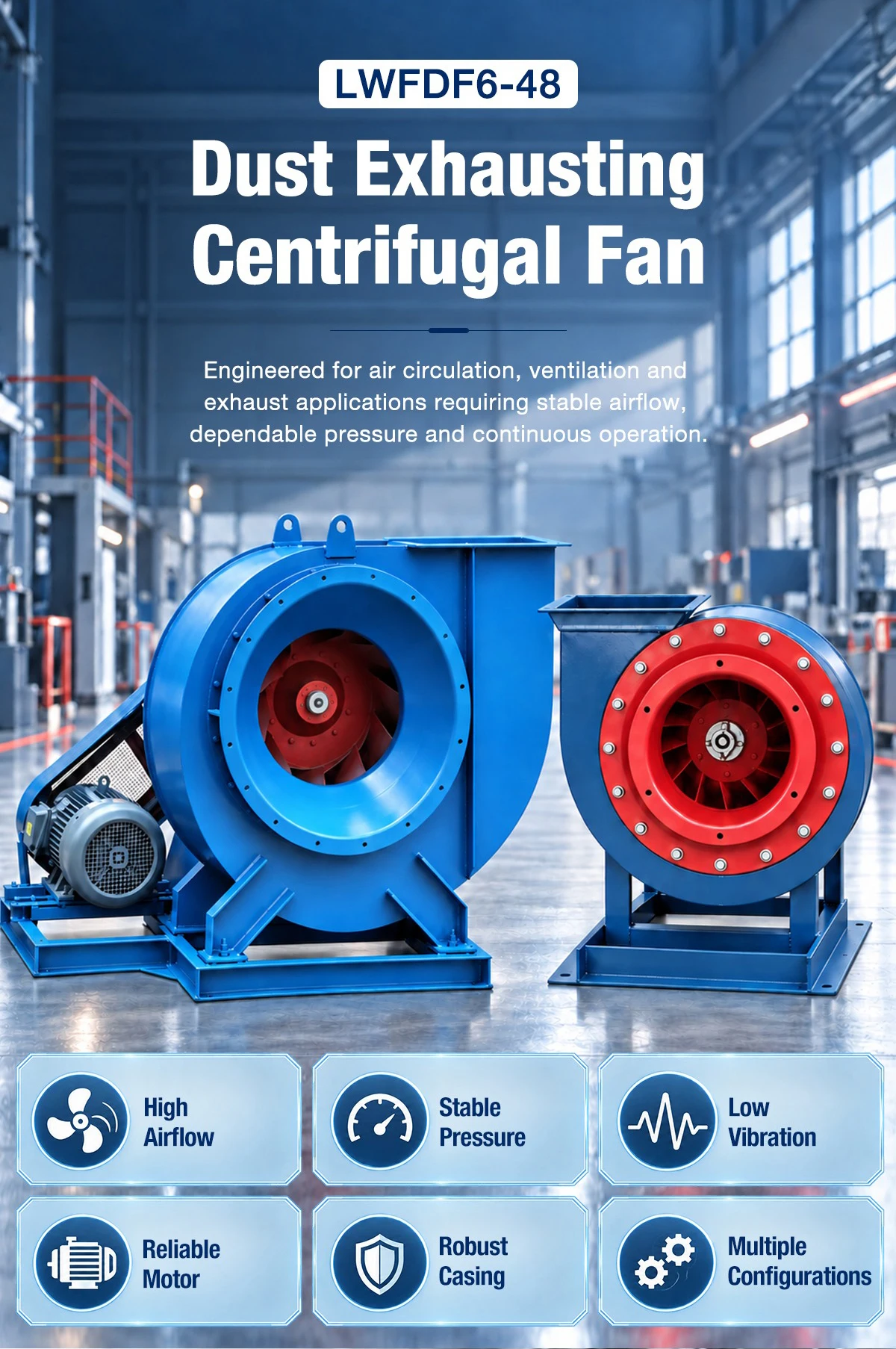

LONGWELL LWFDF6-48 dust exhausting centrifugal fan with direct drive and belt drive configurations

400 - 3,150 r/minSpeed Range

684 - 79,111 m³/hAir Volume Range

291 - 3,442 PaTotal Pressure Range

0.55 - 75 kWMatching Motor Power

Key Features at a Glance

A heavy-duty ventilation platform built for continuous material conveying and dust exhaust.

Efficient Air Conveying

Stable Operation

Low Vibration

Direct & Belt Drive

Robust Construction

Easy System Integration

Product Specifications

Complete performance parameters, outline drawings, and dimensional data for the LWFDF6-48 series.

LWFDF6-48 Type A Technical Specifications

Direct drive configuration. Motor power and pole count dictate operational speed.

Model	Speed (r/min)	Matching Motor (kW-p)	Flow Rate (m³/h)	Total Pressure (Pa)
LWFDF6-48-3.15A-2.2-2P-1-001	2900	2.2-2	1369-3060	1587-1163
LWFDF6-48-3.15A-0.55-4P-1-002	1450	0.55-4	684-1530	397-291
LWFDF6-48-4A-5.5-2P-1-001	2900	5.5-2	2748-6374	2594-1859
LWFDF6-48-4A-1.1-4P-1-002	1450	1.1-4	2582-3187	553-465
LWFDF6-48-5A-3-4P-1-001	1450	3-4	4401-6252	918-724
LWFDF6-48-5A-0.75-6P-1-002	960	0.75-6	1705-4139	449-317
LWFDF6-48-6.3A-7.5-4P-1-001	1450	7.5-4	10091-12505	1369-1150
LWFDF6-48-6.3A-2.2-6P-1-002	960	2.2-6	3411-8279	711-504

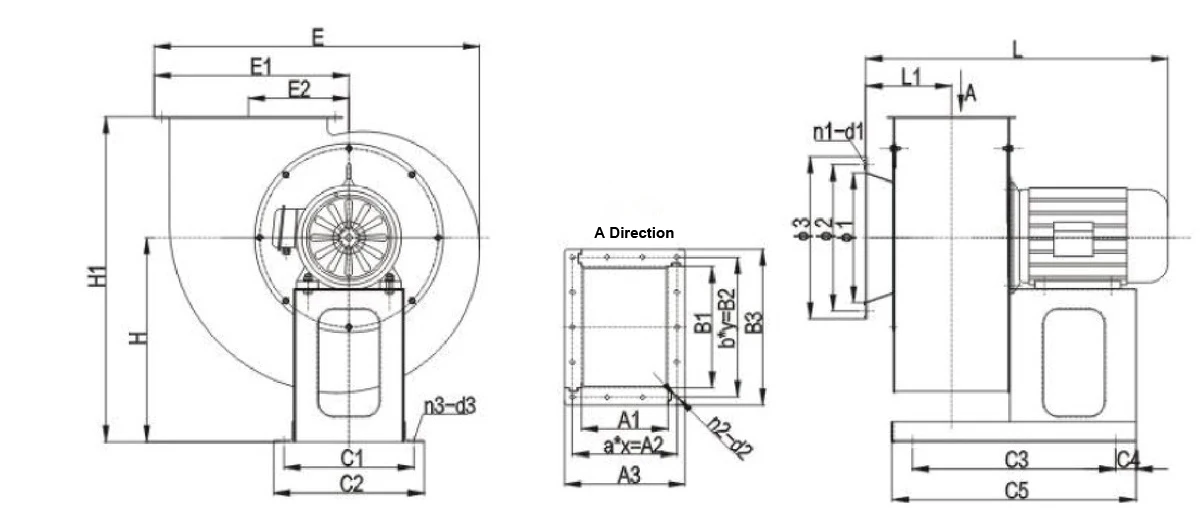

LWFDF6-48 Type A Mounting Dimensions

Model	Motor Power	Φ1	Φ2	Φ3	n1-d1	A1	A2	A3	a×x	B1	B2	B3	b×y	n2-d2	C1	C2	C3	C4	C5	E	E1	E2	H	H1	L	L1	n3-d3
LWFDF6-48-3.15A	2.2-2	250	280	310	8-Φ10	149	187	215	3×62.3	189	227	255	3×75.7	12-Φ8	280	310	345	30	405	585	353	222	420	622	490	114	4-Φ12
LWFDF6-48-3.15A	0.55-4	250	280	310	8-Φ10	149	187	215	3×62.3	189	227	255	3×75.7	12-Φ8	205	235	310	30	370	585	353	222	420	622	490	114	4-Φ12
LWFDF6-48-4A	5.5-2	320	350	367	8-Φ10	193	232	260	3×77.3	246	285	313	4×71.3	14-Φ8	366	416	430	50	530	794	472	280	520	794	625	123	4-Φ14
LWFDF6-48-4A	1.1-4	320	350	367	8-Φ10	193	232	260	3×77.3	246	285	313	4×71.3	14-Φ8	235	275	385	40	465	794	472	280	520	794	490	123	4-Φ12
LWFDF6-48-5A	3-4	400	440	462	16-Φ10	247	286	314	3×95.3	312	351	379	3×117	12-Φ8	265	315	430	50	530	907	541	350	600	915	612	159	4-Φ14
LWFDF6-48-5A	0.75-6	400	440	462	16-Φ10	247	286	314	3×95.3	312	351	379	3×117	12-Φ8	265	315	430	50	530	907	541	350	590	905	560	159	4-Φ14
LWFDF6-48-6.3A	7.5-4	500	550	572	16-Φ10	314	346	374	4×86.5	410	441	469	5×88.2	18-Φ8	376	436	540	60	660	1118	663	425	740	1132	812	213	4-Φ14
LWFDF6-48-6.3A	2.2-6	500	550	572	16-Φ10	314	346	374	4×86.5	410	441	469	5×88.2	18-Φ8	295	345	510	50	610	1118	663	425	740	1132	713	213	4-Φ14

LWFDF6-48 Type C Technical Specifications

Belt drive configuration allowing for flexible speed tuning.

Model	Speed (r/min)	Matching Motor (kW-p)	Flow Rate (m³/h)	Total Pressure (Pa)
LWFDF6-48-3.15A-0.75-2P-1-001	1600	0.75-2	755-1688	483-354
LWFDF6-48-3.15A-0.75-2P-1-002	1800	0.75-2	850-1899	611-448
LWFDF6-48-3.15A-0.75-2P-1-003	2000	0.75-2	944-2110	755-553
LWFDF6-48-3.15A-1.1-2P-1-004	2240	1.1-2	1057-2363	948-694
LWFDF6-48-3.15A-1.1-2P-1-005	2500	1.1-2	1180-1909	1181-1070
LWFDF6-48-3.15A-1.5-2P-1-006	2500	1.5-2	2152-2637	1015-865
LWFDF6-48-3.15A-1.5-2P-1-007	2800	1.5-2	1322-2138	1483-1344
LWFDF6-48-3.15A-2.2-2P-1-008	2800	2.2-2	2410-2954	1274-1086
LWFDF6-48-3.15A-2.2-2P-1-008	3150	2.2-2	1487-2711	1880-1615
LWFDF6-48-3.15A-3-2P-1-008	3150	3-2	3017-3323	1507-1376
LWFDF6-48-4A-0.75-2P-1-001	1250	0.75-2	1184-2748	481-345
LWFDF6-48-4A-0.75-2P-1-002	1400	0.75-2	1326-3077	603-433
LWFDF6-48-4A-1.1-2P-1-003	1600	1.1-2	1516-2850	789-672
LWFDF6-48-4A-1.5-2P-1-004	1600	1.5-2	3183-3517	624-565
LWFDF6-48-4A-1.5-2P-1-005	1800	1.5-2	1705-3957	999-716
LWFDF6-48-4A-2.2-2P-1-006	2000	2.2-2	1895-4396	1234-884
LWFDF6-48-4A-2.2-2P-1-007	2240	2.2-2	2122-2589	1550-1505
LWFDF6-48-4A-3-2P-1-008	2240	3-2	3056-4924	1451-1110
LWFDF6-48-4A-3-2P-1-009	2500	3-2	2369-3411	1933-1810
LWFDF6-48-4A-4-2P-1-010	2500	4-2	3932-5495	1737-1384
LWFDF6-48-5A-0.75-2P-1-001	1000	0.75-2	1776-3035	486-436
LWFDF6-48-5A-1.1-2P-1-002	1000	1.1-2	3479-4312	410-344
LWFDF6-48-5A-1.5-2P-1-003	1250	1.5-2	2221-4349	760-641
LWFDF6-48-5A-2.2-2P-1-004	1250	2.2-2	4927-5390	592-538
LWFDF6-48-5A-2.2-2P-1-005	1400	2.2-2	2487-6036	954-675
LWFDF6-48-5A-3-2P-1-006	1600	3-2	2842-6899	1247-882
LWFDF6-48-5A-4-2P-1-007	1800	4-2	3198-6262	1580-1332
LWFDF6-48-5A-5.5-2P-1-008	1800	5.5-2	7095-7761	1230-1118
LWFDF6-48-5A-5.5-2P-1-009	2000	5.5-2	3553-6958	1953-1647
LWFDF6-48-5A-7.5-2P-1-010	2000	7.5-2	7883-8623	1521-1381
LWFDF6-48-6.3A-1.1-4P-1-001	800	1.1-4	2843-4116	494-464
LWFDF6-48-6.3A-1.5-4P-1-002	800	1.5-4	4857-6900	443-350
LWFDF6-48-6.3A-1.5-4P-1-003	900	1.5-4	3198-4631	625-588
LWFDF6-48-6.3A-2.2-4P-1-004	900	2.2-4	5464-7762	561-443
LWFDF6-48-6.3A-2.2-4P-1-005	1000	2.2-4	3554-6071	772-693
LWFDF6-48-6.3A-3-4P-1-006	1000	3-4	6959-8625	651-547
LWFDF6-48-6.3A-3-4P-1-007	1120	3-4	3980-7794	969-818
LWFDF6-48-6.3A-4-4P-1-008	1120	4-4	8831-9660	755-686
LWFDF6-48-6.3A-4-4P-1-009	1250	4-4	4442-7588	1208-1085
LWFDF6-48-6.3A-5.5-4P-1-010	1250	5.5-4	8699-10781	1019-855
LWFDF6-48-8A-2.2-4P-1-001	630	2.2-4	4584-11126	494-350
LWFDF6-48-8A-3-4P-1-002	710	3-4	5166-12539	627-444
LWFDF6-48-8A-3-4P-1-003	800	3-4	5821-8429	797-749
LWFDF6-48-8A-4-4P-1-004	800	4-4	9944-14128	716-564
LWFDF6-48-8A-5.5-4P-1-005	900	5.5-4	6549-12824	1009-851
LWFDF6-48-8A-7.5-4P-1-006	900	7.5-4	14530-15894	786-714
LWFDF6-48-8A-7.5-4P-1-007	1000	7.5-4	7276-17660	1247-882
LWFDF6-48-8A-7.5-4P-1-008	1120	7.5-4	8150-9763	1566-1526
LWFDF6-48-8A-11-4P-1-009	1120	11-4	11799-19779	1472-1108
LWFDF6-48-8A-15-4P-1-010	1250	15-4	9096-22075	1953-1381
LWFDF6-48-10A-4-4P-1-001	500	4-4	7402-18208	508-344
LWFDF6-48-10A-5.5-4P-1-002	630	5.5-4	9327-18373	807-659
LWFDF6-48-10A-7.5-4P-1-003	710	7.5-4	10510-20706	1026-838
LWFDF6-48-10A-11-4P-1-004	710	11-4	23334-25856	769-695
LWFDF6-48-10A-11-4P-1-005	800	11-4	11843-23331	1034-1065
LWFDF6-48-10A-15-4P-1-006	800	15-4	26291-29134	978-882
LWFDF6-48-10A-15-4P-1-007	900	15-4	13323-23049	1653-1445
LWFDF6-48-10A-18.5-4P-1-008	900	18.5-4	26247-32776	1349-1118
LWFDF6-48-10A-18.5-4P-1-009	1000	18.5-4	14804-22057	2043-1900
LWFDF6-48-10A-22-4P-1-010	1000	22-4	25610-36417	1787-1381
LWFDF6-48-12.5A-4-4P-1-001	400	4-4	11565-20008	508-445
LWFDF6-48-12.5A-5.5-4P-1-002	400	5.5-4	22784-28451	415-344
LWFDF6-48-12.5A-7.5-4P-1-003	500	7.5-4	14457-25010	795-695
LWFDF6-48-12.5A-11-4P-1-004	500	11-4	28480-35564	695-538
LWFDF6-48-12.5A-15-4P-1-005	630	15-4	18215-31513	1264-1105
LWFDF6-48-12.5A-18.5-4P-1-006	630	18.5-4	35885-44811	1031-855
LWFDF6-48-12.5A-22-4P-1-007	710	22-4	20528-35515	1607-1405
LWFDF6-48-12.5A-30-4P-1-008	710	30-4	40442-50501	1311-1087
LWFDF6-48-12.5A-30-4P-1-009	800	30-4	23131-34465	2043-1900
LWFDF6-48-12.5A-37-4P-1-010	800	37-4	40017-56902	1787-1381

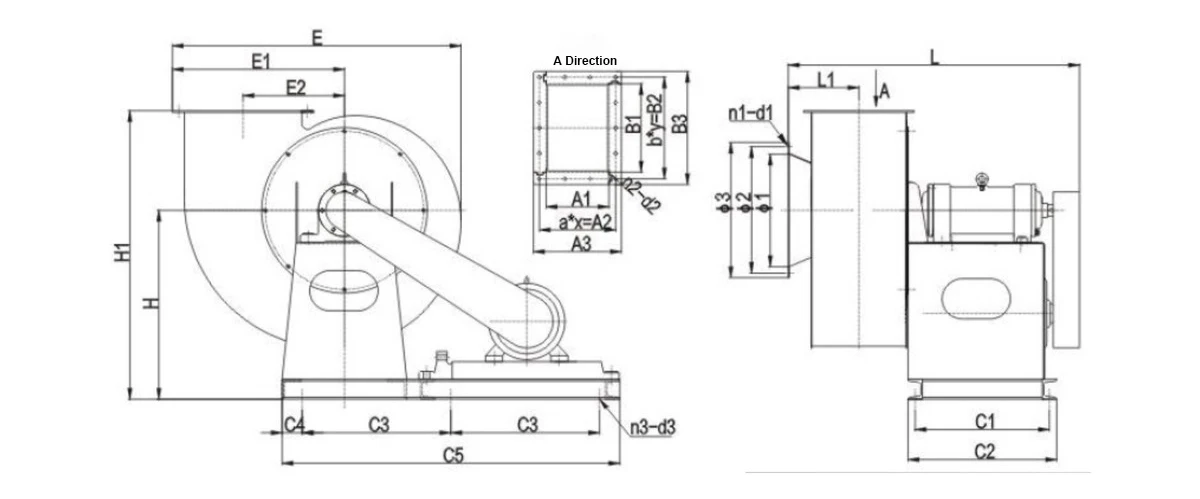

LWFDF6-48 Type C Mounting Dimensions

Model	Φ1	Φ2	Φ3	n1-d1	A1	A2	A3	a×x	B1	B2	B3	b×y	n2-d2	C1	C2	C3	C4	C5	E	E1	E2	H	H1	L	L1	n3-d3
LWFDF6-48-3.15A	250	280	310	8-Φ10	149	187	215	3×62.3	189	227	255	3×75.7	12-Φ8	354	390	320	50	740	585	353	222	400	602	650	114	6-Φ14
LWFDF6-48-4A	320	350	367	8-Φ10	193	232	260	3×77.3	246	285	313	4×71.3	14-Φ8	404	440	415	50	930	794	472	280	500	774	750	123	6-Φ14
LWFDF6-48-5A	400	440	462	16-Φ10	247	286	314	3×95.3	312	351	379	3×117	12-Φ8	614	650	415	50	930	907	541	350	600	915	800	159	6-Φ14
LWFDF6-48-6.3A	500	550	572	16-Φ10	314	346	374	4×86.5	410	441	469	5×88.2	18-Φ8	647	630	535	50	1170	1118	663	425	740	1132	1020	213	7-Φ14

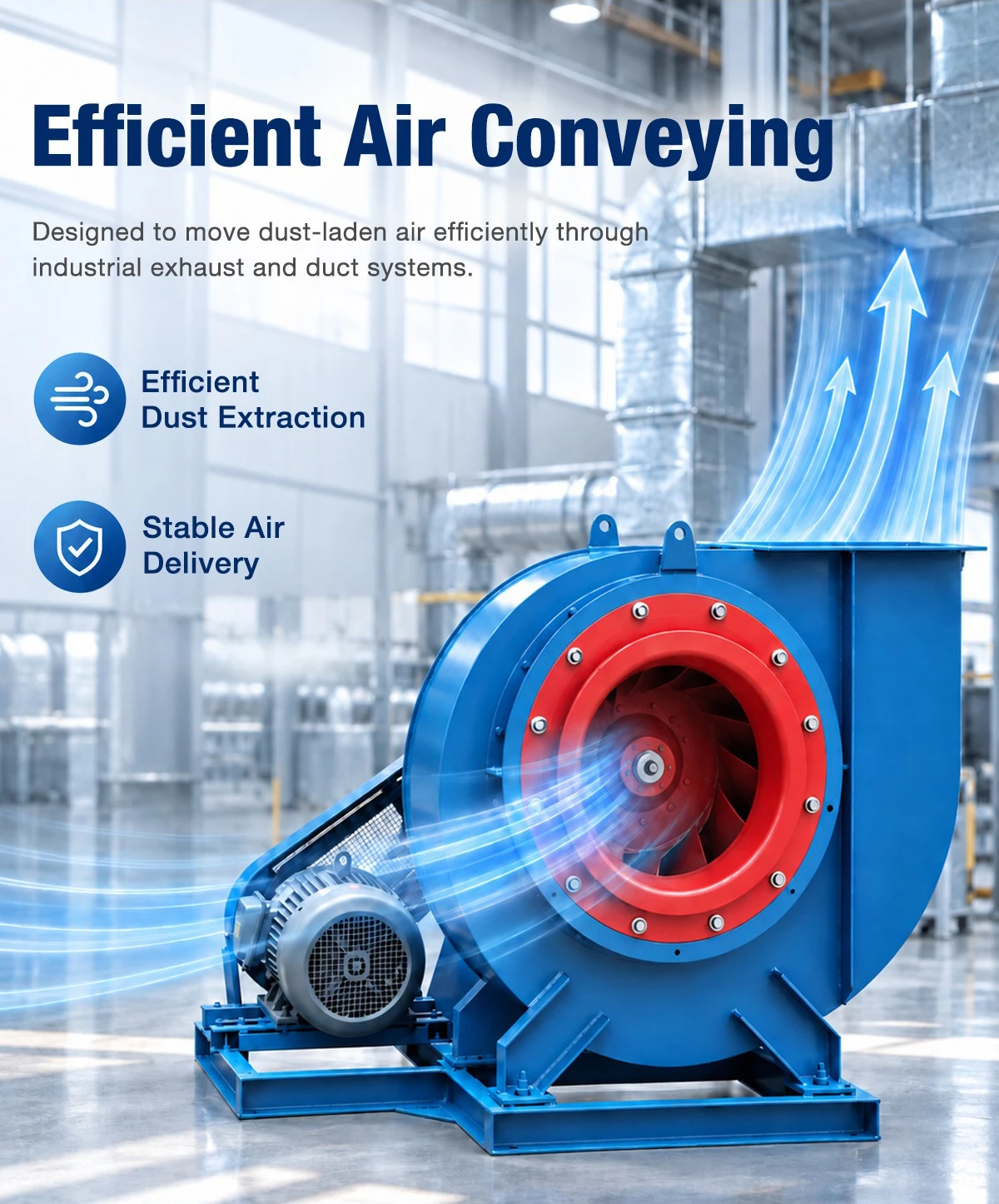

Efficient Air Conveying

Designed to move dust-laden air efficiently through industrial exhaust and duct systems.

The LWFDF6-48 utilizes an optimized aerodynamic profile to generate high-velocity suction capable of moving heavy volumes of air mixed with non-corrosive particulates. It ensures continuous extraction of factory dust, airborne fibers, and process heat directly from the source.

Efficient Dust Extraction — captures particulate-laden air quickly and effectively
Stable Air Delivery — ensures consistent volumetric flow under load
High Throughput — achieves up to 79,111 m³/h for massive plant requirements

Efficient Air Conveying - LWFDF6-48 Centrifugal Fan

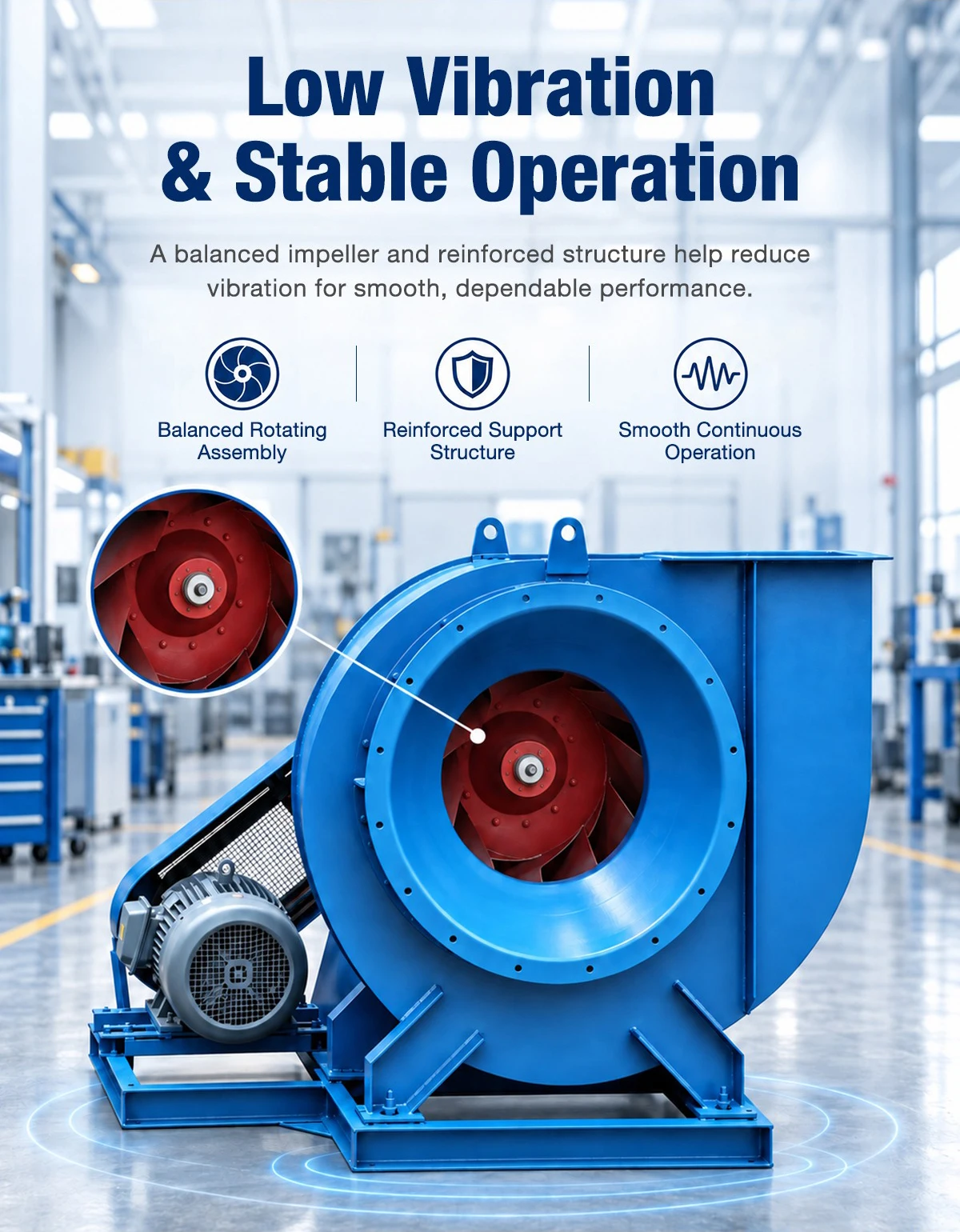

Low Vibration & Stable Operation

A balanced impeller and reinforced structure help reduce vibration for smooth, dependable performance.

Every rotating assembly undergoes strict static and dynamic balancing during manufacturing. This precision tuning, combined with a heavy-duty steel base, mitigates operational resonance, preventing premature bearing failure and keeping noise levels within acceptable industrial limits.

Balanced Rotating Assembly — prevents mechanical shaking and bearing wear
Reinforced Support Structure — absorbs and dampens motor vibrations
Smooth Continuous Operation — maintains steady output across 24/7 shifts

Low Vibration and Stable Operation of LWFDF6-48 Fan

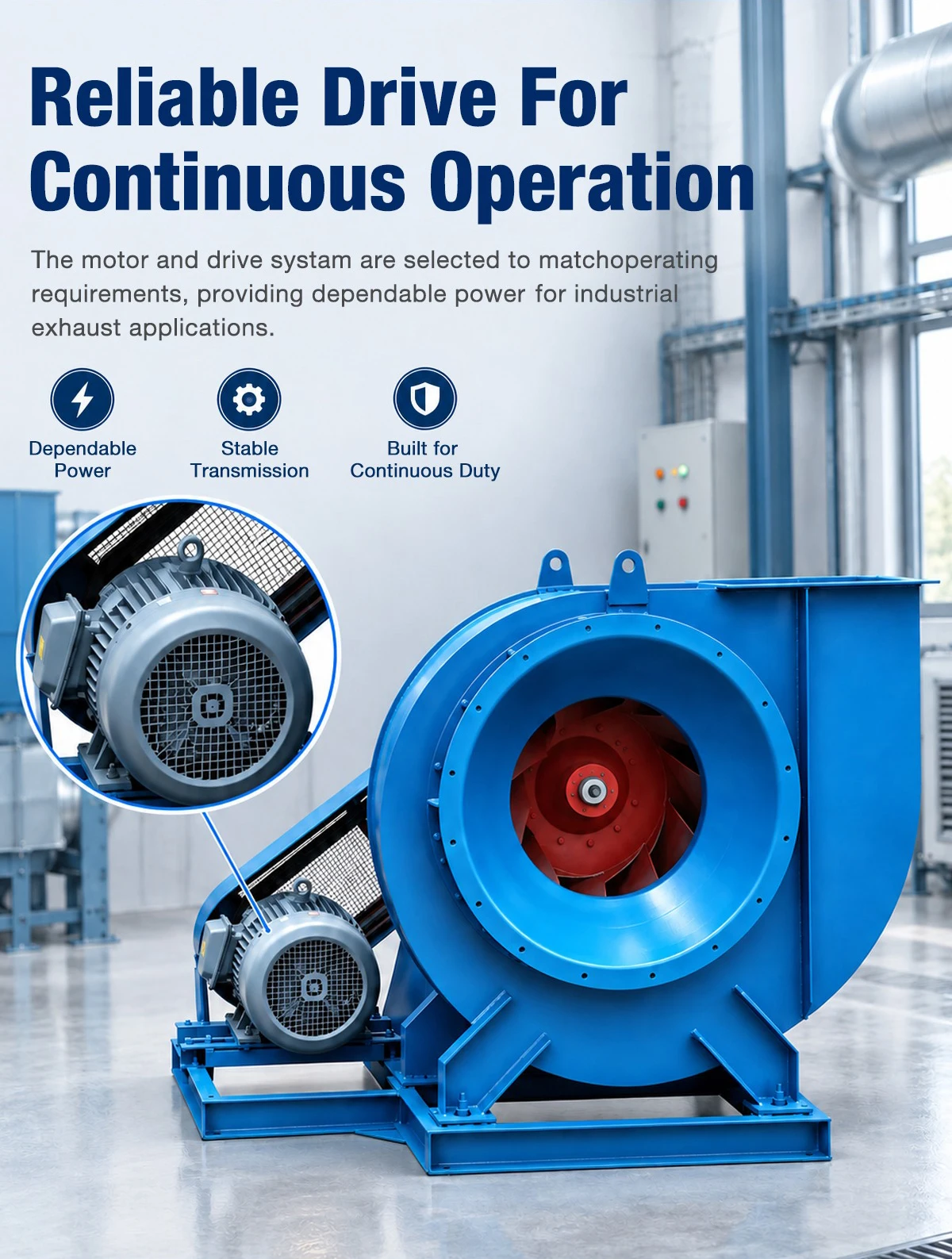

Reliable Drive For Continuous Operation

The motor and drive system are selected to match operating requirements, providing dependable power for industrial exhaust applications.

Fitted with high-efficiency copper-wound industrial motors, the LWFDF6-48 guarantees thermal stability under continuous heavy loads. In the belt-drive configurations, premium tensioned V-belts and cast-iron pulleys ensure slip-free torque transfer and allow for precise speed optimization.

Dependable Power — motors ranging from 0.55 kW to 75 kW to match specific loads
Stable Transmission — heavy-duty belts and precision-machined pulleys
Built for Continuous Duty — S1 rated for uninterrupted factory operation

Reliable Belt Drive for Continuous Operation

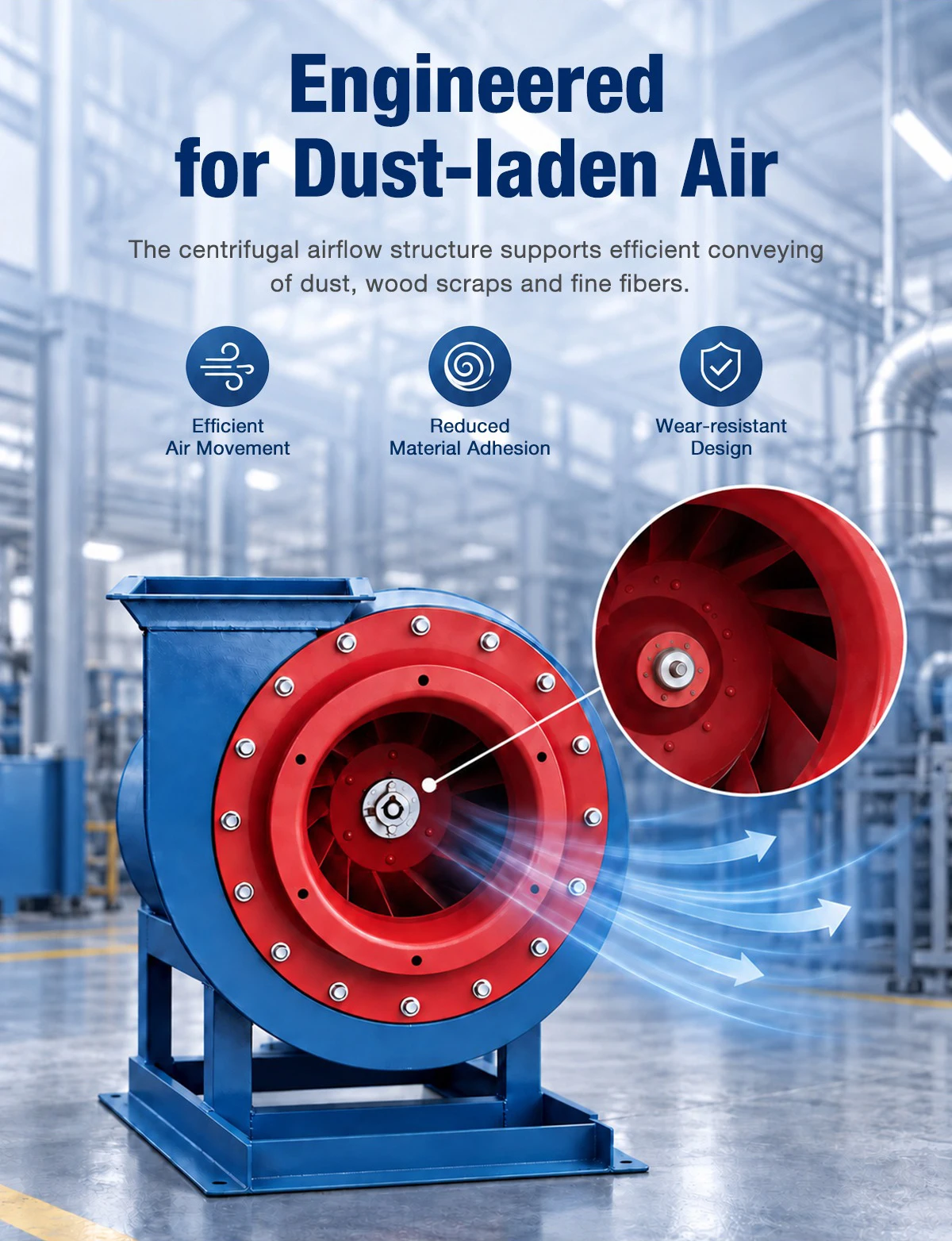

Engineered for Dust-laden Air

The centrifugal airflow structure supports efficient conveying of dust, wood scraps, and fine fibers.

Traditional multi-vane blowers clog quickly when exposed to debris. The LWFDF6-48 utilizes a robust open-blade impeller specifically engineered to minimize material adhesion. This wear-resistant design allows heavy wood chips, textile fluff, and industrial particulates to pass through the scroll casing without restricting airflow or unbalancing the wheel.

Efficient Air Movement — maintains strong suction velocity for particulate capture
Reduced Material Adhesion — specialized blade pitch prevents fiber and dust buildup
Wear-resistant Design — withstands the continuous abrasion of conveyed scraps

Wear-Resistant Impeller Engineered for Dust-laden Air

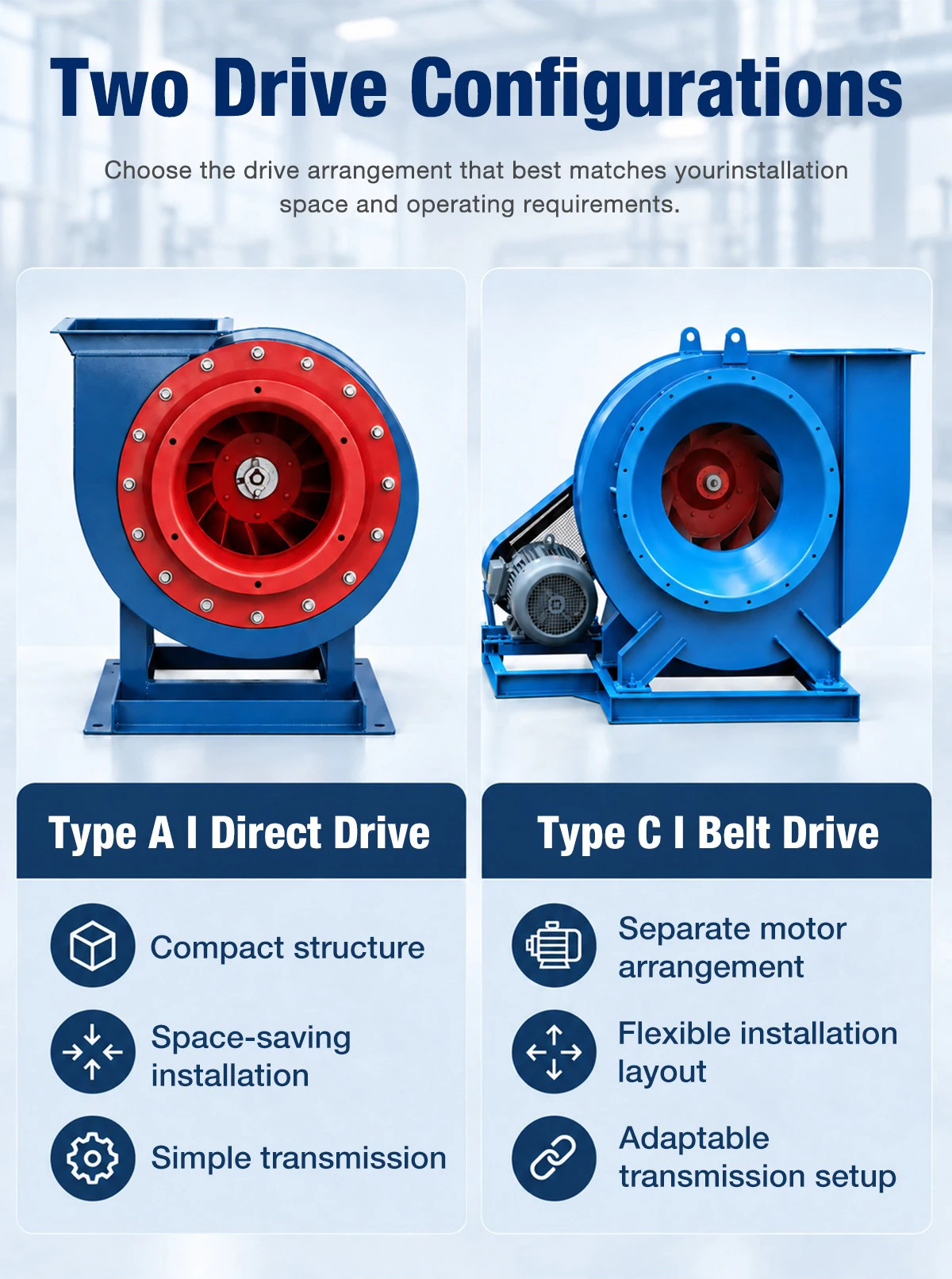

Two Drive Configurations

Choose the drive arrangement that best matches your installation space and operating requirements.

The Type A (Direct Drive) mounts the impeller directly to the motor shaft, resulting in a highly compact, maintenance-free footprint ideal for tight spaces. The Type C (Belt Drive) isolates the motor from the main housing, protecting it from potential heat and offering the flexibility to adjust the fan's RPM via pulley changes.

Type A | Direct Drive — compact structure, simple transmission, space-saving
Type C | Belt Drive — separate motor arrangement, adaptable transmission setup
Flexible Selection — tailored to specific industrial layout constraints

Two Drive Configurations: Type A Direct Drive and Type C Belt Drive

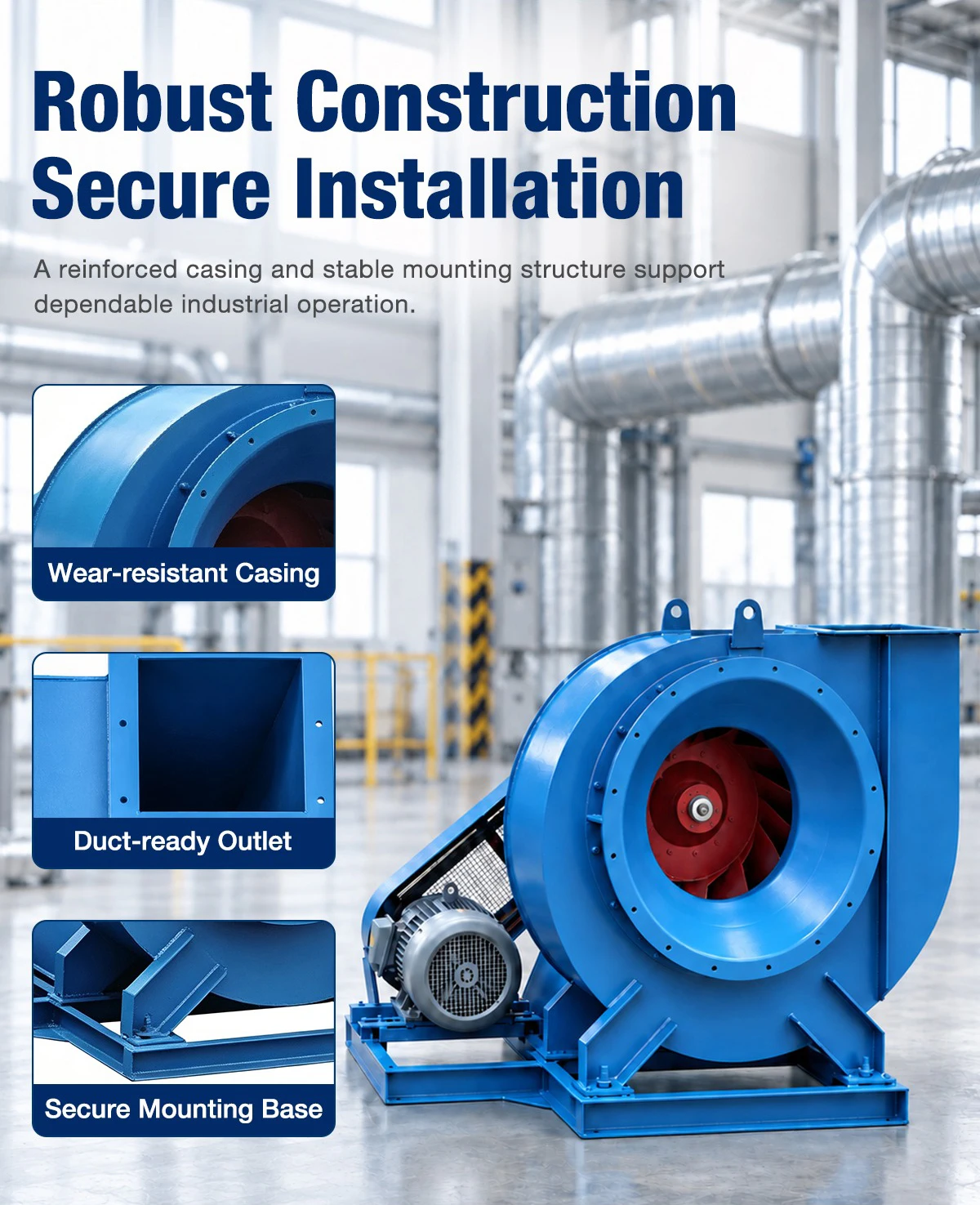

Robust Construction & Secure Installation

Defined inlet and discharge interfaces simplify connection with industrial ventilation and duct systems.

The fan housing is fabricated from thickened carbon steel and finished with an industrial electrostatic powder coating to prevent corrosion. Pre-drilled flanged air inlets and rectangular discharge outlets allow for quick and airtight coupling to existing factory ductwork. The reinforced, single-piece welded base simplifies floor mounting and guarantees operational stability.

Thickened Carbon Steel — provides structural rigidity for heavy-duty exhausting
Flanged Interfaces — standard circular inlet and rectangular outlet for easy connection
Stable Floor-Mount Base — ensures secure, vibration-free installation

Robust Construction and Secure Installation Interfaces

Wide Range of Applications

Built to handle demanding exhaust and material conveying scenarios across industrial sectors.

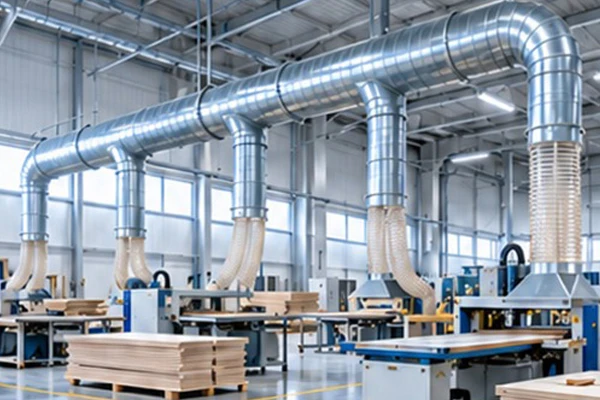

Woodworking

Reliable extraction of sawdust, wood chips, and sanding dust from carpentry machinery.

Textile Equipment

Conveying fine airborne fibers, lint, and textile fluff without clogging the impeller.

Factory Workshops

General extraction of heavy industrial dust, smoke, and stale air from production floors.

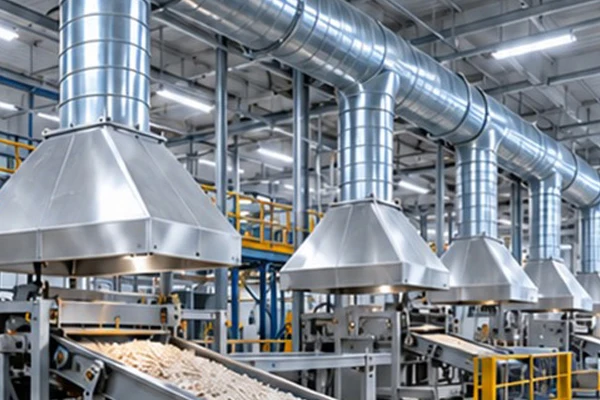

Material Processing

Strong static pressure for pneumatic conveying of non-corrosive granular materials.

Automated Production Lines

Localized spot cooling and rapid fume exhaust for automated manufacturing cells.

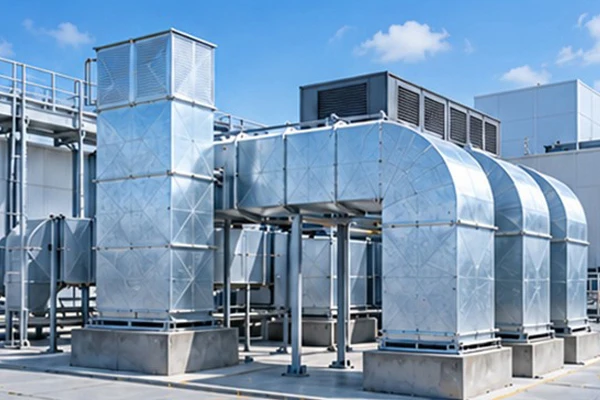

General Ventilation

High-volume air exchange for warehouses, logistics hubs, and large facility HVAC.

LONGWELL — Trusted Industrial Fan Manufacturer Since 1990

Founded in 1990 in Yuyao, Ningbo — the heart of China’s advanced manufacturing belt — LONGWELL has grown from a precision fan component workshop into a vertically integrated ventilation technology group. Today we engineer AC, DC and EC fan and motor systems with 4,000 m²+ of manufacturing floor, dedicated aerodynamics and CFD simulation labs, and a global export network spanning Europe, the Americas and Asia-Pacific.

From material selection to final balancing, every LONGWELL fan is built on automated lines, computer-balanced impellers and 100% run-test before shipment. We are certified to ISO 9001:2015 and ISO 14001, with CE, UL/ETL, RoHS and EAC compliance, and performance tested to the AMCA 210/211 method.

35+Years of Engineering

30+Countries Served

60+In-House R&D Engineers

5M+Fan Units Shipped / Year

Production & Delivery

Automated lines, computer-balanced impellers and a 100% run-test on every unit, so each LWFDF6-48 fan arrives ready to install.

LONGWELL industrial centrifugal fan factory gallery — production lines, assembly and quality inspection

LONGWELL export packaging and container loading — fans wrapped, crated and loaded into containers for global shipment

Global HVAC&R Exhibitions Participation

Meeting HVAC distributors, project contractors, and OEM engineering teams at international trade fairs worldwide.

LONGWELL participation at global HVAC&R exhibitions with international clients and partners

Trusted by Leading Global HVAC Brands

24+ HVAC OEMs and equipment builders rely on LONGWELL for industrial centrifugal fans every year.

Complete Range of Professional & Certified

LONGWELL fans are independently certified to international quality, safety and energy-efficiency standards.

LONGWELL certification badge ribbon: CE, RoHS, ETL, CCC, UL, LVD, EAC, ISO, BSCI

LONGWELL certificate grid: BSCI, CE, UL/ETL, FCC, ISO 45001:2018, ISO 9001:2015, ISO 14001:2015

Global Market & Client Preference

The LWFDF6-48 series is specified by HVAC distributors, commercial kitchen contractors and OEM clients across Europe, the Middle East, Southeast Asia and the Americas.

LONGWELL global presence — regional offices and partners in USA, Germany, Spain, Poland, Russia, Turkey, China and Dubai

Frequently Asked Questions

Quick technical answers about the LWFDF6-48 dust exhausting centrifugal fan series.

What is the primary application of the LWFDF6-48 centrifugal fan?

The LWFDF6-48 is engineered specifically for extracting and conveying dust-laden air. It is widely used in woodworking shops, textile plants, and material processing lines where the air stream contains wood scraps, fine fibers, and non-corrosive particulate matter.

How does the LWFDF6-48 handle dust and debris?

The fan features a specialized wear-resistant impeller design that minimizes material adhesion and buildup. The internal aerodynamic structure ensures efficient continuous conveying of heavy particulates without clogging.

What are the available drive configurations?

The series is available in Type A (Direct Drive) for a compact footprint, and Type C (Belt Drive) for flexible installation and adjustable transmission ratios, which is ideal for fine-tuning industrial ventilation.

What is the airflow and pressure capacity of the LWFDF6-48 series?

Across the full model range, air volume spans from 684 m³/h to 79,111 m³/h, with total static pressure ranging from 291 Pa up to 3,442 Pa, covering both localized dust collection and plant-wide exhaust systems.

Is the fan casing durable enough for heavy industrial use?

Yes, the scroll casing and mounting base are constructed from thickened carbon steel and finished with high-quality electrostatic powder coating, providing excellent resistance against structural wear, vibration, and corrosion.
