Description
Technical Description
| Material | Metal |
| Technical Feature | 1.100% pure copper wire motor 2.Powerful airflow,various sizes for choose |
Nominal data
| Dimensions | 250mm |
| Voltage | 220V |
| Frequency | 50Hz |
| Current | 0.3A |
| Power | 60W |
| Speed | 1440RPM |
| Air Flow | 1230m³/h |
| Air Pressure | 60Pa |
| Noise | 55dB(A) |
| Capacitor | 2.5uF |
Curves

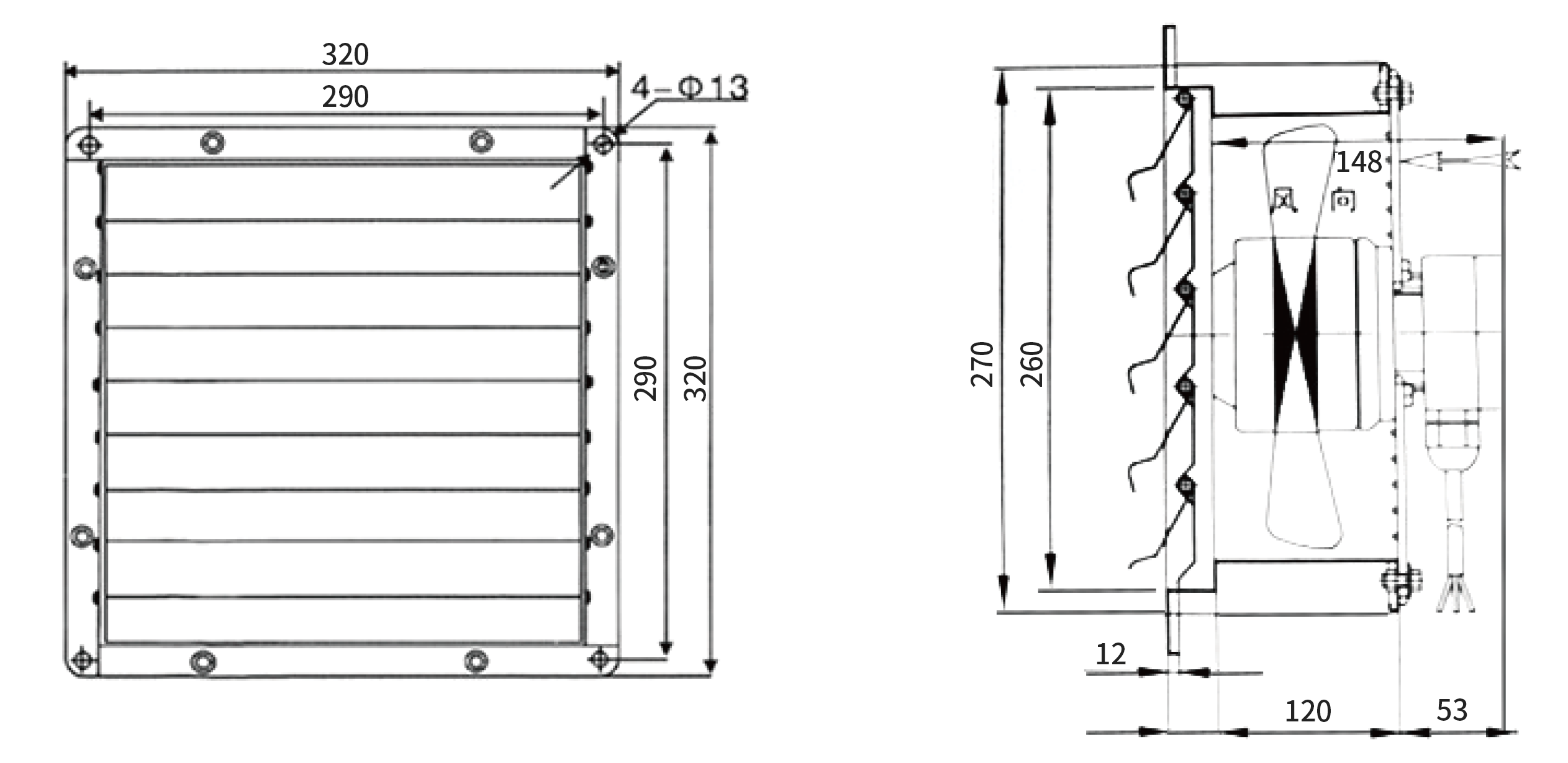

Drawing
Download
