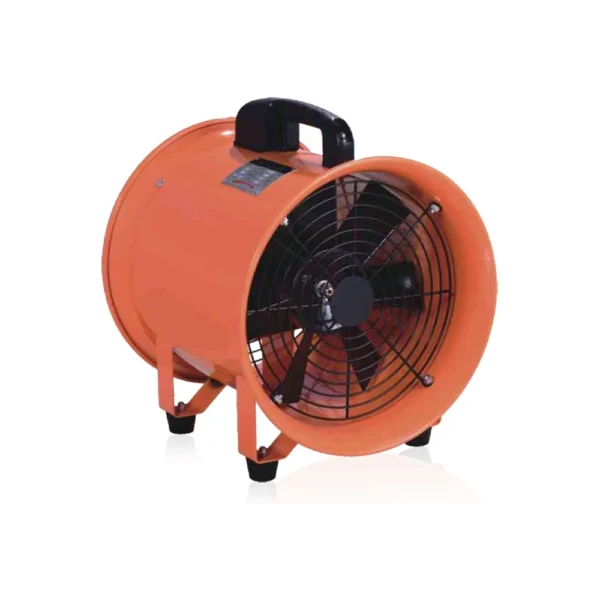

LONGWELL 500mm Axial Fan, Industrial Axial Ventilation Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 220v/110v
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Category: Tags: , ,
CategoryIndustrial Axial Blower
TagsAxial FanMobile ApplicationsPortable Ventilator
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Axial Blower range. The Fan Selector lists every LONGWELL axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description


Types :

Effortless Heat Dissipation with Our Superior Portable Ventilator
Voltage Ranges :

110V,220V
Frequency :

50/60 Hz
Diamter :

200-450mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

220v/110v
speed

2500 RPM, 3 000 RPM, 4500 RPM, 2700 RPM, 2100 RPM, 1350RPM, 14000Rpm
Type

Duct Axial Fan
blade material

Plastic
mounting type

Free Standing
bearing type

Ball Bearing
