LONGWELL Custom High Volume 8ft 10ft 13ft Indoor/Outdoor Low Noise Industrial HVLS Fan Big Ceiling Fan for Excellent Ventilation
|
Name
|
Industrial Fans
|
|
Air Speed
|
5.3m/s- 6m
|
|
Buffer Structure
|
High-Efficiency Fan Components
|
|
Applicable Industries
|
Factory,Workshop,Farm,Gym,Stadium,Train Station, Hall,Airport.
|
|
Noise
|
Low Niose ≤40dB
|
|
Max Airflow
|
10800m³/min
|
|
Power
|
0.52KW-1.6KW
|
|
Blade
|
5pcs,6pcs
|
|
Main Features
|
Energy Saving Commercial HVLS Ceiling Fan
|
|
Frame Material
|
Aluminum Alloy
|
* This industrial ceiling fan delivers high air volume with exceptional energy efficiency and low noise, making it ideal for a
wide range of industrial applications.;

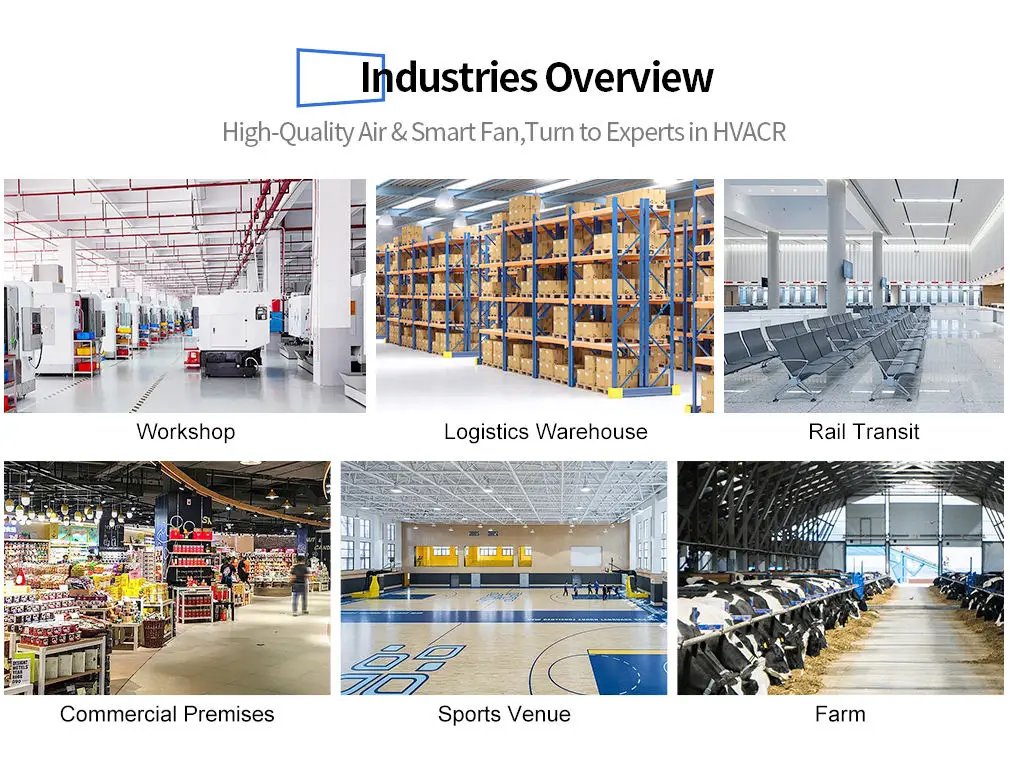

* Warehouse Distribution Centers | Manufacturing Plants | Agricultural Barns | Large Gymnasiums/Sports Facilities;
* Power(kW):0.52-1.6kW,Voltage(V):220/380V,Diameter(m/ft):2.6-7.3m/8.53-24ft,Fan number(PCS):5/6PCS;
* Max speed(RPM):55-125RPM,Air Flow(m³/min):3600-10800m³/min,Noise[dB(A)]:≤40dB(A);
* Max coverage area(m²):600-1200m²,Min coverage area(m²):200-900m²,Weight(Kg):23-106Kg;
wide range of industrial applications.;
* Warehouse Distribution Centers | Manufacturing Plants | Agricultural Barns | Large Gymnasiums/Sports Facilities;
* Power(kW):0.52-1.6kW,Voltage(V):220/380V,Diameter(m/ft):2.6-7.3m/8.53-24ft,Fan number(PCS):5/6PCS;
* Max speed(RPM):55-125RPM,Air Flow(m³/min):3600-10800m³/min,Noise[dB(A)]:≤40dB(A);
* Max coverage area(m²):600-1200m²,Min coverage area(m²):200-900m²,Weight(Kg):23-106Kg;
|

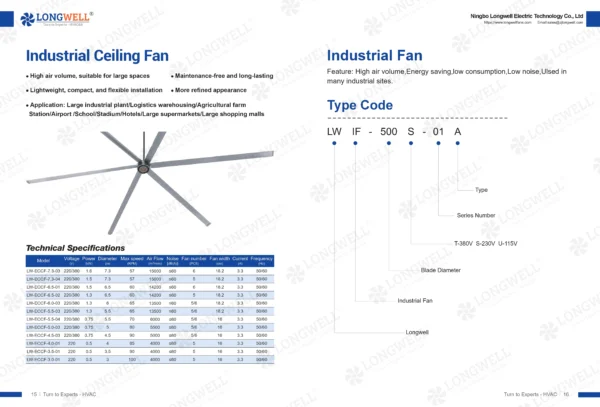

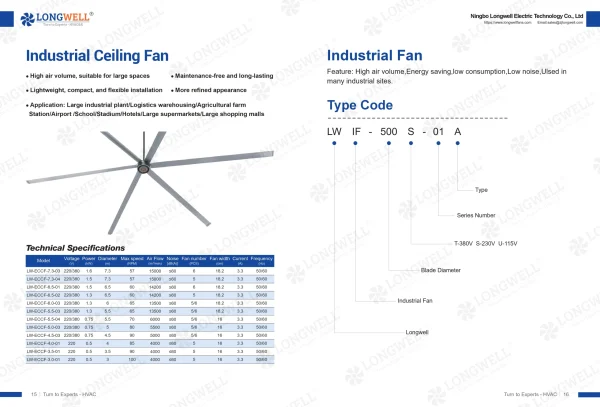

Model
|
Power(kw)
|
Voltage(V)
|
Diameter(m/ft)
|
Blade(PCS)
|
Max speed(RPM)
|
|
LW-ECCF-7.3
|
1.6kw
|
220/380V
|
7.3m/24ft
|
6PCS
|
55RPM
|
|
LW-ECCF-6.2
|
1.3kw
|
220/380V
|
6.2m/20.34ft
|
6PCS
|
63RPM
|
|
LW-ECCF-5.2
|
1.1kw
|
220/380V
|
5.2m/17ft
|
6PCS
|
65RPM
|
|
LW-ECCF-4.2
|
0.75kw
|
220/380V
|
4.2m/13.78ft
|
6PCS
|
75RPM
|
|
LW-ECCF-3.2
|
0.52kw
|
220/380V
|
3.2m/10.5ft
|
5PCS
|
120RPM
|
|
LW-ECCF-2.6
|
0.52kw
|
220/380V
|
2.6m/8.53ft
|
5PCS
|
125RPM
|
|
Model
|
Air Flow(m³/min)
|
Max coverage area(m²)
|
Min coverage area(m²)
|
Weight(Kg)
|
Noise[dB(A)]
|
|
LW-ECCF-7.3
|
10800m³/min
|
1200m²
|
900m²
|
106Kg
|
≤40dB(A)
|
|
LW-ECCF-6.2
|
9800m³/min
|
1100m²
|
800m²
|
86Kg
|
|
|
LW-ECCF-5.2
|
8600m³/min
|
1000m²
|
700m²
|
80Kg
|
|
|
LW-ECCF-4.2
|
6600m³/min
|
900m²
|
500m²
|
60Kg
|
|
|
LW-ECCF-3.2
|
3600m³/min
|
650m²
|
200m²
|
25Kg
|
|
|
LW-ECCF-2.6
|
600m²
|
23Kg
|
About this item – Industrial Ceiling Fan
Experience superior airflow and durability with our Industrial Ceiling Fan, engineered for high-performance ventilation in large spaces. Designed with robust materials and advanced motor technology, this fan delivers exceptional cooling power while maintaining energy efficiency—making it ideal for both commercial and industrial environments.
Powerful Airflow:Generates a high-velocity breeze to circulate air effectively across wide areas, reducing stagnant air and maintaining consistent temperatures.
Energy-Saving Operation:Equipped with an efficient motor that consumes less electricity without compromising on performance,helping lower utility costs.
Durable Construction:Built with heavy-duty metals and reinforced blades to withstand harsh conditions, ensuring long-lasting reliability.
Easy Installation & Low Maintenance:Designed for hassle-free setup and requires minimal upkeep, even in demanding settings.
Versatile Functionality:Suitable for year-round use—cooling in summer and promoting warm air redistribution in winter.
Powerful Airflow:Generates a high-velocity breeze to circulate air effectively across wide areas, reducing stagnant air and maintaining consistent temperatures.
Energy-Saving Operation:Equipped with an efficient motor that consumes less electricity without compromising on performance,helping lower utility costs.
Durable Construction:Built with heavy-duty metals and reinforced blades to withstand harsh conditions, ensuring long-lasting reliability.
Easy Installation & Low Maintenance:Designed for hassle-free setup and requires minimal upkeep, even in demanding settings.
Versatile Functionality:Suitable for year-round use—cooling in summer and promoting warm air redistribution in winter.
Key Factors Influencing the Lifespan of an:Industrial Ceiling Fan
Motor Quality
The motor is the heart of the fan. High-quality copper-wound motors with sealed bearings generate less heat and endure years of continuous use, directly defining the unit’s operational lifespan.
Materials & Build
Durability relies on robust materials. Heavy-gauge steel or aluminum blades resist warping, while a corrosion-resistant powder-coated frame ensures long-term structural integrity under stress.
Installation & Balance
Proper installation is critical. The fan must be securely mounted to a structural support and dynamically balanced to prevent damaging vibrations that prematurely wear out the motor and components.
Operating Environment
Harsh environments shorten lifespan. Exposure to extreme heat, humidity, dust, or corrosive chemicals can degrade parts and cause overheating. Choosing a fan rated for your specific environment is crucial.
Usage Patterns
How the fan is used affects its wear. Continuous 24/7 operation will have a different impact than intermittent use. Frequently running at top speed creates more stress than variable, controlled operation.
Maintenance
Regular upkeep is essential. Cleaning accumulated dust from blades and the motor housing prevents overheating. Periodic inspections for loose parts or unusual sounds can catch small issues before they become major failures.
The motor is the heart of the fan. High-quality copper-wound motors with sealed bearings generate less heat and endure years of continuous use, directly defining the unit’s operational lifespan.
Materials & Build
Durability relies on robust materials. Heavy-gauge steel or aluminum blades resist warping, while a corrosion-resistant powder-coated frame ensures long-term structural integrity under stress.
Installation & Balance
Proper installation is critical. The fan must be securely mounted to a structural support and dynamically balanced to prevent damaging vibrations that prematurely wear out the motor and components.
Operating Environment
Harsh environments shorten lifespan. Exposure to extreme heat, humidity, dust, or corrosive chemicals can degrade parts and cause overheating. Choosing a fan rated for your specific environment is crucial.
Usage Patterns
How the fan is used affects its wear. Continuous 24/7 operation will have a different impact than intermittent use. Frequently running at top speed creates more stress than variable, controlled operation.
Maintenance
Regular upkeep is essential. Cleaning accumulated dust from blades and the motor housing prevents overheating. Periodic inspections for loose parts or unusual sounds can catch small issues before they become major failures.
What drives us?
Our product range includes:
1. EC/DC/AC Centrifugal Fans:We design and manufacture high-efficiency, low-energy consumption EC/DC/AC centrifugal fans widely used in industrial manufacturing, commercial buildings, medical facilities, and more. These fans utilize advanced electronically commutated (EC) motor technology to achieve precise airflow control and energy optimization, providing customers with high-quality air movement solutions.
2. EC/DC/AC Axial Fans:We provide high-performance, high-efficiency EC/DC/AC axial fans for ventilation, air conditioning, and refrigeration applications. These fans offer excellent airflow capacity and energy optimization, creating comfortable and healthy indoor environments.
3. Industrial Ventilation Fans:We offer a wide range of ventilation solutions for industrial applications, including exhaust
fans, supply fans, and environmental control fans. These fans feature high efficiency, reliability, and durability, meeting the
requirements of various industrial applications.
4. Commercial Building Fans:Our commercial building fans are suitable for office buildings, shopping malls, hotels, sports arenas, and other venues. These fans are characterized by low noise, high efficiency, and controllability, providing good indoor air quality and a comfortable environment.
5. Agricultural Fans:We provide professional fan solutions for agricultural production, including greenhouse ventilation
fans,poultry and livestock ventilation fans, and agricultural irrigation fans. These fans effectively enhance crop growth
conditions and animal comfort, contributing to increased productivity and efficiency in agriculture.
FAQ
Q1: Are you a manufacturer or trading company?
Yes, LONGWELL is a professional manufacturer which is the specialist in HVACR fans,motor and components for the applications of air conditioner,air ex-changer coolers,heaters,floor convectors,sterilization puriferair,air purifiers,medical purifiers,and ventilation,energy industry,5G cabinet …
Q2: whats your production capacity?
We are capable to produce over millions pcs fans and motors annually.
Q3: whats your main machines and capacity.

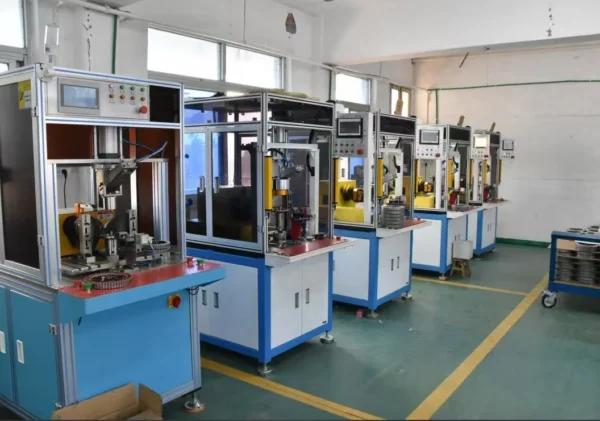

For the motors:
Wehave owned CNC machines 18 units &4 auto-robots . capacity :500k pcs annually
winding machine 20 units, capacity 500kpcs annually
magnetization machine 6 : capacity 500kpcs annually
magnetization machine 6 : capacity 500kpcs annually
Balance machine 22 units : 500k pcs annually
boring mill : 2 units high temp
failure detection :3 chambers 500k pcs annually
failure detection :3 chambers 500k pcs annually
For the fan: Injection machine :12 units , capacity: 2millions pcs annually
Welding machine : 10 units Balance machines :14 units
Welding machine : 10 units Balance machines :14 units
Q4: what your advantages of technologies in fans and motors.
we makes very quiet noise , and good air performances of fans. We are capable to do fans and motors matching and make them optimized to achieve best air performances and lowest noise with CFD simulation
Q5: whats your quality and certificates
Quality thing is big than ever for Longwell . we always focus on quality thing . 100% inspection before delivery makes almost zero complains . MTTF is less 500/million . LONGWELL products can pass CE,ETL UL certificates
Q6: Where is our main market.
North America , Europe.some of longwell customers are the top 1 in their application.
