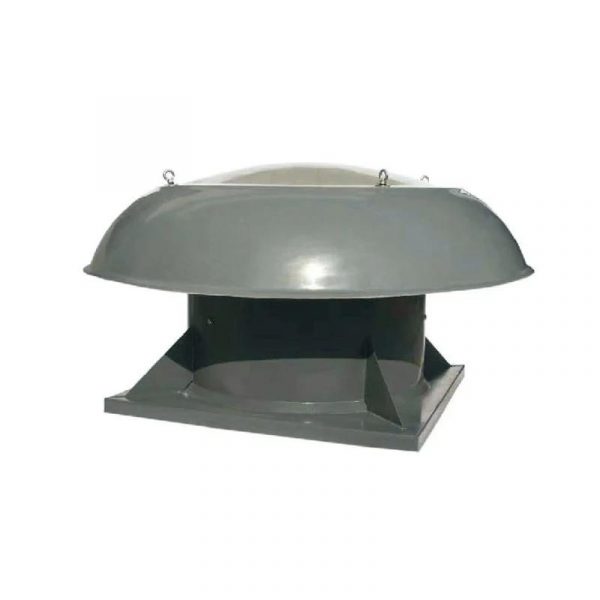

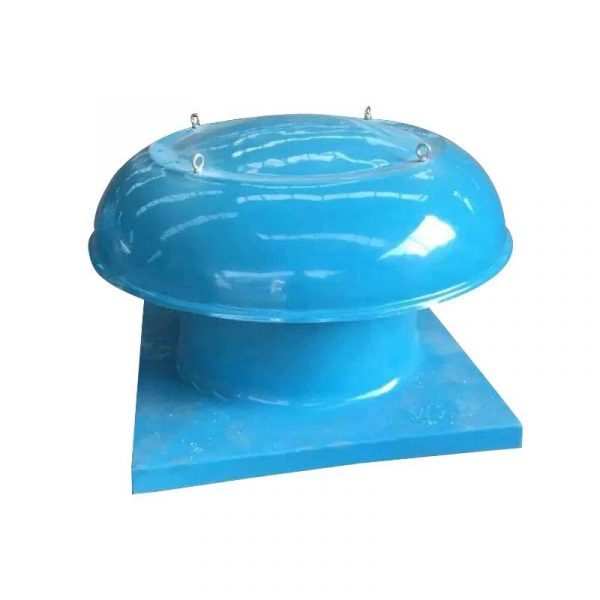

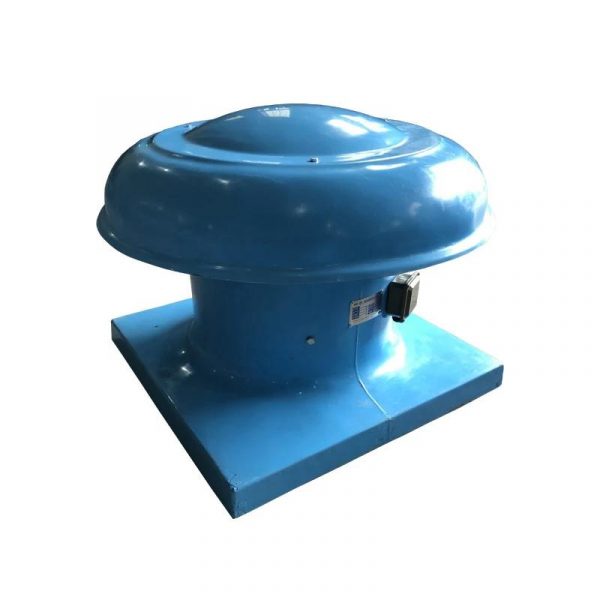

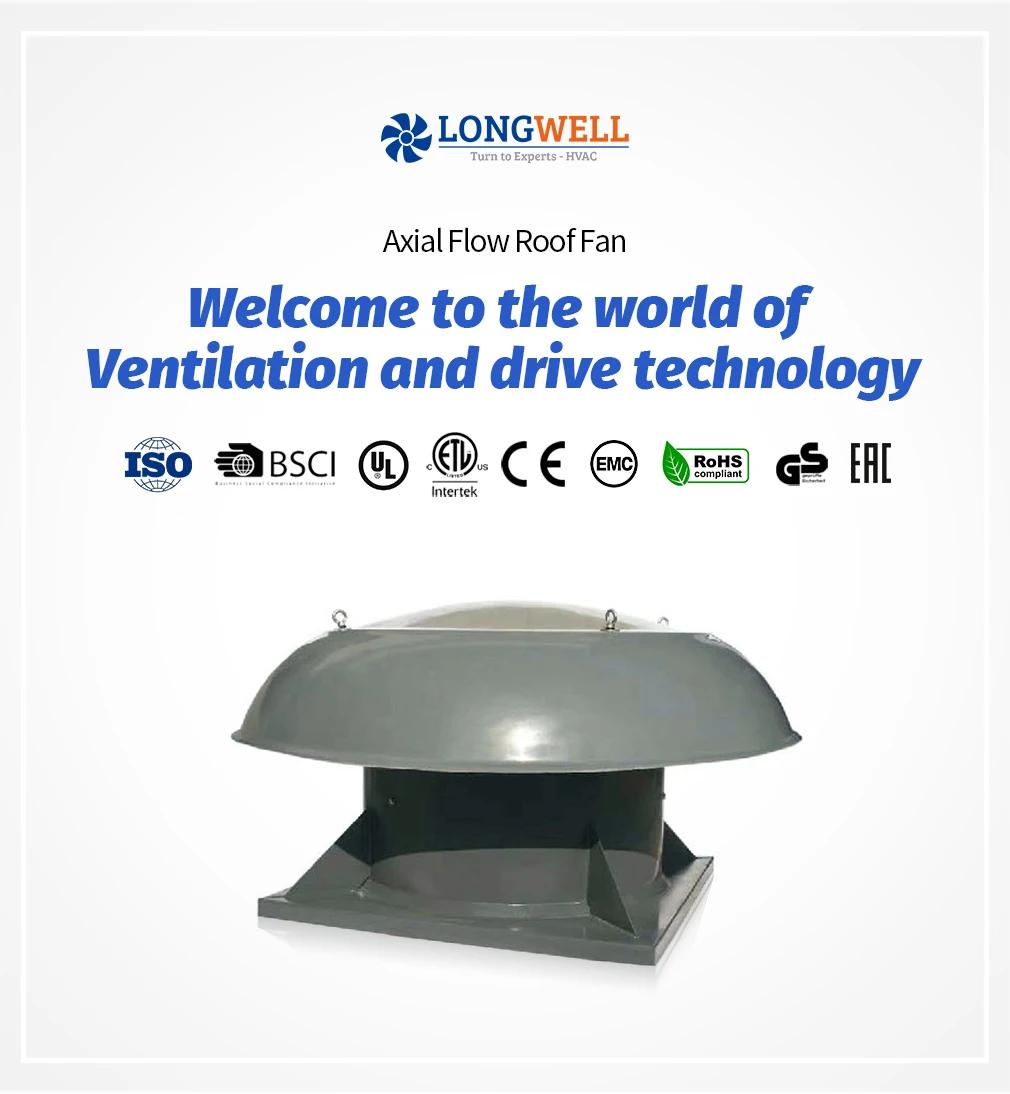

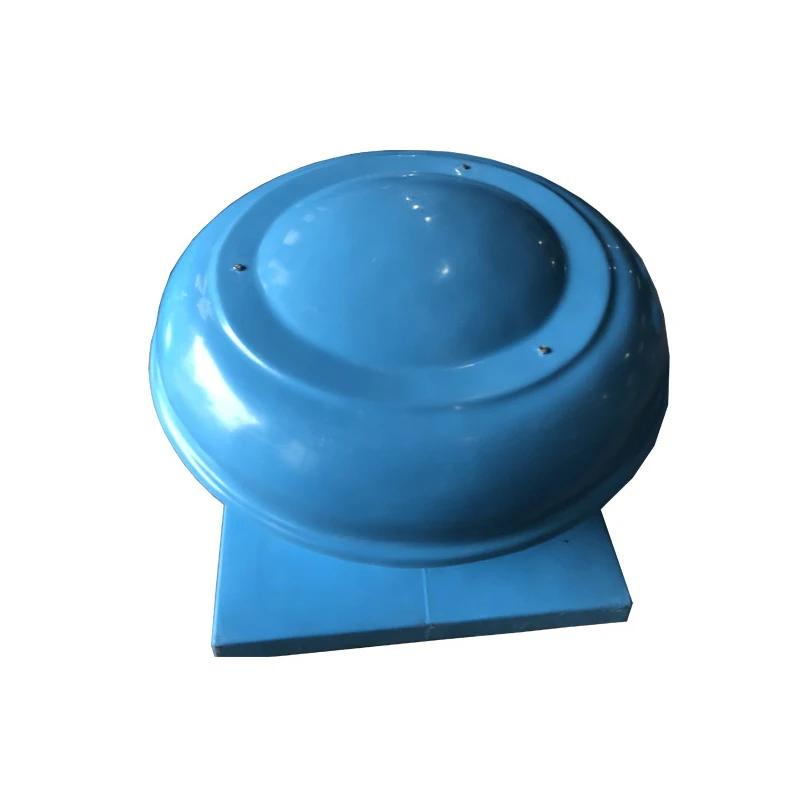

LONGWELL Axial Fan, Industrial Axial Ventilation Fan, 380V – LWARF310

Voltage 380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 160

Category: Tags: , ,
CategoryDirect Driven Roof Fans
TagsAxial FanExplosion Proof FanIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Direct Driven Roof Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

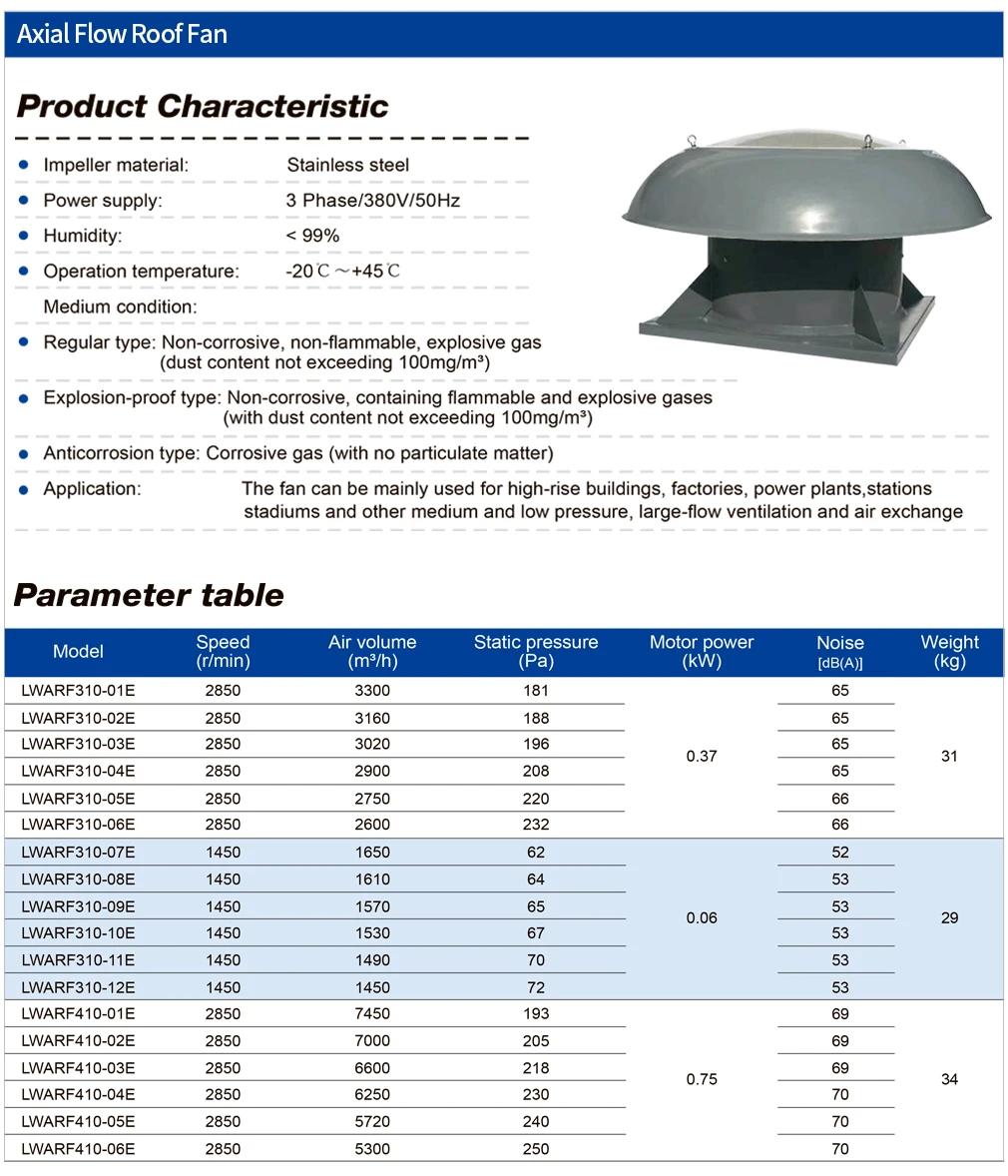

Products Description

Impeller material:
Stainless steel
Power supply:
3 Phase/380V/50Hz
Humidity:
< 99%
Operation temperature:
-20℃～+45℃
Regular type:
Non-corrosive, non-flammable, explosive gas

(dust content not exceeding 100mg/m³)
Explosion-proof type:
Non-corrosive, containing flammable and explosive gases

(with dust content not exceeding 100mg/m³)
Anticorrosion type:
Corrosive gas (with no particulate matter)
Application:
The fan can be mainly used for high-rise buildings, factories, power plants,stations

stadiums and other medium and low pressure, large-flow ventilation and air exchange

Recommend Products

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

mounting type

Roof Fan
Voltage

380V
speed

2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source

Electric
blade material

Stainless Steel
bearing type

Ball Bearing
customized support

OEM, ODM
place of origin

Zhejiang, China
brand name

Longwell
model number

LWARF310
warranty

1 Year
after-sales service provided

Free spare parts
Product name

Ventilation Exhaust Fan
Application

Exhaust Ventilation
Size

Customer's Requirement
Usage

Exhaust Ventilation .Placed
Motor

Copper Motor
Type

Mounted Exhaust Fan
Material

Stainlesss Steel
Fan type

Aixal Fan
Function

Exhaust Air
Keyword

Exhaust Fan Ventilation
Selling units

Single item
Single package size

58X58X28 cm
Single gross weight

8.000 kg
