LONGWELL Industrial Fan, Industrial Ventilation Fan, 110V

Name: LONGWELL Industrial Fan, Industrial Ventilation Fan, 110V
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 110V/220V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 19

Category: Exhaust Ventilation Fans Tags: Axial Fan, Exhaust Fan, Exhaust Ventilation

CategoryExhaust Ventilation Fans

TagsAxial Fan Exhaust Fan Exhaust Ventilation

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name *

Work Email *

Phone/ WhatsApp *

Estimated order quantity

Message

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Exhaust Ventilation Fans range. The Fan Selector lists every LONGWELL duct fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search duct fan models →

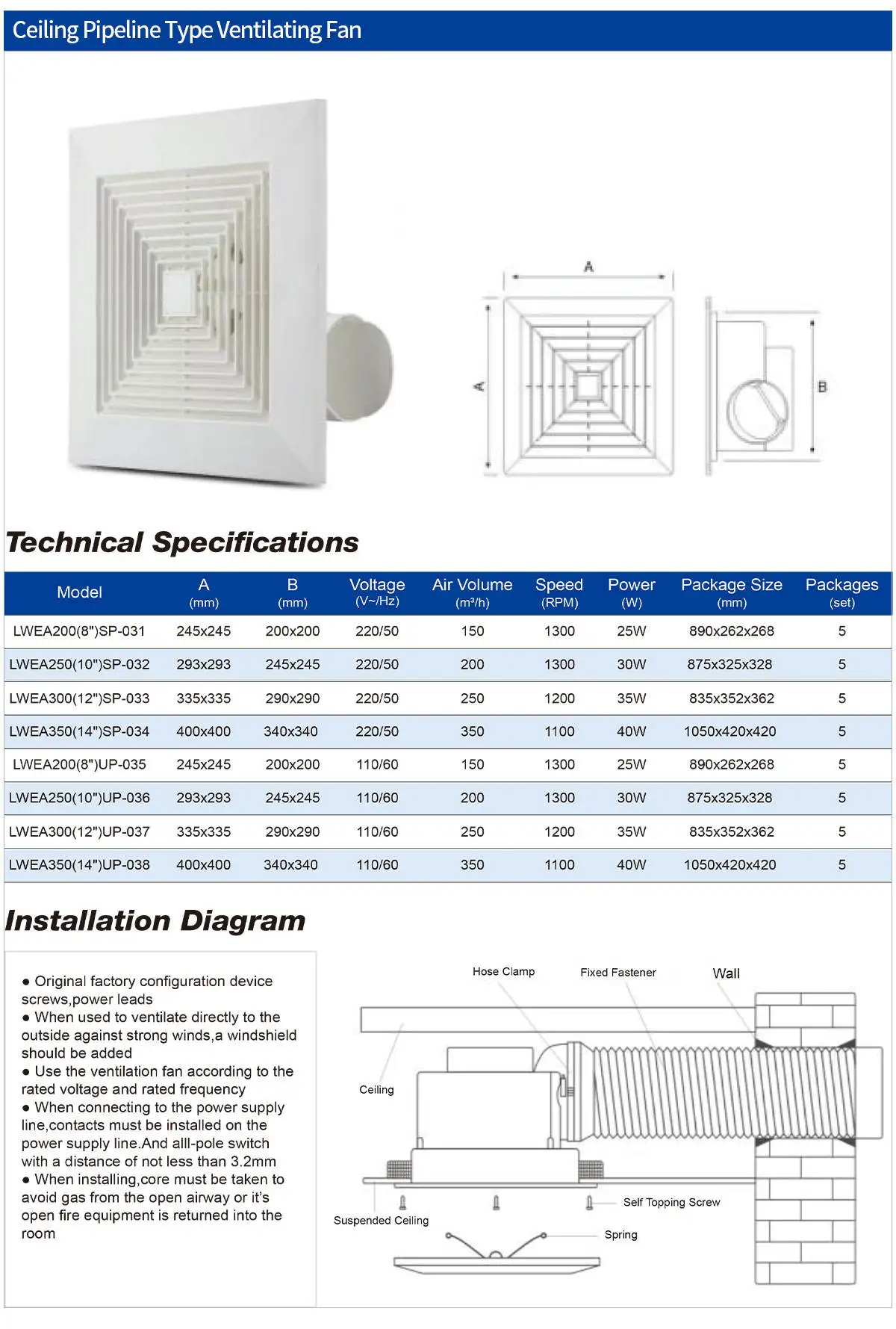

Description

Diameter of Products :	8 10 12 inch
Nominal Voltage :	110V/220V ( AC DC EC ODM/OEM)
Frequency :	50/60 Hz
IP Level :	IP 55 ,IP 54
Speed Control :	Control Input 0-10VDC / PWM
Life Expectance	50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
Electronic Protection :	Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ; Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection
Ambient Temp Rangs	-25 ℃ – +60 ℃

Additional information

Voltage	110V/220V
speed	2500 RPM, 3 000 RPM, 4500 RPM, 2700 RPM, 2100 RPM, 1350RPM, 14000Rpm
Type	Duct Axial Fan
blade material	Carbon steel enclosure
mounting type	Wall Fan
bearing type	Ball Bearing
