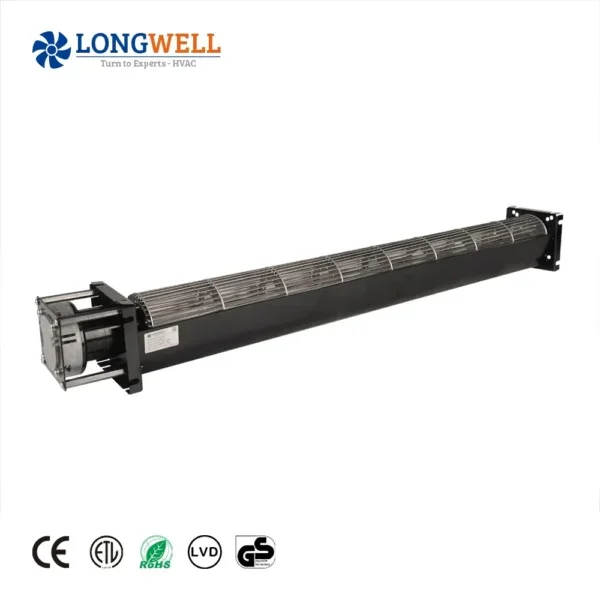

LONGWELL 90mm EC Cross Flow Fan, Tangential Blower Fan, 220V 0–10V/PWM Control, Aluminum Alloy, PWM Control, for HVAC Systems, AHU, FFU

Voltage 220V~240V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Category: Tags: , ,
CategoryEC Cross Flow Fan
TagsCross Flow FanEC MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Cross Flow Fan range. The Fan Selector lists every LONGWELL EC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

More product details

Warning/Disclaimer
This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries. View more

Highlights at a glance

High-Efficiency EC Technology: Equipped with external rotor EC motors (230V). Significantly reduces energy consumption compared to traditional AC fans, meeting global energy-saving standards.

Ultra-Quiet Airflow: Aerodynamically designed aluminum alloy blades ensure smooth air delivery with noise levels as low as 45 dB(A) (LWCE-80350SN model). Ideal for comfort applications and noise-sensitive equipment.

Versatile Speed Control: Standard 0-10V analog voltage input for seamless integration with modern control systems. PWM speed control is also available upon request (contact sales for details).

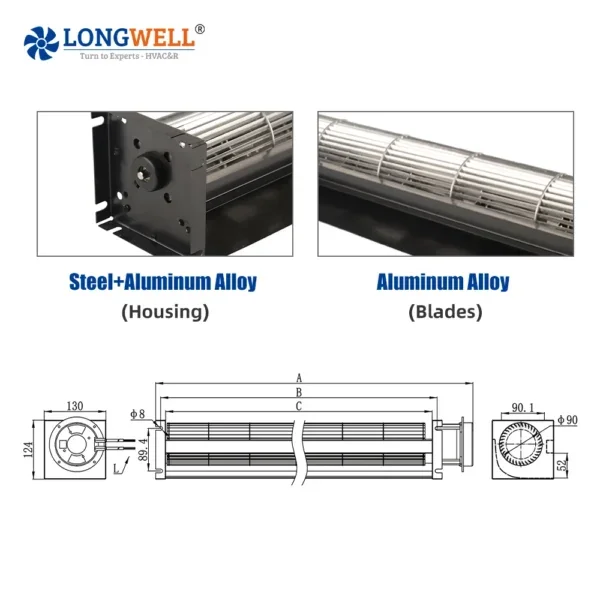

Durable & Robust Construction: Features a combination Steel and Aluminum Alloy housing with Aluminum Alloy blades. Ball bearing system ensures long life and reliable performance.

Wide Product Range: Available in multiple series (LWCE-80, 90, 100, 150) with lengths ranging from 350mm to 1220mm. Airflow capacity up to 2,290 m³/h.

Intelligent Monitoring: Built-in FG (Frequency Generator) signal output for precise speed feedback and system monitoring.

All-Climate Reliability: Designed for stable operation across extreme temperatures from -25°C to +60°C.

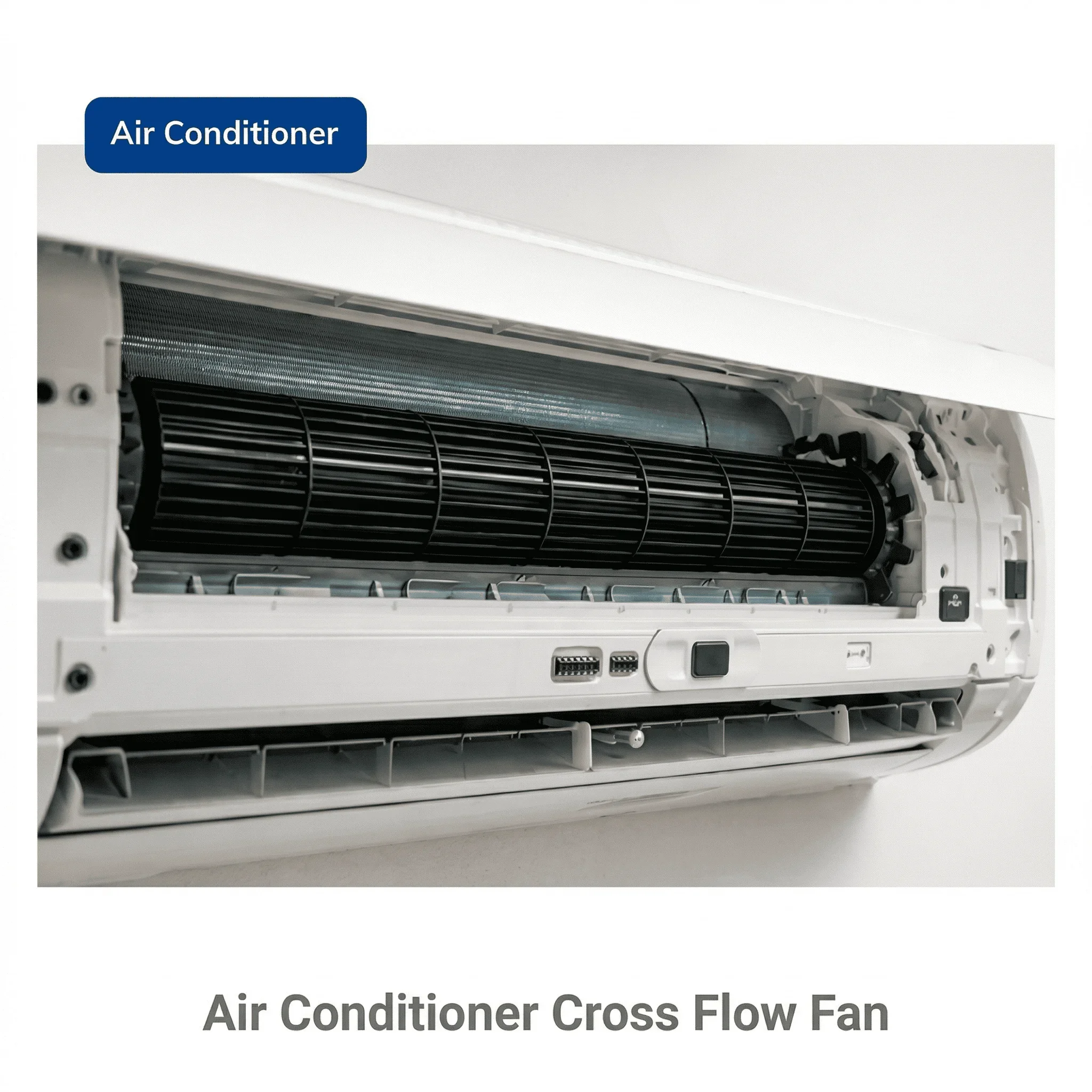

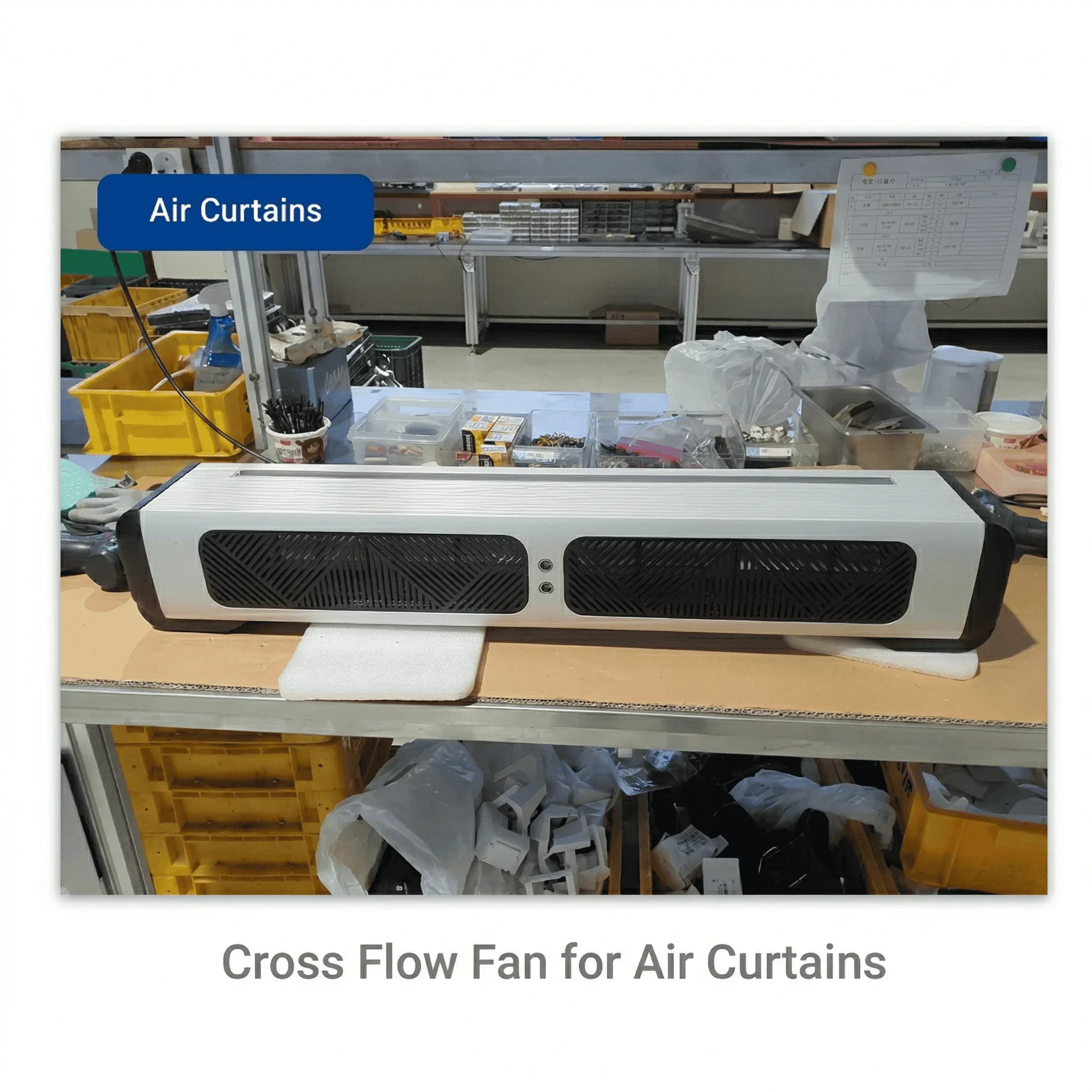

Safety & Quality: Insulation Class B rating. Professional manufacturing ensures long-lasting performance for HVAC, air curtains, and refrigeration applications.

Model Overview (Select Series): LWCE-80 Series: Compact solution (350-820mm), max airflow 1,200 m³/h. LWCE-90 Series: Balanced performance (360-930mm), max airflow 1,911 m³/h. LWCE-100 Series: High-output standard (380-820mm), max airflow 2,290 m³/h. LWCE-150 Series: Heavy-duty design (380-1200mm), available in Single and Double Blower configurations.

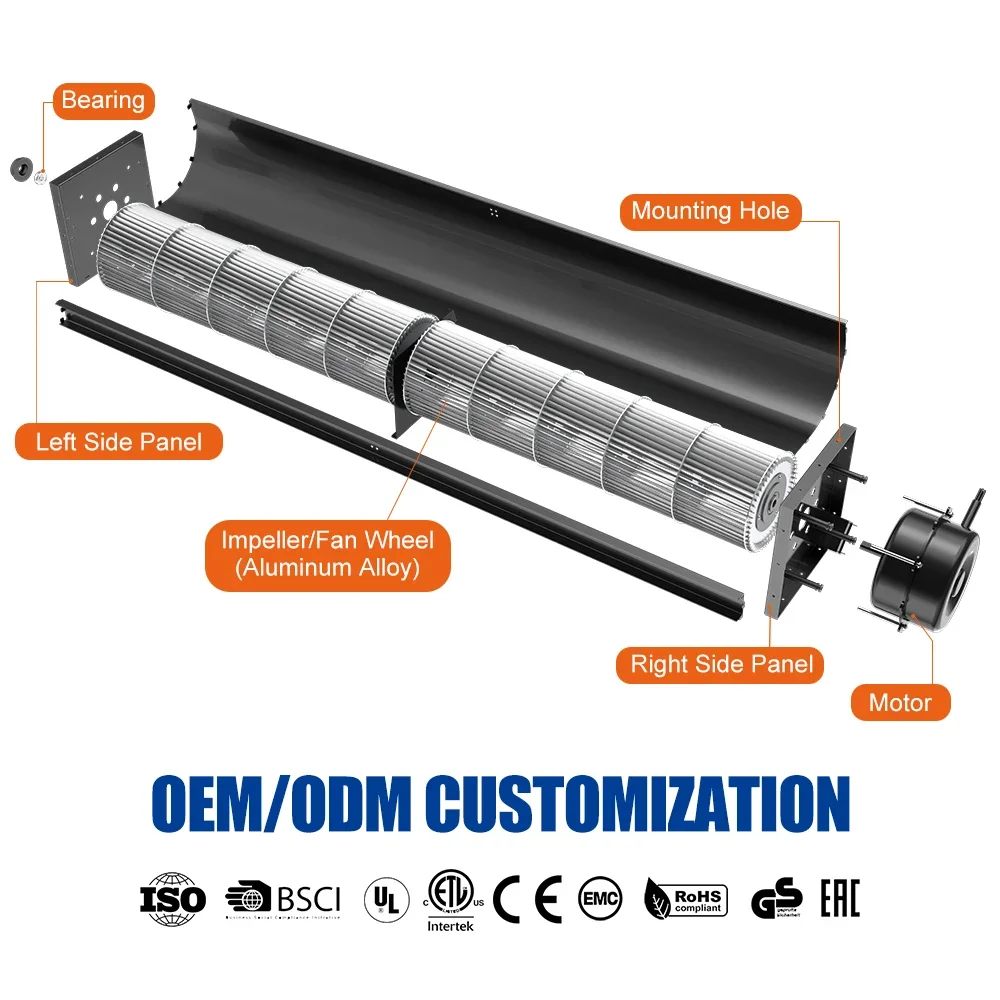

The cross-flow fan consists of a left and right side panel forming the housing. A bearing and mounting holes provide support and installation. The impeller (fan wheel) is made of aluminum alloy for lightweight strength. A motor drives the impeller. The assembly is designed for OEM/ODM customization and complies with multiple standards including ISO, BSCI, UL, CE, EMC, RoHS, SGS, and FAL.

About this supplier
LONGWELL is a globally recognized fan manufacturer,specializing in high-performance EC/DC/AC fans,blowers,and motor systems for HVACR applications.With over 20 years of export experience and millions of units produced annually,we deliver reliable airflow solutions to OEMs in more than 30 countries. Our extensive product range includes centrifugal fans,axial fans,cross-flow fans,forward curved blowers,and ECM motors widely used in AHUs,FFUs,purifiers,heating systems,and industrial ventilation.We are certified to ISO9001,ISO14001,BSCI, CE,UL/ETL,FCC,and RoHS standards,ensuring full compliance across global markets. As an innovation-driven company,Longwell integrates aerodynamic design,CFD simulation,and custom engineering to meet specific client needs.Backed by advanced R&D labs,flexible manufacturing,and a global sales network across 8 regions,we respond quickly with tailored fan solutions built for efficiency,durability,and compliance. Our 40,000 sqm Smart Factory produces 1M+ fans yearly with 100% balancing and performance testing. We have B&K noise lab, CFD simulation, aerodynamic test chamber, and robotic injection molding. Every fan meets declared air volume and pressure curve. We offer real OEM/ODM: custom cable length, connector, terminal coating, frame color, and private labeling. In-house mold shop cuts lead time by 3-5 weeks. Free pre-production samples with test reports for qualified buyers. Traceable batch management from raw material to finished goods. Each fan has a unique serial number. 12-month warranty and 48-hour video technical support. Audited by Fortune 500 HVAC brands. 92% customer retention rate. We are the actual manufacturer, not a trading company. Request a live video tour anytime. Partner with us for reliable, energy-saving fans.
Company overview

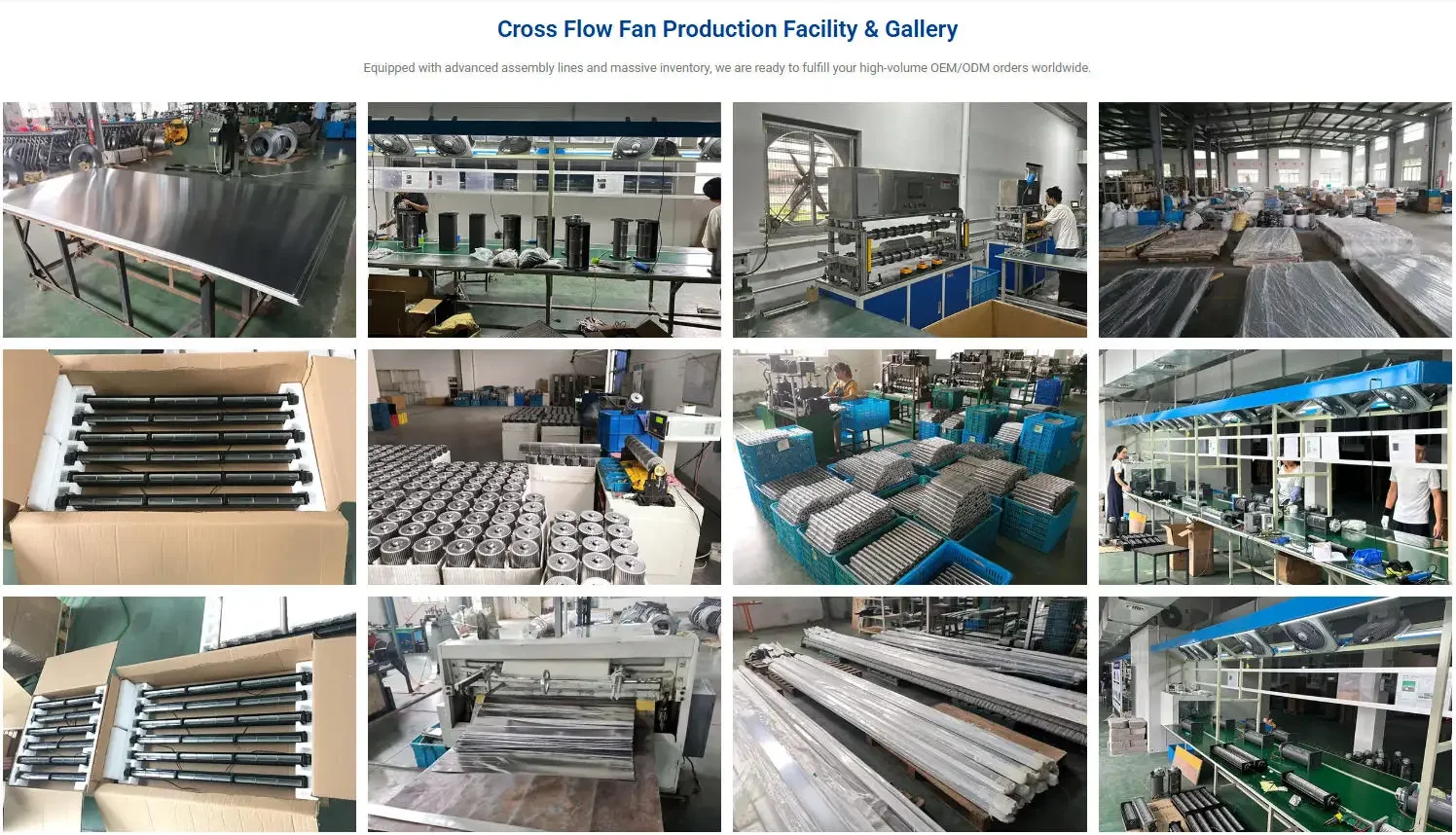

Production workflow

Packaging & shipping specifications

Competitive advantages

Trade show participation

FAQs
Do you offer volume discounts or customized solutions for large-scale procurement or OEM projects?
As a professional HVAC fan manufacturer, LONGWELL provides competitive tiered pricing for mid-to-large volume wholesale and OEM projects. For long-term B2B partners, we offer tailored support based on annual estimated quantities and specific application scenarios. Please reach out to the sales team directly to discuss specific commercial terms.Email:sales@longwellfans.com ,Tel:+0086 18358274663

Does the motor provide feedback for speed monitoring in our equipment?
Yes, all LWCE Series EC External Rotor Motors are equipped with a standard FG (Frequency Generator) Speed Feedback Signal. This allows your equipment to read the real-time RPM, enabling precise closed-loop control and fault detection-a critical feature for premium HVAC applications.

What EC Cross Flow Fan series are available for wholesale, and what lengths do you cover?
LONGWELL offers a comprehensive range to meet diverse HVAC integration needs, including series LWCE-80, LWCE-90, LWCE-100, and LWCE-150. Standard Stock Models: The LWCE-80 (350mm to 820mm) and LWCE-150 (380mm to 1200mm) series are detailed in our catalog for quick selection. Custom Sizing: For LWCE-90 and LWCE-100 series dimensions, or any intermediate lengths, please contact us for the specific datasheet. We specialize in accommodating OEM length requirements for bulk orders.

What is the default control signal? Is PWM customization available for our control board integration?
The standard factory configuration is 0-10V Analog Voltage input for smooth, linear speed control. Yes, PWM customization is available. If your system architecture requires a PWM (Pulse Width Modulation) signal, this is a popular modification for bulk OEM projects. Please specify “PWM Control Required” in your RFQ, or email us directly to ensure the correct firmware configuration before production.

Do you provide tiered pricing and technical support for large-volume OEM/ODM projects?
Absolutely. LONGWELL is a specialized manufacturer structured to support Mid-to-Large Scale Wholesale and OEM partnerships. We offer competitive tiered pricing based on Annual Estimated Usage (AEU). For long-term partners, we provide dedicated engineering support for custom housing, blade modifications, or specific wiring harnesses. Contact our sales team to discuss a tailored supply agreement.

How durable is the construction? What is the lifespan and operating environment rating?
Our EC Cross Flow Fans are built for commercial and industrial durability: Motor: High-efficiency EC External Rotor Motor. Housing: Rigid Steel + Aluminum Alloy construction. Impeller: Corrosion-resistant Aluminum Alloy blades. Bearing: Long-life Ball Bearing system. Safety: Insulation Class B. Environment: Reliable operation from -25°C to +60°C (-13°F to +140°F).

What is the difference between “Single” and “Double” blower models in the LWCE-150 Series?
This designation refers to the motor drive configuration, which is essential for performance stability: Single Blower: Standard single-motor drive. Recommended for lengths up to 700mm. Double Blower: Dual-Motor Synchronous Drive. This is required for longer models (e.g., 1000mm, 1200mm). It ensures balanced torque distribution, eliminates shaft wobble, and maintains quiet operation across the entire wheel width.

The datasheet shows 230V. Can you supply 115V or other voltages for the North American market?
Yes, we can support voltage customization for bulk orders. While our standard catalog lists 230V 50/60Hz, we understand the requirements for 115V or other specific voltages. This is managed as a Custom OEM Order. Please provide your target voltage and frequency; our team will evaluate the MOQ (Minimum Order Quantity) and lead time based on your required specifications.

Additional information

voltage

220V~240V
speed

4000 RPM, 1100rpm, 990rpm
mounting

Other
Blade Material

Aluminum Alloy
Material

Plastic, Aluminum Alloy, Steel
customized support

OEM, ODM, OBM
