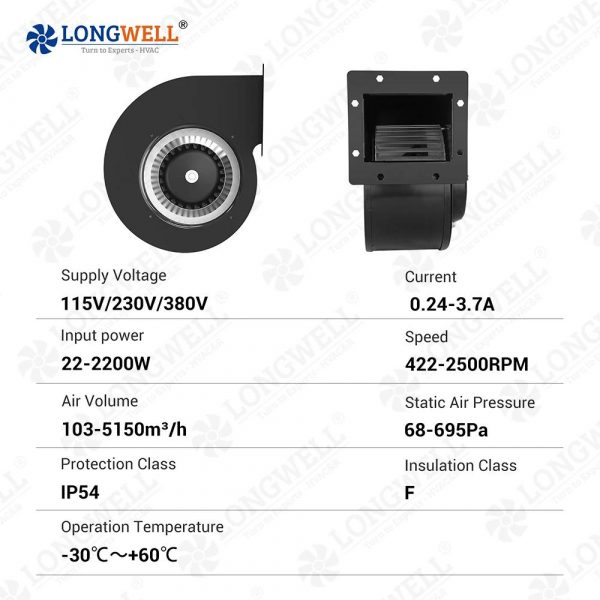

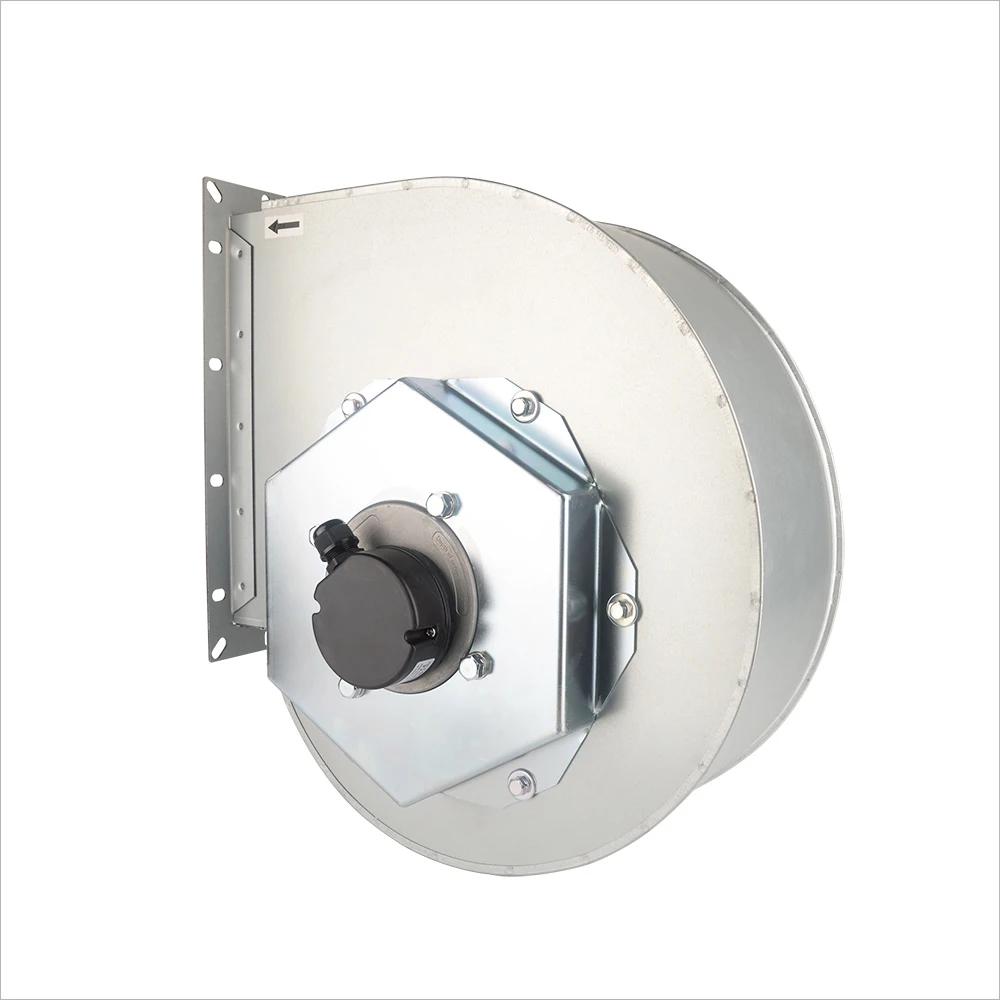

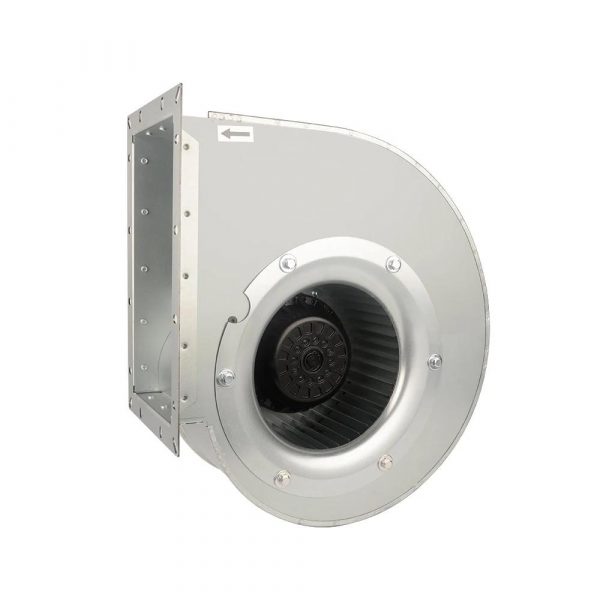

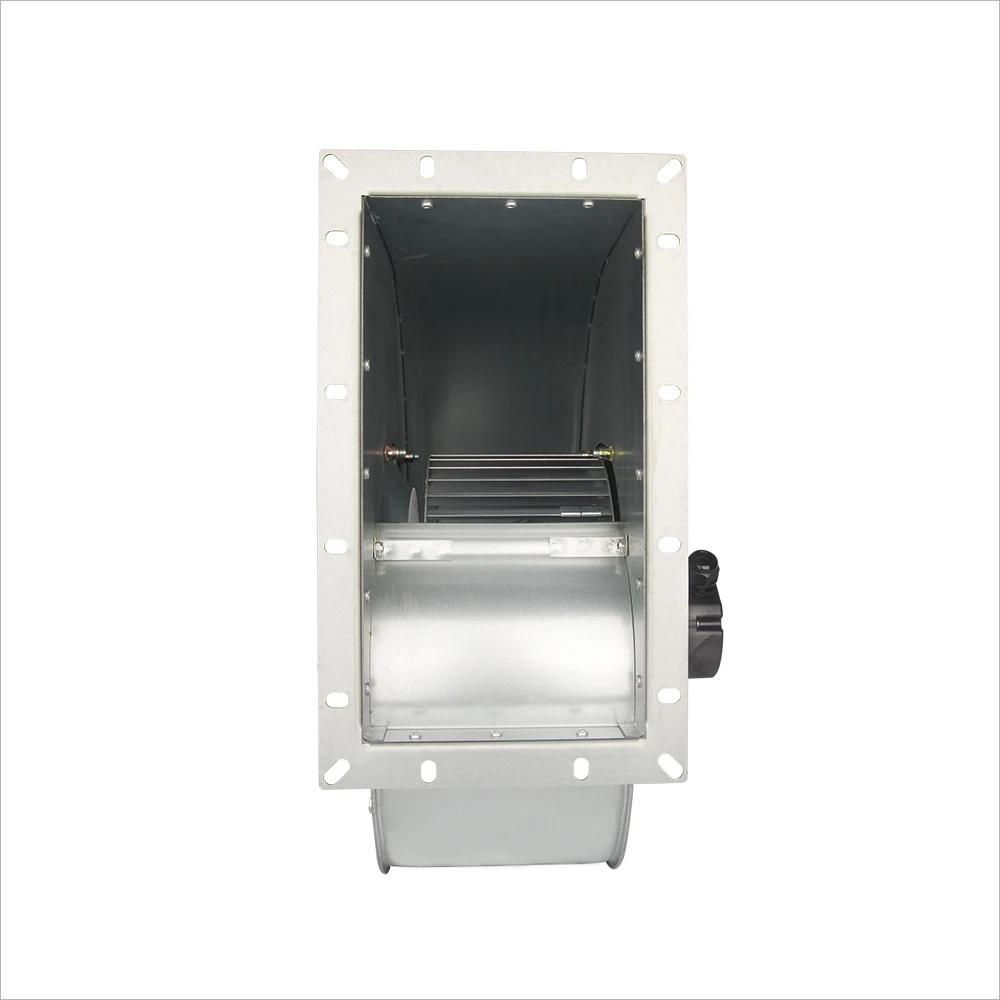

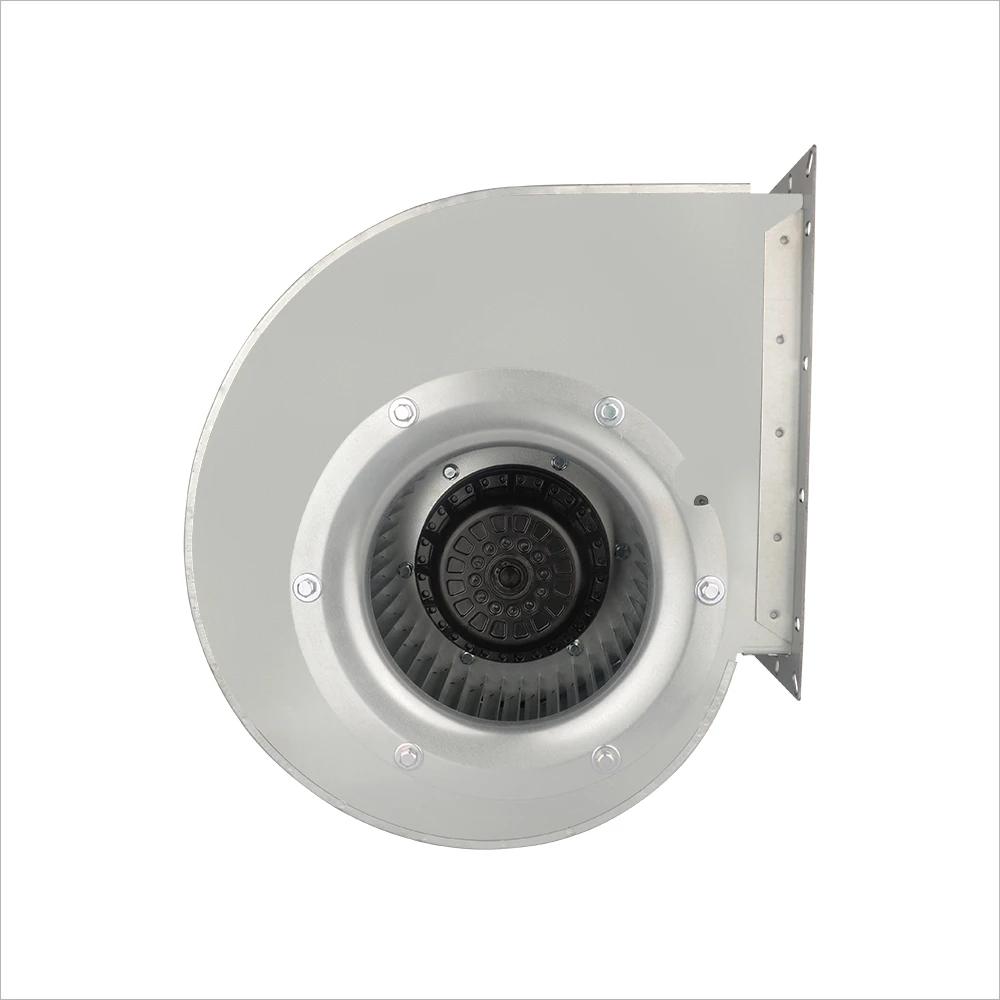

LONGWELL 225mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, Galvanized Steel, Low Noise, for HVAC Systems, Cold Storage, Air Purifiers

Voltage 380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Specifications
Motor
AC motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsCentrifugal Blower FanExternal Rotor MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

225mm Optimize Energy Consumption while Enhancing Comfort AC Centrifugal Fan with Single Inlet for HVAC Systems
Voltage Ranges :

230V,380V
Frequency :

50/60 Hz
Diamter :

225mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

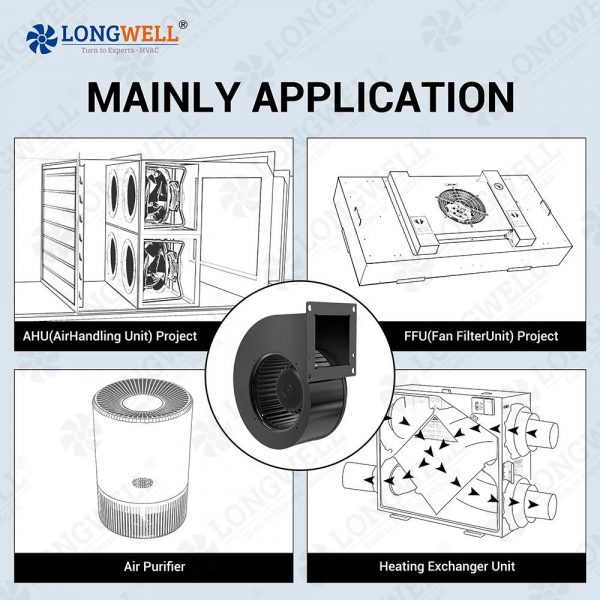

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

380V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor Type

AC motor
Power input

220/380V
Impeller material

Galvanized Metal Sheet
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP44
Protection

Thermal Overload Protector ( TOP)
Type

Centrifugal Fan
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 225mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, Galvanized Steel, Low Noise, for HVAC Systems, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

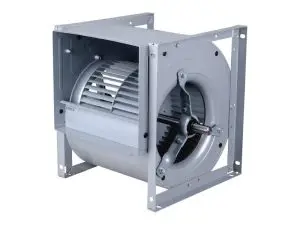

LONGWELL 250mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 110V, Aluminum Alloy, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 250mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 110V, Aluminum Alloy, for Cold Storage, Air Purifiers, HVAC Systems110v /220v 24VDC/ 48VDC4000rpmOtherView & InquireLONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 4223 m³/h Airflow, 917 Pa Static Pressure – LWFE3G280-138DS-01LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 4223 m³/h Airflow, 917 Pa Static Pressure – LWFE3G280-138DS-01138 mm4223 m³/h380 VDatasheet, curve & drawing →LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 3605 m³/h Airflow, 577 Pa Static Pressure – LWFE3G225-138DS-01LONGWELL 138mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 3605 m³/h Airflow, 577 Pa Static Pressure – LWFE3G225-138DS-01138 mm3605 m³/h380 VDatasheet, curve & drawing →LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V – LWFA2E146-092DS-11LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V – LWFA2E146-092DS-1192 mm587/433/340 m³/h230 VDatasheet, curve & drawing →LONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, for AHU, FFU, Fan Coil UnitsLONGWELL Centrifugal Blower Fan, Industrial Centrifugal Fan, for AHU, FFU, Fan Coil Unitsas required4000rpmAC external rotor motorView & InquireLONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 556.2 m³/h Airflow, 144.2 Pa Static Pressure – LWFA4E133-092DS-09LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 556.2 m³/h Airflow, 144.2 Pa Static Pressure – LWFA4E133-092DS-0992 mm556.2 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 24V, 772.5 m³/h Airflow, 293.6 Pa Static Pressure – LWFD3G133-092DM-01LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 24V, 772.5 m³/h Airflow, 293.6 Pa Static Pressure – LWFD3G133-092DM-0192 mm772.5 m³/h24 VDatasheet, curve & drawing →LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 35 W, for Gas Transmission – LWGA085LONGWELL AC Gas Blower, Industrial Gas Blower Fan, 220V, 35 W, for Gas Transmission – LWGA085220V2500 rpmOtherView & InquireLONGWELL 92mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 666 m³/h Airflow, 773 Pa Static Pressure – LWFE3G160-092SS-02LONGWELL 92mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 666 m³/h Airflow, 773 Pa Static Pressure – LWFE3G160-092SS-0292 mm666 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 433 m³/h Airflow, 309 Pa Static Pressure – LWFA2E120-092DS-03LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 433 m³/h Airflow, 309 Pa Static Pressure – LWFA2E120-092DS-0392 mm433 m³/h230 VDatasheet, curve & drawing →
