Description
|
Types :
|

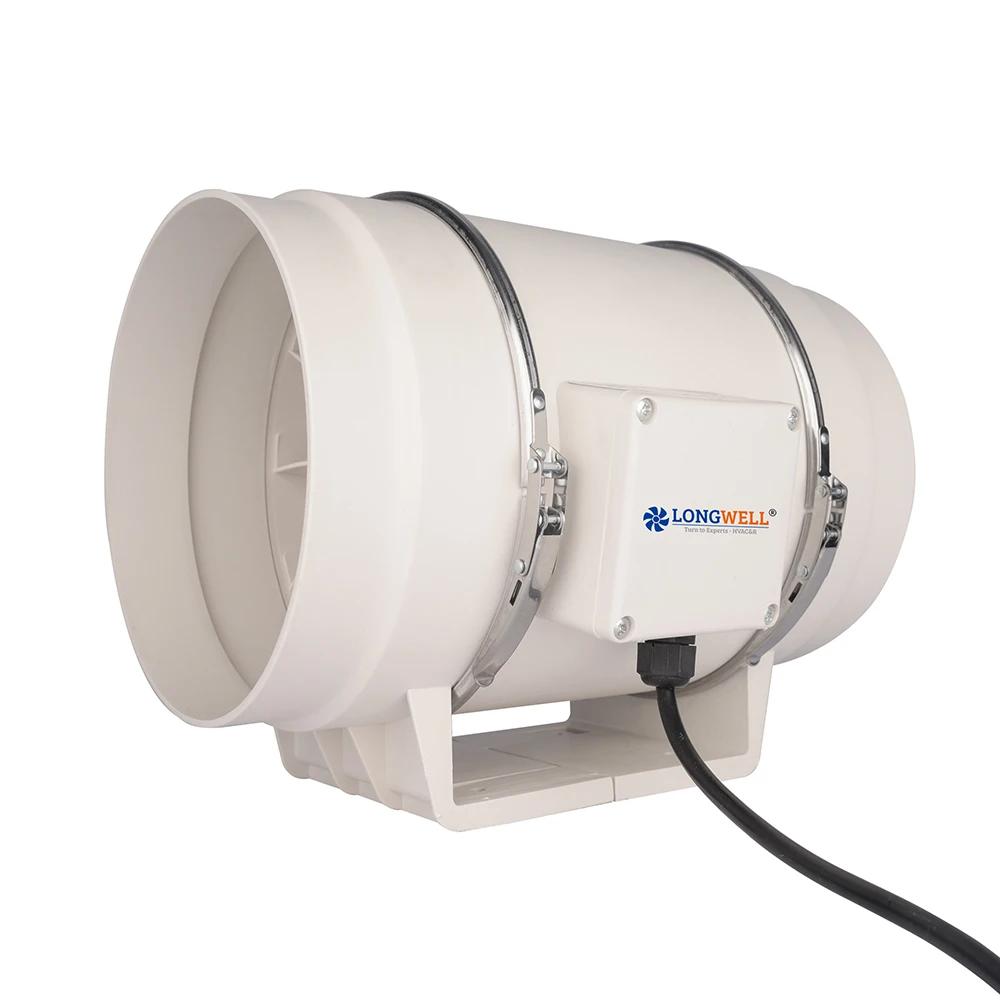

Duct fan
|
|
Voltage Ranges :
|
115V,230V,400V,Custom;
|
|
Frequency :
|
50/60 Hz
|
|
Motor Types :
|
BLEC External Rotor Motor
|
|
Speed Control :
|
0-10V Signal / PWM / RS485(Optional)
|
|
Max.ambient Temp:
|
-25℃～ +60℃
|
|
Certificating :
|
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
|
|
Protection Level:
|
IP44 ,IP54,IP55
|
|
Electronic Protection:
|
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
|
|
Working & Storage
|
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
|
Balancing
|
According to JB/T 9101-1999 requirements G6.3
|
|
Product Standards :
|
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
|
|
Mainly Applications
|
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
|

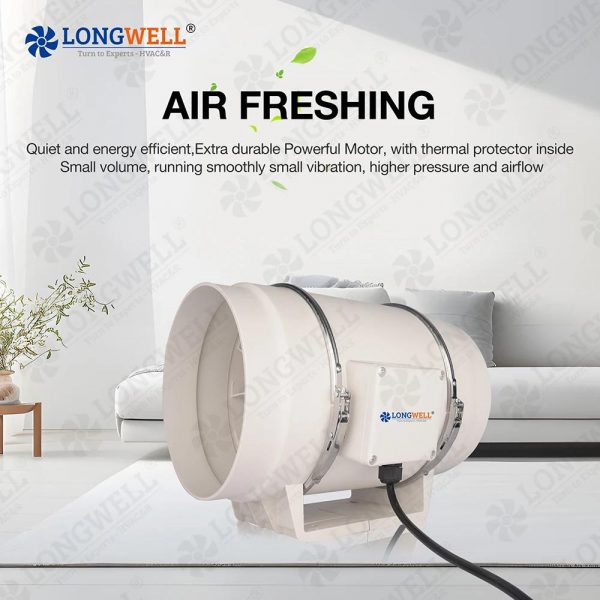

Air Freshing
Quiet and energy efficient, Extra durable
Powerful Motor, with thermal protector inside Small volume, runniring smoothly
small vibration, higher pressure and airflow.
Powerful Motor, with thermal protector inside Small volume, runniring smoothly
small vibration, higher pressure and airflow.
Low noise level&energy-saving
Hybrid flow design that focuses fan airflow and cuts turbulentkinetic energy down to 30 dB; Ec motor controlled by PWMfor more energy efficiency

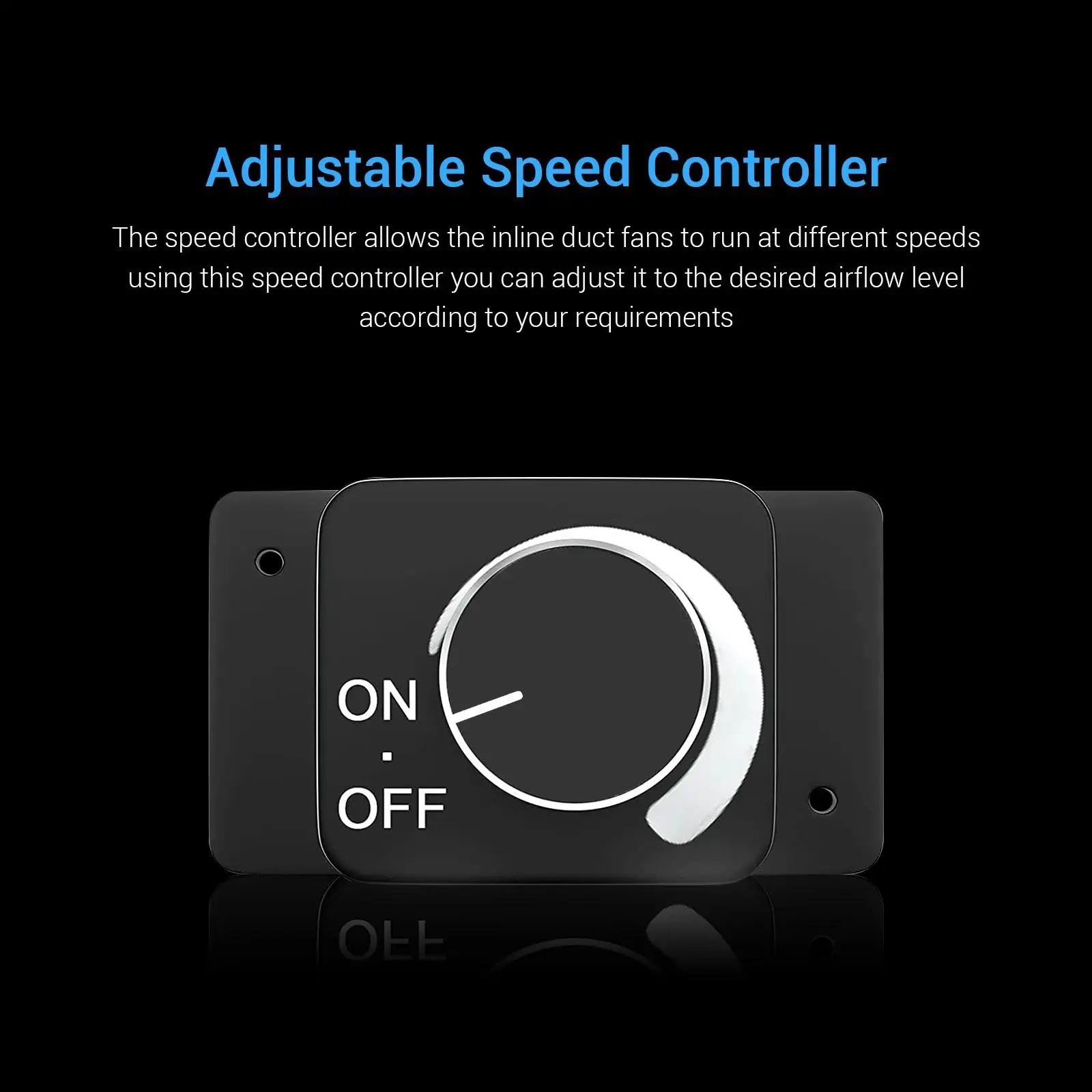

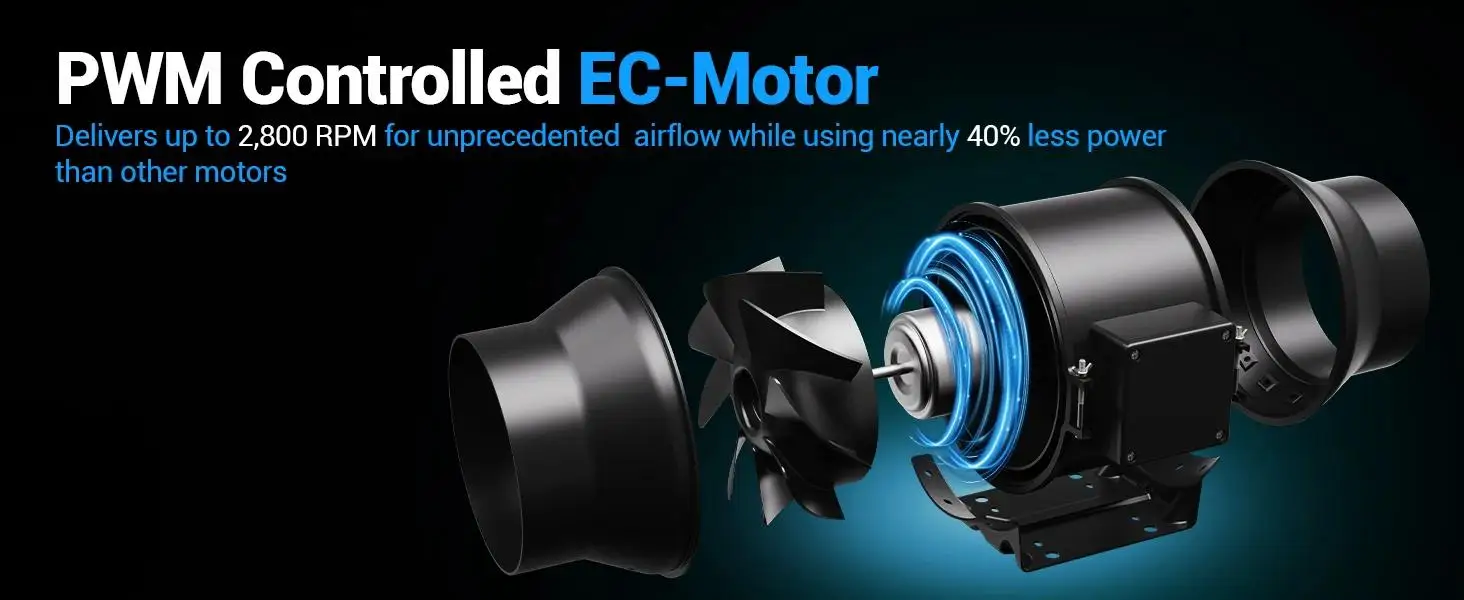

PWM Controlled EC- Motor
The speed controller allows the inline duct fans to run at different speedsusing this speed controller you can adjust it to the desired airflow level according to your requirements
4 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 35W, 385 m³/h, 28dBA, Air Duct Diameter:98mm

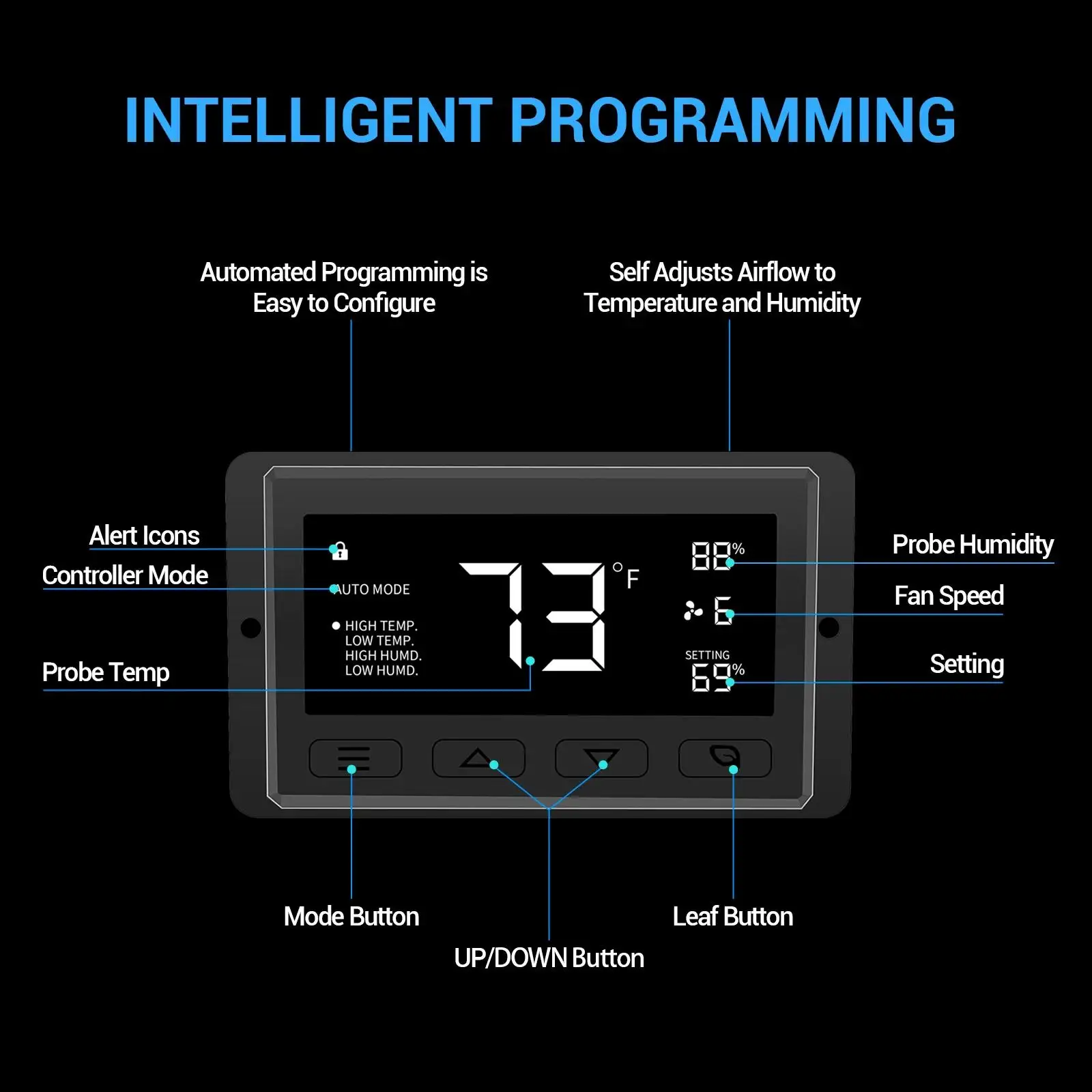

Out-side speed control box with temperature & humidity function Speed control/Timer/Alarm Function
6 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 70W, 705m³/h, 34dBA, Air Duct Diameter:147mm
Out-side Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

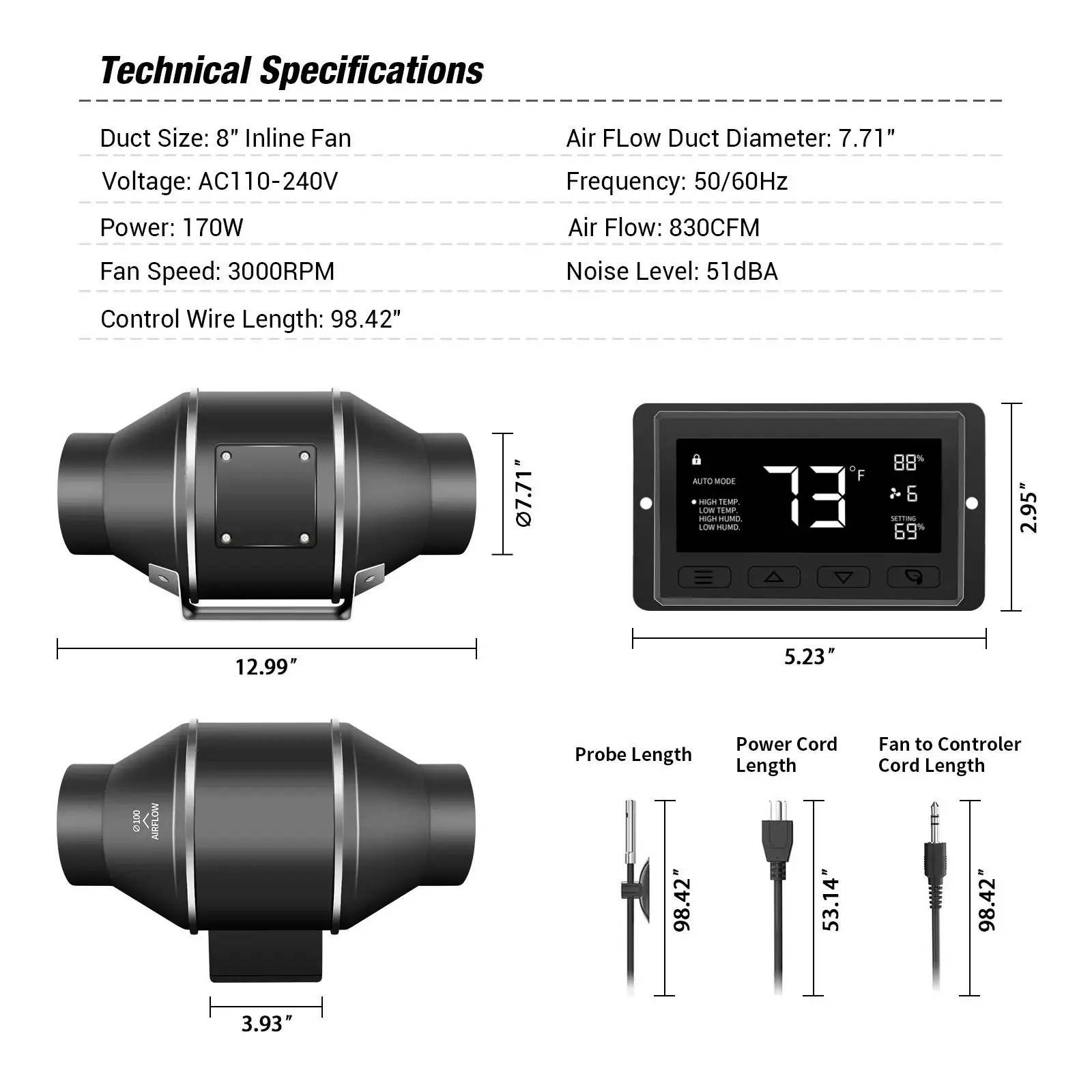

8 Inch Inline duct fan with Digital controller
Voltage:AC110V – 240V , 180W, 1453m³/h, 51dBA, Air Duct Diameter:196mm Out-side
Speed control box with temperature & humidity function Speed control/Timer/Alarm Function

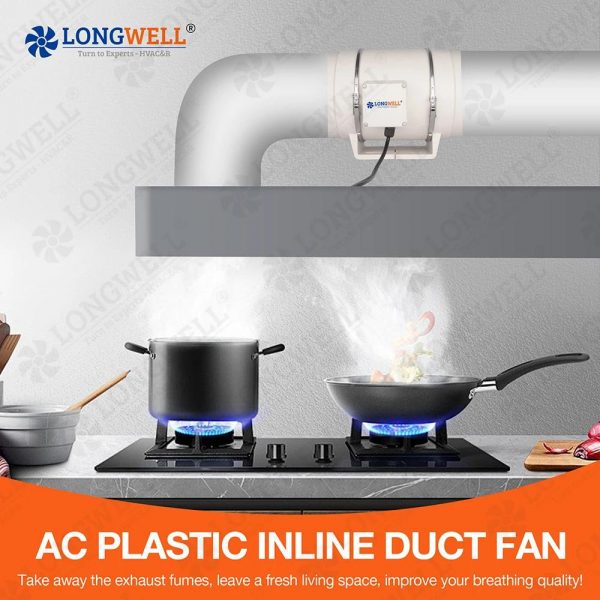

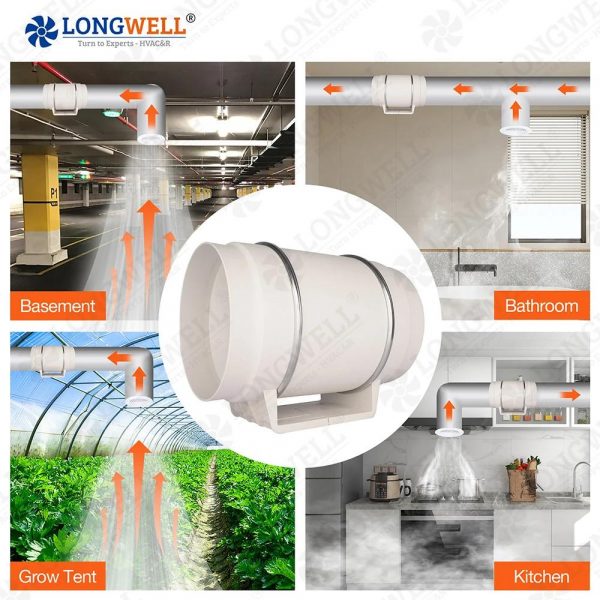

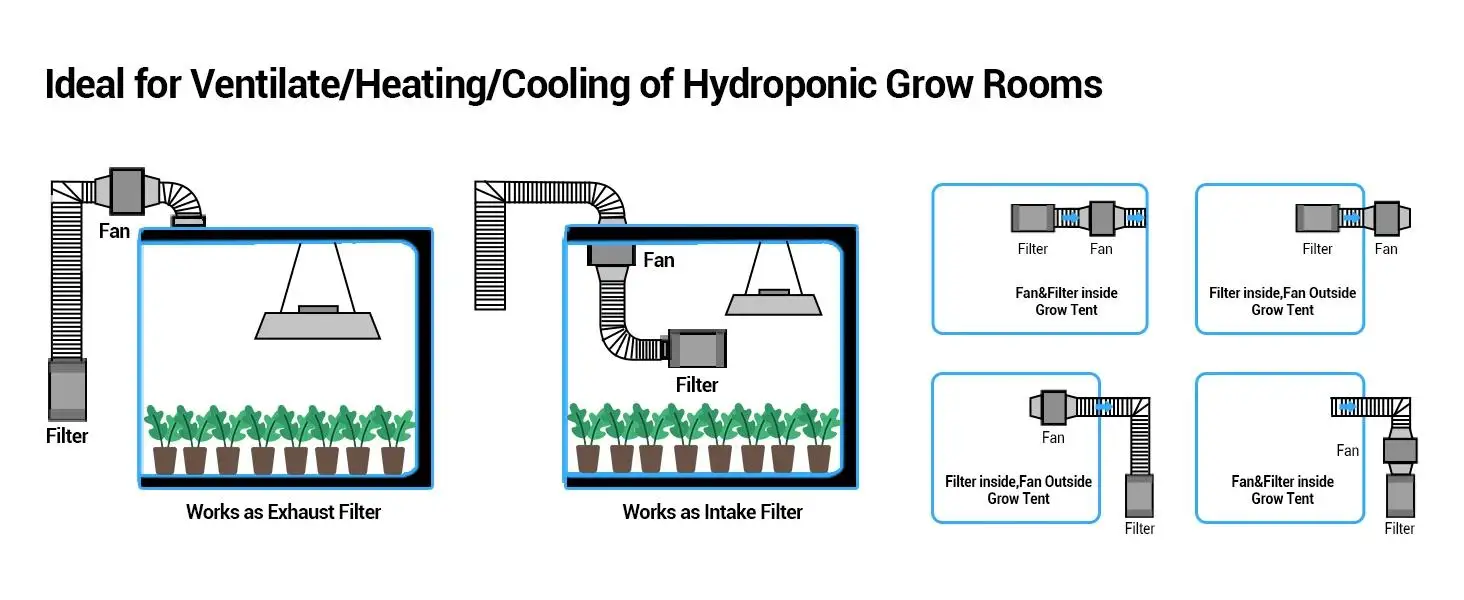

Grow Tent / Building ventilation system/Primary air system/ Bathroom ventilation/Kitchen ventilation/Air conditioning vent
