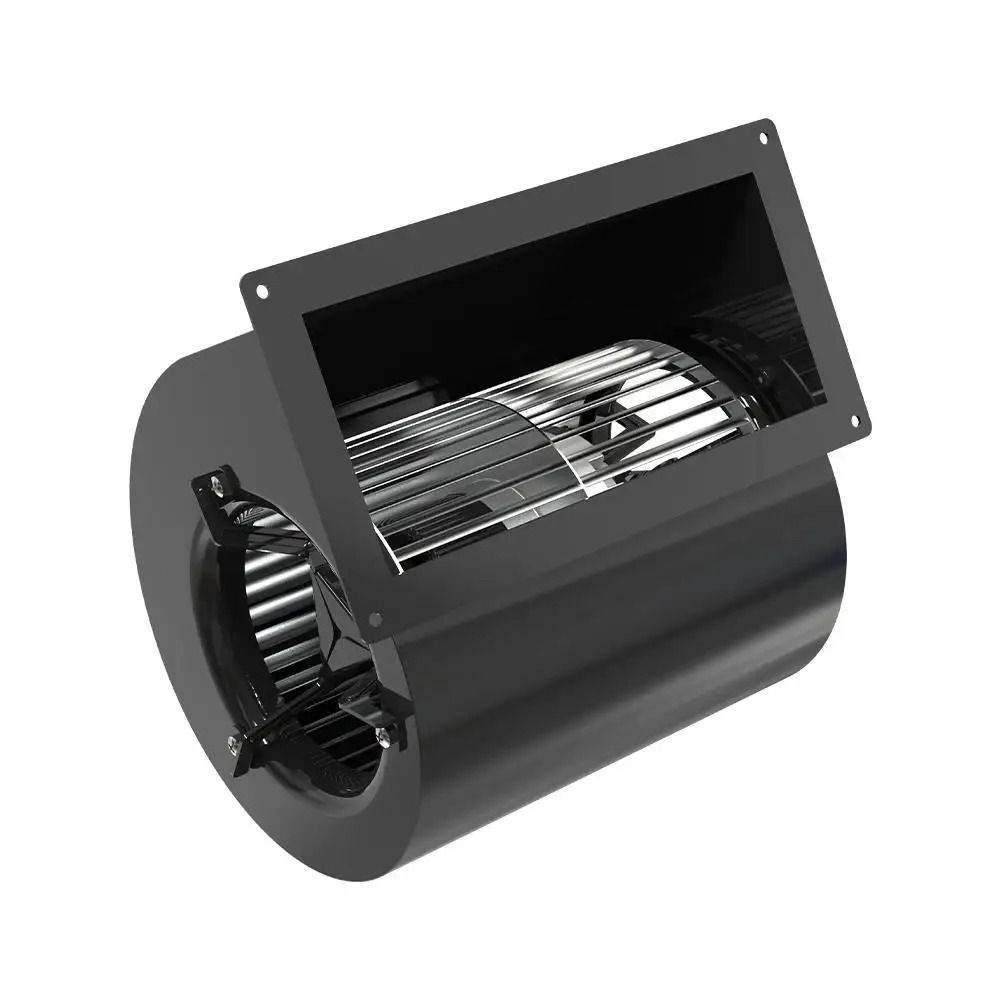

LONGWELL 133mm DC Industrial Fan, Industrial Ventilation Fan, PWM Control, for Cold Storage, Air Purifiers, HVAC Systems – LWFD-133

Voltage 310v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Motor
BLDC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

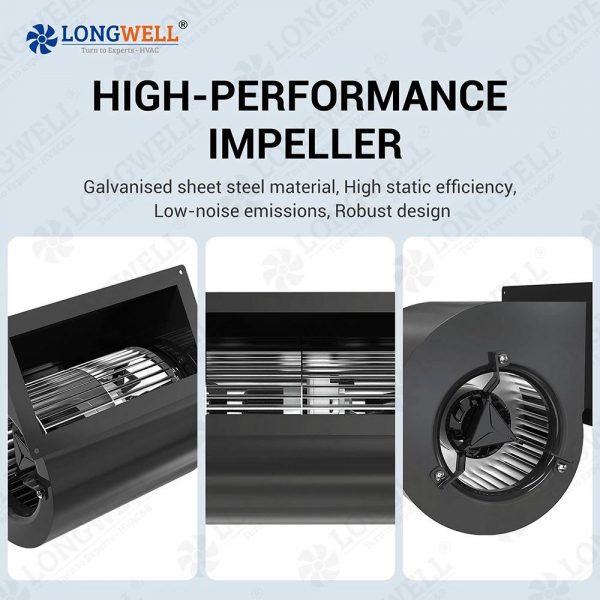

Impeller
Galvanized Metal
Category: Tags: , ,
CategoryDC Forward Fans
TagsCentrifugal FanDC FanOEM Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the DC Forward Fans range. The Fan Selector lists every LONGWELL DC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search DC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types:

centrifugal blower
Frequency:

50/60 Hz
Diamter:

133mm
Motor Types:

DC External Rotor Motor
Speed Control:

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating:

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start

Working & Storage:

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing:

According to JB/T 9101-1999 requirements G6.3
Product Standards:

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

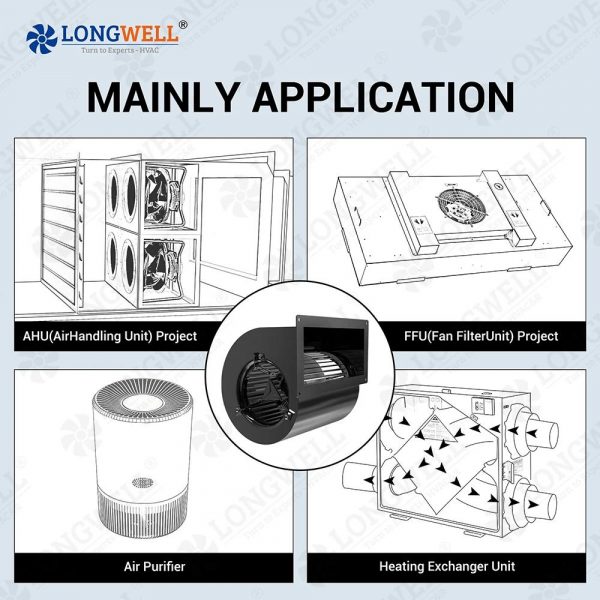

Mainly Applications:

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

310v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanised sheet steel
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFD-133
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor type

BLDC external rotor motor
power input

24VDC/ 48VDC
Impeller material

Galvanized Metal
Bearing

Ball Bearing
Approvals

CE,CCC
Insulation

B/F
Features

Tech out put /Over voltage protection /Over loading protection
Speed control

0~10V/ PWM
Protection

Tech out put /Over voltage protection /Over loading protection
Amb,Temp

-25 to +60℃
Selling units

Single item
Single package size

XX cm
Single gross weight

kg
