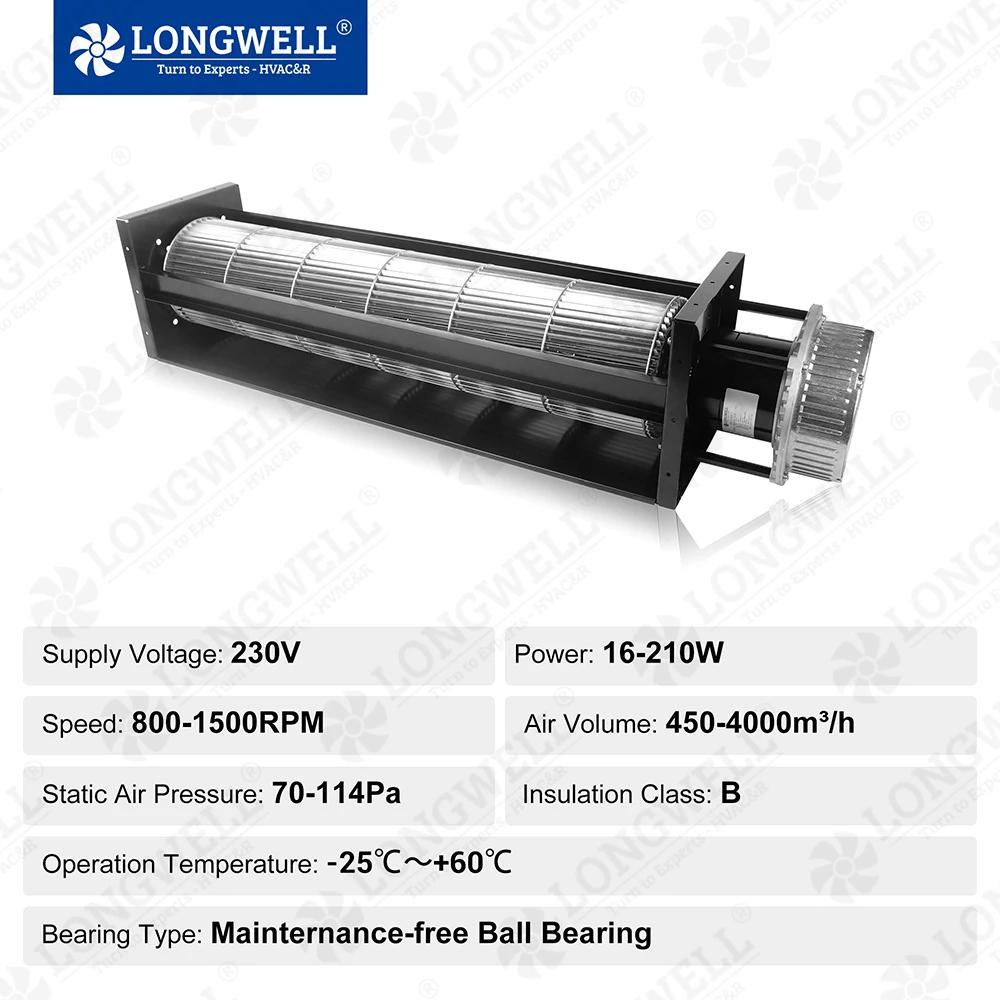

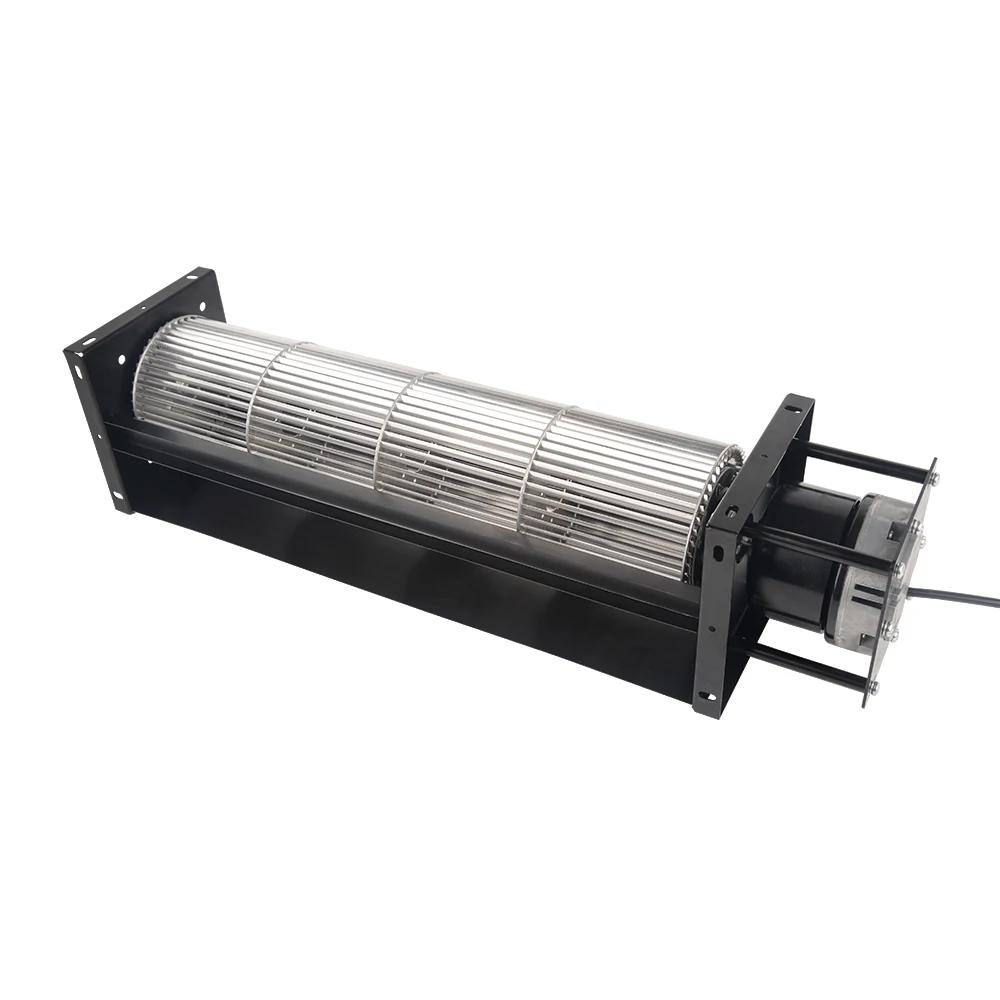

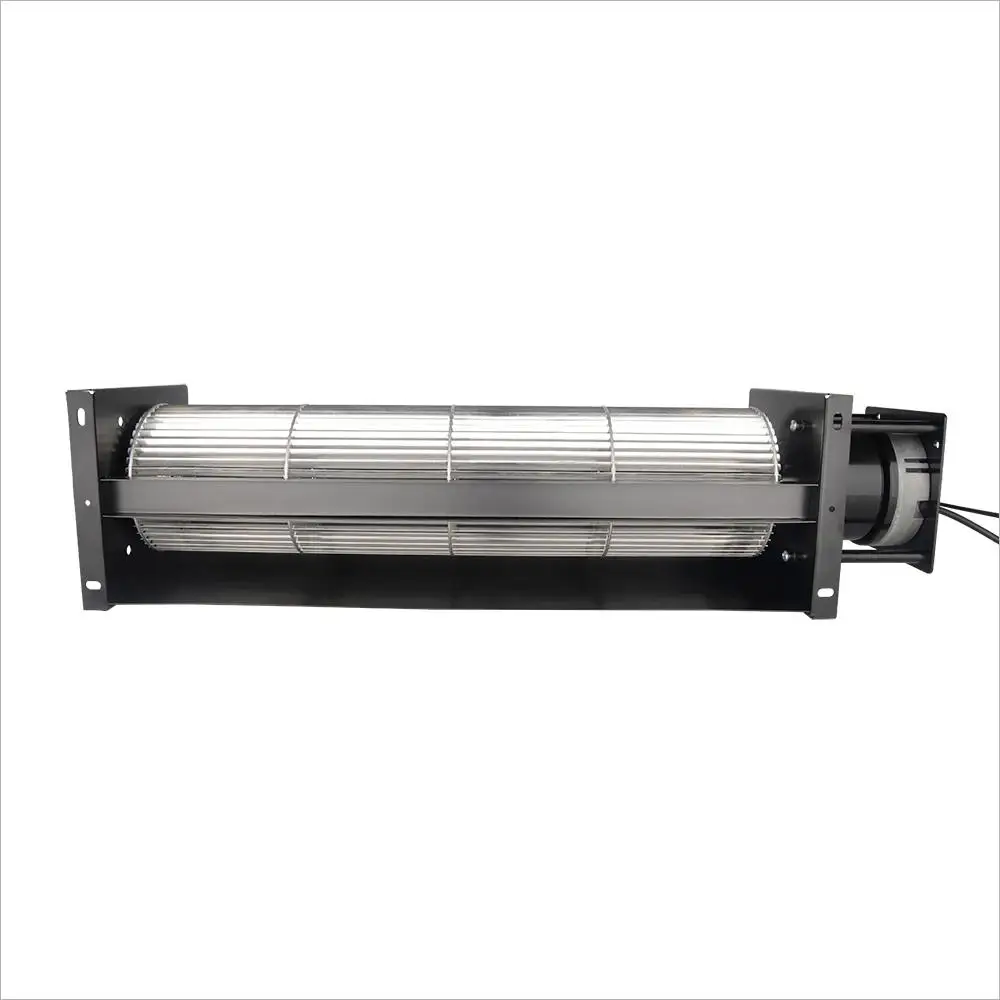

LONGWELL 120mm EC Cross Flow Fan, Tangential Blower Fan, 230V PWM Control, PWM Control, for Fireplaces, Floor Heating, Air Purifiers

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 40

Specifications
Motor
EC Motor
Speed
4000rpm, 1100rpm, 990rpm
Impeller
Aluminumu alloy
Phase
single phase
Category: Tags: , ,
CategoryEC Cross Flow Fan
TagsCross Flow FanEC MotorFireplace Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Cross Flow Fan range. The Fan Selector lists every LONGWELL EC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

120mm cross flow fan EC Whisper-Quiet Operation, Smart Control The Future of Tangential Fan
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

120mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Blade Material

aluminum
mounting

Other
speed

4000rpm, 1100rpm, 990rpm
voltage

230V
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

Plastic, aluminum alloy, Steel
Item name

EC cross flow fan
Fan casing material

galvanized steel
Bearing

Ball Bearing /sleeve bearing
Application

Over , heater , air purifier , home appliances , floor heating ,
Phase

single phase
Impeller Material

Aluminumu alloy
Product name

Tangential Fan
Motor type

EC Motor
Usage

Split Air Conditioning
OEM /ODM

Acceptable
Selling units

Single item
Single package size

15X15X20 cm
Single gross weight

5.000 kg
