AT 8-8R2 — Belt-Driven Forward-Curved Centrifugal Blower

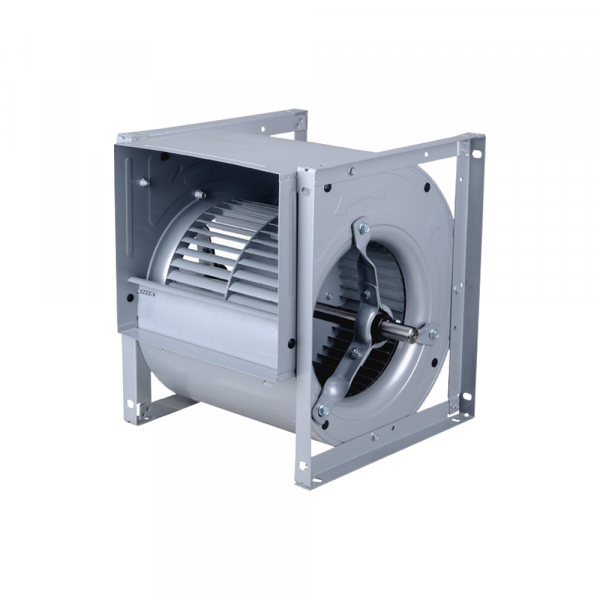

The LONGWELL AT 8-8R2 is a forward-curved (multi-wing) centrifugal blower from the AT belt-driven commercial range. Per the AT series type code, 8 is the impeller diameter designation and 8 the impeller width designation; Construction type R2 (AT series type code). The casing measures 348×370 mm housing (dimensions A–B below). Because the fan is belt-driven, the duty point is set by the pulley ratio you choose — the figures below are the operating envelope printed on the AT 8-8 catalogue performance chart, not a single rated point.
LONGWELL states the AT series covers 1,000–40,000 m³/h overall, and is characterised by compact construction, high efficiency and low noise. Catalogue performance is quoted at standard conditions (inlet pressure 101.325 kPa).
Performance envelope
| Volume flow rate | 300 – 9,000 m³/h |
| Total pressure Pt | 50 – 1,400 Pa |
| Rotational speed | 600 – 2,400 rpm |
| Impeller power | 0.03 – 4 kW |
| Sound power level LwiA | 55 – 90 dB(A) |
| Total efficiency η | up to 50% |
Send us your required airflow and static pressure and our engineers will return the matching speed, pulley set and motor rating.
Dimensions (mm)
| A | 348 mm |
| B | 370 mm |
| C | 256 mm |
| D | 216 mm |
| E | 224 mm |
| F | 224 mm |
| G | 314 mm |
| H | 37 mm |
| J | 287 mm |
| K | 312 mm |
| L | 838 mm |
| M | 70 mm |
| N | 164 mm |
| P | 214 mm |
| Q | 978 mm |
| R | 3 mm |
| V | 189 mm |
| W | 60 mm |
| X | 22.5 mm |
| d | 20 mm |
| t | 6 mm |
| t1 | 6 mm |
| U×S | 9×12 mm |
Letter codes correspond to the AT series dimensional drawing shown below. All values from the LONGWELL AT series catalogue.
Performance curves
Dimensional drawing
