Description

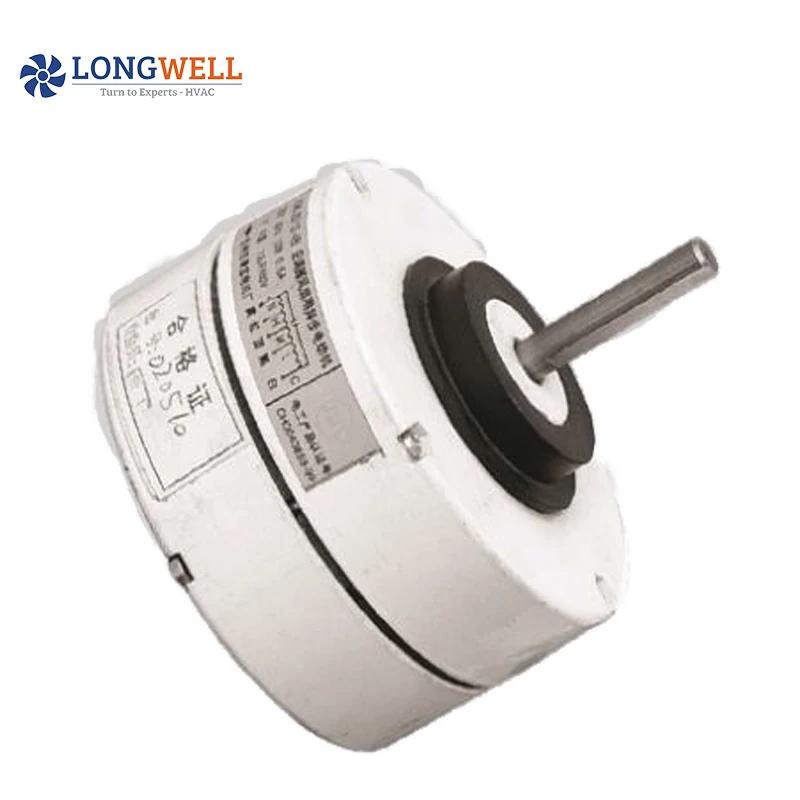

- YZF series motors are shaded pole gear motors with single phase, 4 shaded poles, and running at rated voltage of 220~240V, 50/60Hz or 110~120V, 60Hz. They are widely used in the radiator, evaporator, and other refrigeration equipment.
- All materials conform to RoHS.
- The output power is from 2W to 34W, which is relative to the stack length and coil parameters.
- The insulation class of motors is B, and the protection class of that is IP42. On request, IP44 is available
- The motors whose output power is less than 10W have impedance protection, and the motors whose output is greater than 10W have thermal protection. The thermal protectors are 125℃±5℃, 135℃±5℃, or 150℃±5℃.
- The applicable ambient temperature is from -30℃ to 50℃.
- The average service life of a motor is over 20,000 hours.
- Most of the shaded pole gear motors passed CE, CDE, UL, and CCC approval.
Ready to discuss your custom project? Connect with our engineering and sales team today:
● Contact Us Now: Click Here
● Email: sales@longwellfans.com
● WhatsApp: +86-18358274663
1. Are you a manufacturer?
Yes, we are. We own over 10 production lines for different products.
2. How is your quality?
Above-average and top-class quality are your options in our range. The quality is pretty good and trusted by many customers overseas.
Our quality is above average for customers in the same budget; customers have a 1-year warranty and free after-sales technical support in the product’s designed life span.
3. What is your price?
Our price is very competitive due to large-scale production contributions.
4. What’s your lead time?
7 days – 25 days, depending on volume and different items.
5. How long is your response time?
You will get a reply online within 2 hours via WeChat, WhatsApp, Skype, or TradeManager.
You will get a response within 8 hours offline by email.
Mobile is always available for picking up your calls.
