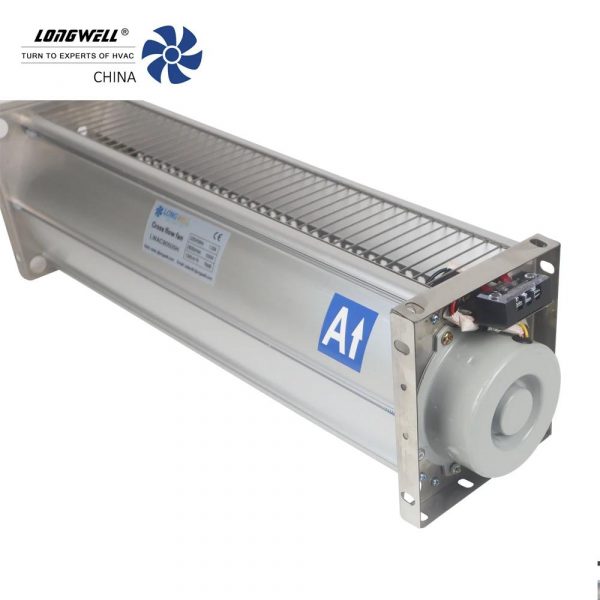

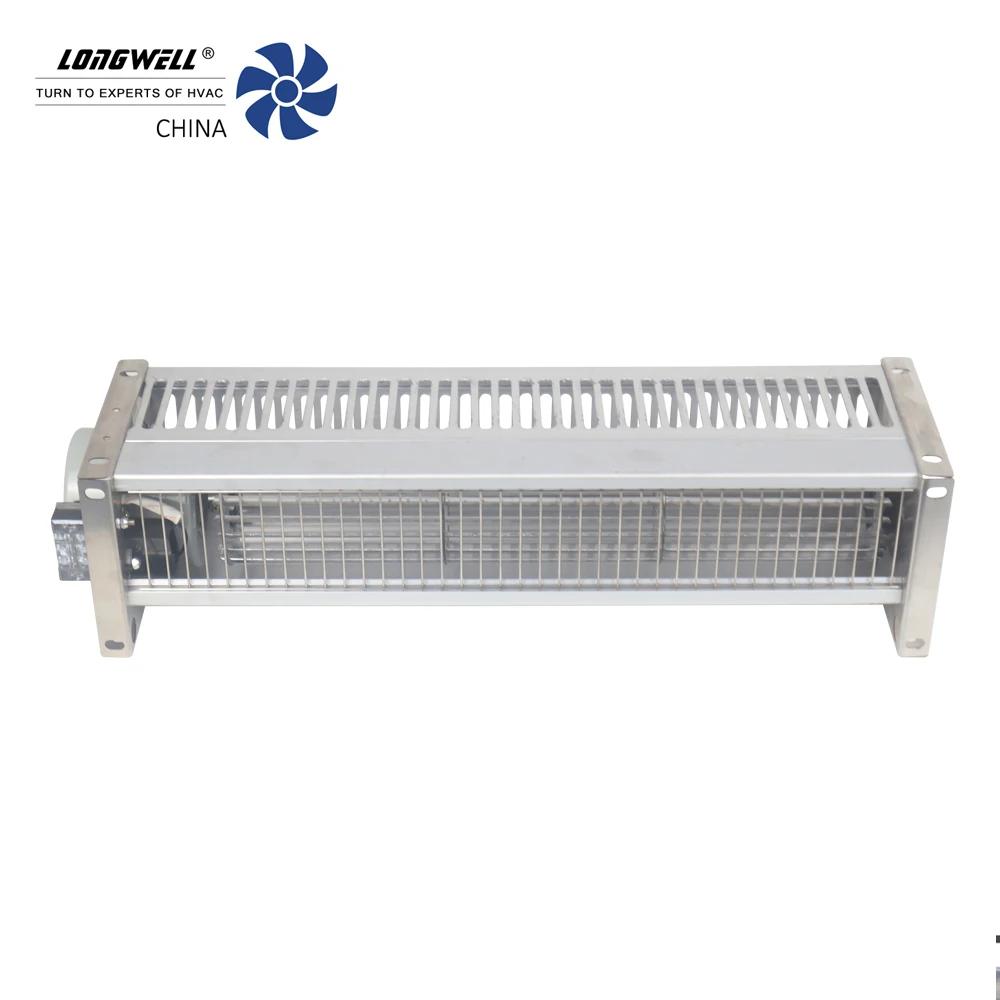

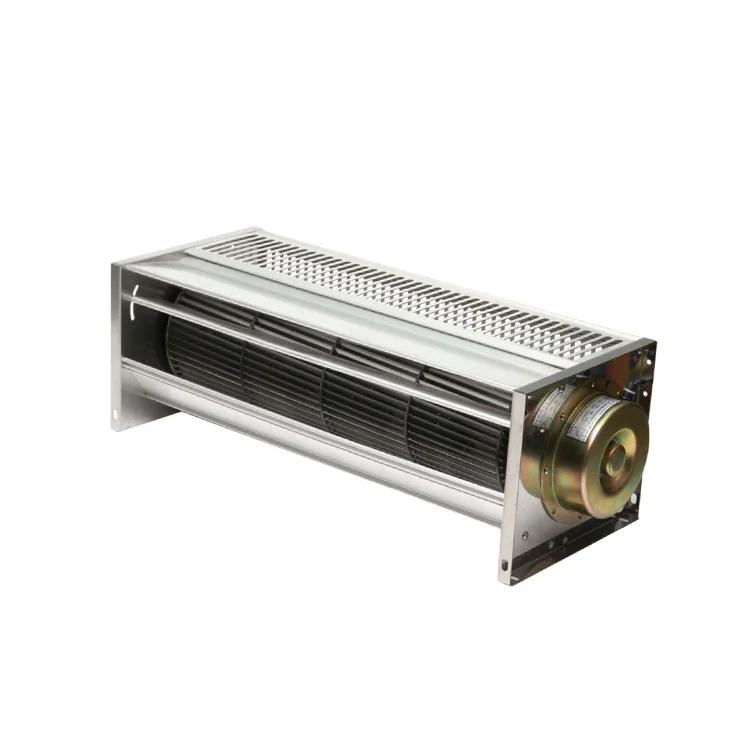

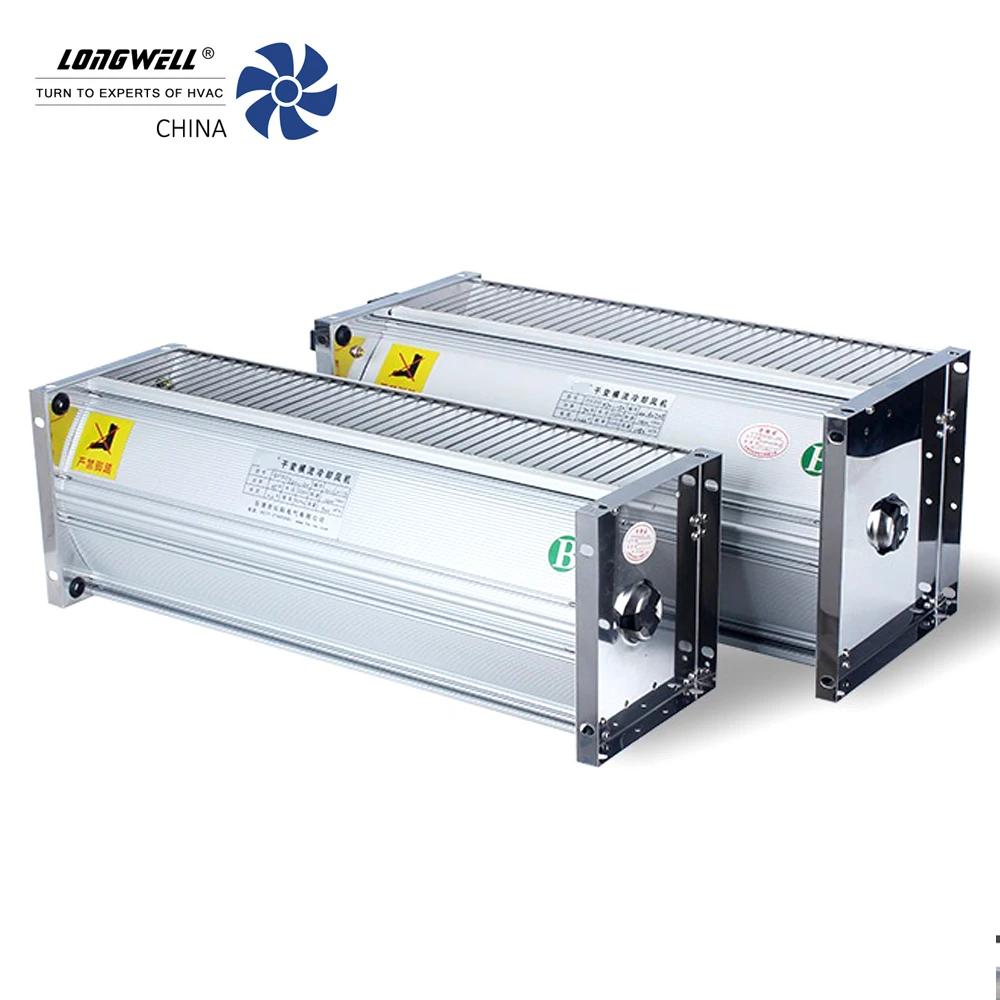

LONGWELL 90mm AC Cross Flow Fan, Tangential Blower Fan, 220V, for Floor Heating, Air Purifiers, Air Curtains

Voltage 220V

$ 3

Specifications
Motor
AC motor , BLDC motor
Speed
4000rpm, 1100rpm, 990rpm
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Cross Flow Fan range. The Fan Selector lists every LONGWELL cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

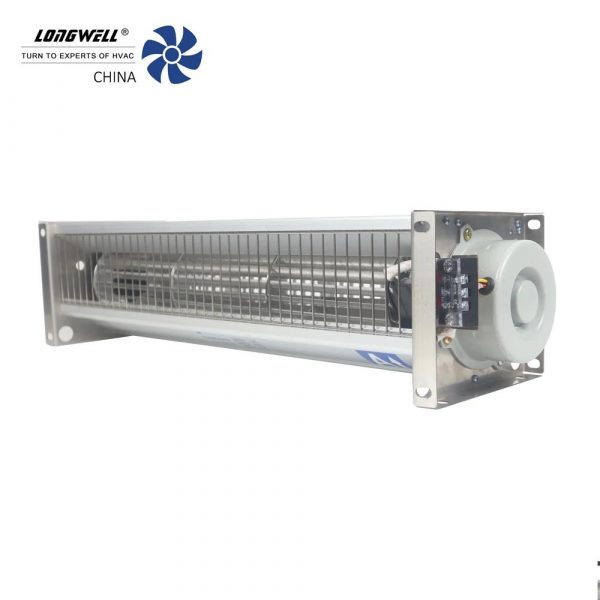

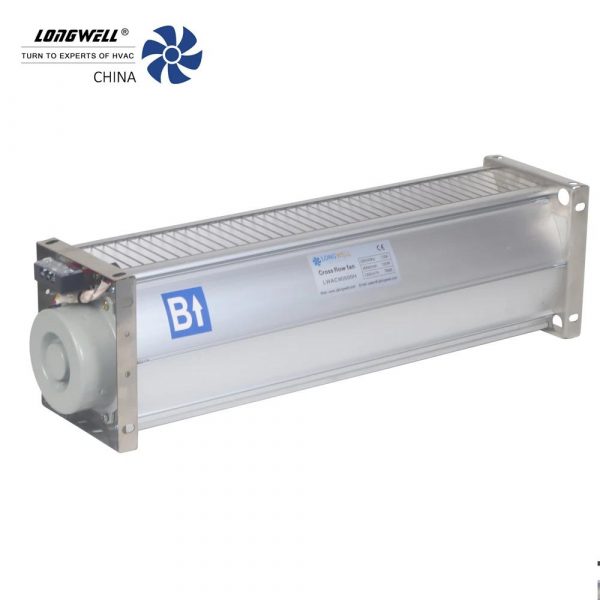

LWCA 90mm exhaust fb-9b cross flow fan

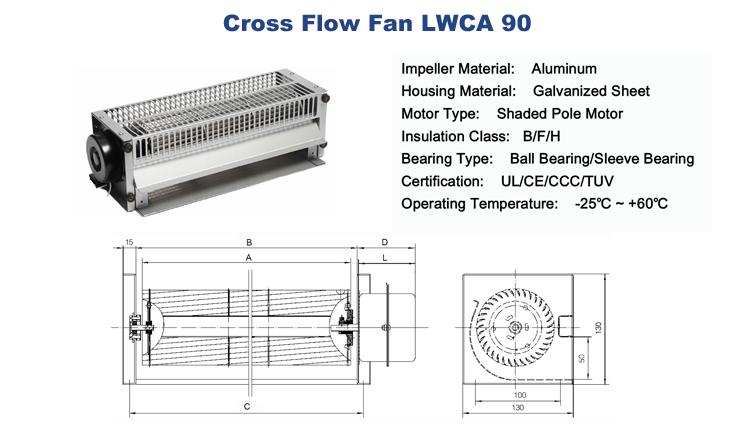

Product Overview

fb-9b cross flow fan

fb-9b cross flow fan



Product  Name LWCA 90mm exhaust fb-9b cross flow fan
Diameter 30mm/40mm/43mm/45mm/50mm/60mm/80/90/100/110/120/150/180/200mm
Fan Length 50-1000mm , customization length available
Motor AC shaded pole motor , BLDC Motor ,AC capacitor motor
Voltage input  115v/230v/12VDC/24VDC/48VDC
Material Aluminum
Bearing Ball Bearings / Sleeve Bearings
Color Aluminum color / black coating
Bearing Ball bearing and sleeve bearing available
Application  Cooler ,heater , floor heating , convector , oven , home appliances
Advantages  Low noise , long life span , competitive prices , free maintenance

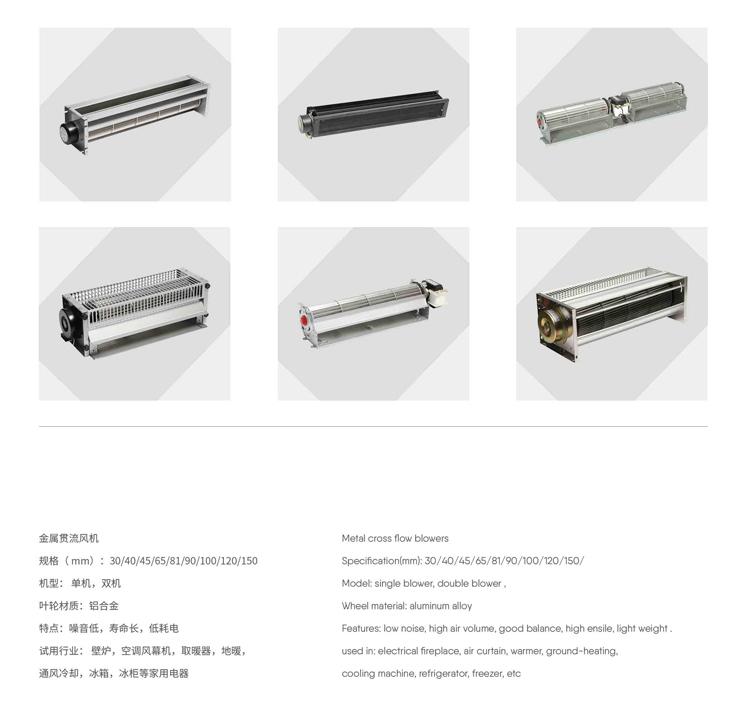

Related Products

fb-9b cross flow fan

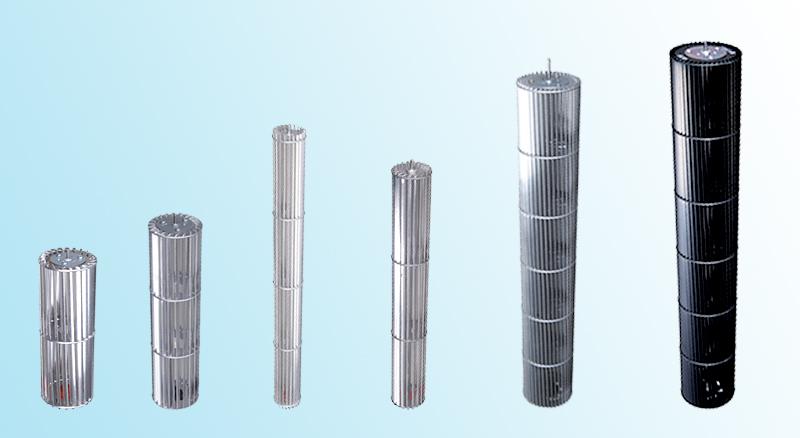

Product Name Diameter Material Wheel Length  Number Of Blades Shaft Diameter Usage
cross flow fan Φ30*L Aluminum Alloy 100,150,200,250,300 ,400… 20  ∅3/∅4/∅6/∅8/∅10/∅12 Air Curtain /AirConditioner /Air purifier /  Heater
Φ43*L 100,135,150,180.200,300,350 … 20
Φ45*L 100,115,150,180,200,240,300,360,400… 20
Φ50*L 100,115,150,180,200,240,300,350,400,500… 20
Φ60*L 80,120,180,240,300,360,400,450,500 … 22/24
Φ65*L 80,120,180,240,300,360,400,450,500 … 22
Φ71*L 80,120,180,240,300,360,400,450,500,560,600… 25
Φ81*L 100, 145,380,391,480,550,630,……800 30
Φ90*L 145,380,391,480,550,630,……800 35
Φ100*L 250, 360,480,550,630,700,……1000 40
Φ110*L 250, 360,480,550,630,700,……1000 45
Φ120*L 250,360,480,550,660,680,706,……1000 48
Φ150*L 200,360,480,515,580,660,680,810,880,….1050 50
Φ200*L 250 360,480,515,580,660,680,810,880,….1050 50
Customization is available for any length

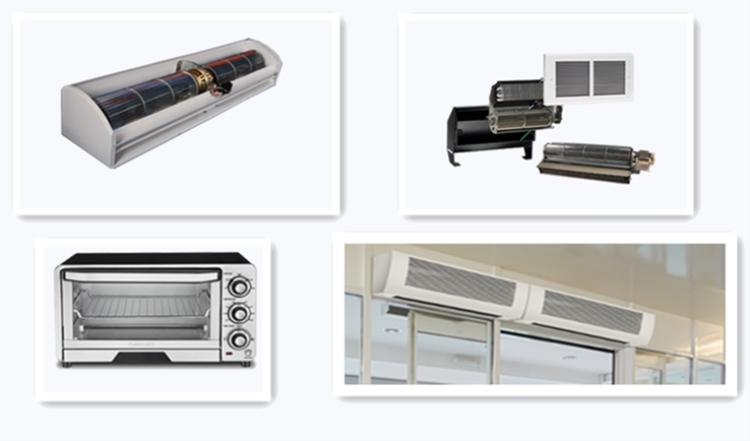

Application

fb-9b cross flow fan



Customization Available



fb-9b cross flow fan

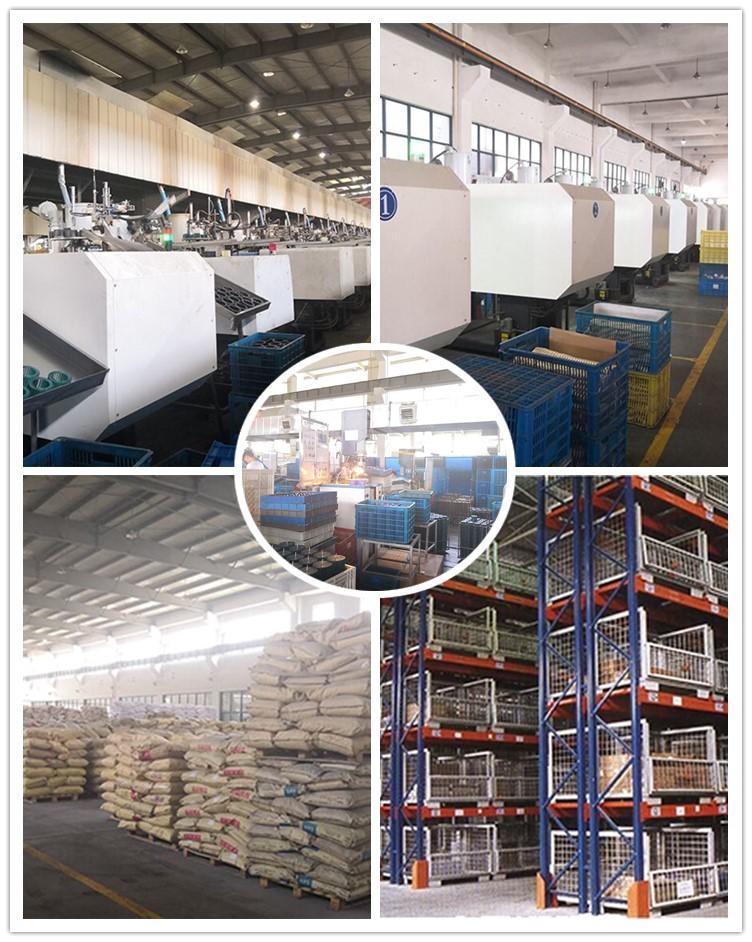

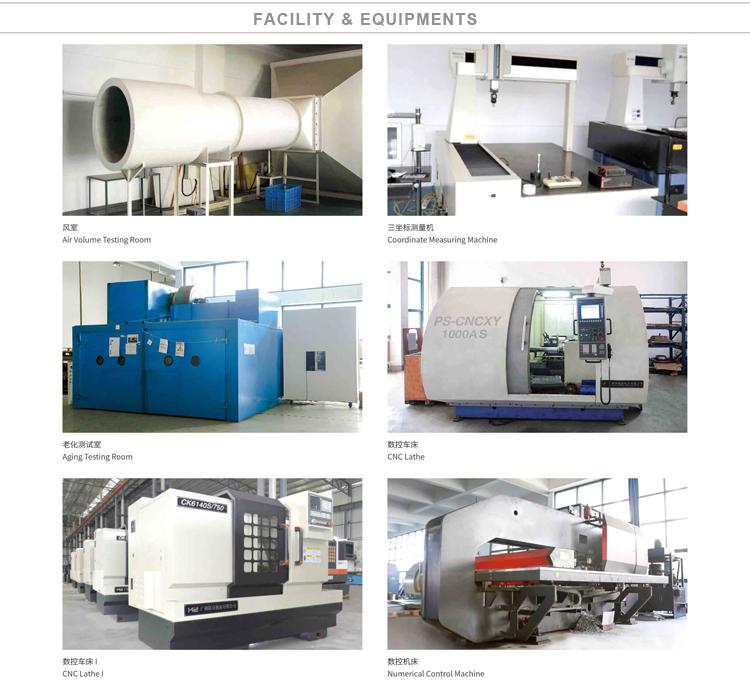

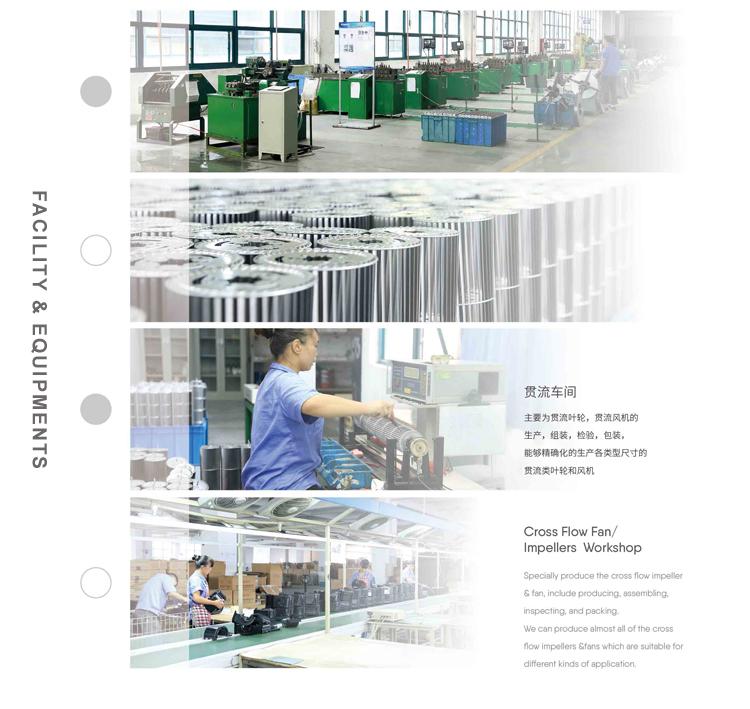

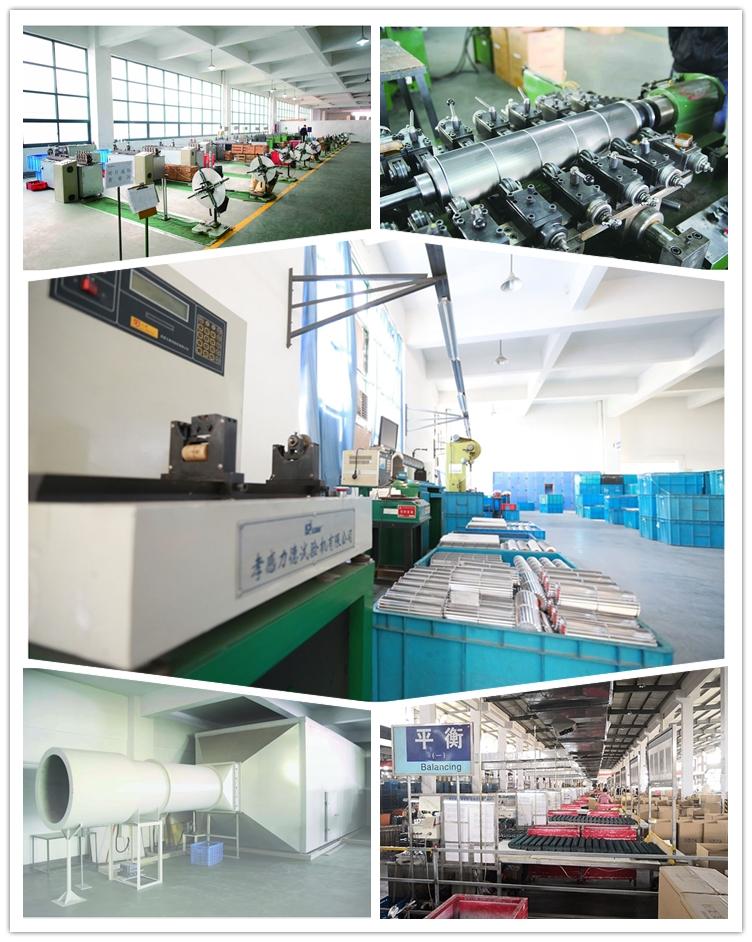

Company Information

fb-9b cross flow fan

fb-9b cross flow fan

fb-9b cross flow fan

fb-9b cross flow fan

fb-9b cross flow fan





FAQ

1.Are you a manufacturer  ?

 Yes, we are .  we own over 10 production lines for different products .

2.How is your quality  ?

Aboove average  and top class quality are your options in our range , The quality is pretty good,and trusted by many customers in overseas .

our quality is abov the average according customer same budget , customer have 1 year warranty , and free after sales technical support in product designed life span .

3. How is your price ?

Our price is very competitive by large scale production contribution .

4.What’s your lead time ?

7days -25days , depengs on volume and different items .

5.How is your responding time ?

You will get reply within 2hours online by Wechat ,Whatsapp , Skype , trade manager .

You will get respond within 8hours offline by email  .

Mobile is always availble for picking up your calls .



RELATED PRODUCTS:

fb-9b cross flow fan

fb-9b cross flow fan

Additional information

Blade Material

Plastic

mounting

Wall Fan

speed

4000rpm, 1100rpm, 990rpm

voltage

220V

customized support

OEM, ODM, OBM

place of origin

Anhui, China

warranty

1 Year

After-sales Service Provided

Free spare parts

Fan casing material

galvanized steel

Bearing

Ball Bearing /sleeve bearing

motor type

AC motor , BLDC motor

Fan Diameter

90~150mm

fan length

customization available up to 800mm

Application

Over , heater , air purifier , home appliances , floor heating ,

lead time

15-25days

Item name

fb-9b cross flow fan

Material

Iron ,Aluminum,Plastic

Applicable elevator

Elavator Parts

Selling units

Single item

Single package size

20X20X20 cm

Single gross weight

5.000 kg
