LONGWELL AC Shaded Pole Motor, HVAC Fan Motor, 115V, for Ovens, Cold Storage

$ 3

Specifications
Protection
B,F
Speed
1500~2000 RPM
Frequency
50HZ/60HZ
Phase
Single-phase
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Product descriptions from the supplier

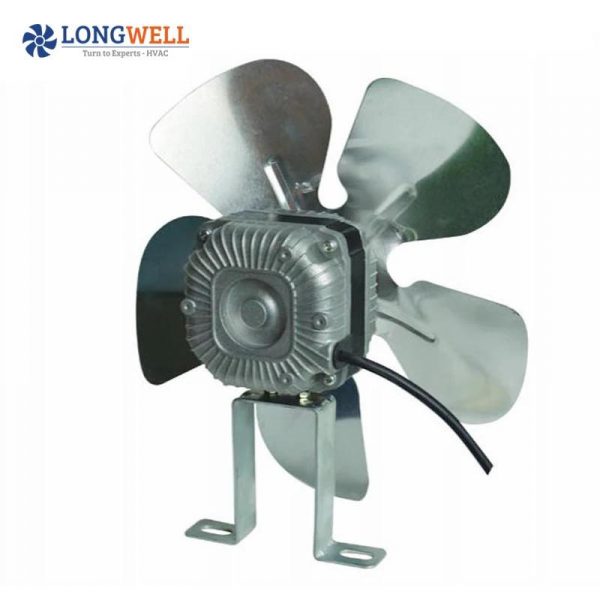

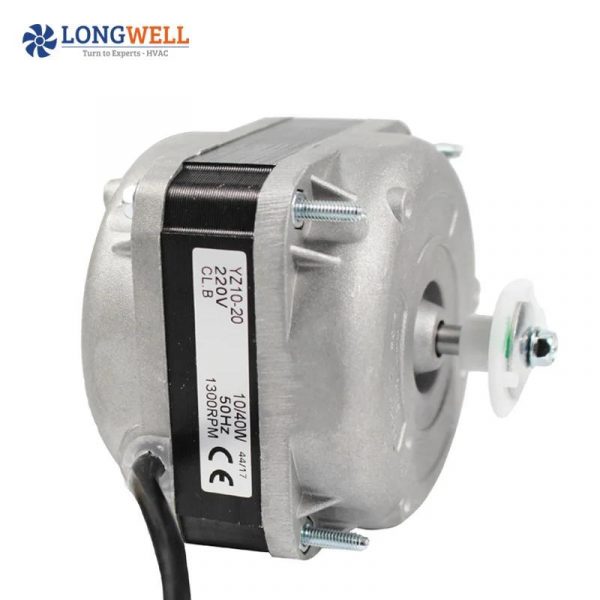

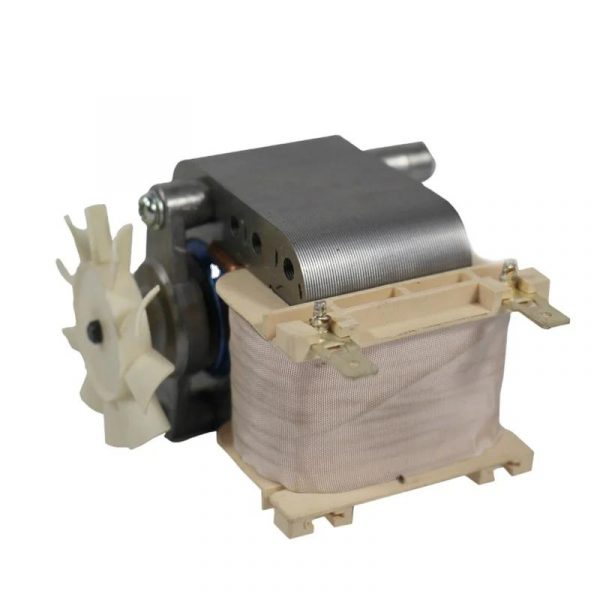

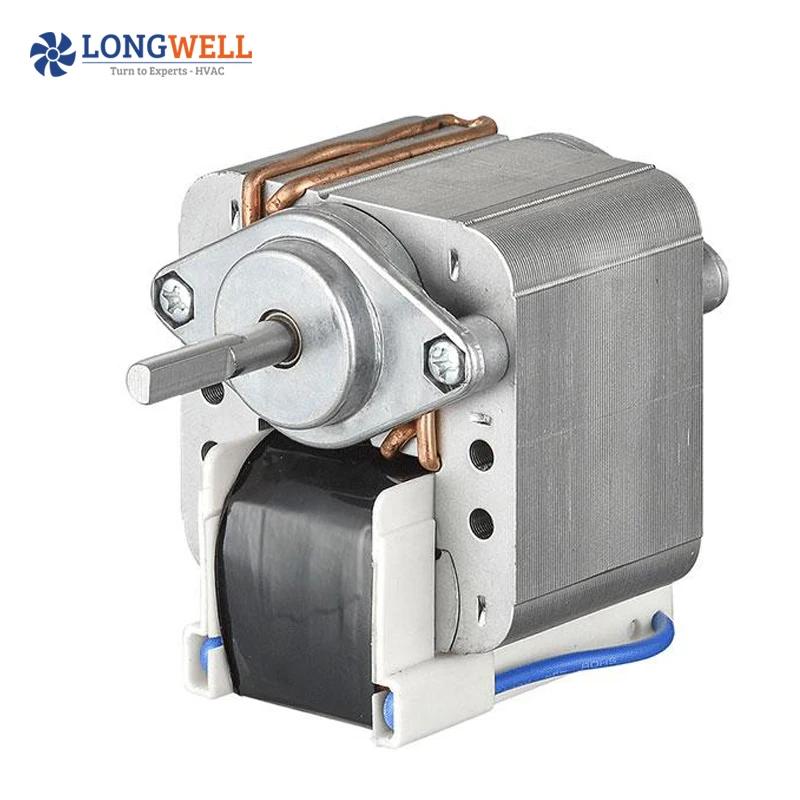

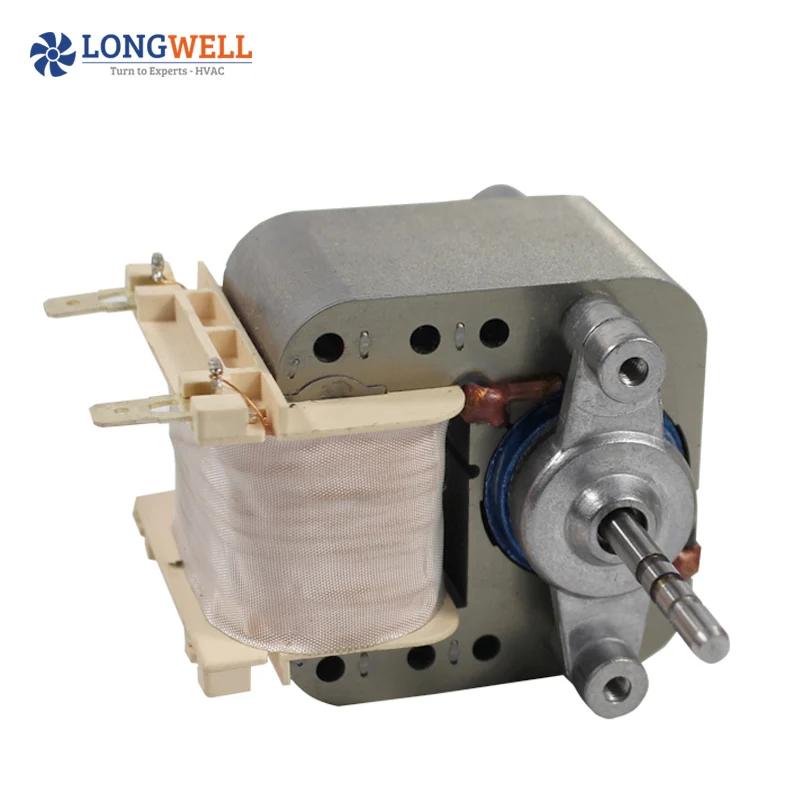

High Powerful AC Shaded Pole Motor Electric Fan Motor yj60 16

Product Description

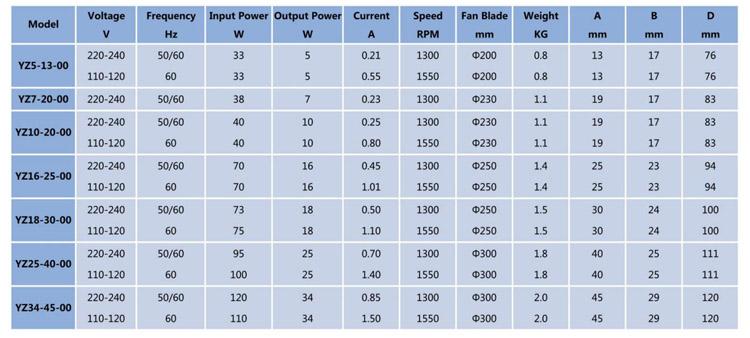

Model Number :   AC Shaded Pole Motor YZ SERIES
Power  : 33W ~ 120W Blade Material : Plastic
Speed control: PWM / 0~10V Insulation Class: B/F
Operation Temperature :  -30℃ ~ +60 ℃

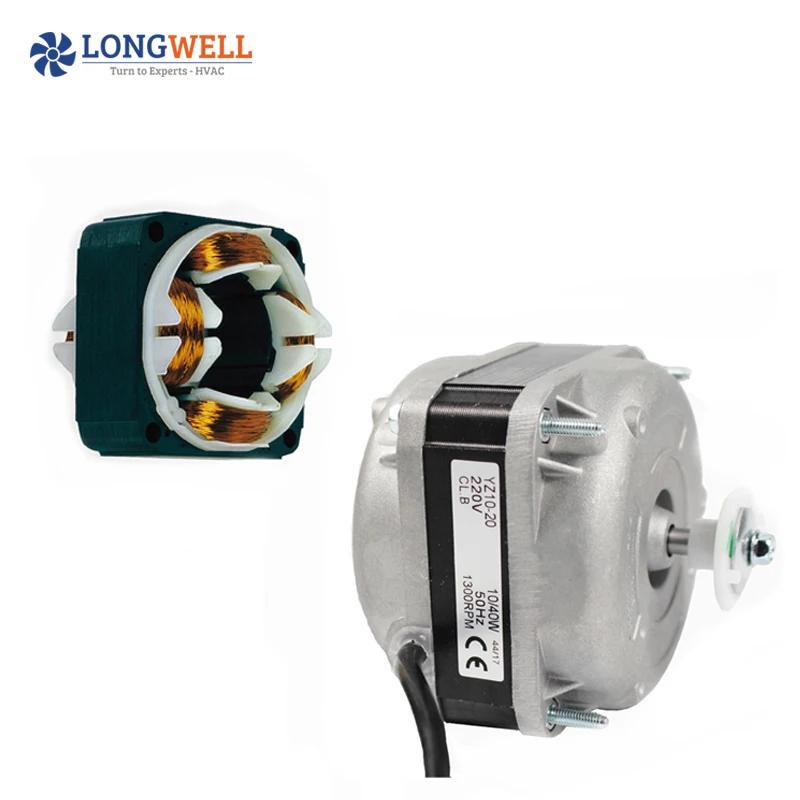

  • YZF series motors are Shaded Pole Air Pump Motors with single phase,4 shaded poles and running at rated voltage of 220~240V,50/60Hz or 110~120V,60Hz .They are widely used in the radiator,evaporator and other refrigeration equipment.
  • All material conform to RoHS.
  • The output power is from 2W to34W,which is relative to the stack length and coil parameters.
  • The insulation class of motors is B,and the protection class of that is IP42.On request IP44 is avaliable
  • The motor,which output power less than 10W are impedance protection and the motors,which output is bigger than 10W,are thermal protection.The thermal protetor’s is 125℃±5℃,135℃±5℃ or 150℃±5℃.
  • The average service life of motoer is over 20000 hours.

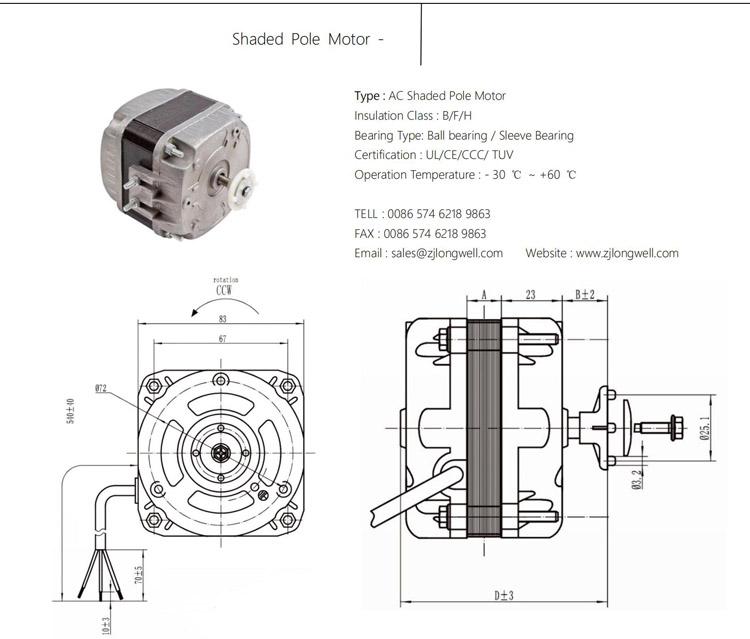

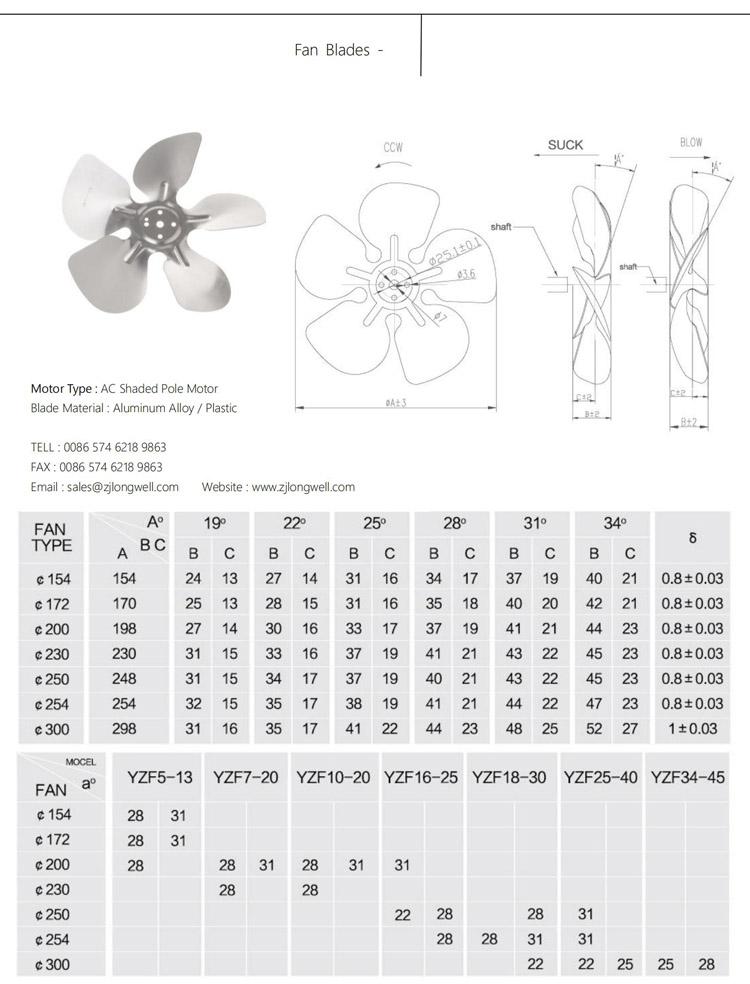

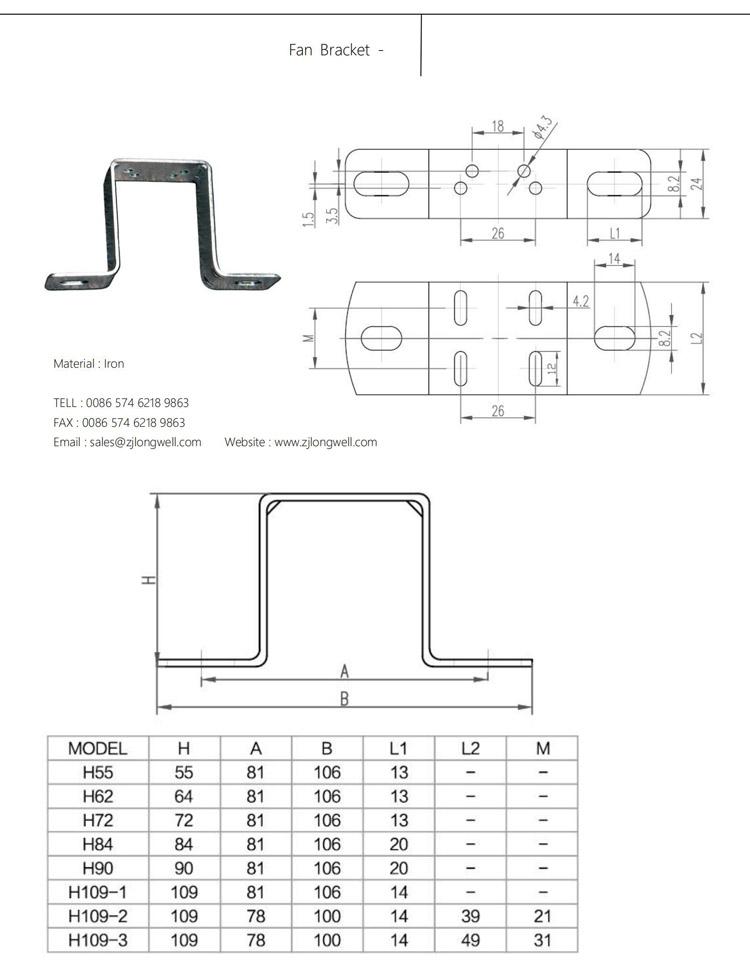

Shaded Motor and Blades_00

Shaded Motor and Blades_01

Shaded Motor and Blades_02

Shaded Motor and Blades_03

Custom Service

 backward (8)

Product Application

 cross flow fan (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

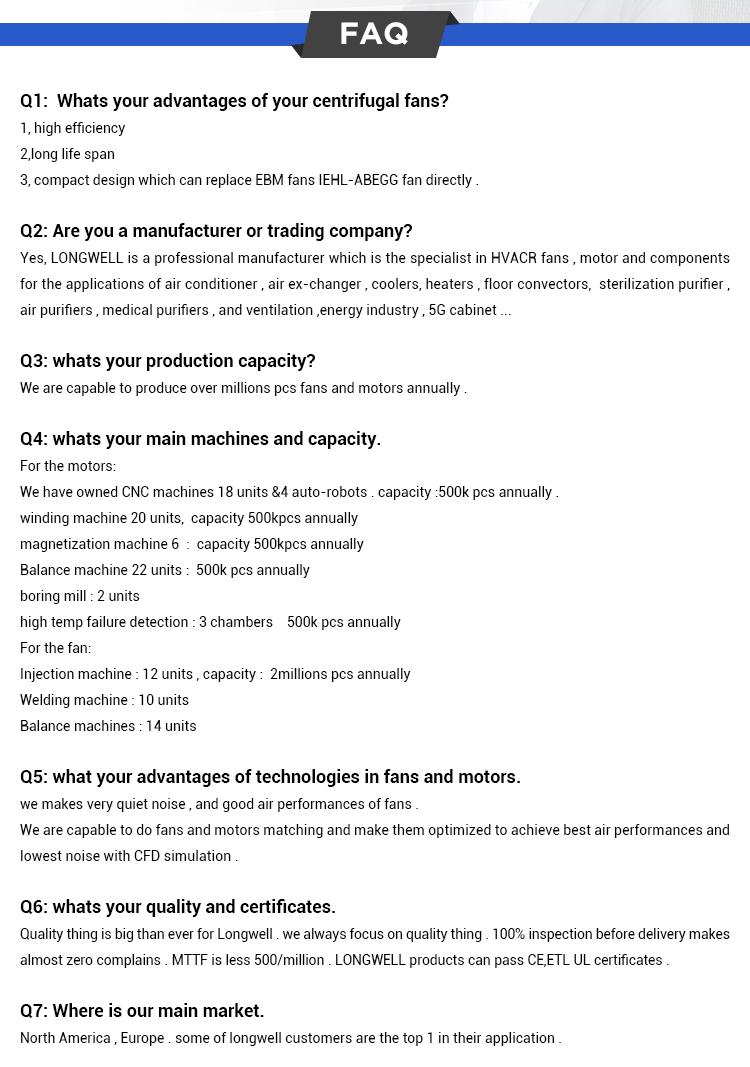

FAQ

backward (21)

Additional information

AC Voltage

220V/230V/240V/120V/110V

Place of Origin

Zhejiang, China

Brand Name

Longwell

Model Number

cooker hood motor

Type

Asynchronous Motor

Frequency

50HZ/60HZ

Phase

Single-phase

Protect Feature

Other

Efficiency

IE 2

Product Name

Shaded Pole Motor yj60 16

Used for

Home Appliance

Lead time

30 days after payment

Application

CROSS FLOW FAN ,OVEN ,HEATING

Speed

1500~2000 RPM

Warranty

2 YEARS

Rated Voltage

115V,230V

Rated Power

CUSTOMER DESIGN

Mounting

FREE STANDARD

Protection class

B,F

Packaging Details

25pcs per carton carton size: 48*39*16.5cm N.W/G.W:20/21kg Shaded Pole Motor yj60 16

Port

Ningbo

Selling units

Single item

Single package size

15X15X20 cm

Single gross weight

3.000 kg

Supply Ability

100000 Piece/Pieces per Month
