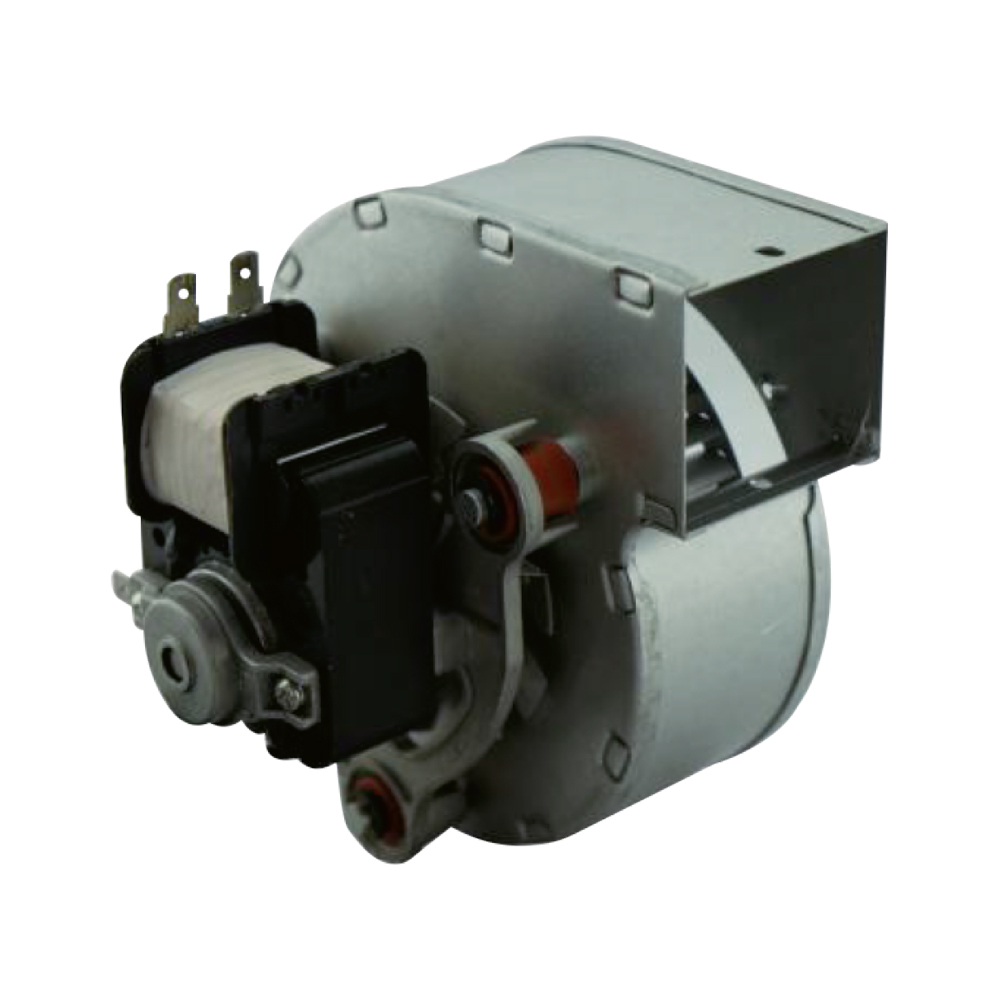

LONGWELL Gas Blower, Industrial Gas Blower Fan – LWGA097S-02

Air Flow 124 m³/h
Static Pressure 227 Pa
Voltage 220 V

$ 10

Specifications
Motor
AC
Speed
2000 RPM
Power Input
35 W
Frequency
50 Hz
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Gas Blowers range. The Fan Selector lists every LONGWELL gas blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search gas blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø20–2,038 mm, single units up to about 79,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Material Aluminized sheet steel
Phase Number /
Number of Poles /
Insulation Class H
Bearing Ball bearing
Direction of Rotation /
Flue Temperature ≤180℃ (continuous),≤240℃ (instantaneous)
Application /
Technical Feature Motor anti-vibration mounted,Mounting position must be

specified for corresponding support elements

Nominal data

Dimensions /
Nominal Voltage 220V
Frequency 50Hz
Power Input 35W
Current 0.3A
Speed 2000RPM
Static Pressure(Max) 227Pa
Air Flow(Max) 124m³/h
Air Volume /
Noise /

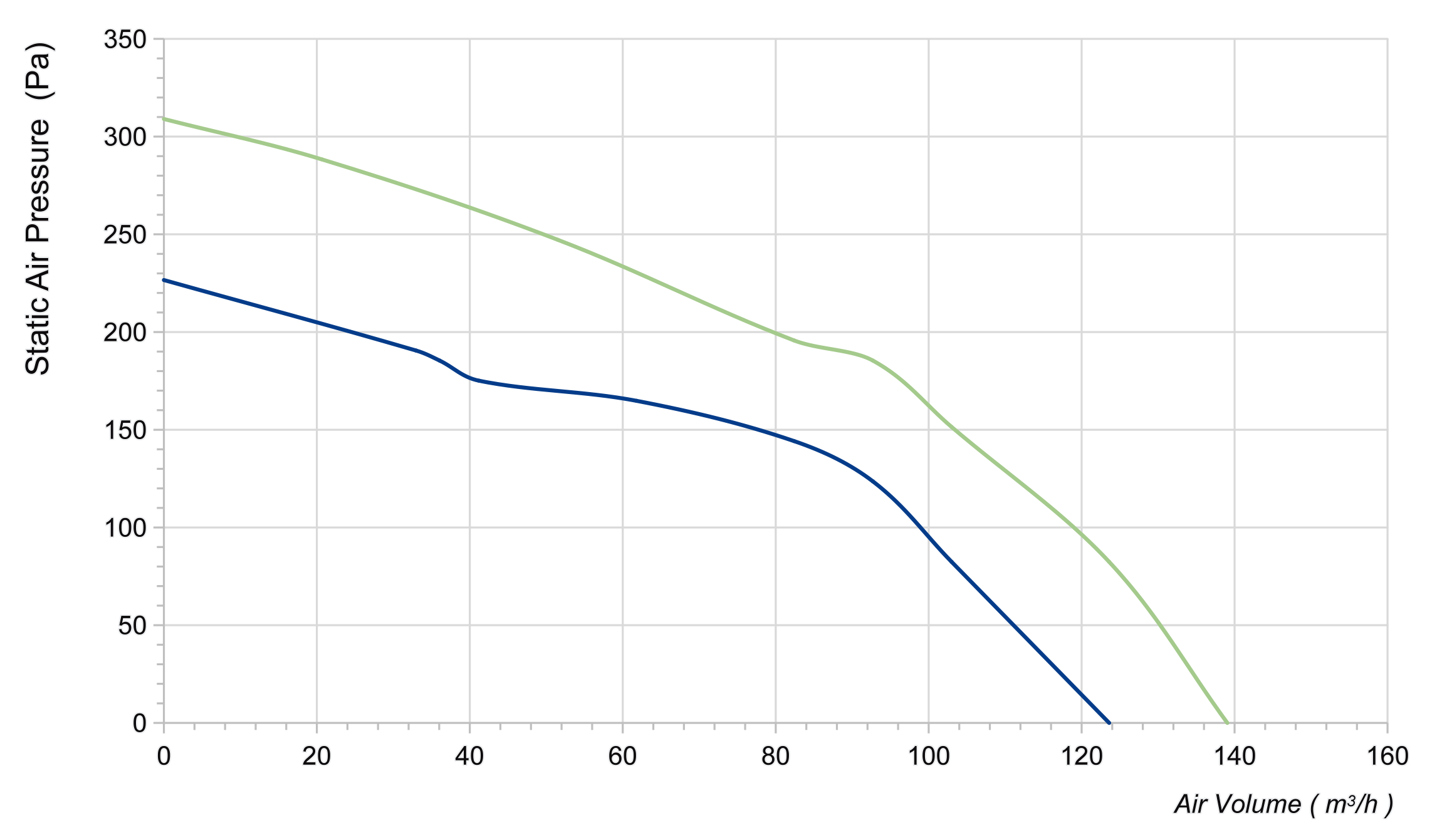

Curves

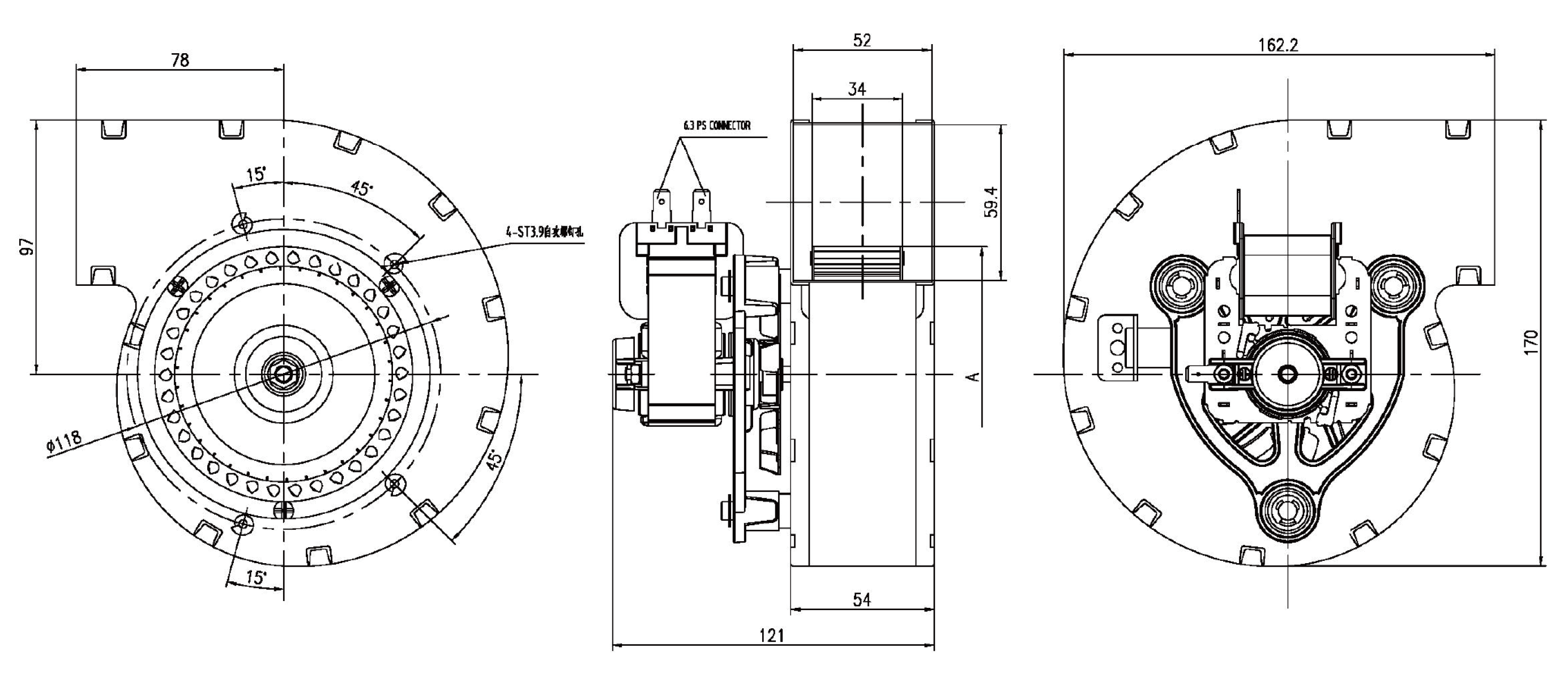

Drawing
