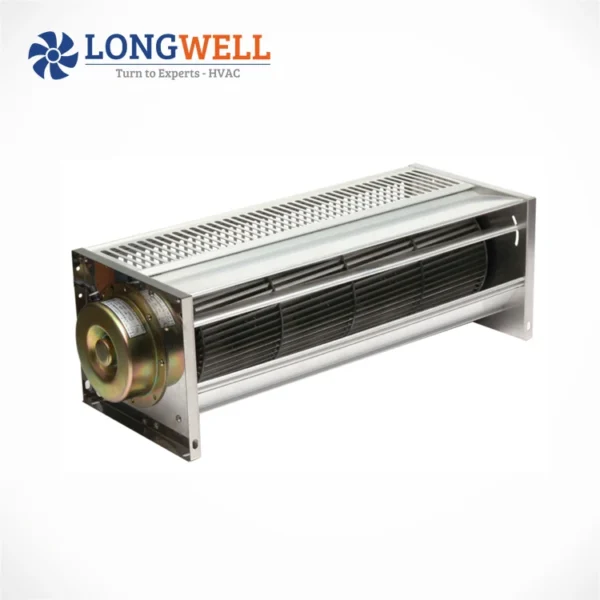

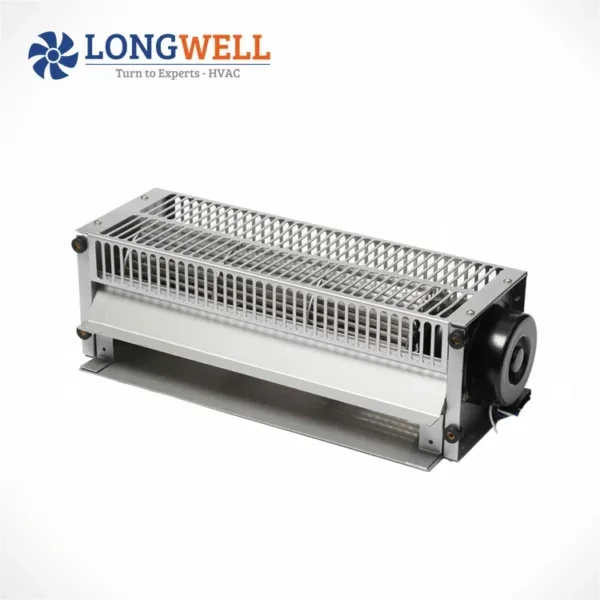

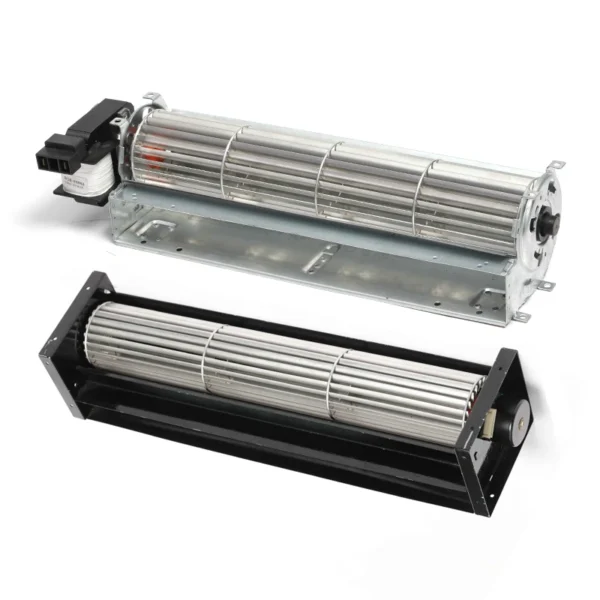

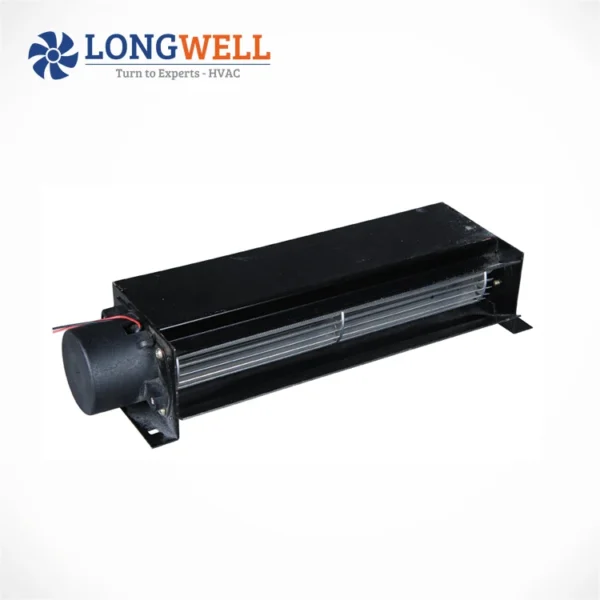

LONGWELL Cross Flow Fan, Tangential Blower Fan, 12V, for Ovens, Fireplaces, Air Curtains

Voltage 12/24/48/110/230
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Category: Tags: , ,
CategoryCross Flow Fan
TagsAir CurtainCross Flow FanOven Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Cross Flow Fan range. The Fan Selector lists every LONGWELL cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

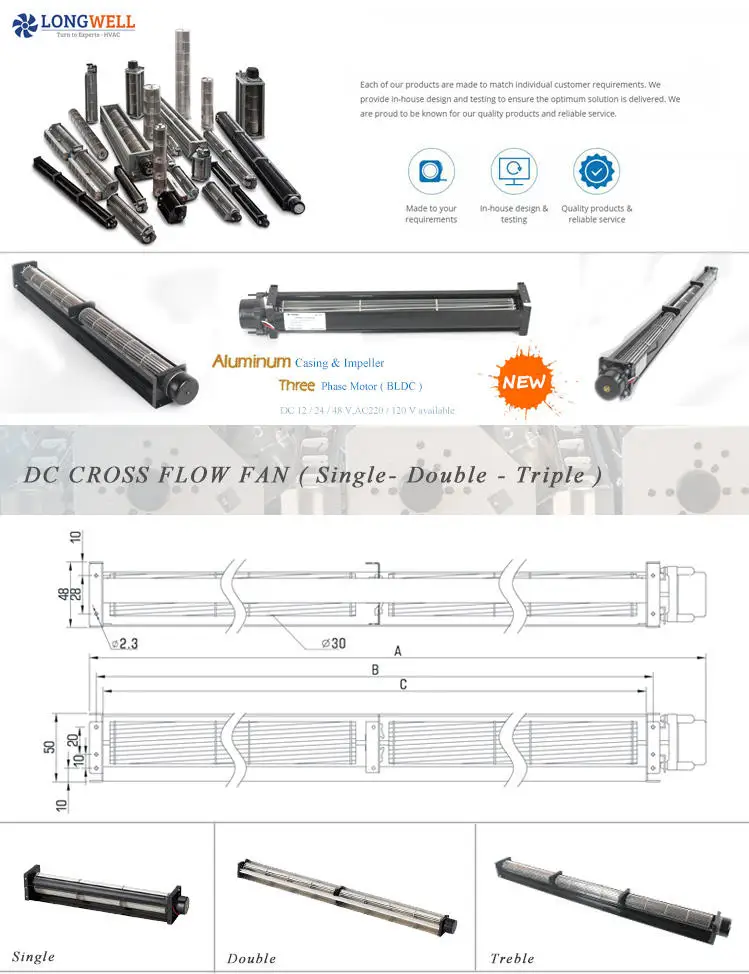

dc02

dc03

dc04

Product Description
  • Cross flow fans are used for cooling circuit boards or other applications requiring wide and uniform air flow such as air curtains ;
  • These fans provide right-angle & left angle air flow and a rectangular shape ,allowing for installation in corners and space saving ;
  • With UL Certificating ;
  • Voltage can be designed as 12V / 24V / 48V / 115V /230V ;
  • Max Air volume : 4200 m³/h ;
  • Max Speed :2600 RPM ;
  • Max Power :335 W ;
  • Impeller Material : Aluminum Alloy or Plastic ;
  • Housing Material : Galvanized Sheet Steel ;
  • Motor Type : Shaded Pole Motor ;
  • Insulation Class : B/F/H
  • Bearing Type : Ball Bearing
  • Operating Temperature : – 25 ℃ ~ + 60 ℃
  • Storage  Temperature : – 15℃ ~ + 40 ℃

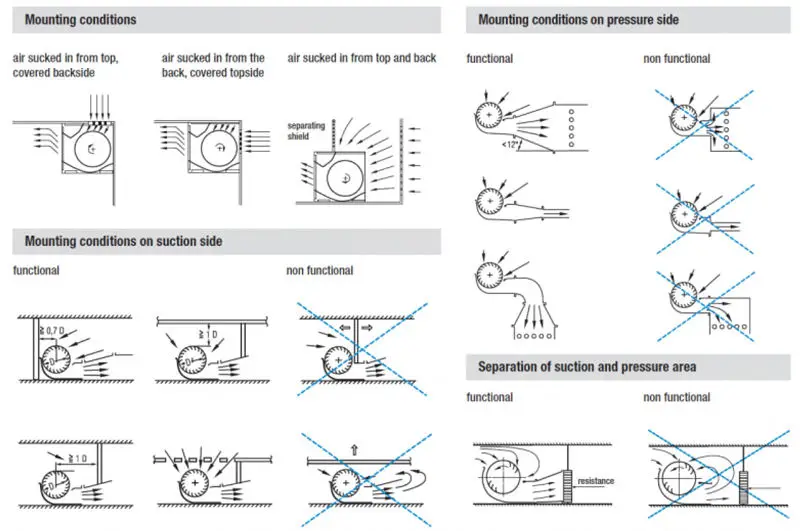

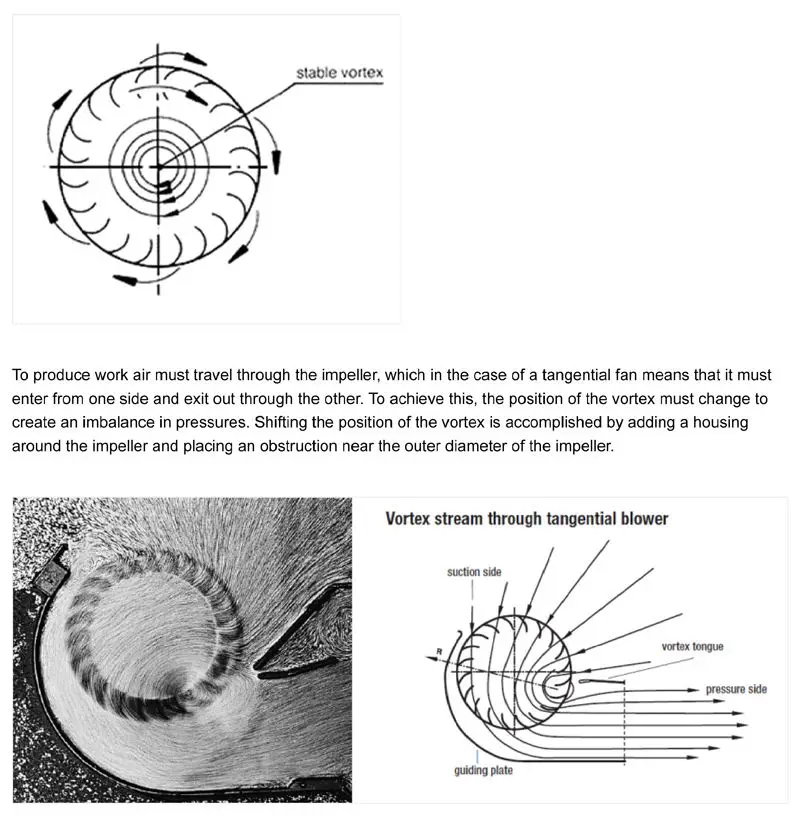

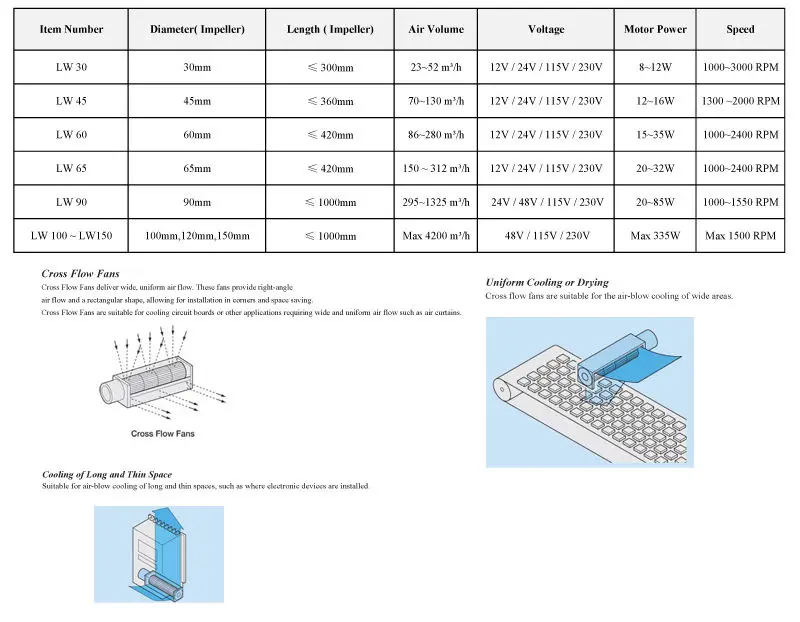

Cross flow tangential blowers

Cross flow tangential blowers

Cross flow tangential blowers

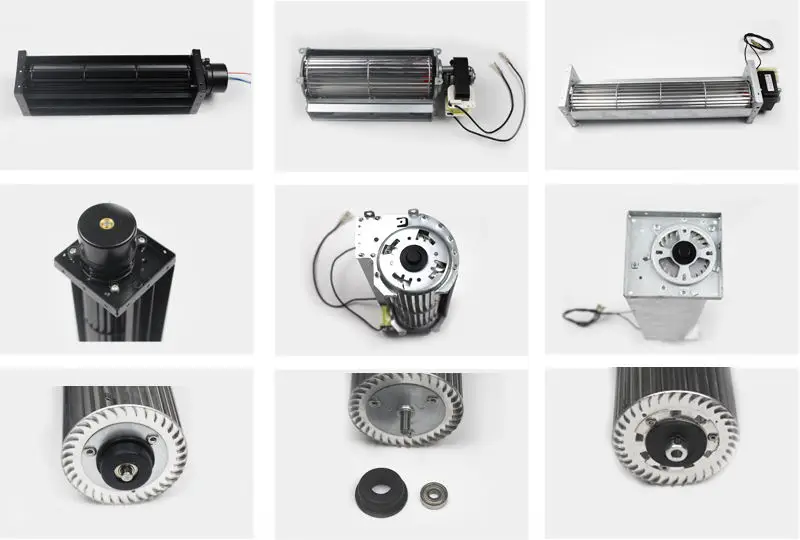

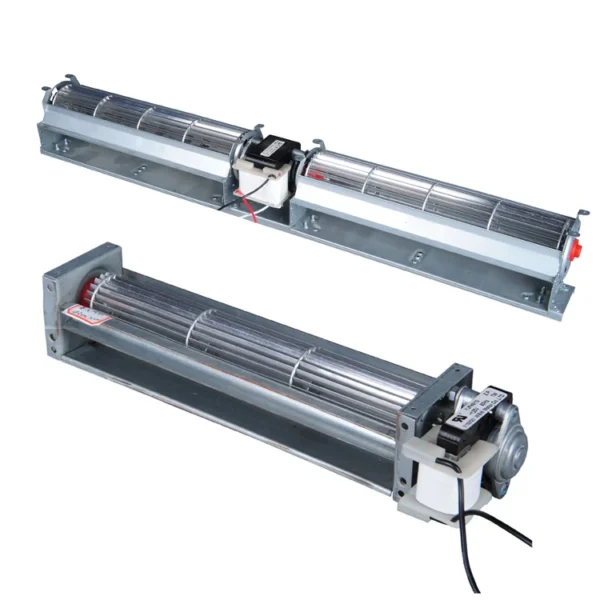

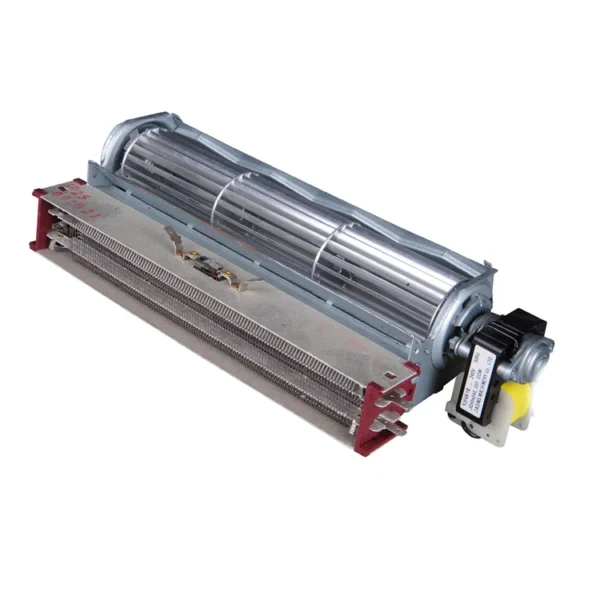

Product Picture Show

Cross flow tangential blowers

Buying Guides

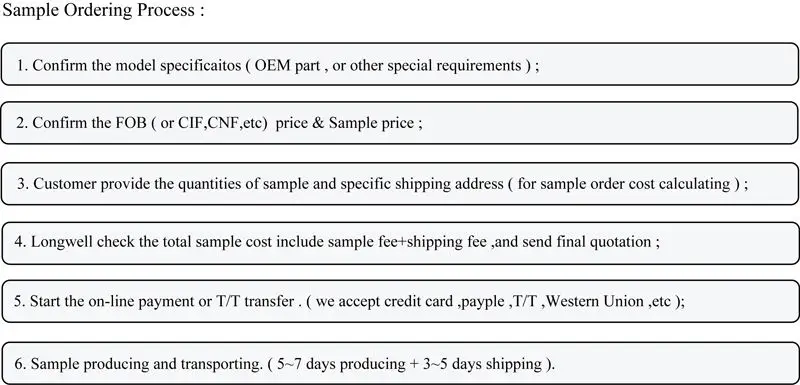

 Order process

dc05

dc07

Sample: 5~10 days;
Bulk Order: 18~23 days after receiving order information;
Package: Standard exporting carbon package with pallet.(Package can be customized);
Shipment: Air express,sea shipment,EXW,LCL,etc;
Paymen: 100% in advance for sample;30% T/T in advance,70% paid before delivering for Bulk orders

dc09

Additional information

mounting

Other
Voltage

12/24/48/110/230
speed

4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM
Material

Stainless Steel, Plastic, Aluminum Alloy, Steel
Blade Material

Plastic
warranty

1 Year
