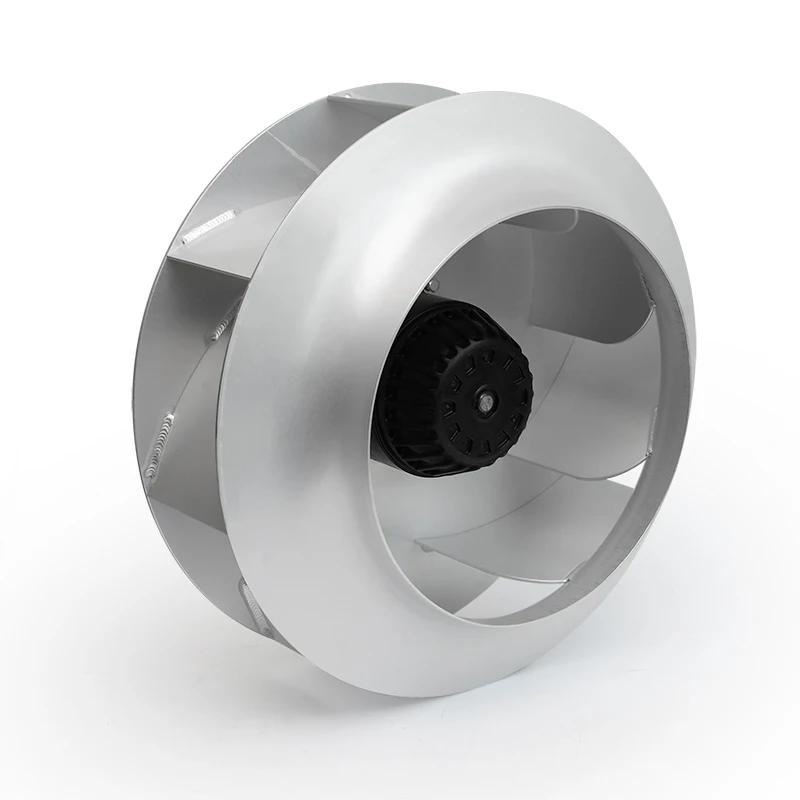

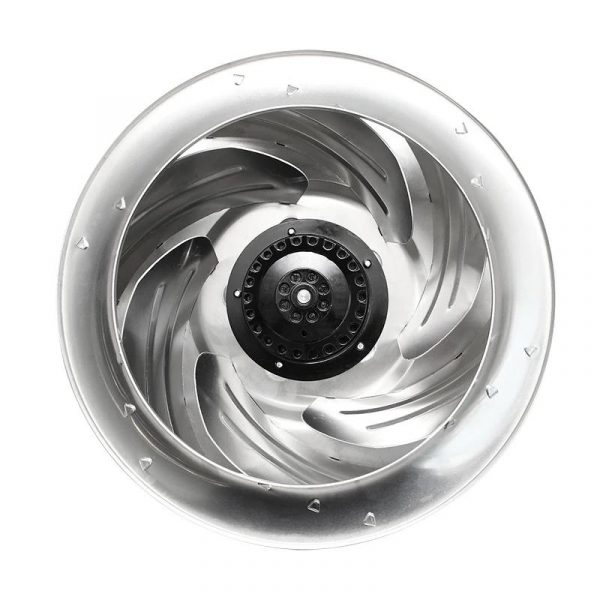

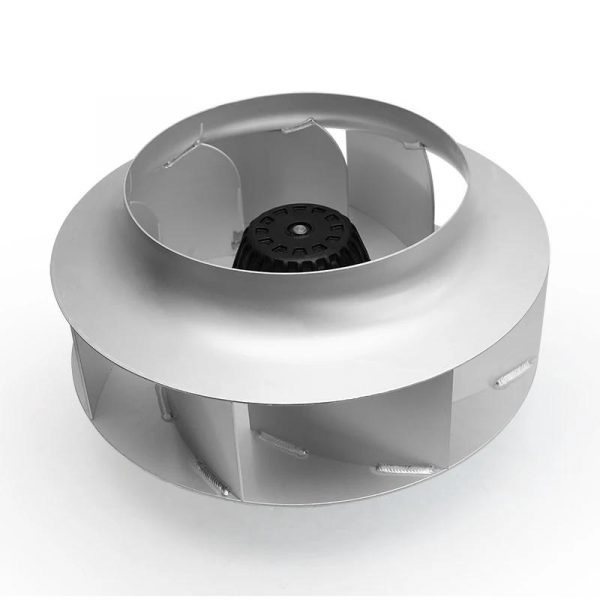

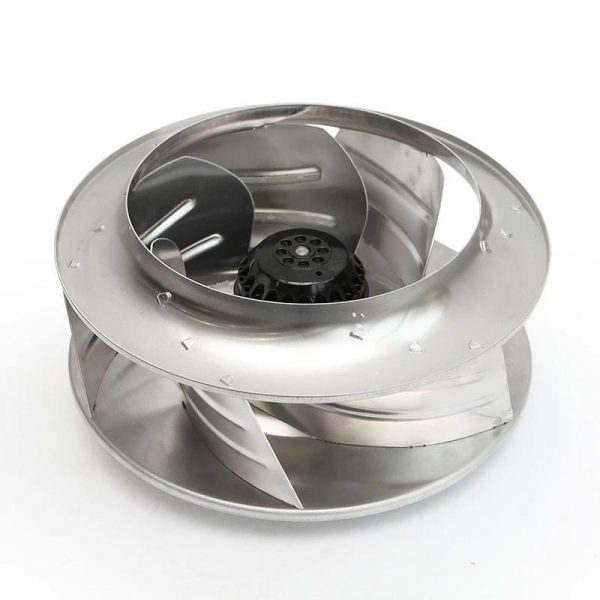

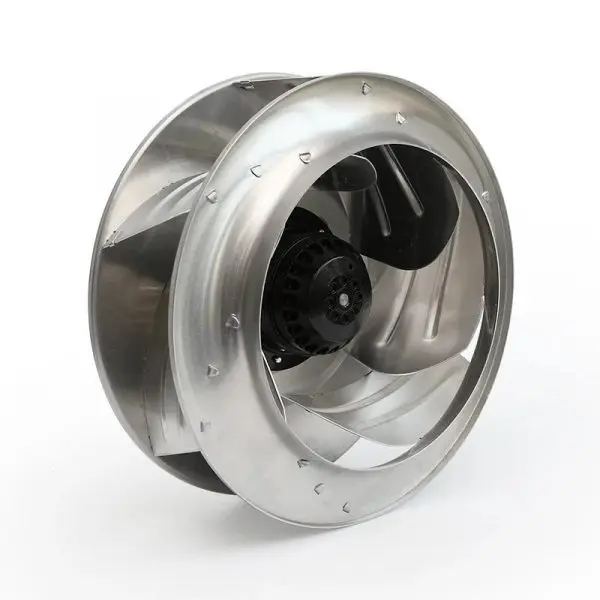

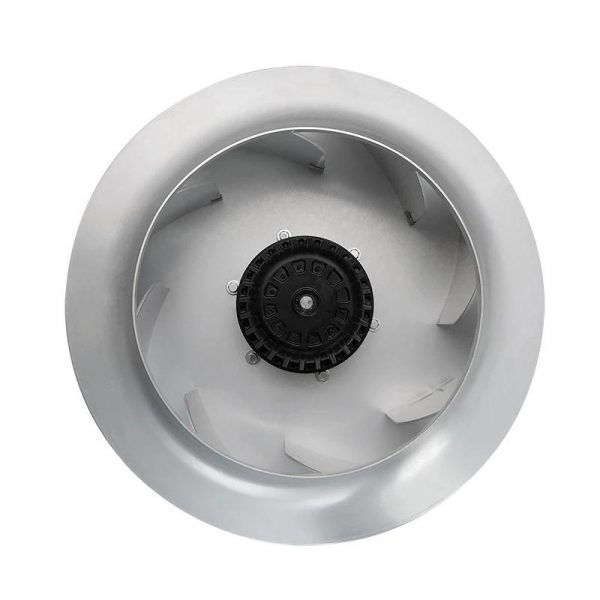

LONGWELL Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 110V

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

Specifications
Motor
external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsAir Handling UnitsBackward Curved Centrifugal FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

backward curved centrifugal fan

ECM motor driven backward curved centrifugal fan

centrifugal fan (2)

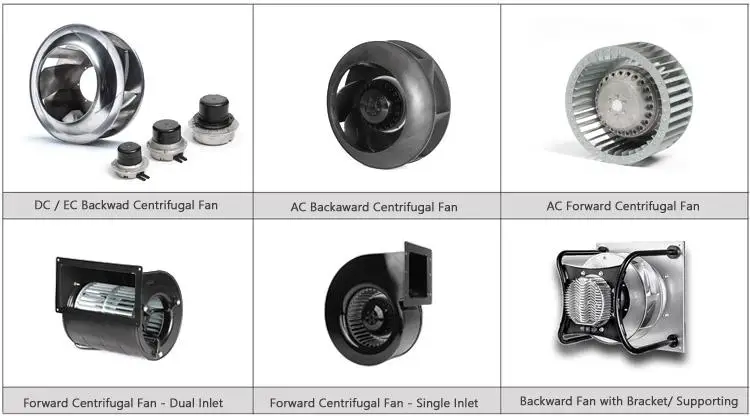

Product Overview
1 Centrifugal Blower Sizes 133mm – 400mm (or Customized)
2 Centrifugal Fan Sizes 133mm – 630mm (or Customized)
3 Motor Types AC Motor
BLDC Motor
ECM Motor
4 Voltage AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
5 Power Up to 2300W (or Customized)
6 Speed Up to 4000RPM (or Customized)
7 Air Flow Up to 15000m³/h (or Customized)
8 Speed control Speed Controller (AC) or PWM/0 – 10V Input (DC & EC)
 General Characters
1 Direction of Air Flow All around
2 Insulation Class Class B
3 Insulation Resistance 50 Mega Ohm minimum at 1000VDC
Between frame and (+) terminal
4 Protection Type IP44

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

backward curved centrifugal fan

Additional information

Voltage

110v /220v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
After-sales Service Provided

Overseas service center available
Type

ECM motor drived backward curved centrifugal fan
power input

110/220VAC 12/24/ 48VDC
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

10.000 kg
