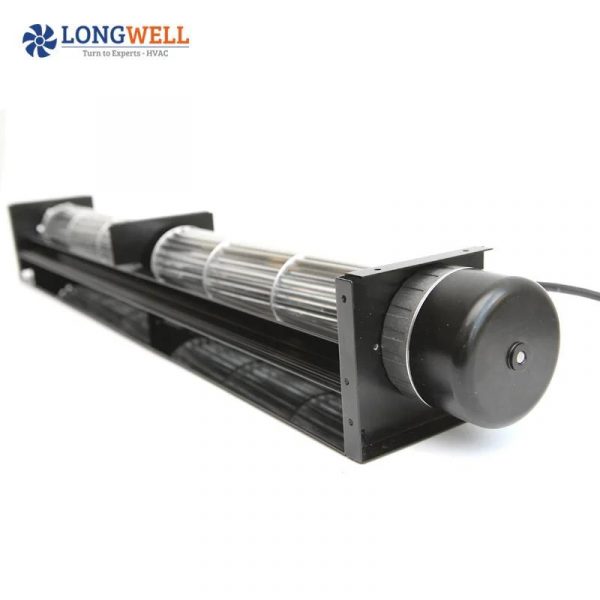

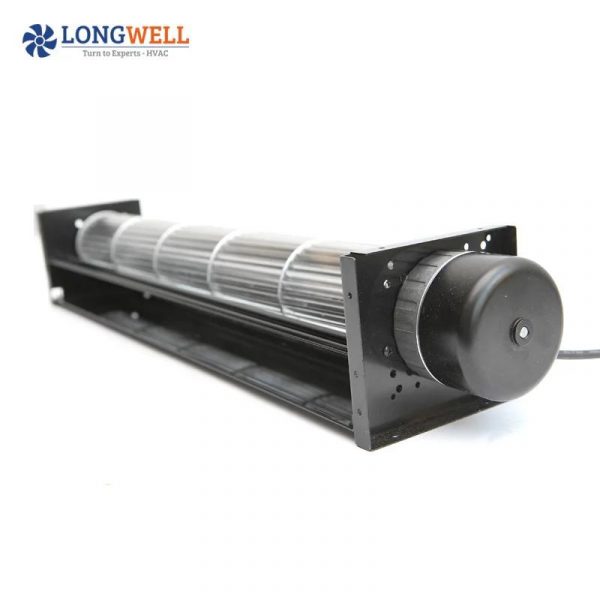

Description
Longwell offer different kinds of DC cross flow fans with 3 phase BLDC Motor .And safety grid and speed regulator controller can be choosed with this kind of tangential fan .
Housing: We offer metal housing, mostly of aluminum. Impeller: Our impellers ‘s diameter ranges from 25mm to 150mm in diameter and 76mm to 1200mm in length ( single – double – triple type ) . Bearings: We offer NMB or NSK ball bearings for our tangential fans. Voltages: Our DC cross flow fans are workable in 12V, 24V, and 48V.
Speed Control System : 0-10V / PWM

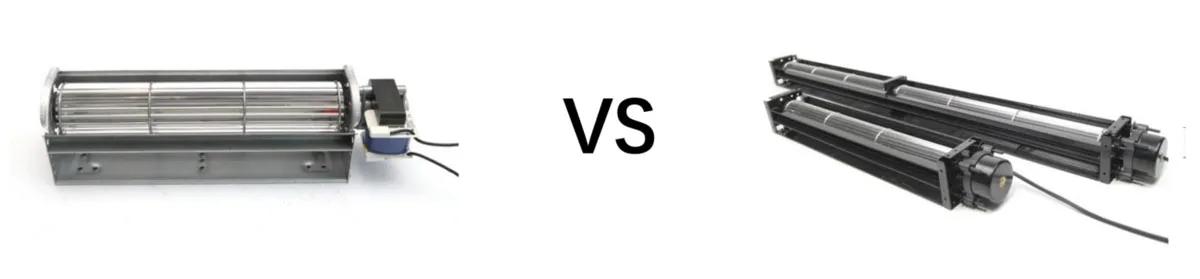

What is the difference between AC cross flow fan and DC cross flow fans ?
– DC Fan Motors Efficiency about 30% less energy than AC fans – Quieter operation whhich is low to 19 dBA level . – Suitable for extreme temperature environments ; – Provides more variable, uneven airflow,Minimal electromagnetic interference – Low voltage operation– Integrated PCB control system .

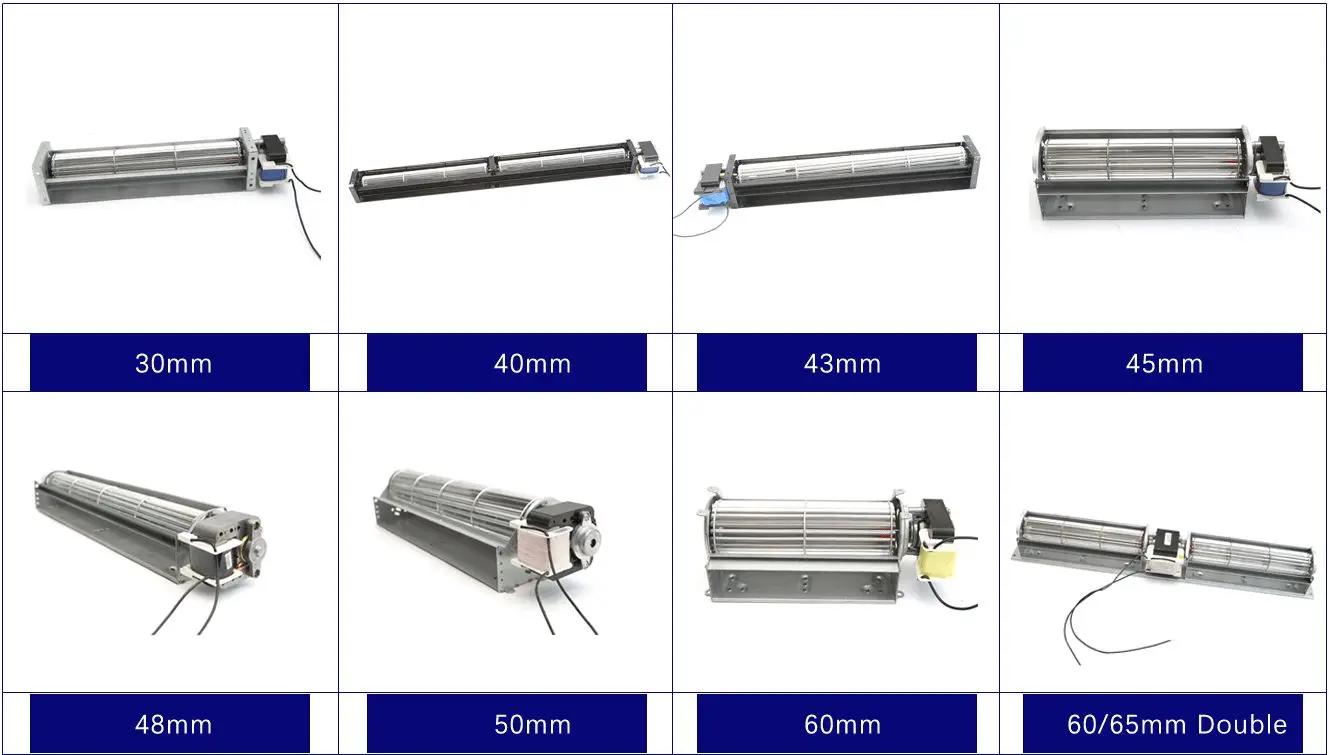

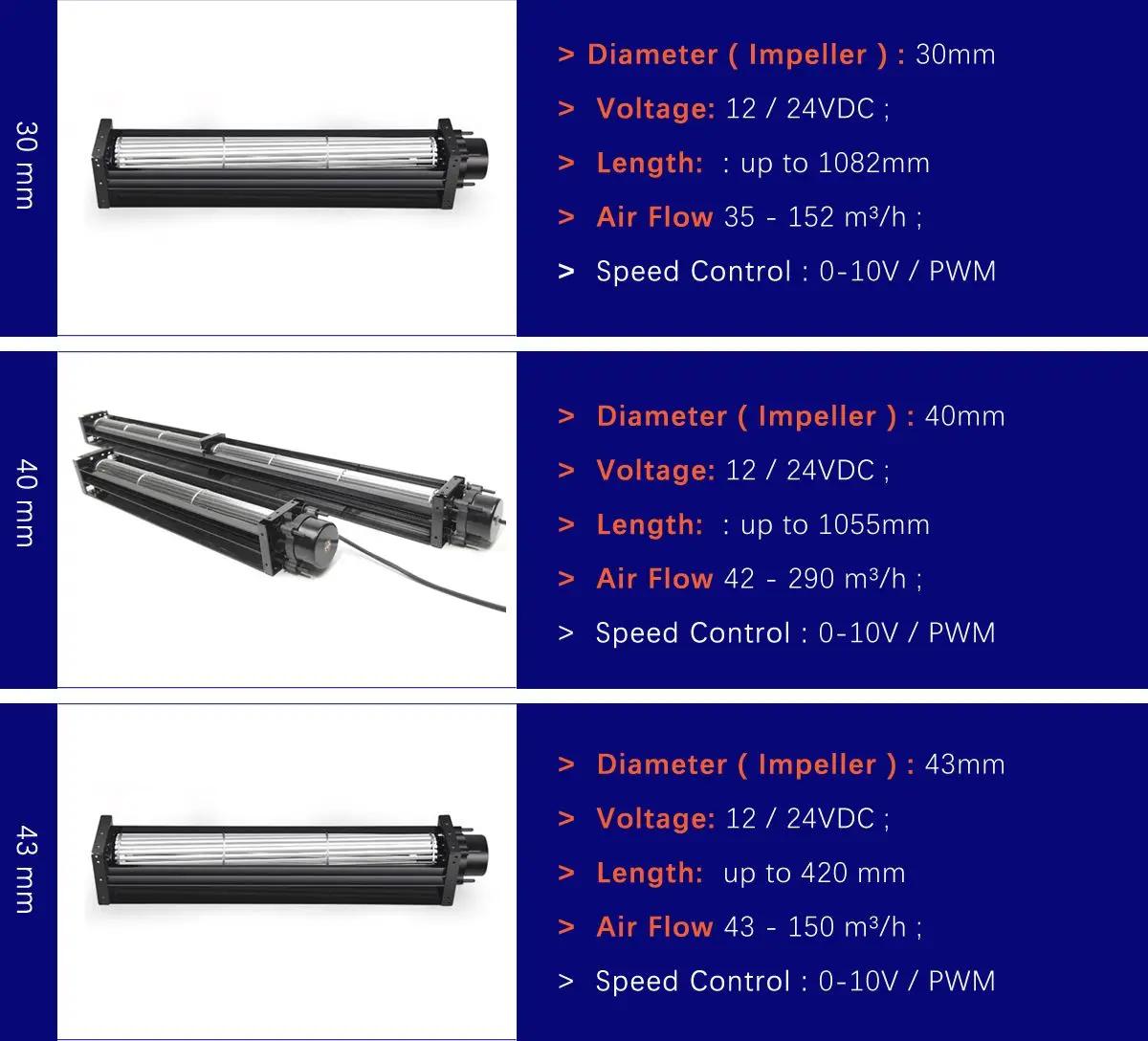

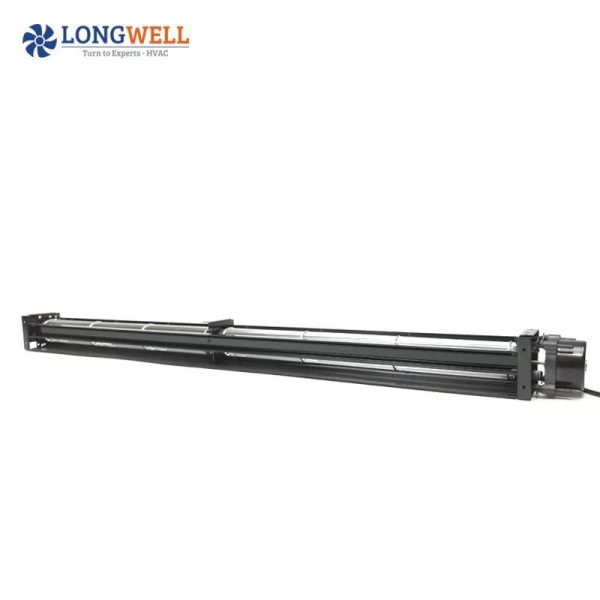

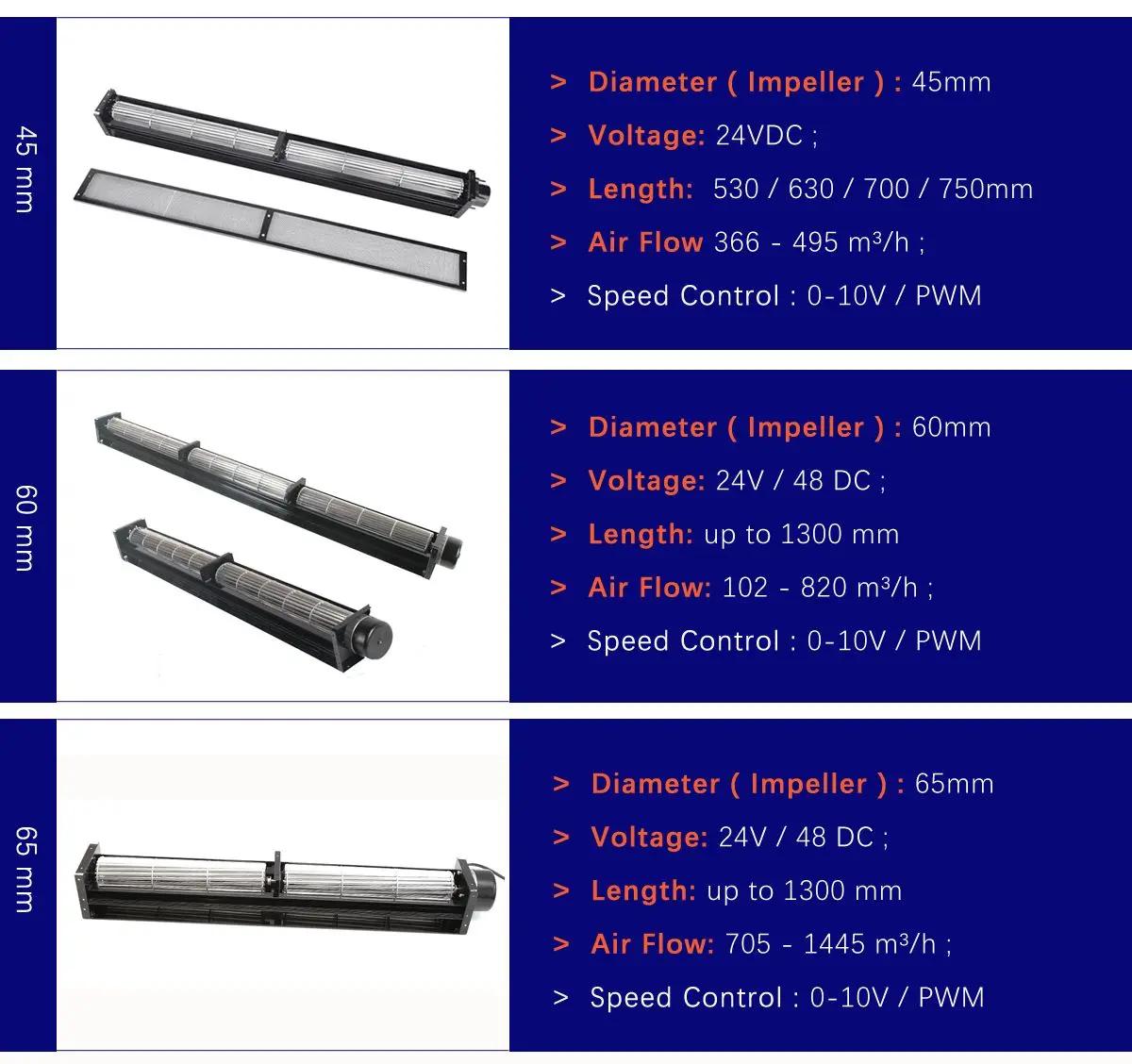

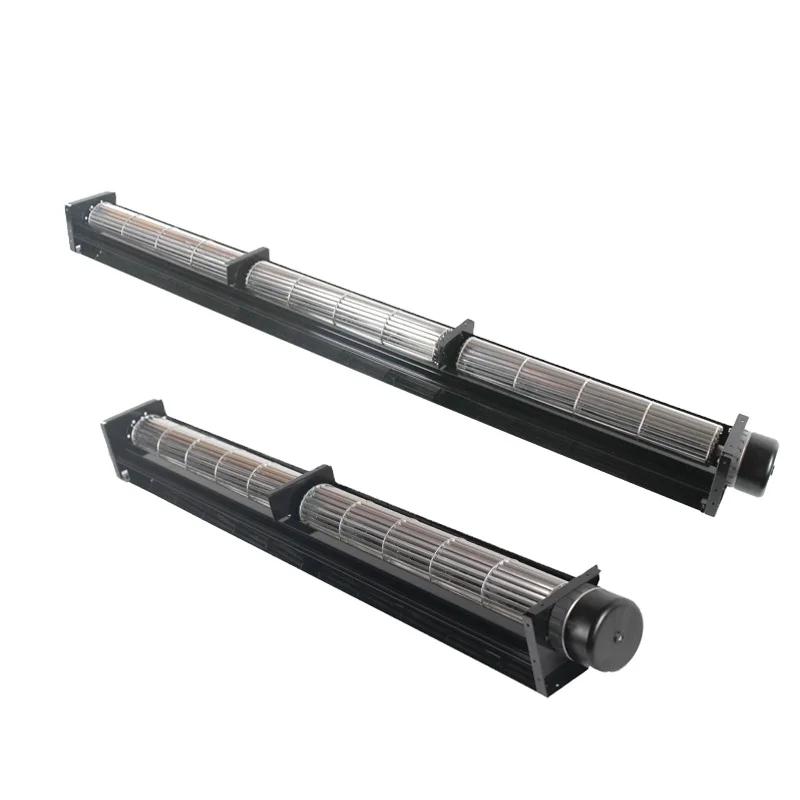

DC2V DC24V cross flow fan – single type & double & Triple type ( length up to 1400mm )
Cross flow fan speed regulator #1
PWM / 0-10v Speed regulator
Cross flow fan speed regulator #2

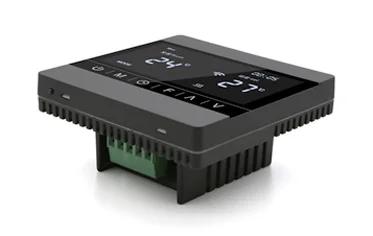

Thermostat controller
AC Cross Flow Fans Series – AC 115V / 230V Tangential fan
Motor Type : AC Shaded Pole Motor / AC Motor ;
Bearing Type : Ball Bearing or Sleeve Bearing ;
Insulation Class : B/F
Diamter Ranges : 30mm – 150mm ;
Length of impellers : 120mm – 1200mm ;
Air Flow Ranges : 22 – 4250 m³/h

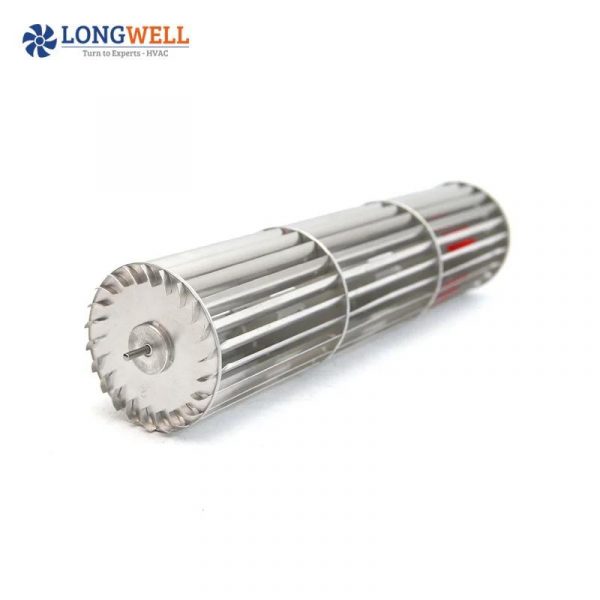

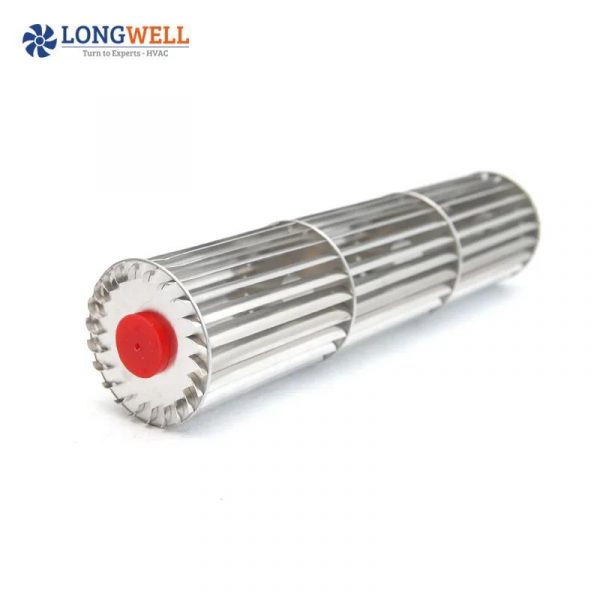

Metal Cross Flow Impellers
Specifications : 30*L ,40*L,43*L,45*L,50*L,60*L,65*L,80*L,90*L,100*L,110*L,120*L,150*L,180*L,200*L
( 100≤ L ≤ 1200 ）

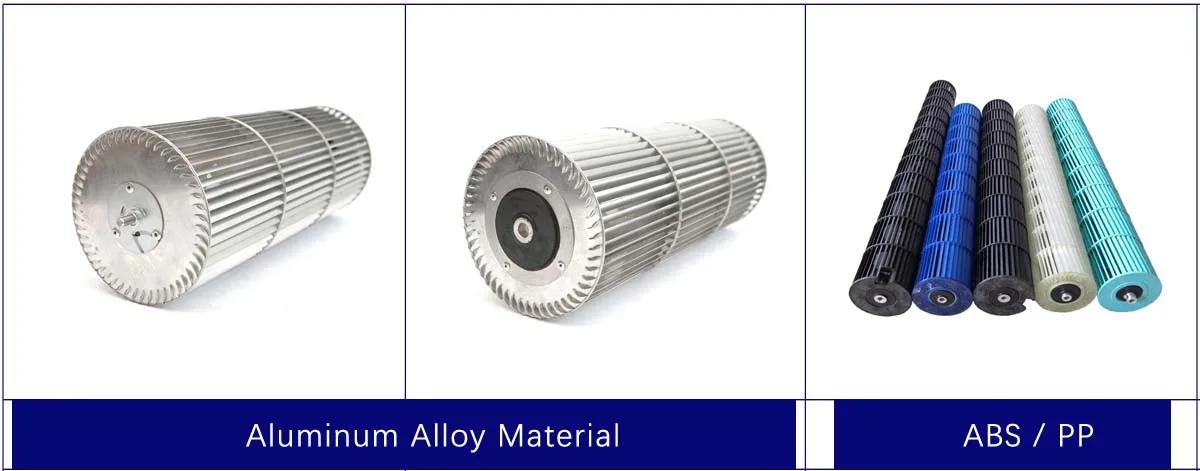

Material : Aluminum Alloy /ABS Plastic ;
Diameter of Hub : 6mm,8mm,10mm,12mm,12.7mm
Diameter of Shaft : 6mm,8mm,10mm,12mm

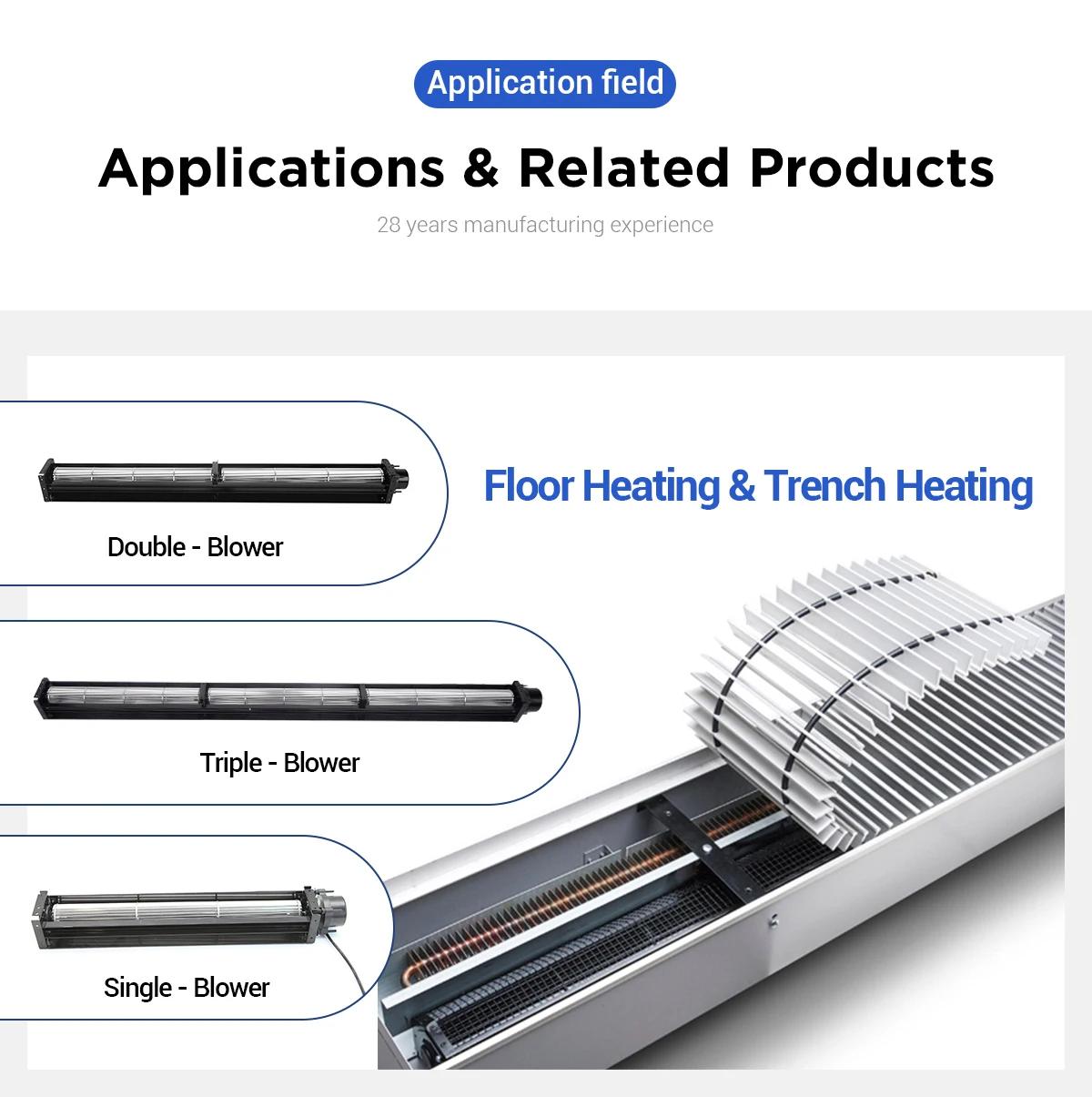

Applications : Air Curtain , Electrical firplace , Warmer , Floor Heating , Cooling equipments , Air conditioning

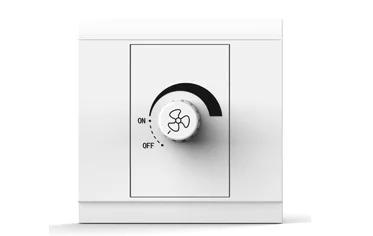

Speed Regulator / Thermostat
Designed for DC tangential fan , suitable for 0-10V / PWM Soeed control

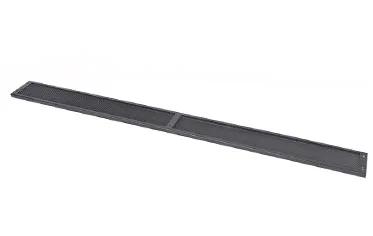

Safety Grid
Coated in Black, designed for dc cross flow fan ,Light weight and Rust – preventing
Other OEM Parts

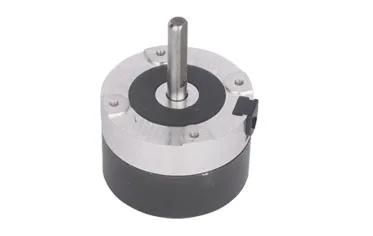

3 Phase BLDC Motor with ball bearing ;
Specially for dc low noise cross flow fan design , down to 19 dVA
FAQ :
Q1. what’s the advantages of your cross flow fan ? -LONGWELL cross flow is special design for low noise purpose only . noise even low to 19 dBA ; – We have large production range from 20mm to 200mm ; – We have heavy duty design which makes 4000rpm for diameter less 60mm，150mm dia fan makes over 2700rpm.
Q2. Does Longwell provide any speed control options for DC cooling fans ?
Reply : Yes , Longwell can provide some speed regulator solutions according customer’s requirements ,such as : – The 0-10V/ pwm controller is for use with the full range of cross flow fans / dc cooling fans. Powered by the 10VDC it provides infinitely variable, manual speed control between 0% and 100% ; – Can control multiple fans running at the same speed ; – Stepless control knob for infinitely variable speed setting .
Q3. how we connect the tangential fan to our application ,is there a wiring diagram ?
Reply :

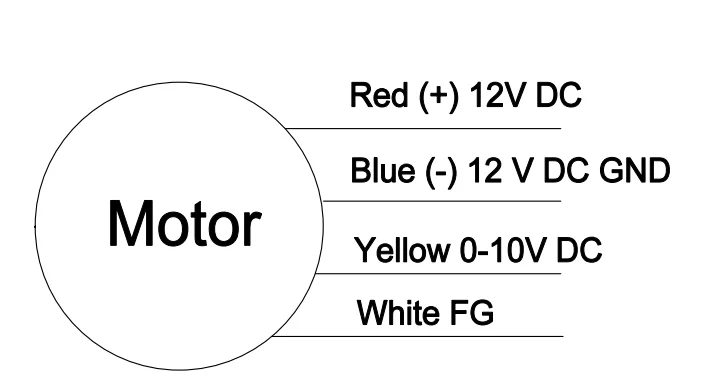

Please check the speed control of your application first ( is it PWM or 0-10V ) , Please refer to the wiring diagram of 0-10v series as below :
for more details please contact us for professional engineer service ,
Q4. Life span of this kind of dc cross flow fan ?
Reply : Longwell EC external rotor motor surpasses efficiency class IE4, magnets with no rare earths, maintenance-free ball bearings (sealed) with long-term lubrication, theoretical nominal service life of at least 40,000 hours of operation, installation with horizontal and vertical motor shaft; soft start, integrated current limitation. Integrated electronics, quiet commutation logic; 100 % speed controllable; control signal 0-10 V DC / PWM; tach output.
Q5. Are there any other AC DC EC cross flow fans options or solutions for selection ?

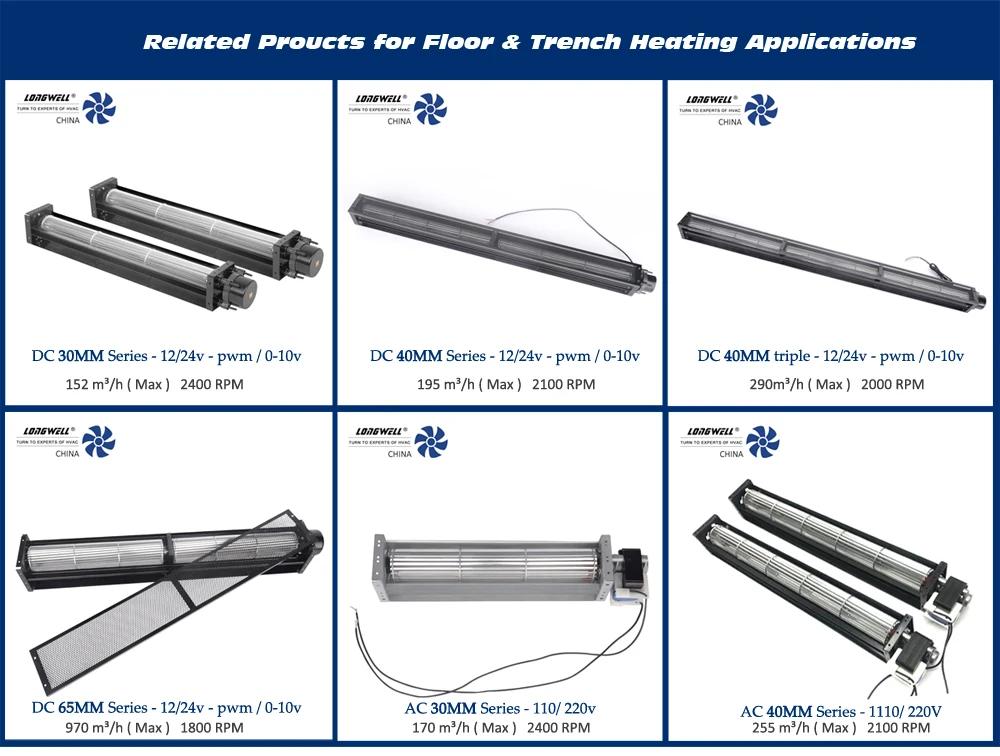

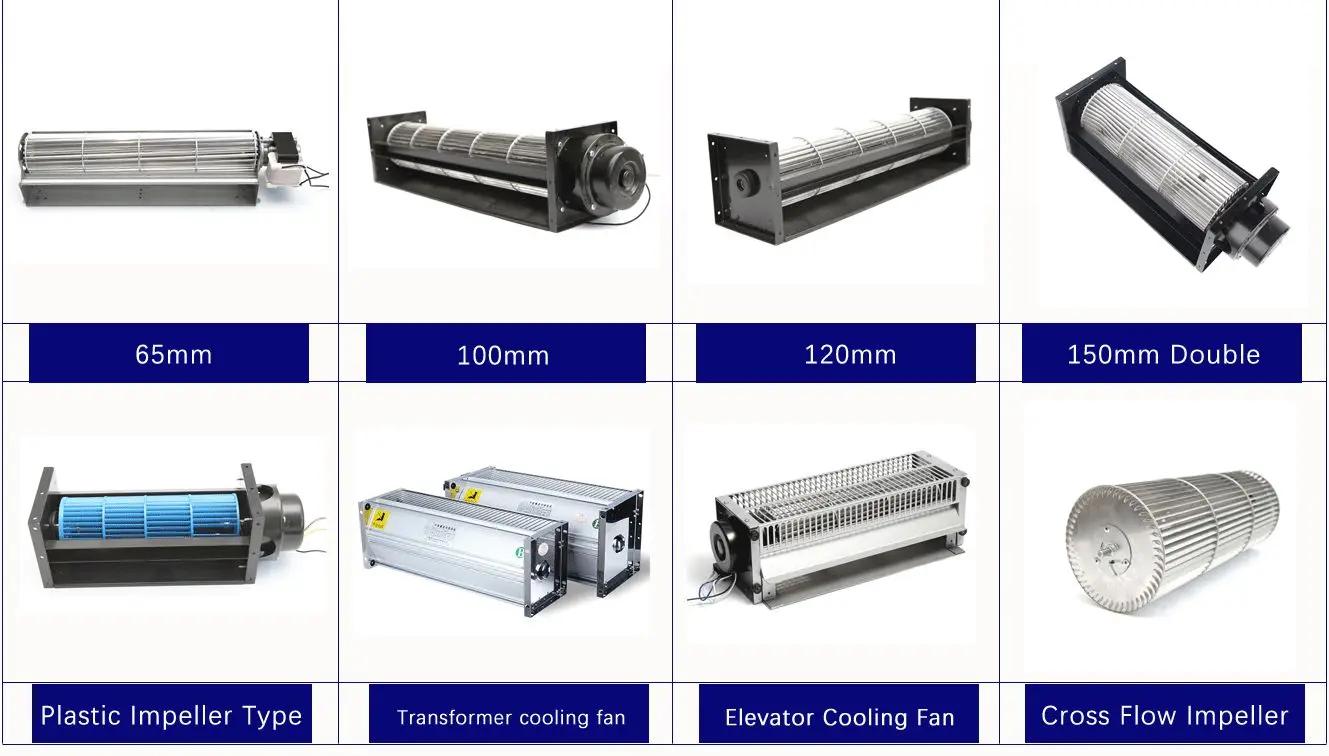

Yes ,sure . LONGWELL is a professional manufacturer of fans, blowers , motors and components for heating ,venlation, air conditioner and refrigeration applications ,specialist in centrifugal fans, axial fans, AC /BLDC cross flow fans, single / double forward curved fan BLOWERS ,AC / BLDC/ECM motors as well as industrial fan blowers, inline duct fans , Poultry ventilation fans ( AC / DC /EC ) , etc. Please check below photos for reference : Longwell as a known and trustworthy DC cross flow fan Supplier in China , we assure you the best product quality and service. If you are looking for DC cross flow fans for your manufacturing applications or electronic devices, do go through the features and specifications of our various models of DC cross flow fans. In case you require any further information or have technical queries, you can contact us directly at :
