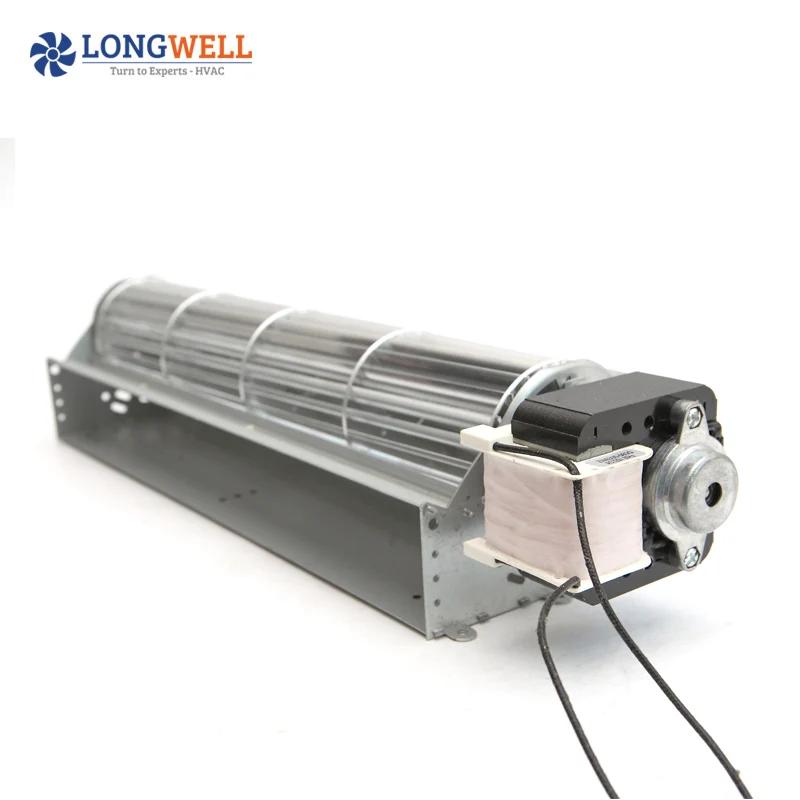

LONGWELL 65mm AC Cross Flow Fan, Tangential Blower Fan, 230V, for Air Curtains, Ovens, Floor Heating – LWCA65MM-S

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC Shaded Pole Motor
Speed
4000rpm, 1100rpm, 990rpm
Category: Tags: , ,
CategoryAC Cross Flow Fans
TagsAC FanAir CurtainCross Flow Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Cross Flow Fans range. The Fan Selector lists every LONGWELL AC cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types:
65mm AC 220v 115V cross flow cooling fan air curtain cross flow fan blower manufacturer
Voltage Ranges:
Custom
Frequency:
50/60 Hz
Diamter :
Custom
Motor Types:
BLEC External Rotor Motor
Speed Control:
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating:
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start

Working & Storage：
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing：
According to JB/T 9101-1999 requirements G6.3
Product Standards:
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications：
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Blade Material

aluminium alloy
mounting

FREE STANDING
speed

4000rpm, 1100rpm, 990rpm
voltage

230V
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWCA65mm-S
warranty

1 Year
After-sales Service Provided

Video technical support
Material

Plastic, aluminum alloy, Steel

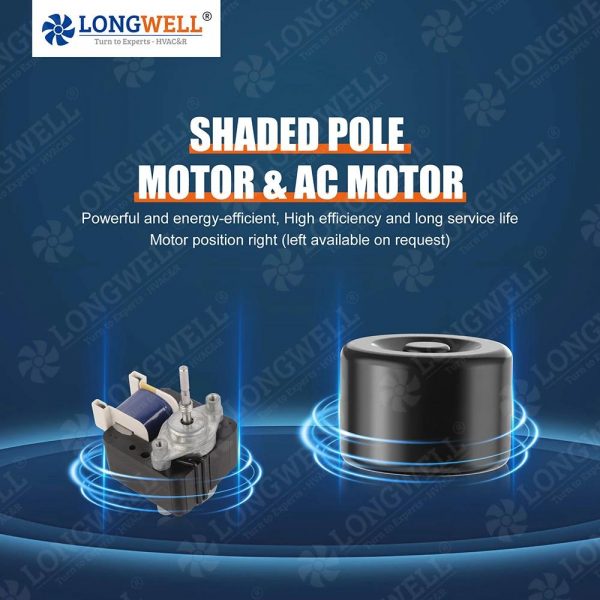

Motor type

AC Shaded Pole Motor

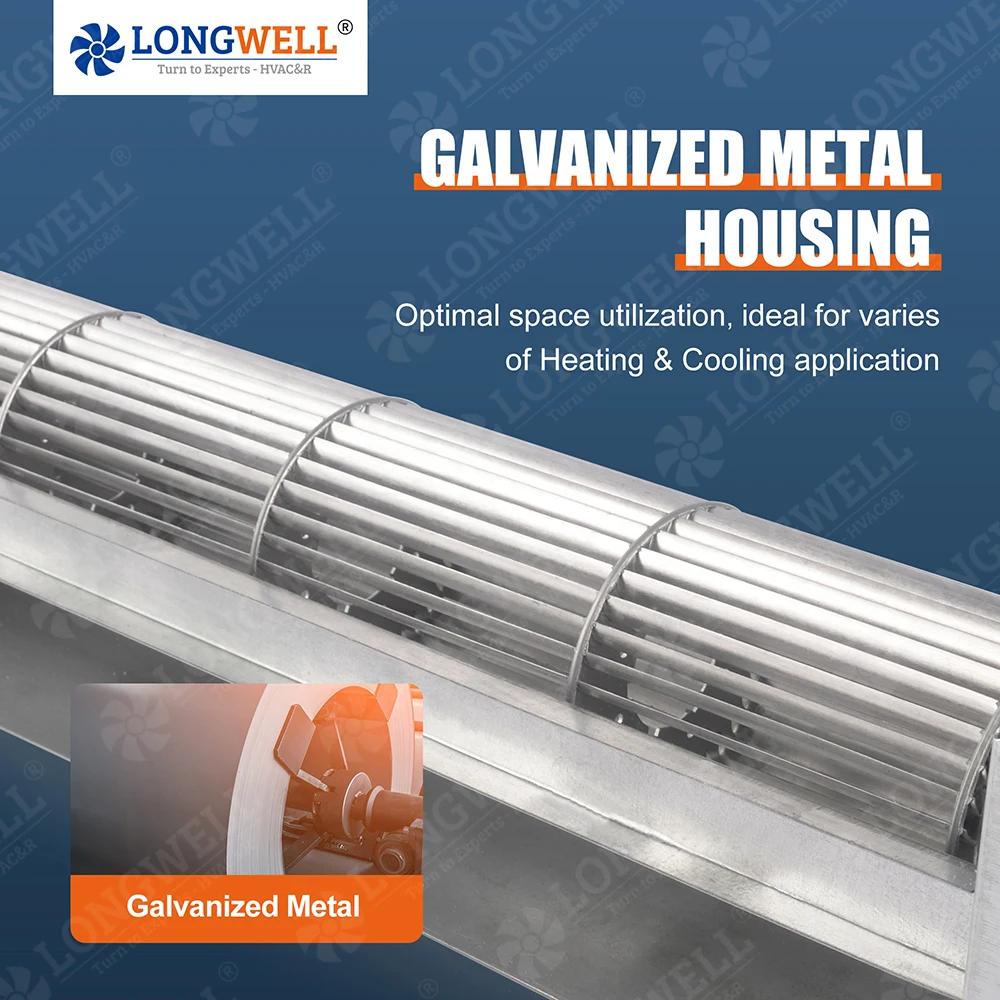

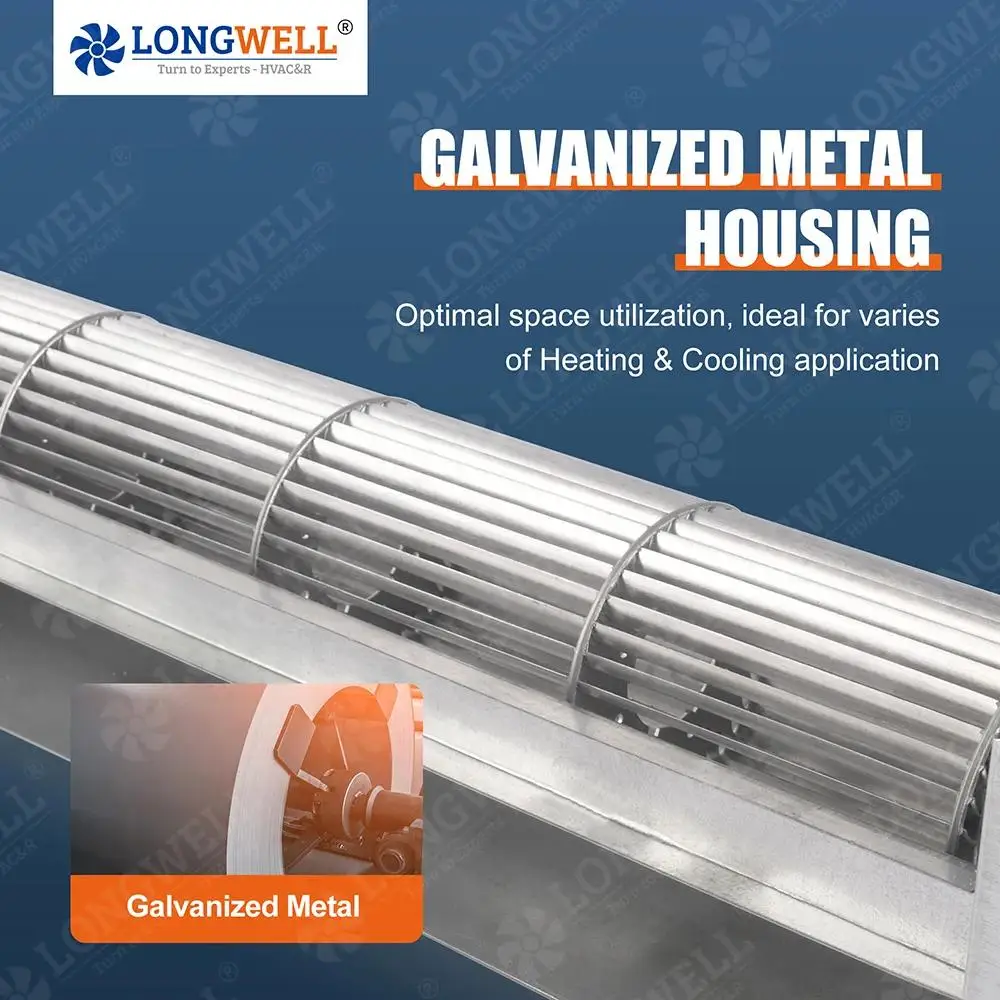

Housing Material

Galvanized Metal
Impeller/Blade material

Aluminum Alloy
Bearing Type

Ball bearing / Sleeve bearing
Operating temperature

– 25 ℃ ~ +60 ℃
Fan Speed

1/2/3 speeds available
Motor certification

CCC/CE
Application

Floor Heating / air curtain / air purifier / microwave oven
Related Products

25~200mm Dia available
Type

CROSS FLOW FAN
Selling units

Single item
Single package size

30X30X70 cm
Single gross weight

3.000 kg
