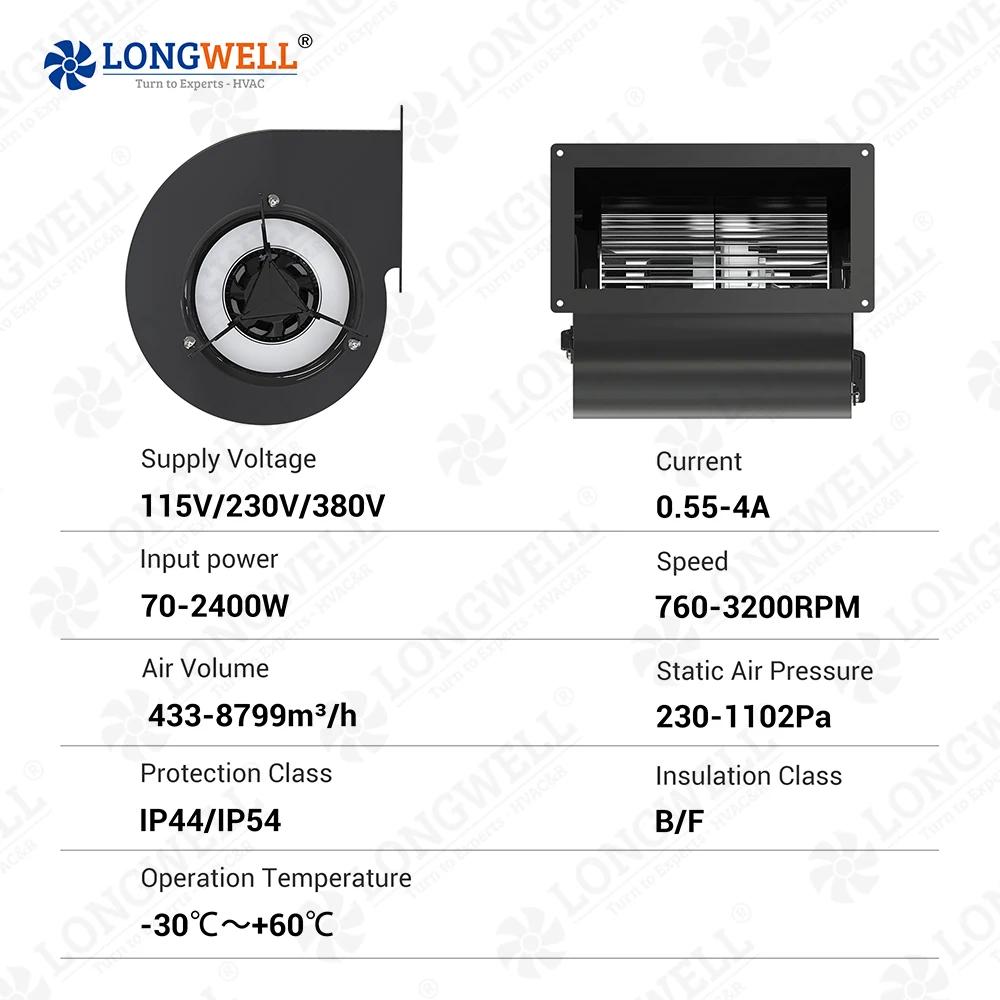

Description
|
Model No.
|
LWFE-146-XX
|
|
Voltage:
|
230V
|
|
Frequency :
|
50/60Hz
|
|
Fan Speed:
|
0 – 3000 RPM
|
|
Power Input:
|
85 / 170W
|
|
Current (Max)
|
0.62 / 1.16A
|
|
Noise Level:
|
63 dBA
|
|
Operating Temperature
|
– 25 ℃ – +60℃
|
|
Types:
|

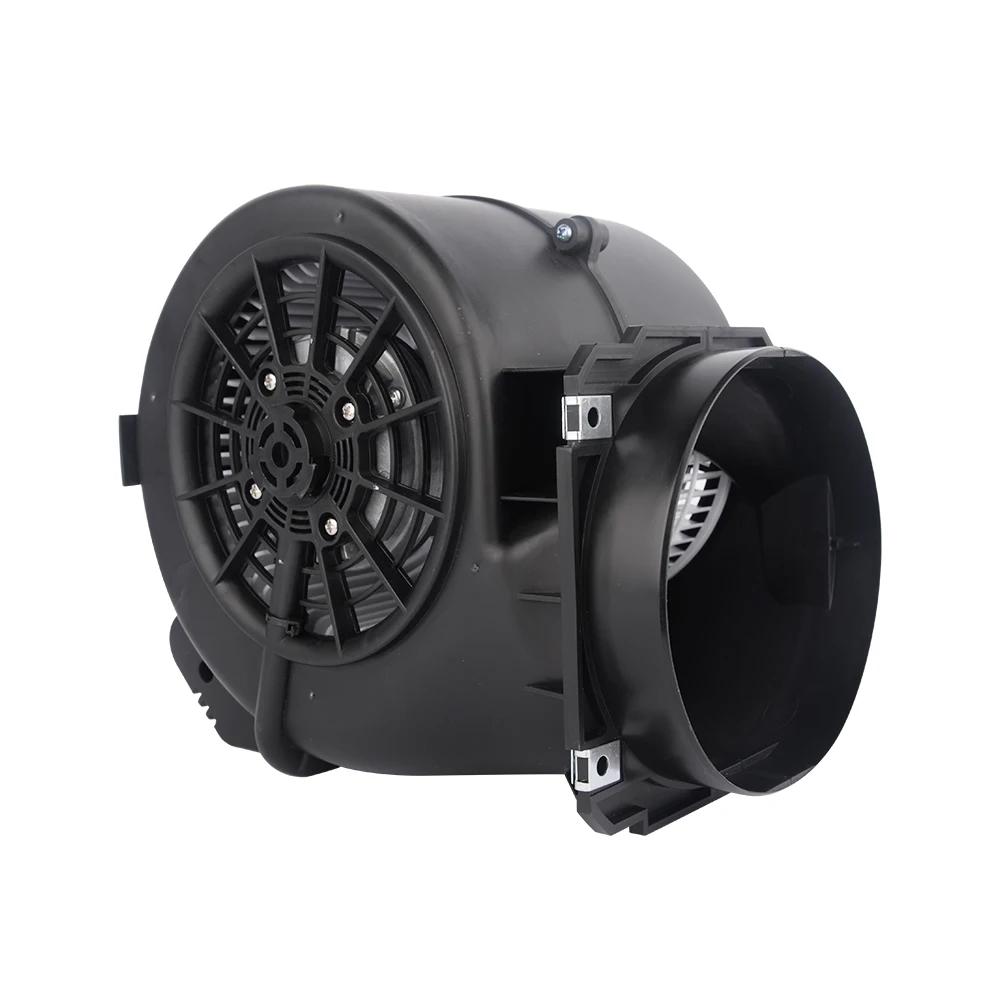

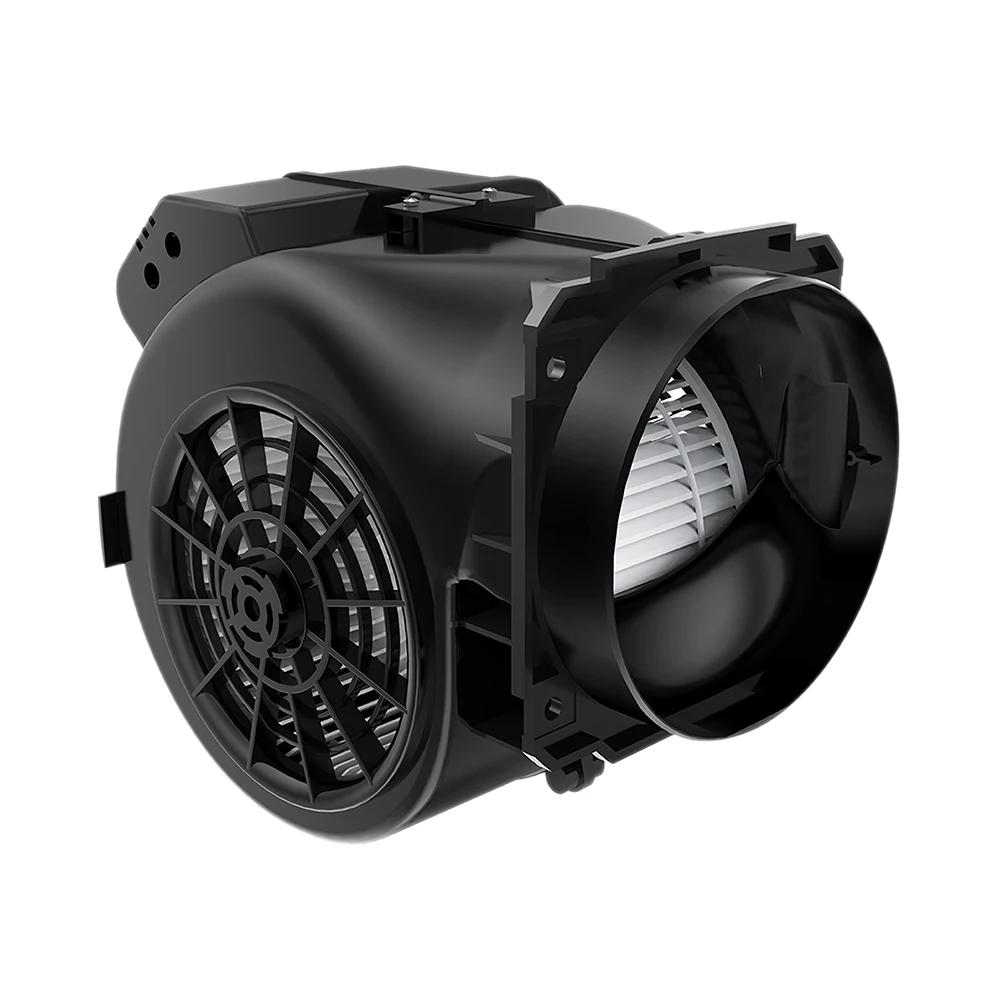

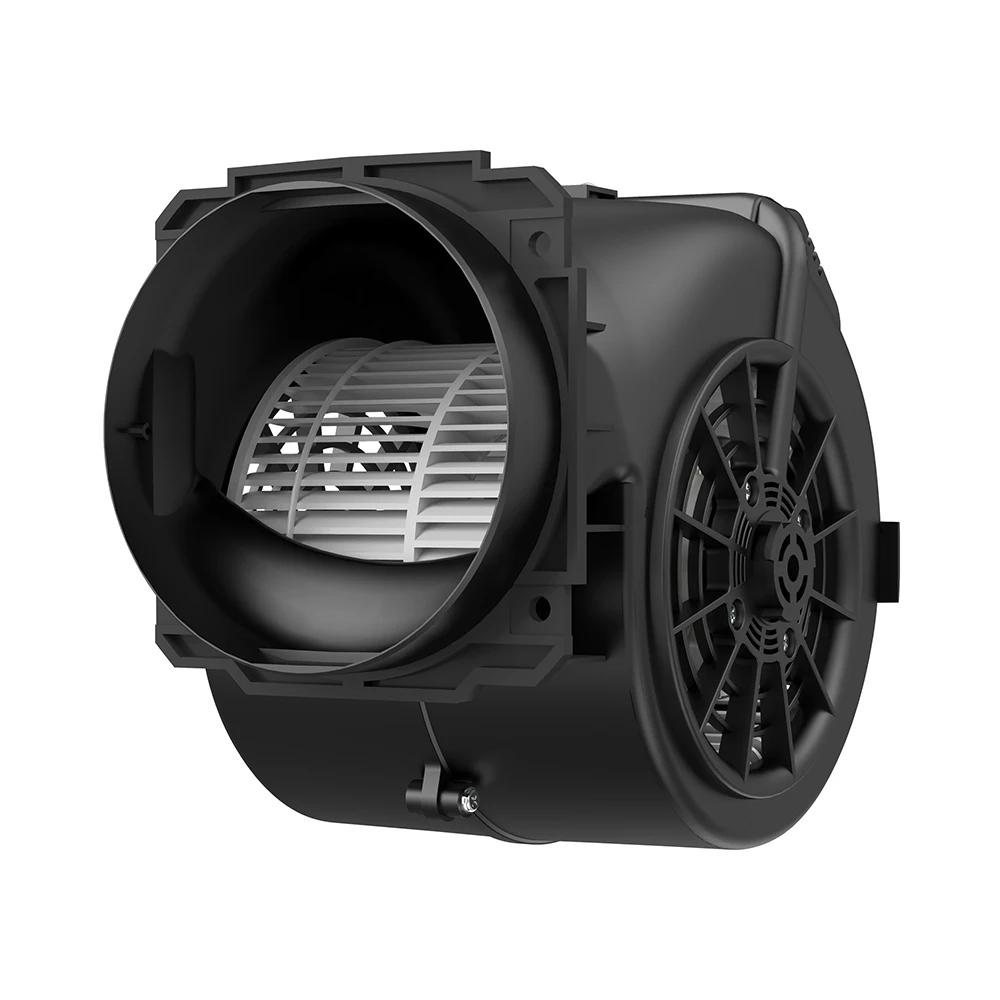

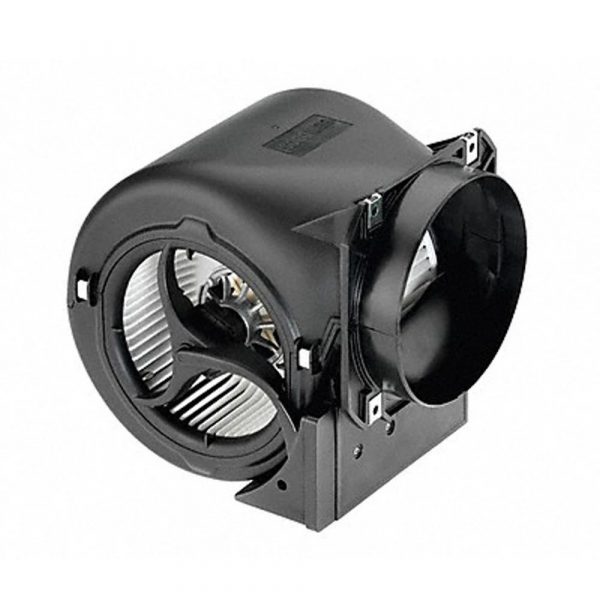

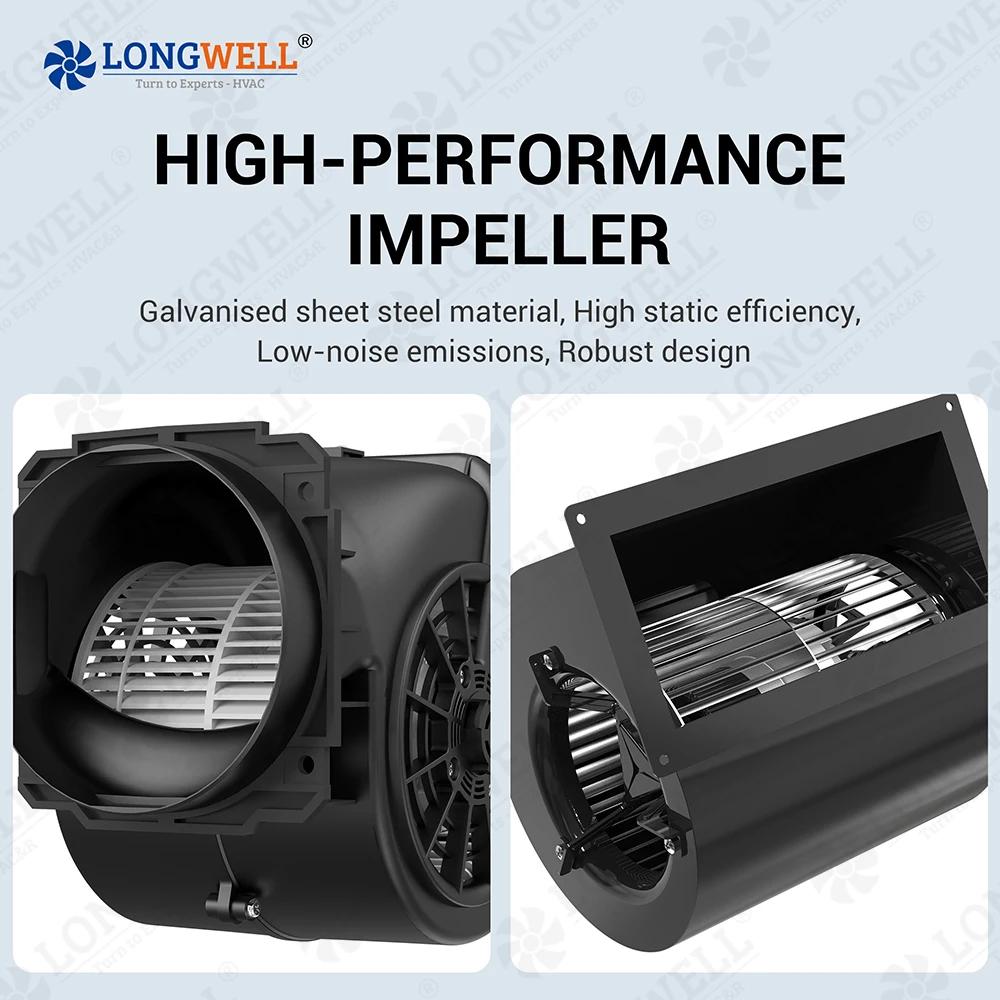

centrifugal blower
|
|
Frequency:
|
50/60 Hz
|
|
Diamter:
|
146mm
|
|
Motor Types:
|
EC Motor
|
|
Speed Control:
|
0-10V Signal / PWM / RS485(Optional)
|
|
Max.ambient Temp:
|
-25℃～ +60℃
|
|
Certificating:
|
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
|
|
Protection Level:
|
IP44 ,IP54,IP55
|
|
Electronic Protection:
|
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
|
|
Working & Storage:
|
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
|
Balancing:
|
According to JB/T 9101-1999 requirements G6.3
|
|
Product Standards:
|
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
|
|

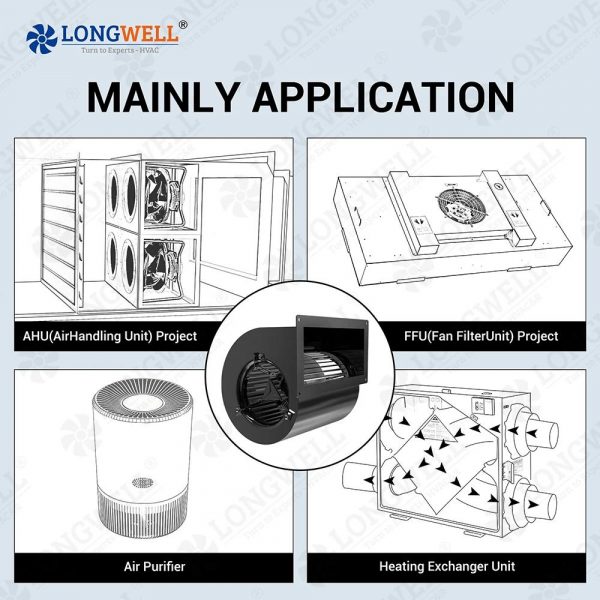

Mainly Applications:
|
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans
|
