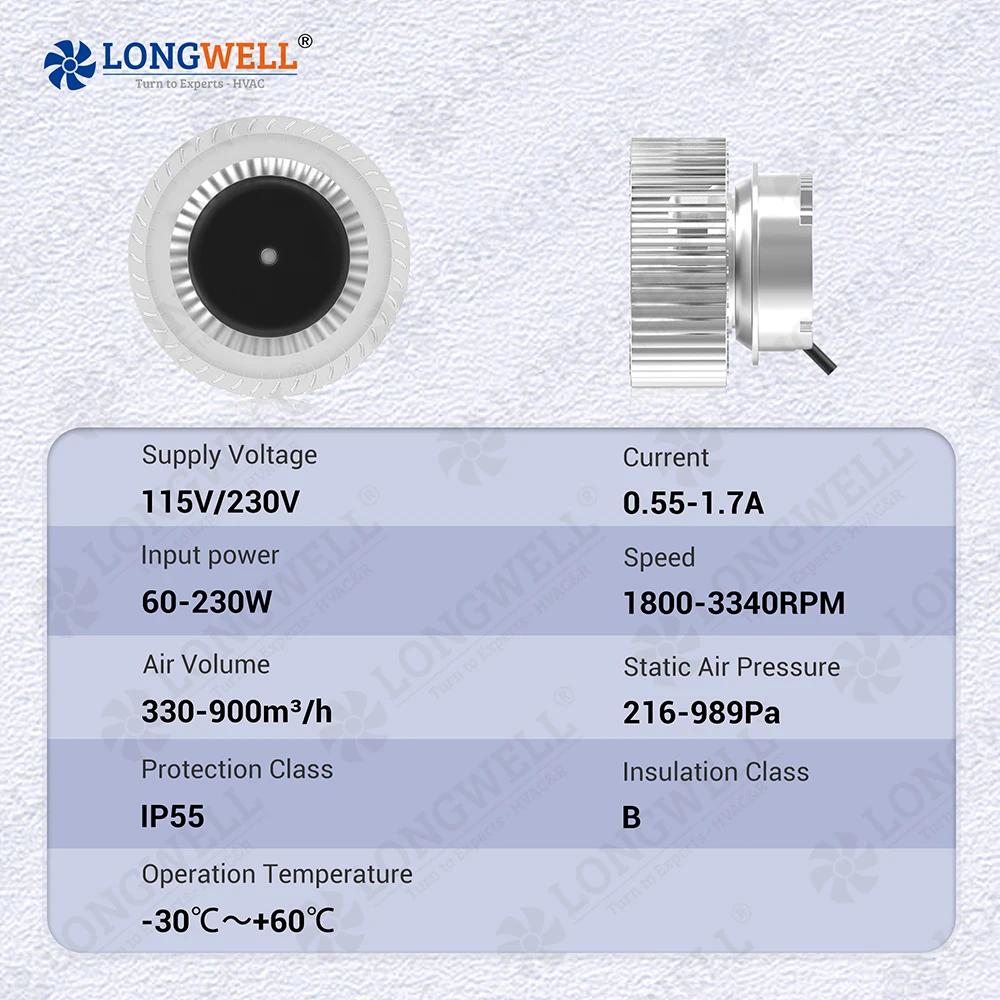

LONGWELL 120mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for Industrial Ventilation, Cold Storage, Air Purifiers

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Motor
external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

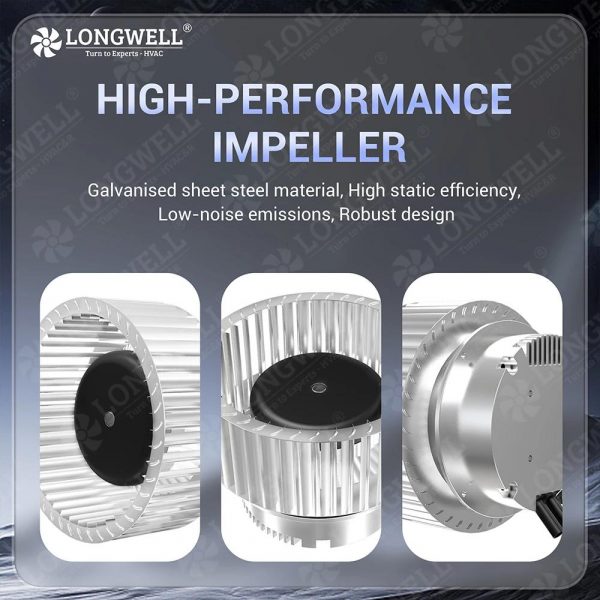

Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryIndustrial Centrifugal Fan
TagsCentrifugal FanEC MotorIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fan range. The Fan Selector lists every LONGWELL centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :
High efficiency energy saving 120mm EC Centrifugal Fan with high-temperature resistance
Voltage Ranges :
230V
Frequency :
50/60 Hz
Diamter :
120mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor ( EC )

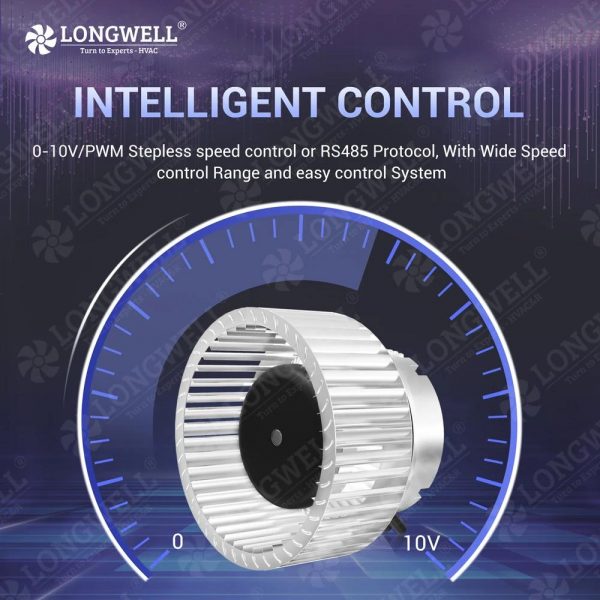

Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

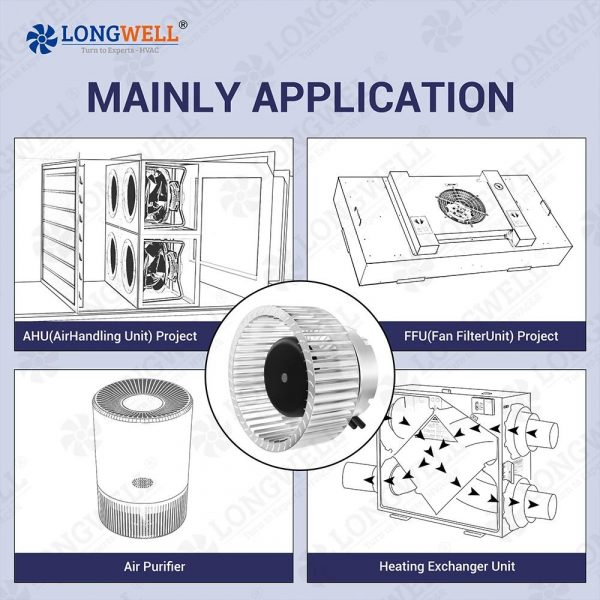

Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
power input

EC
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Type

Centrifugal Fan
Product name

Industrial Centrifugal Fans
Application

Exhaust Ventilation
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg
