LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, Galvanized Steel

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
AC External rotor motor
Impeller
Galvanized Metal
Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsCentrifugal Blower FanExhaust VentilationExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

High quality double suction blower fan building ventilation dual inlet blower fan high air flow centrifugal blowers 15000 cfm

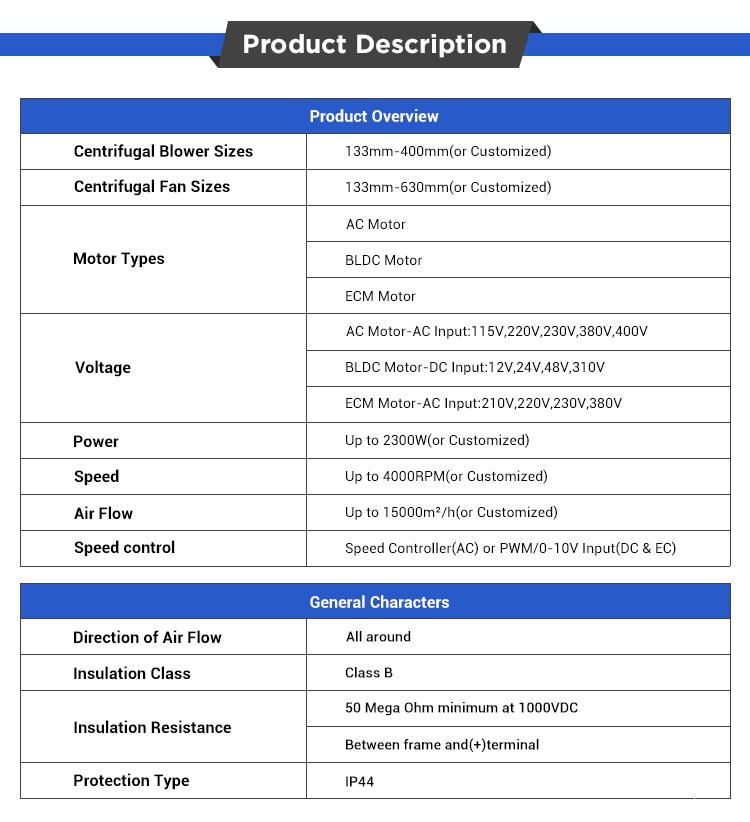

Product Description

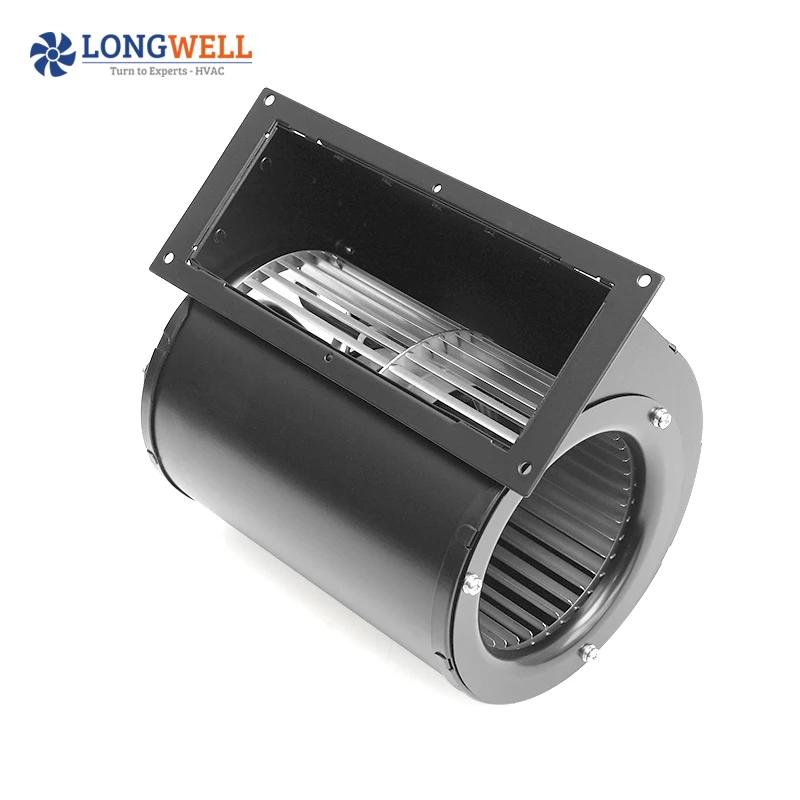

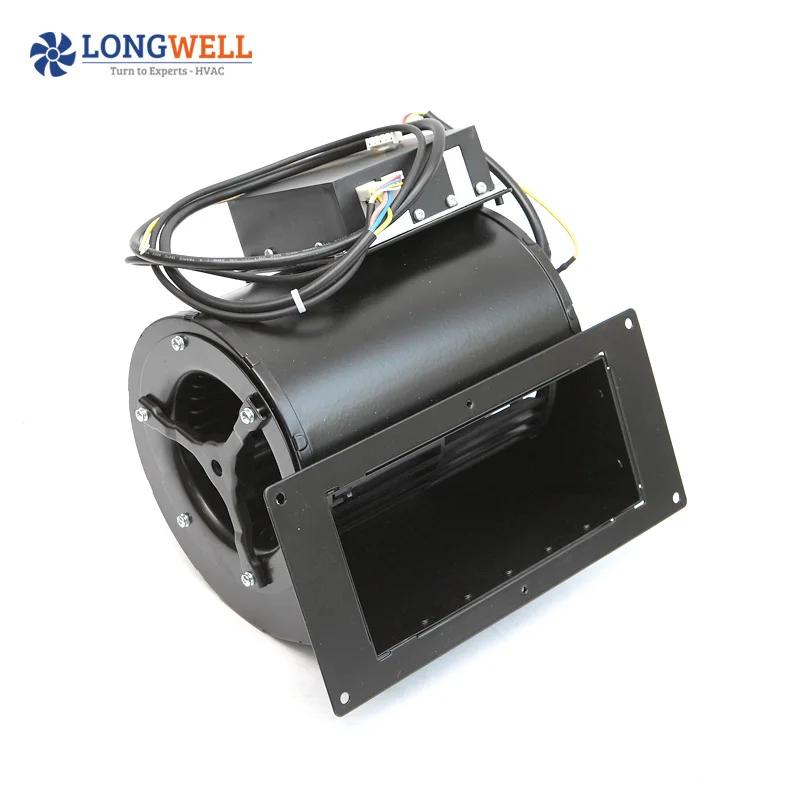

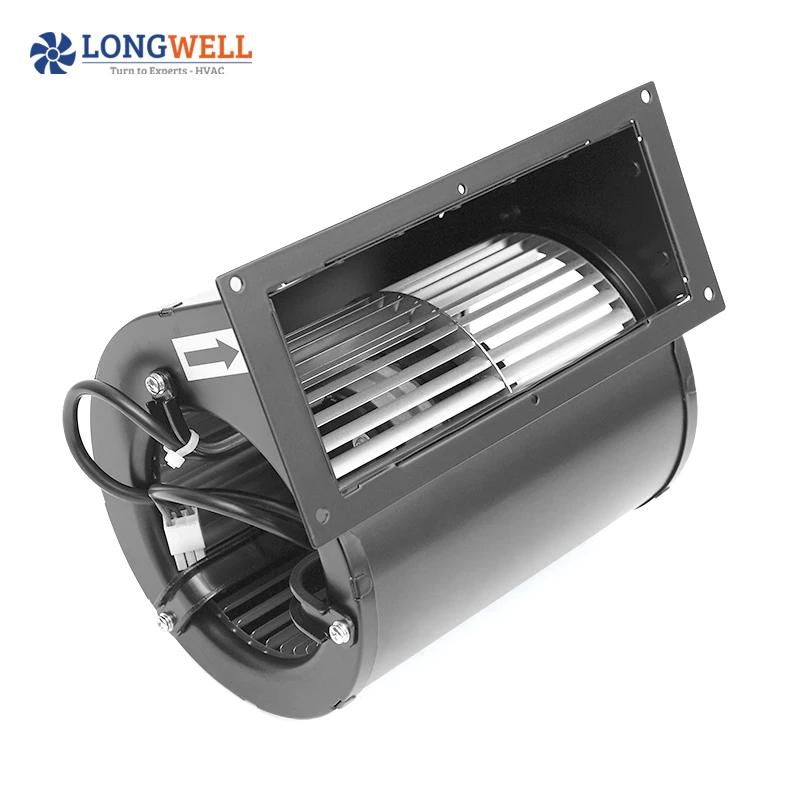

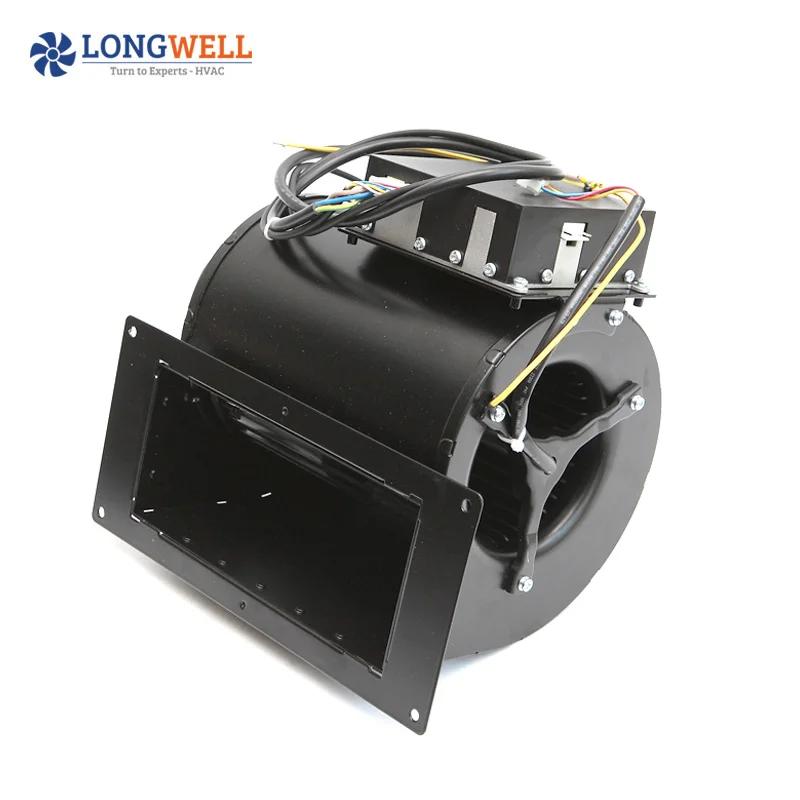

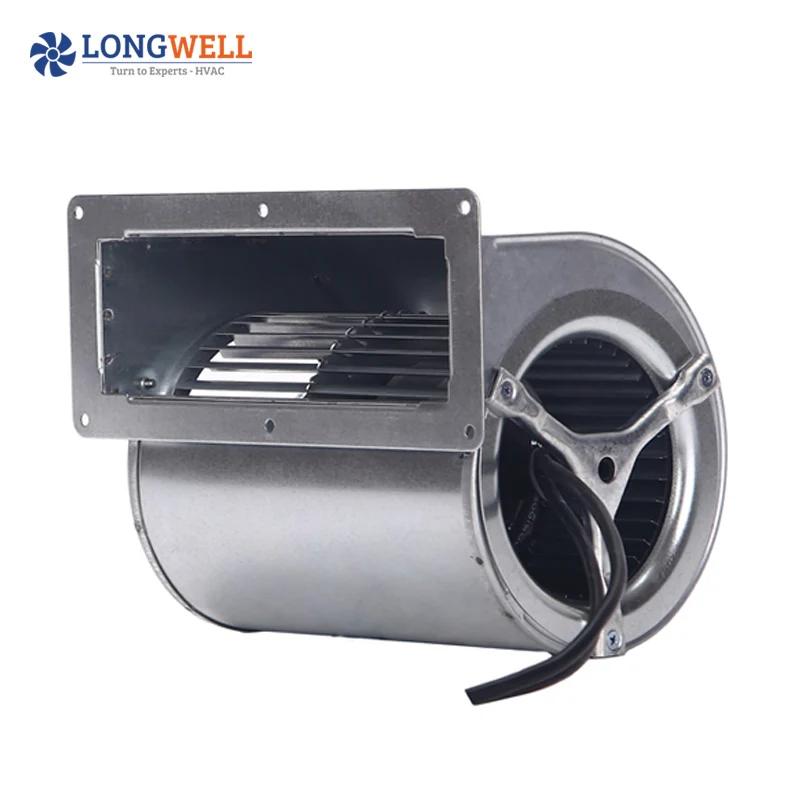

Model Number :   LWFA -133mm Dual inlet Forward curved centrifugal fan
Motor Type : AC Capacitor External rotor motor Blade Material : Galvanized Metal
Operation Model : S1 Insulation Class : IP 44
Speed control: 1/2/3 speeds available Insulation Class: F
Operation Temperature :  -25 ℃ ~ +60 ℃

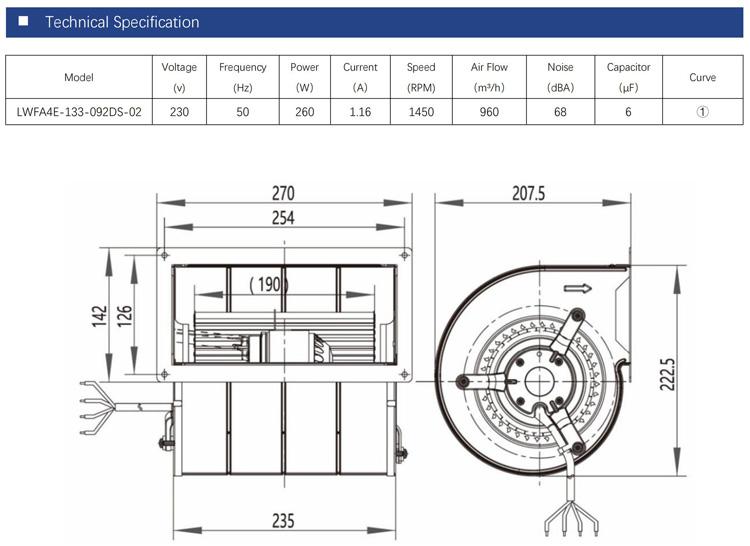

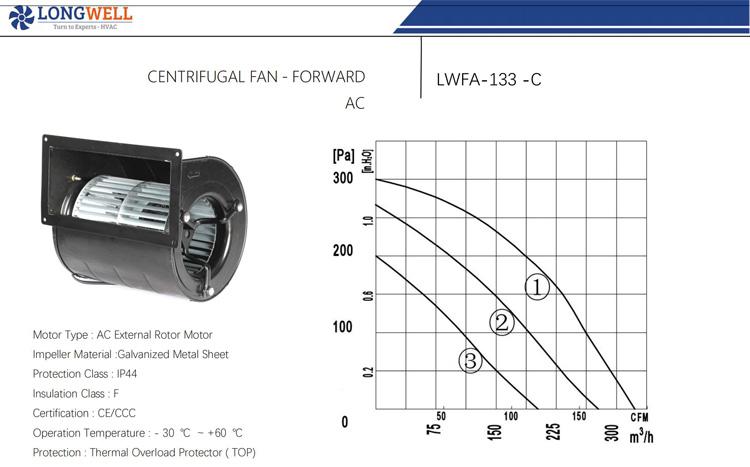

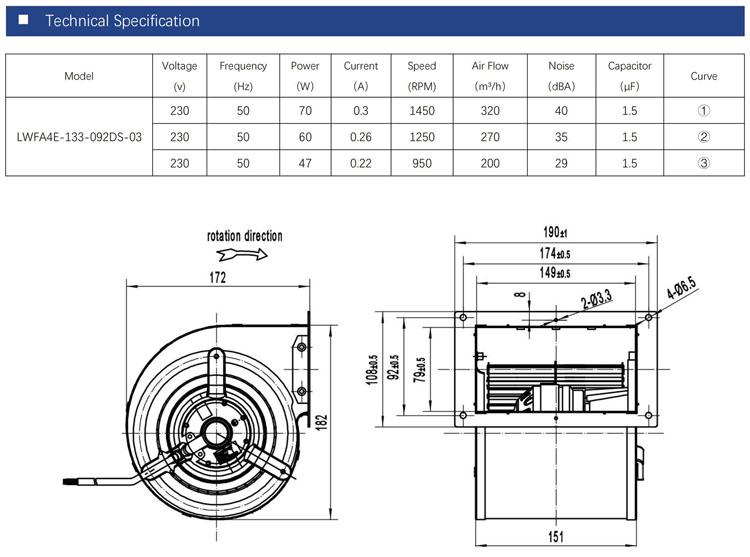

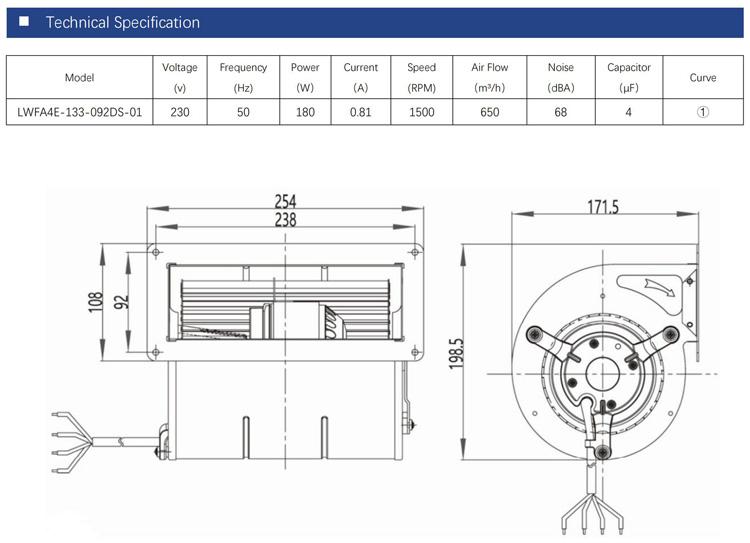

LWFA -133 Dual inlet

LWFA -133 Dual inlet (2)

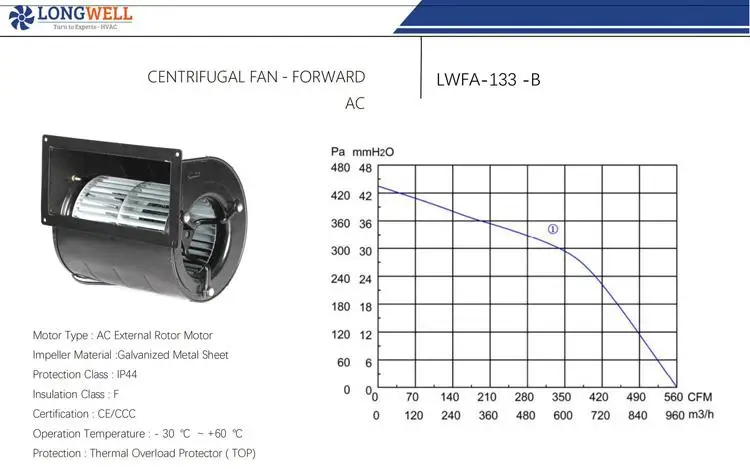

LWFA -133 Dual inlet (3)

LWFA -133 Dual inlet (4)

LWFA -133 Dual inlet (5)

LWFA -133 Dual inlet (6)

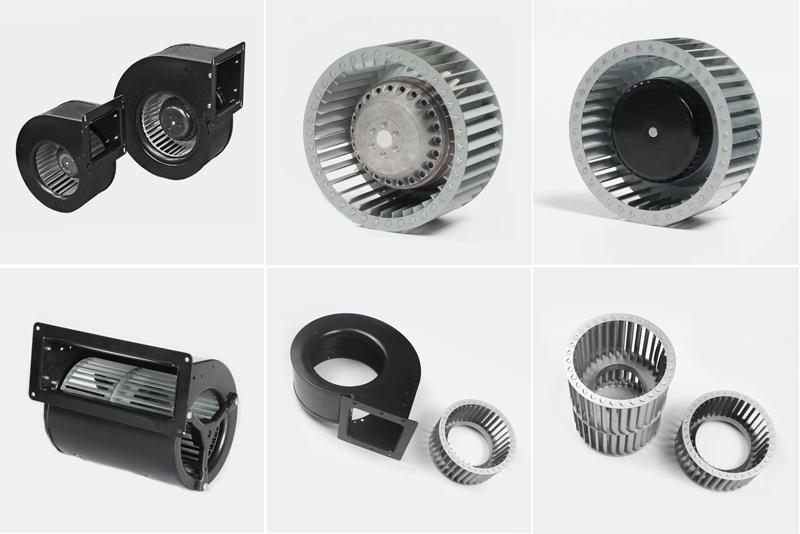

ac 230v centrifugal blower fan

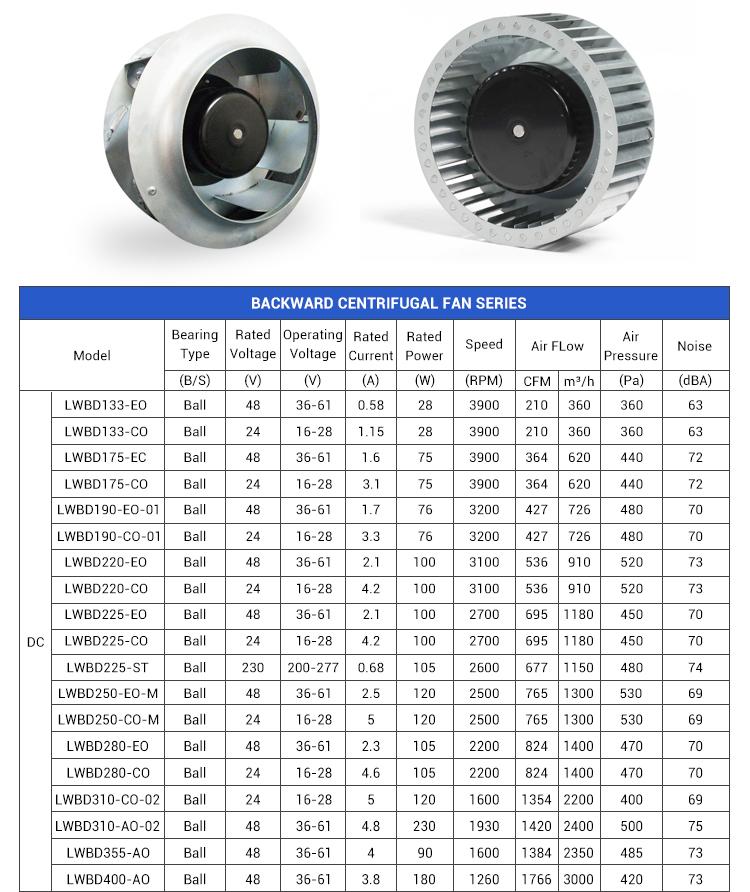

backward (5)

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

FAQ

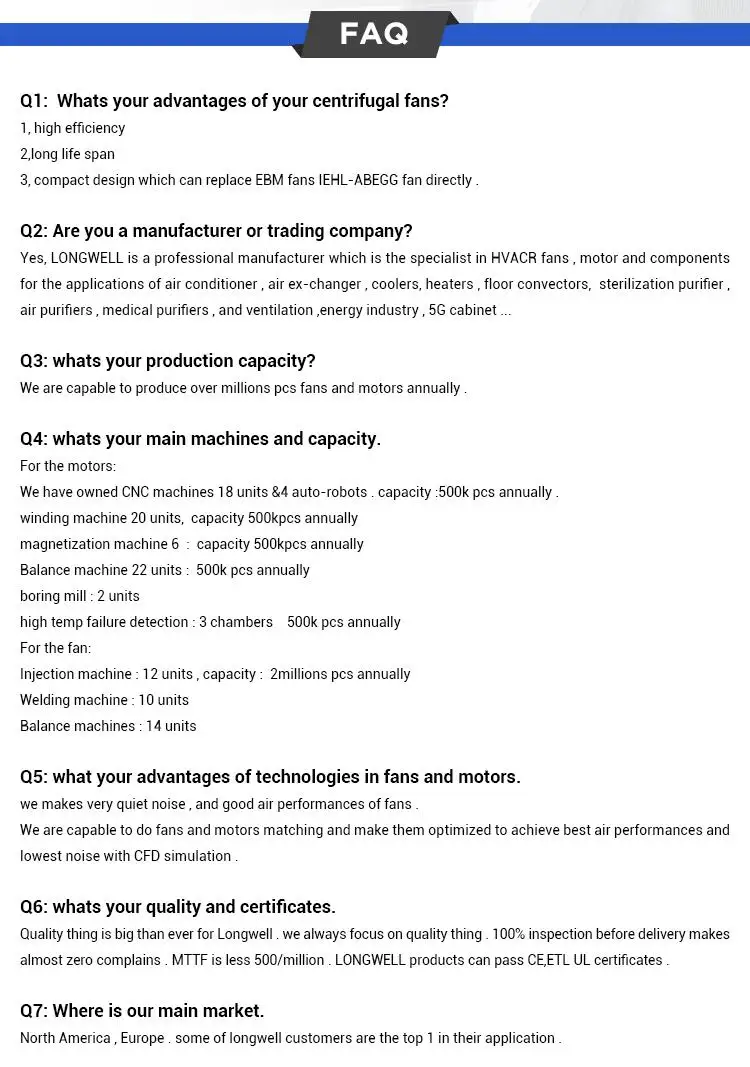

backward (21)

backward (1)





Additional information

Electric Current Type

AC/EC
Voltage

110v /220v 24VDC/ 48VDC
Blade Material

STAINLESS STEEL
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LW-133mm Dual-Inlet
warranty

1 Year
After-sales Service Provided

Free spare parts
Type

AC 230v centrifugal blower fan
power input

115/230V
Impeller material

Galvanized Metal
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

AC External rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Application

Exhaust Ventilation
Packaging Details

High strength cartons with polyfoam , and packed on pallet .
Port

NINGBO/SHANGHAI
Selling units

Single item
Single package size

30X30X30 cm
Single gross weight

5.000 kg
Supply Ability

100000 Piece/Pieces per Month

Reviews

There are no reviews yet.

Be the first to review “LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, Galvanized Steel”

Your email address will not be published. Required fields are marked *

More in this series

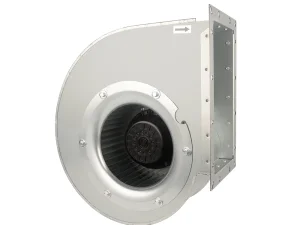

LONGWELL 138mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 1442 m³/h Airflow, 288.4 Pa Static Pressure – LWFA4D225-138ST-02LONGWELL 138mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 1442 m³/h Airflow, 288.4 Pa Static Pressure – LWFA4D225-138ST-02138 mm1442 m³/h380 VDatasheet, curve & drawing →LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 24V, 618 m³/h Airflow, 618 Pa Static Pressure – LWFD3G180-092SM-01LONGWELL 92mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 24V, 618 m³/h Airflow, 618 Pa Static Pressure – LWFD3G180-092SM-0192 mm618 m³/h24 VDatasheet, curve & drawing →LONGWELL 72mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 989 m³/h Airflow, 474 Pa Static Pressure – LWFE3G146-072DS-01LONGWELL 72mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 989 m³/h Airflow, 474 Pa Static Pressure – LWFE3G146-072DS-0172 mm989 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 1205.1 m³/h Airflow, 247.2 Pa Static Pressure – LWFA4E180-092DS-01LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 1205.1 m³/h Airflow, 247.2 Pa Static Pressure – LWFA4E180-092DS-0192 mm1205.1 m³/h230 VDatasheet, curve & drawing →LONGWELL DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, for Telecom Cooling, AHU, FFU – LWLONGWELL DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110V, for Telecom Cooling, AHU, FFU – LW110v /220v 24VDC/ 48VDC4000rpmAC/EC/DC external motorView & InquireLONGWELL 138mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 2472 m³/h Airflow, 391.4 Pa Static Pressure – LWFA4D250-138ST-02LONGWELL 138mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 380V, 2472 m³/h Airflow, 391.4 Pa Static Pressure – LWFA4D250-138ST-02138 mm2472 m³/h380 VDatasheet, curve & drawing →LONGWELL 92mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 666 m³/h Airflow, 773 Pa Static Pressure – LWFE3G160-092SS-02LONGWELL 92mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 666 m³/h Airflow, 773 Pa Static Pressure – LWFE3G160-092SS-0292 mm666 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 556.2 m³/h Airflow, 144.2 Pa Static Pressure – LWFA4E133-092DS-09LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 556.2 m³/h Airflow, 144.2 Pa Static Pressure – LWFA4E133-092DS-0992 mm556.2 m³/h230 VDatasheet, curve & drawing →LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 619.5 m³/h Airflow, 577.5 Pa Static Pressure – LWFA2E160-092SS-01LONGWELL 92mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 619.5 m³/h Airflow, 577.5 Pa Static Pressure – LWFA2E160-092SS-0192 mm619.5 m³/h230 VDatasheet, curve & drawing →LONGWELL 72mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 433 m³/h Airflow, 263 Pa Static Pressure – LWFE3G120-072DS-01LONGWELL 72mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 433 m³/h Airflow, 263 Pa Static Pressure – LWFE3G120-072DS-0172 mm433 m³/h230 VDatasheet, curve & drawing →
