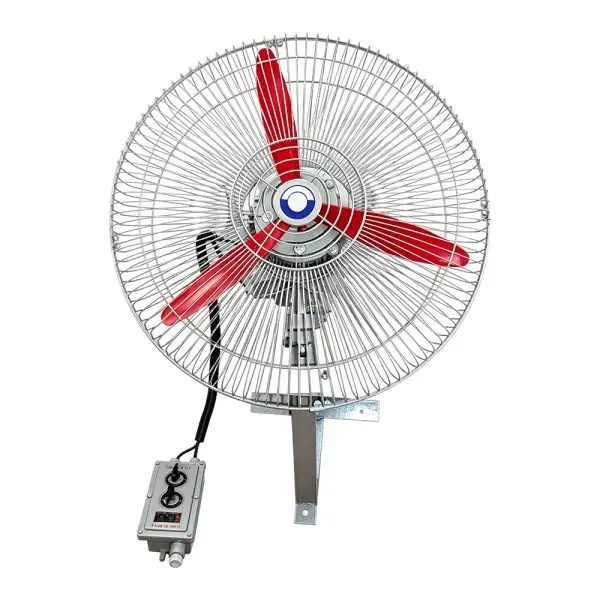

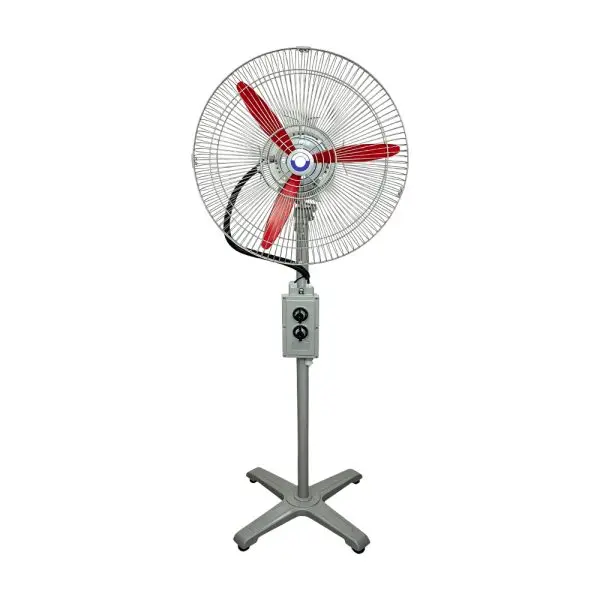

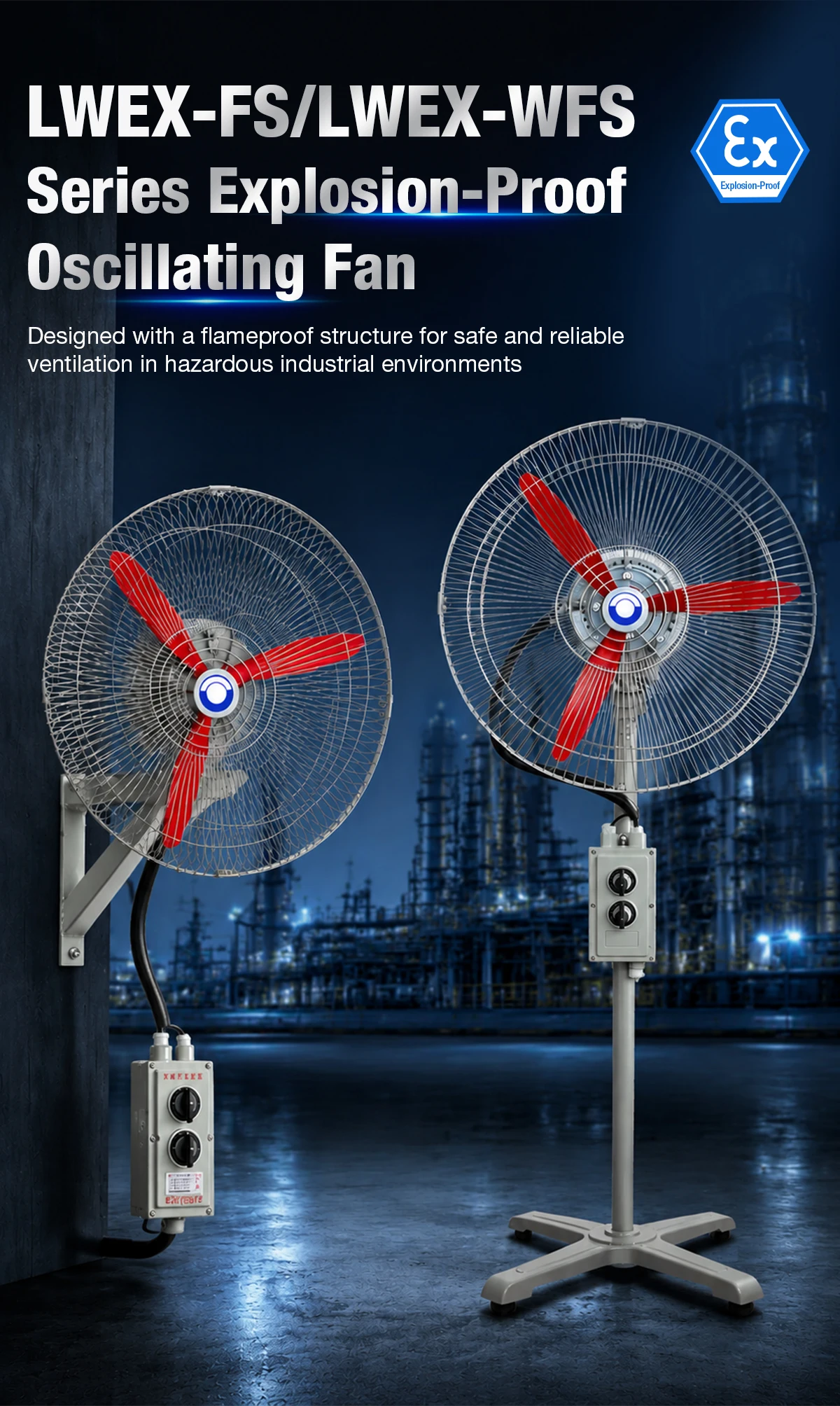

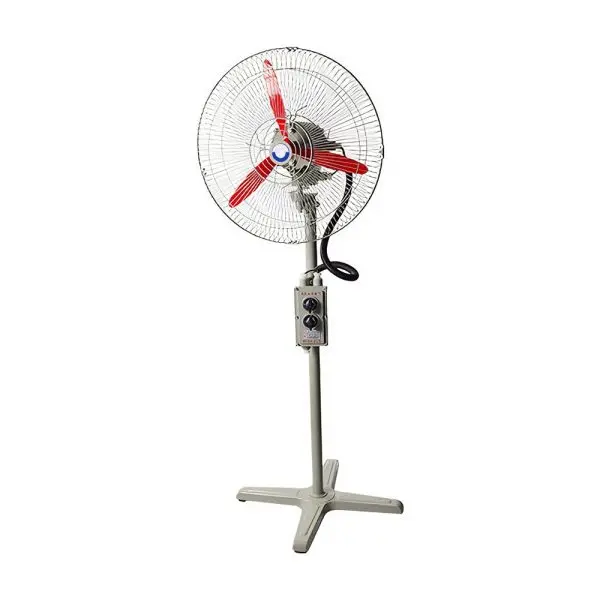

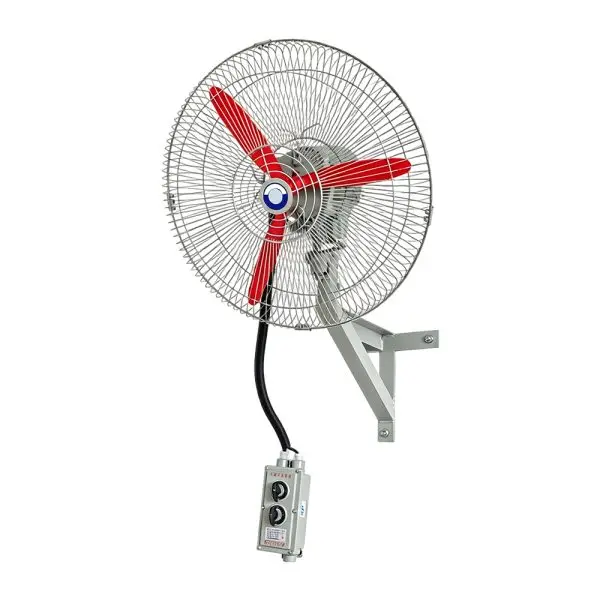

Explosion-Proof Oscillating Fan
ATEX-certified explosion-proof oscillating fans built for hazardous industrial environments — wide-angle automatic oscillation for personnel cooling and air circulation across chemical plants, oil & gas sites, paint booths, battery lines, and inspection stations.
Ex d IIB T4 · IP55 · Wide-angle oscillation (~90°) · Spark-resistant aluminum alloy impeller · 3 sizes × 2 mounting options · Up to 18,000 m³/h
Why Choose the EX-FS / EX-WFS Series
Each EX-FS and EX-WFS explosion-proof oscillating fan is engineered around four core advantages: ATEX-certified safety, wide-area airflow coverage, durable industrial construction, and flexible installation. Together they deliver reliable personnel cooling and air circulation in hazardous-zone operations.
Explosion-Proof Protection
Flameproof structure (Ex d IIB T4) minimises ignition risk — safe for Zone 1 & Zone 2 hazardous areas.
Wide-Angle Automatic Oscillation
Built-in swing mechanism sweeps ~90° left-right, covering multiple workstations with one fan.
Powerful Airflow Performance
Large-diameter aluminum alloy impeller delivers up to 18,000 m³/h for rapid air circulation and cooling.
Pedestal or Wall-Mounted

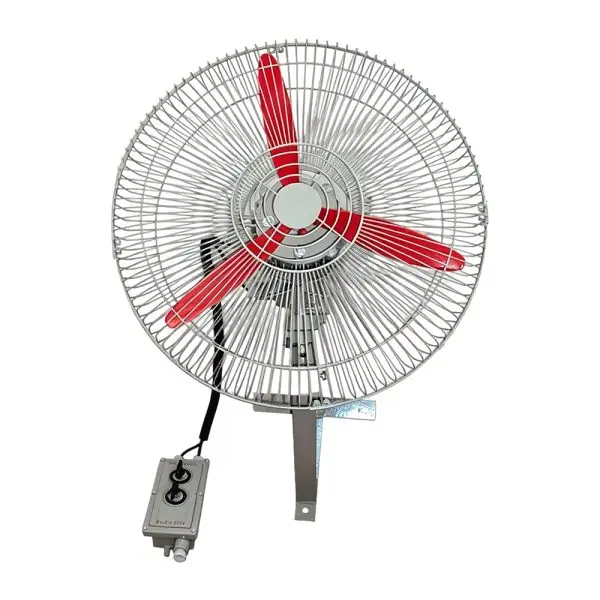

EX-FS pedestal for mobile placement; EX-WFS wall-mounted for permanent fixed installation.
Product Specifications
Choose from 3 impeller diameters (500 / 600 / 750 mm) and 2 mounting options (pedestal FS, wall-mounted WFS) — 6 model numbers in total. Air volume ranges from 6,600 m³/h up to 18,000 m³/h. Custom voltages and frequencies available on request.

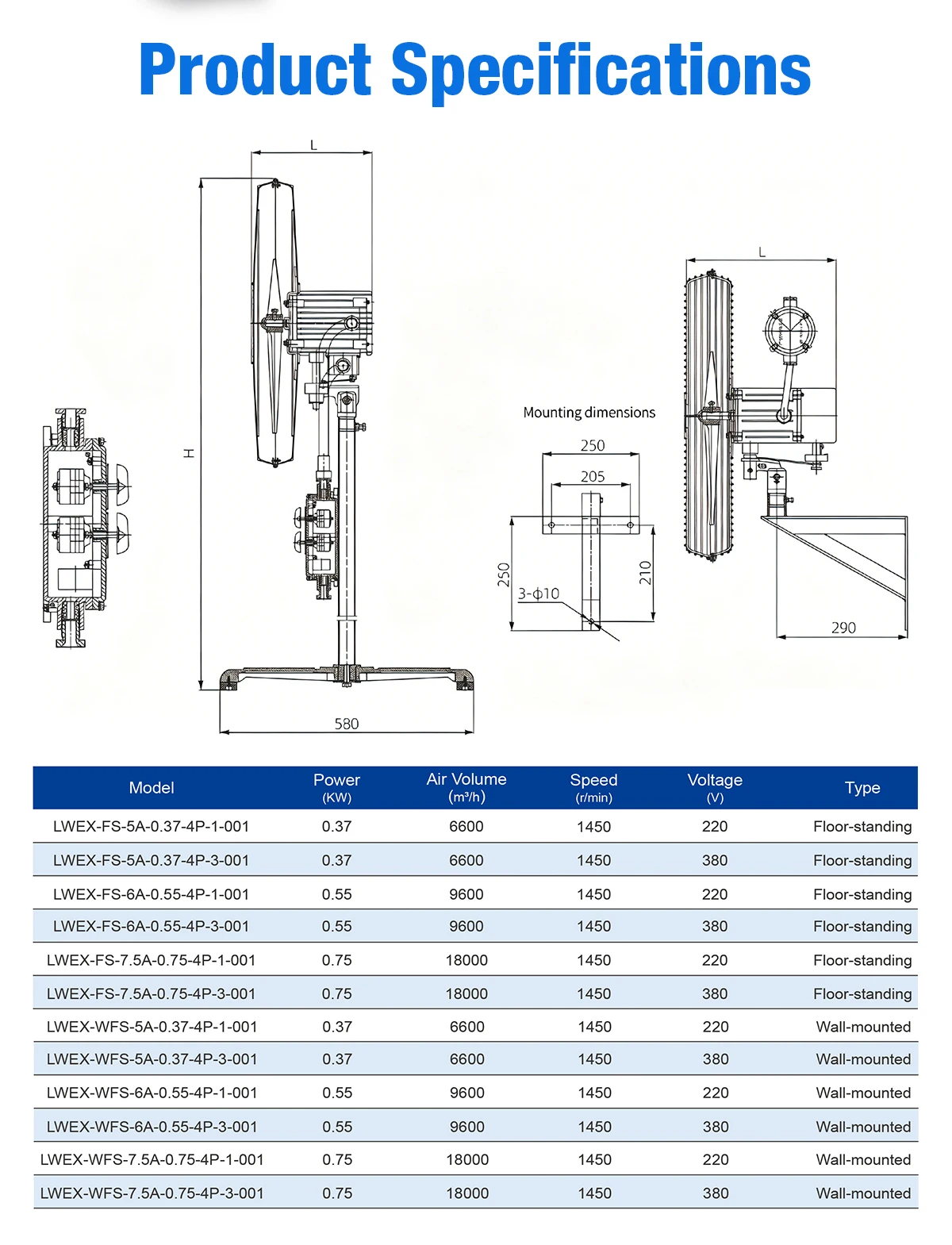

Dimensional Specifications
| Series | Impeller Diameter | Pedestal Base | Overall Height (FS) | Wall Mount Span (WFS) | Wall Projection (WFS) | Mounting Holes | Net Weight (FS / WFS) |
|---|---|---|---|---|---|---|---|
| LWEX-FS-5A / LWEX-WFS-5A | 500 mm | 580 × 580 mm | 1,650 mm | 250 × 205 mm | 290 mm | 3 × Φ10 | 28 kg / 22 kg |
| LWEX-FS-6A / LWEX-WFS-6A | 600 mm | 580 × 580 mm | 1,720 mm | 250 × 205 mm | 290 mm | 3 × Φ10 | 32 kg / 26 kg |
| LWEX-FS-7.5A / LWEX-WFS-7.5A | 750 mm | 620 × 620 mm | 1,820 mm | 260 × 215 mm | 320 mm | 3 × Φ10 | 40 kg / 33 kg |
Electrical & Performance Specifications
| Model | Installation | Power (kW) | Air Volume (m³/h) | Speed (r/min) | Voltage (V) |
|---|---|---|---|---|---|
| LWEX-FS-5A-0.37-4P-1-001 | Pedestal (Floor-Standing) | 0.37 | 6,600 | 1450 | 220 |
| LWEX-FS-5A-0.37-4P-3-001 | Pedestal (Floor-Standing) | 0.37 | 6,600 | 1450 | 380 |
| LWEX-FS-6A-0.55-4P-1-001 | Pedestal (Floor-Standing) | 0.55 | 9,600 | 1450 | 220 |
| LWEX-FS-6A-0.55-4P-3-001 | Pedestal (Floor-Standing) | 0.55 | 9,600 | 1450 | 380 |
| LWEX-FS-7.5A-0.75-4P-1-001 | Pedestal (Floor-Standing) | 0.75 | 18,000 | 1450 | 220 |
| LWEX-FS-7.5A-0.75-4P-3-001 | Pedestal (Floor-Standing) | 0.75 | 18,000 | 1450 | 380 |
| LWEX-WFS-5A-0.37-4P-1-001 | Wall-Mounted | 0.37 | 6,600 | 1450 | 220 |
| LWEX-WFS-5A-0.37-4P-3-001 | Wall-Mounted | 0.37 | 6,600 | 1450 | 380 |
| LWEX-WFS-6A-0.55-4P-1-001 | Wall-Mounted | 0.55 | 9,600 | 1450 | 220 |
| LWEX-WFS-6A-0.55-4P-3-001 | Wall-Mounted | 0.55 | 9,600 | 1450 | 380 |
| LWEX-WFS-7.5A-0.75-4P-1-001 | Wall-Mounted | 0.75 | 18,000 | 1450 | 220 |
| LWEX-WFS-7.5A-0.75-4P-3-001 | Wall-Mounted | 0.75 | 18,000 | 1450 | 380 |

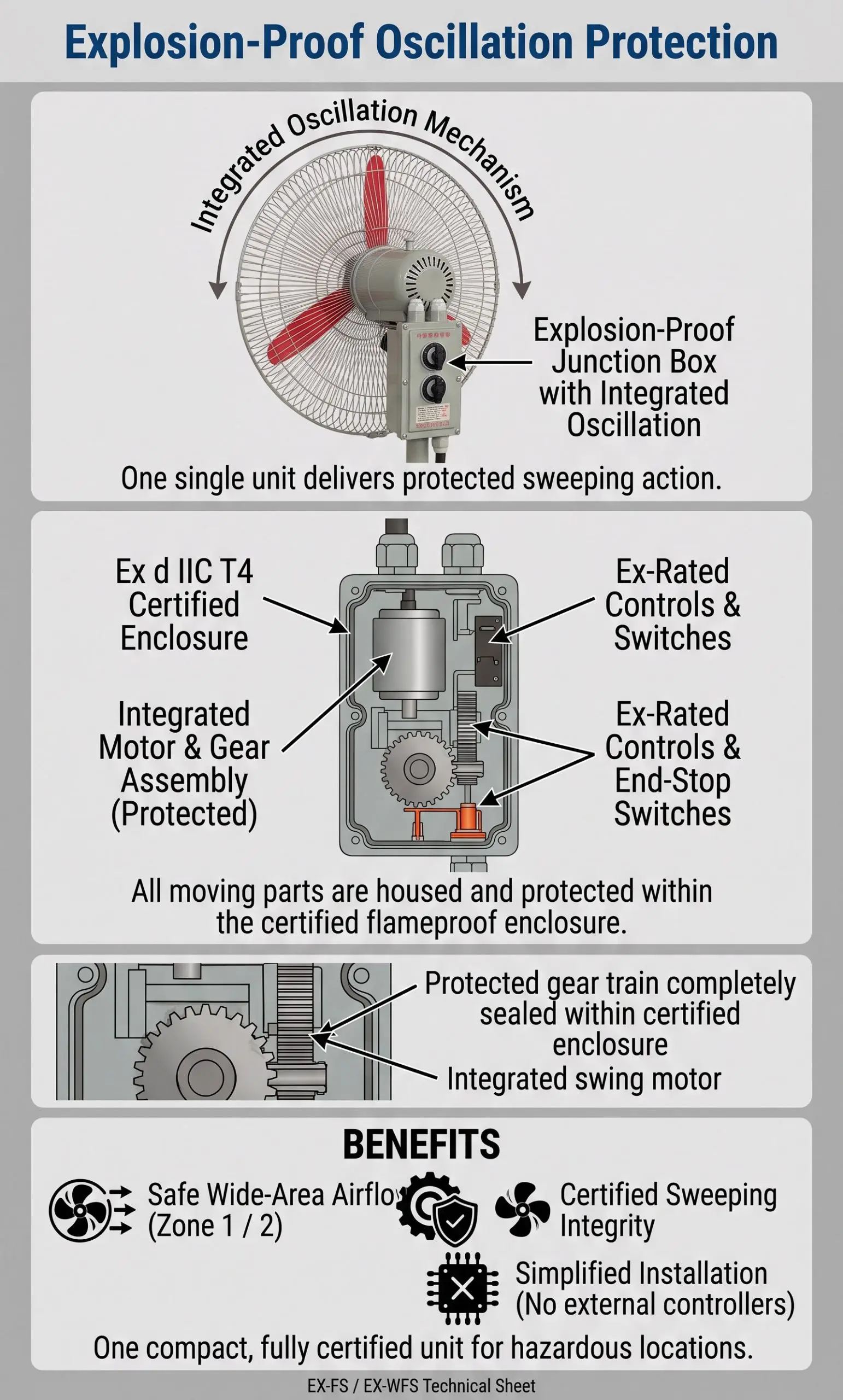

Explosion-Proof Oscillation Protection
Unlike a fixed-direction industrial fan, the EX-FS / EX-WFS combines an ATEX-certified flameproof enclosure with an integrated automatic oscillation mechanism in a single integrated unit. The swing motor, gear train, and end-stop switches are all housed inside the explosion-proof junction — meaning even when the head is sweeping left and right, the moving parts remain inside the protected enclosure.
This 2-in-1 integration eliminates the need for an external swing controller and removes the wiring penetrations that typically compromise hazardous-location certification. The result: one compact, fully certified unit that delivers wide-area airflow without sacrificing Zone 1 / Zone 2 safety.
- Ex d IIB T4 rated — flameproof enclosure certified for Zone 1 & Zone 2
- Integrated swing motor inside the explosion-proof housing — no external exposed actuators
- Synchronised oscillation angle ~90°, with smooth start/stop at swing limits
- ATEX / IECEx / CE / RoHS / REACH compliant construction

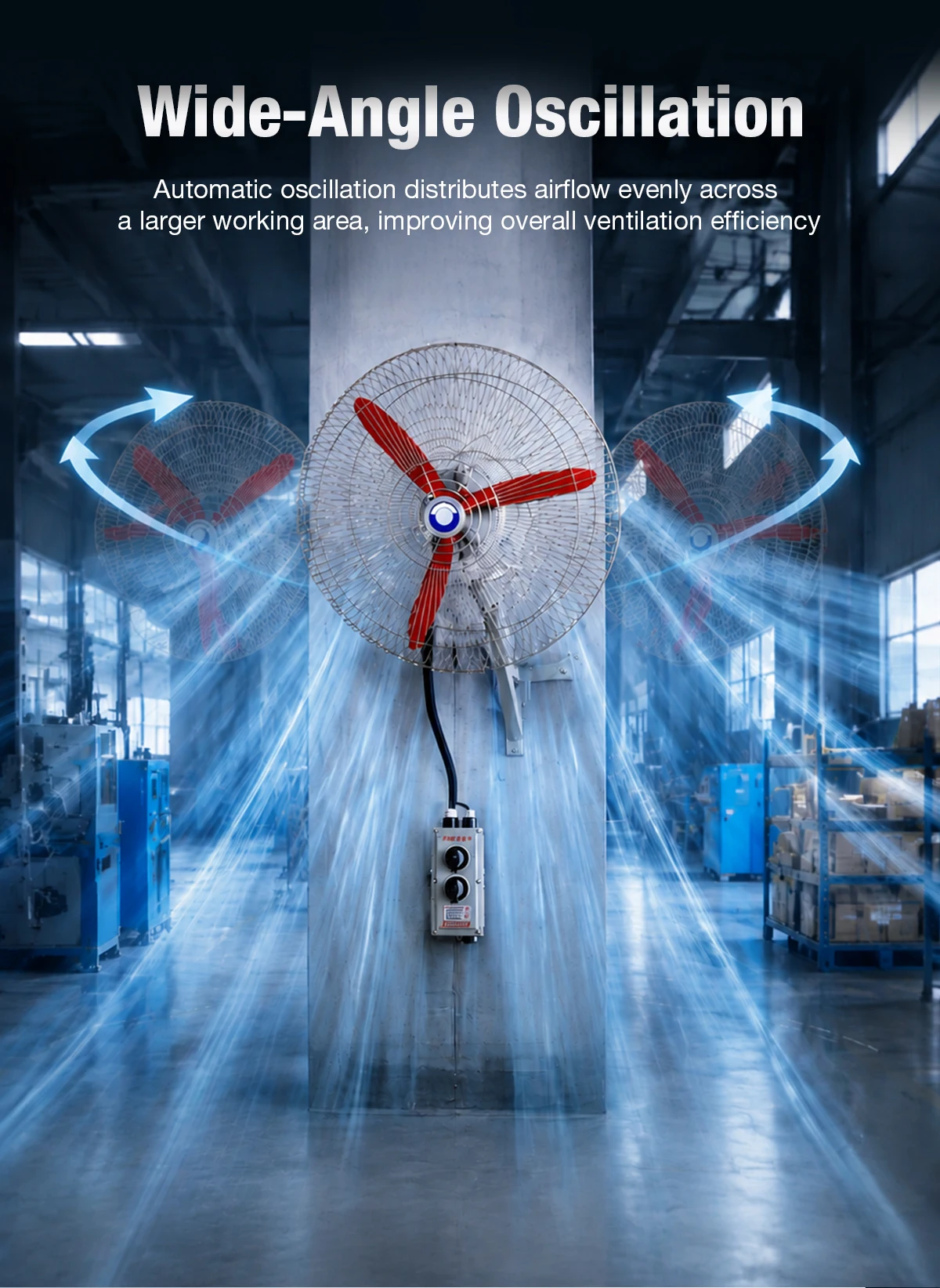

Wide-Angle Automatic Oscillation
A fixed-direction fan only cools the one workstation directly in front of it. The EX-FS / EX-WFS uses a precision-engineered swing mechanism that sweeps the airflow head automatically — distributing cooling air evenly across multiple workstations and reducing "dead zones" inside hazardous facilities.
Compared with two or three fixed fans covering the same area, one oscillating unit lowers capital cost, simplifies wiring, and reduces the electrical load on plant distribution boards — particularly valuable in Zone 1 areas where additional cable glands and explosion-proof penetrations are expensive to install.
- ~90° automatic sweep — covers multiple operators with one fan
- Replaces 2–3 fixed-direction units in typical plant layouts
- Adjustable end-stop angle available for OEM/ODM builds
- Smooth oscillation motion — no jerky transitions or spikes in motor current

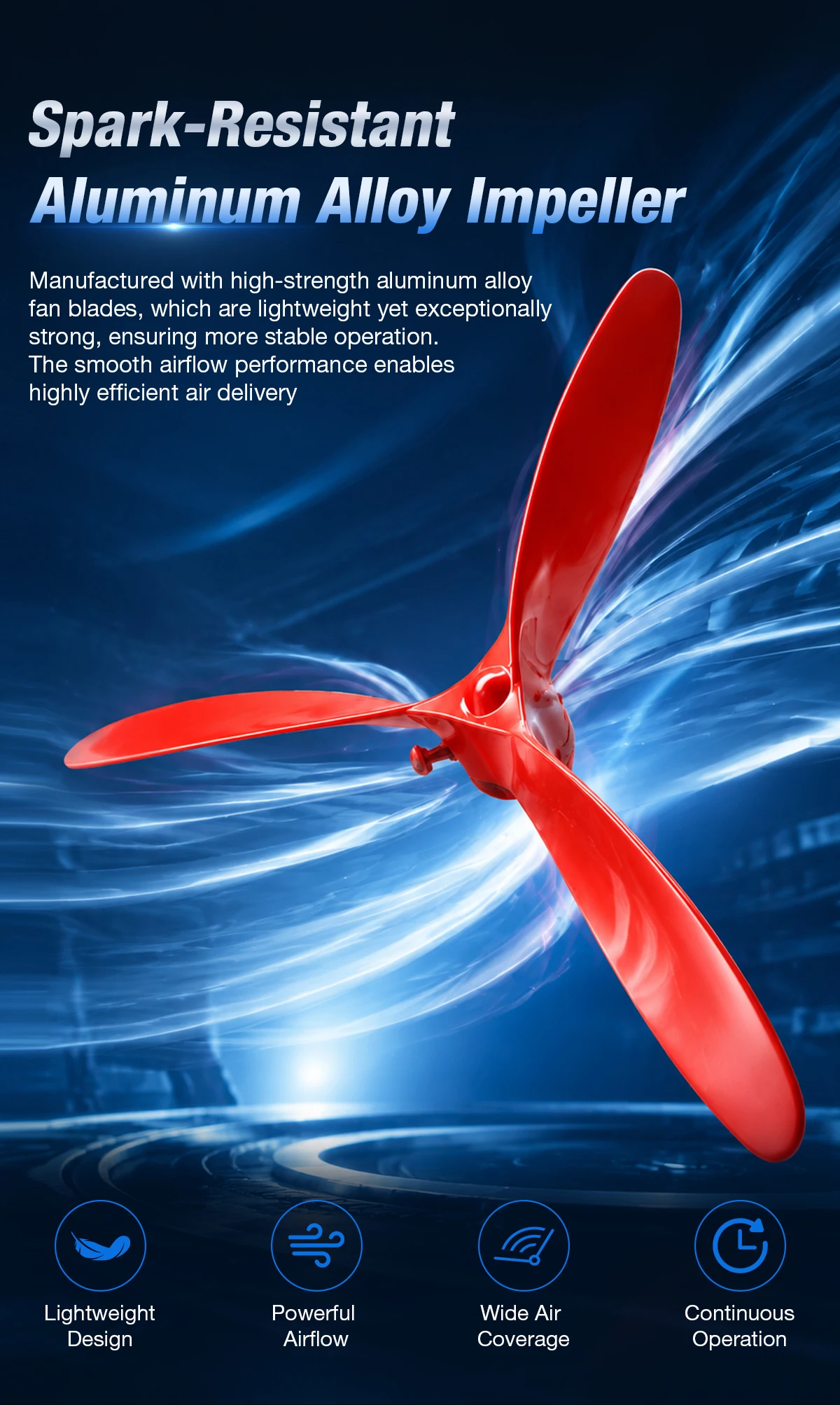

Spark-Resistant Aluminum Alloy Impeller
The EX-FS / EX-WFS impeller is cast in high-strength aluminum alloy that is non-sparking on contact with ferrous metals — a critical safety property in flammable-gas and dust-laden atmospheres. The dynamic balance of every blade is verified on LONGWELL's in-house balancer before assembly, keeping vibration low even at full oscillation sweep speed.
Beyond safety, the optimised aerodynamic profile maximises airflow per kilowatt and reduces turbulence, which means quieter operation and lower bearing wear in environments where fans run for entire 12-hour shifts.
- Non-sparking aluminum alloy — safe for flammable-gas and dust atmospheres
- Lightweight blade reduces bearing load — longer motor service life
- Optimised profile for high airflow per watt and stable oscillation
- Dynamically balanced — low vibration, low noise, long life

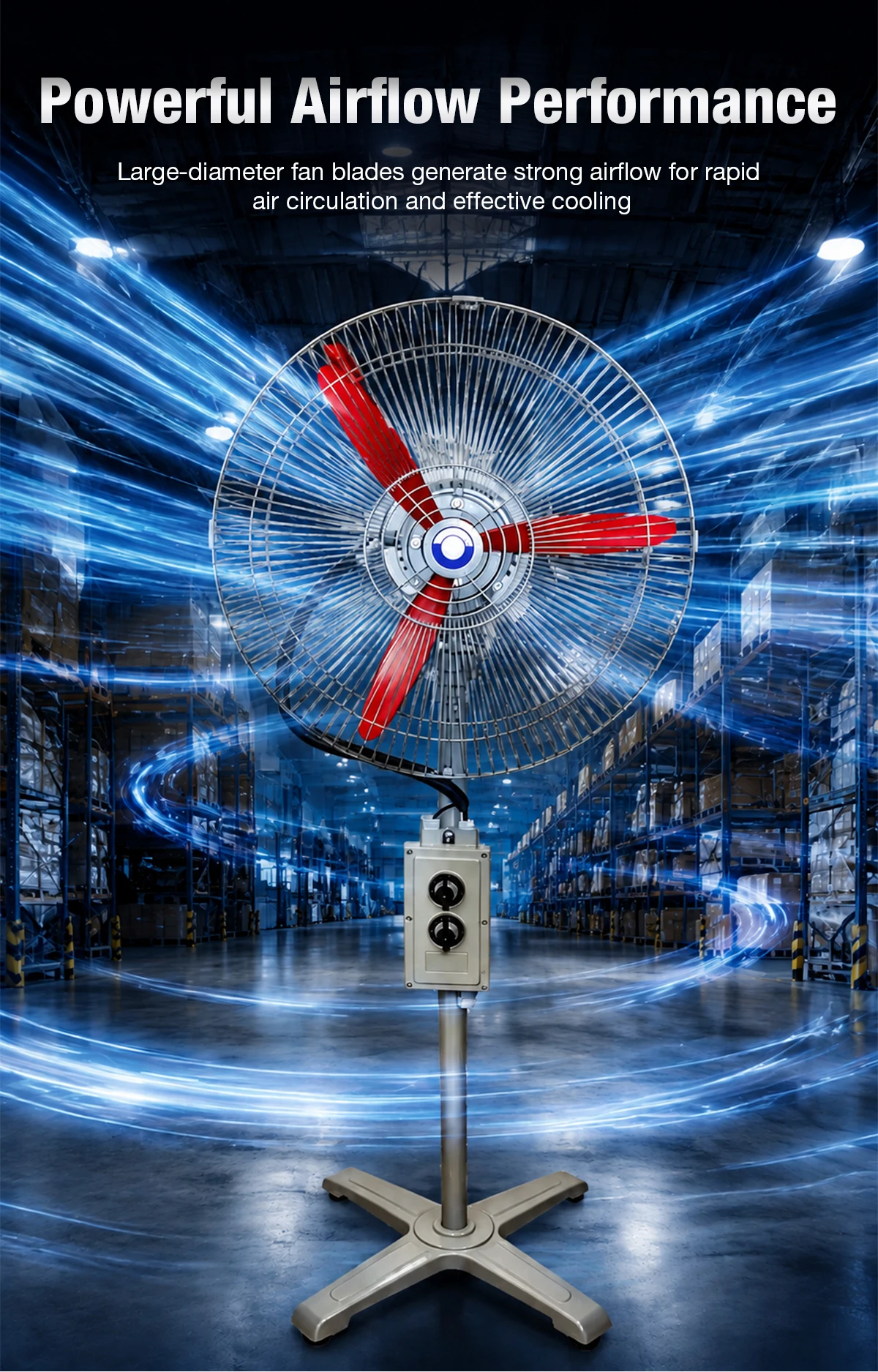

Powerful Airflow Performance
Large-diameter impellers paired with precision-tuned blade geometry generate strong, focused airflow that rapidly circulates air across the working area. From a small inspection station cooled by a 5A model to an open production hall covered by a 7.5A unit, the EX-FS / EX-WFS family matches airflow capacity to room size without overspending on motor power.
Combined with the auto-oscillation mechanism, the resulting airflow pattern distributes cooling over a wide footprint — keeping operators comfortable, productivity up, and humidity / heat pockets away from electrical cabinets and instrumentation.
- Rated airflow from 6,600 m³/h (5A) to 18,000 m³/h (7.5A)
- Motor power from 0.37 kW to 0.75 kW — right-sized to airflow class
- Rapid air circulation reduces heat stress and improves operator comfort
- Reduces humidity pockets near electrical cabinets and instrumentation

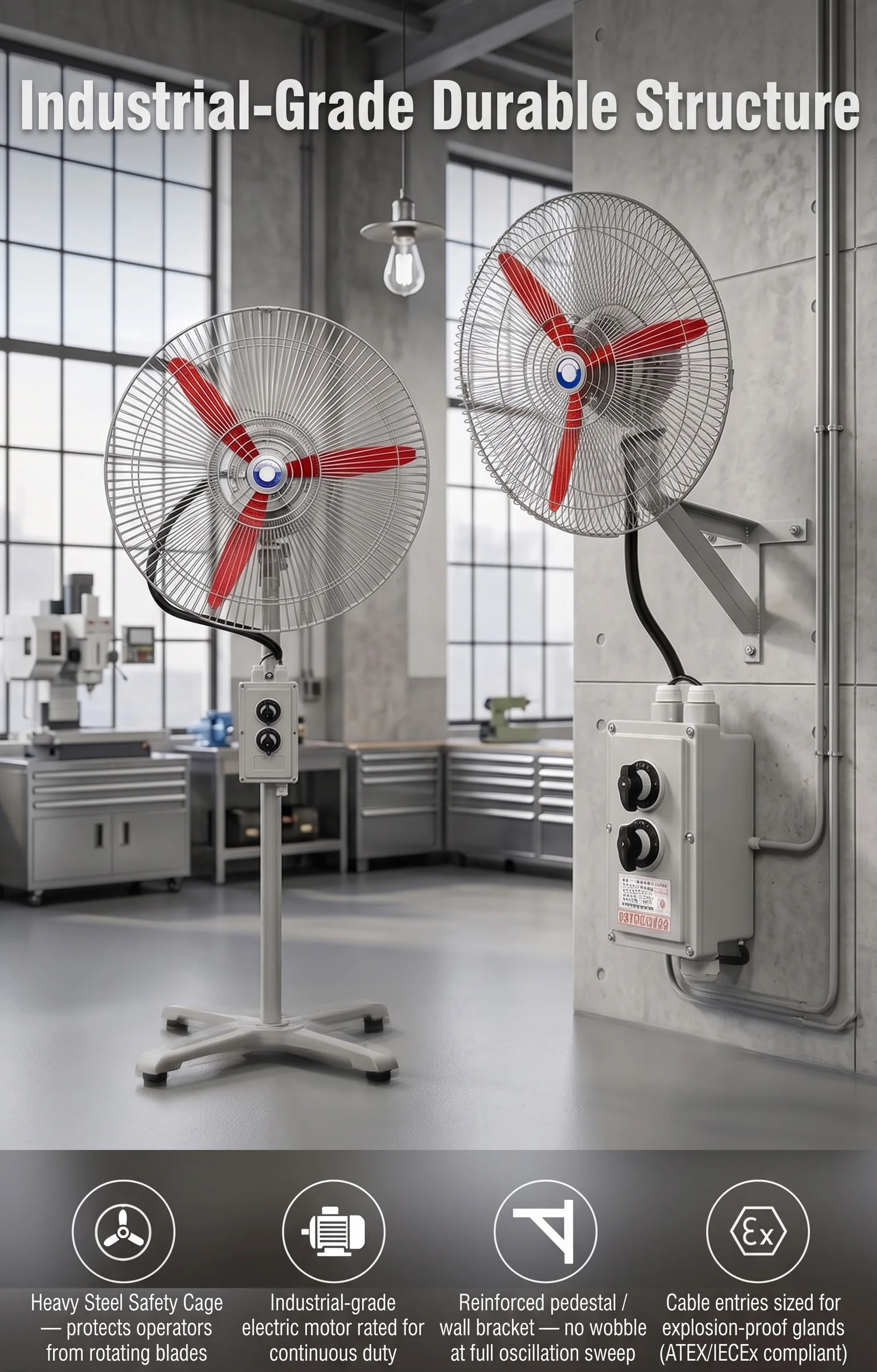

Industrial-Grade Durable Structure
Every EX-FS / EX-WFS unit is built around an industrial-grade electric motor, a high-strength welded steel safety cage, and a reinforced pedestal or wall bracket engineered for continuous operation. Cable glands are explosion-proof rated and the Ex control box is positioned away from the airflow path for easier wiring access during installation.
The cross-base pedestal (FS series) is heavy and wide enough to keep the fan stable when oscillating at full sweep — preventing tip-over even on slightly uneven plant floors. The wall bracket (WFS series) uses 10 mm mounting anchors sized for concrete, masonry, or steel-structure walls.
- Heavy steel safety cage — protects operators from rotating blades
- Industrial-grade electric motor rated for continuous duty
- Reinforced pedestal / wall bracket — no wobble at full oscillation sweep
- Cable entries sized for explosion-proof glands (ATEX/IECEx compliant)

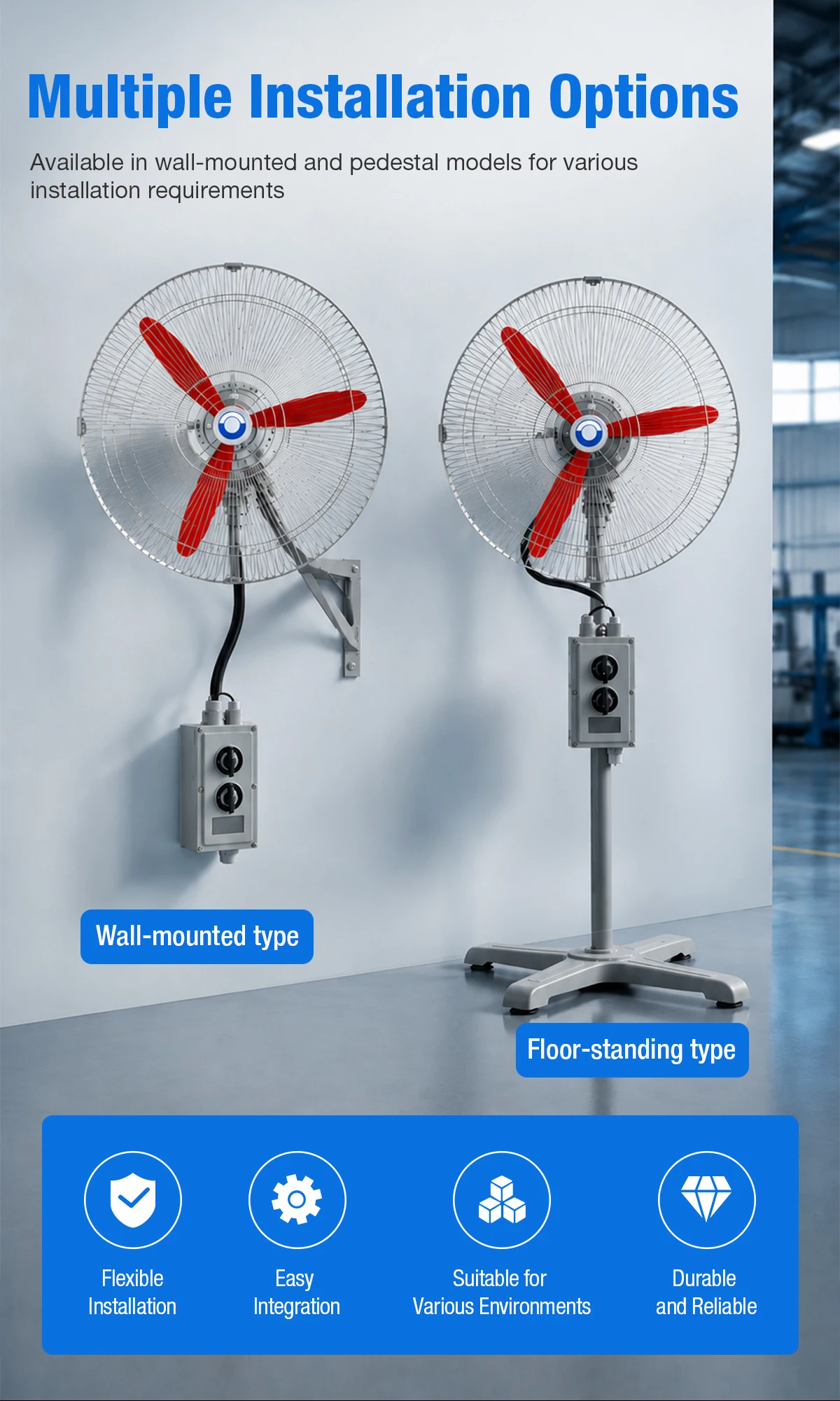

Two Installation Options — One Fan Family
Same motor, same impeller, same explosion-proof rating — but two mounting choices. Pick the configuration that matches your facility's footprint, maintenance access, and operating habits.
The pedestal LWEX-FS is mobile-friendly: roll the fan to the workstation where cooling is needed today, then move it again tomorrow. The wall-mounted LWEX-WFS is a permanent fixture for inspection posts, control rooms, and production cells where a clear floor is essential.
- Pedestal (FS): heavy cross-base, free placement, repositionable for changing shift layouts
- Wall-Mounted (WFS): fixed bracket, frees floor space, ideal for permanent inspection / control stations
- Same airflow, motor, oscillation mechanism in both versions
- Bracket and base engineered for concrete, masonry or steel-structure installation

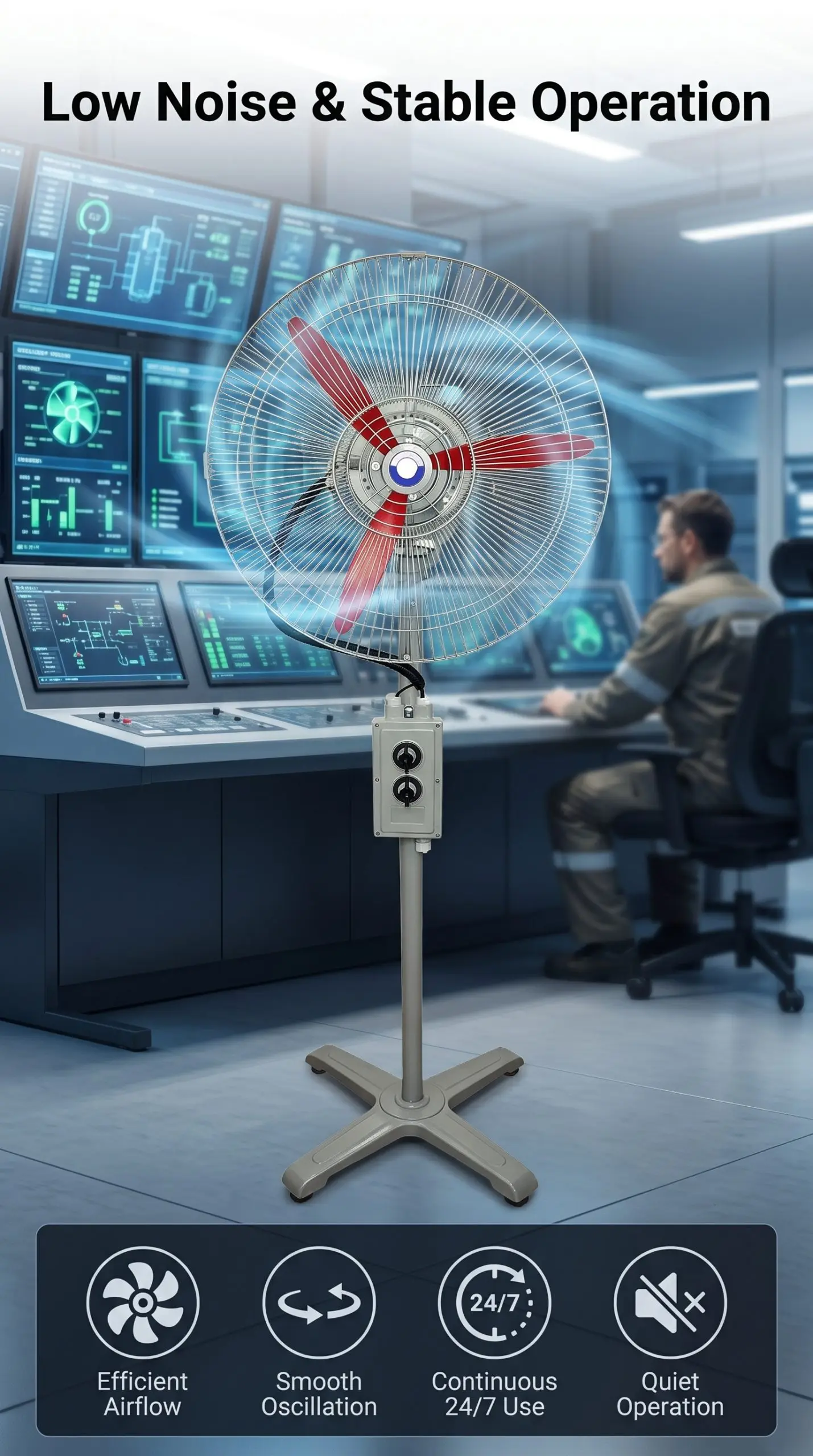

Low Noise & Stable Operation
Optimised impeller geometry, precision-balanced rotors, and a heavy-gauge safety cage combine to keep running noise at a level comfortable for sustained indoor use. The wide-angle swing motor uses a low-speed gear train so the oscillation itself adds only a soft, almost silent ambient motion — no clicking, no jerks.
The result is a fan that operators willingly keep running all shift, every shift, in noise-sensitive areas such as control rooms, pharmaceutical packaging lines, and inspection stations.
- Optimised blade geometry — quieter operation across the airflow curve
- Low-vibration swing mechanism — no clicking during oscillation cycle
- Stable performance for continuous 12-hour or 24-hour shift use
- Suitable for noise-sensitive areas near control rooms and workstations
Wide Industrial Applications
Wherever hazardous atmospheres meet hot work, long shifts, and the need for operator comfort, the EX-FS / EX-WFS delivers reliable, certified cooling and air circulation.

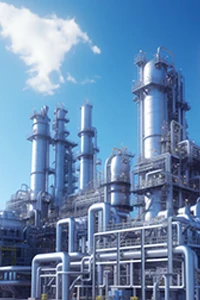

Operator rest points, control rooms and walkway cooling around reactors, columns, and distillation units.

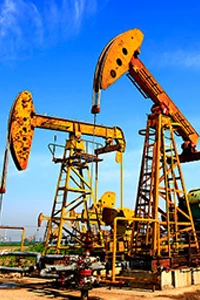

On-site cooling at pump stations, wellheads, separator skids, and remote instrumentation shelters.

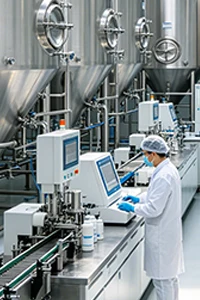

Reactor halls, mixing rooms and batch-processing bays where vapours may exceed safe thresholds.
Spray booth edges, drying tunnels and inspection zones where solvent vapours are routine.
Packaging lines and formulation rooms requiring classified-area cooling with low vibration.
Electrolyte mixing rooms, formation lines and aging racks in lithium-ion cell production.

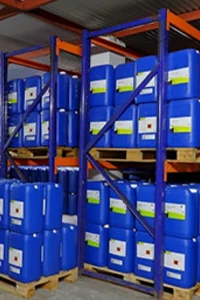

Hazardous-materials storage facilities, drum-storage bays and bonded warehouse inspection posts.

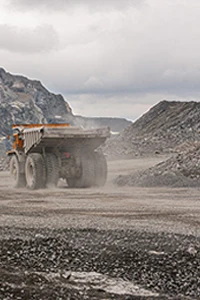

Underground refuge stations, explosive charging areas and methane-classified coal handling zones.

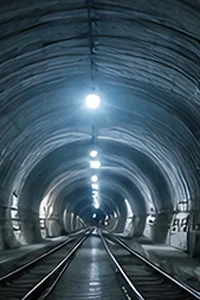

Maintenance shafts, pump stations and inspection galleries inside utility and rail tunnels.
Boiler inspection platforms, turbine halls and fuel-handling sections with classified-area requirements.
Paint docks, engine rooms and confined-space ventilation during outfitting and refit work.
Flammable liquid warehouses, gas-cylinder stores and bonded chemical depots.
