Description
Technical Description
| Material | Aluminized sheet steel |
| Phase Number | / |
| Number of Poles | / |
| Insulation Class | H |
| Bearing | Ball bearing |
| Direction of Rotation | / |
| Flue Temperature | ≤180℃ (continuous),≤240℃ (instantaneous) |
| Application | / |
| Technical Feature | Motor anti-vibration mounted,Mounting position must be specified for corresponding support elements |
Nominal data
| Dimensions | / |
| Nominal Voltage | 220V |
| Frequency | 50Hz |
| Power Input | 30W |
| Current | 0.3A |
| Speed | 2350RPM |
| Static Pressure(Max) | 185Pa |
| Air Flow(Max) | 101m³/h |
| Air Volume | / |
| Noise | / |

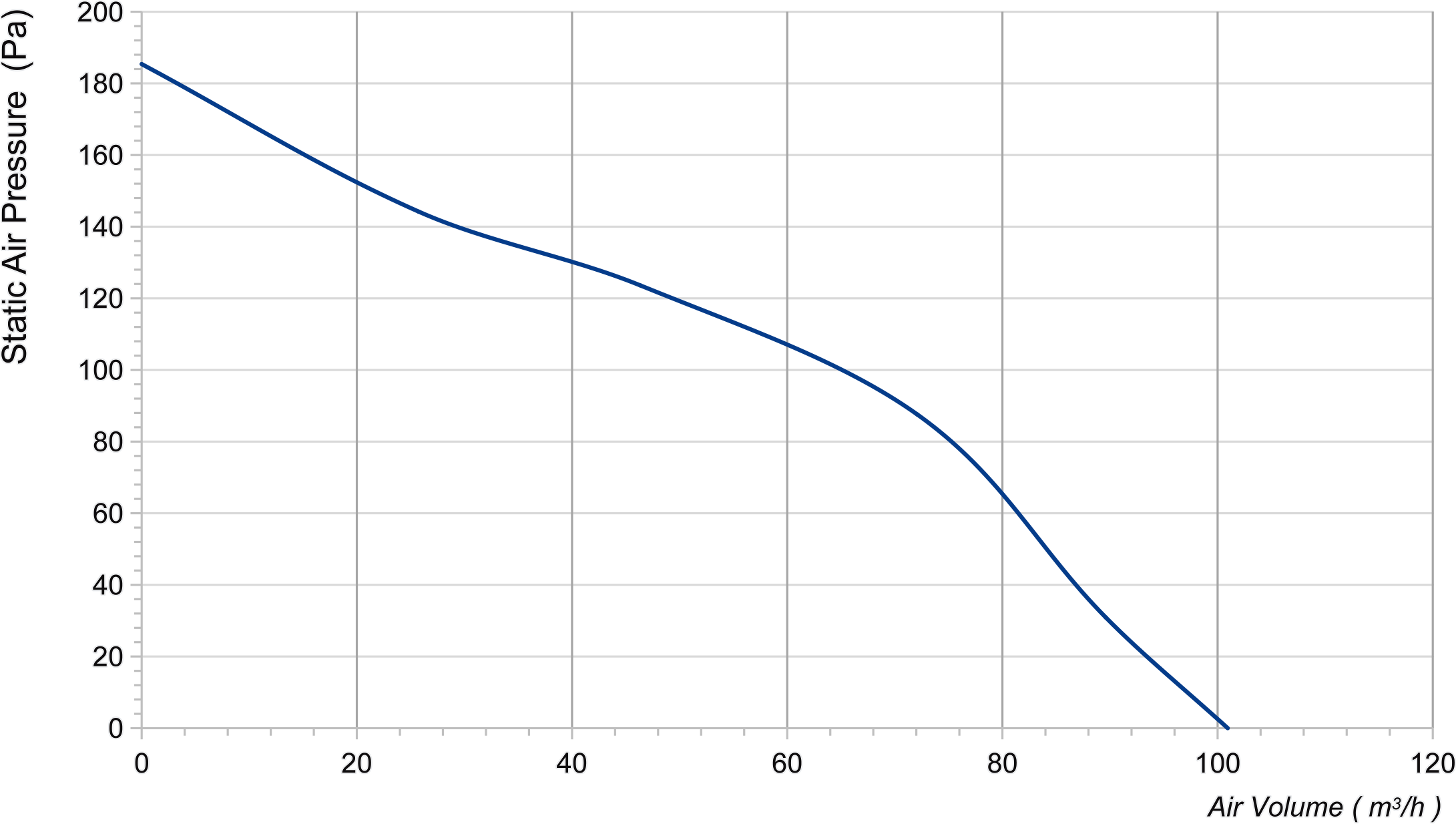

Curves

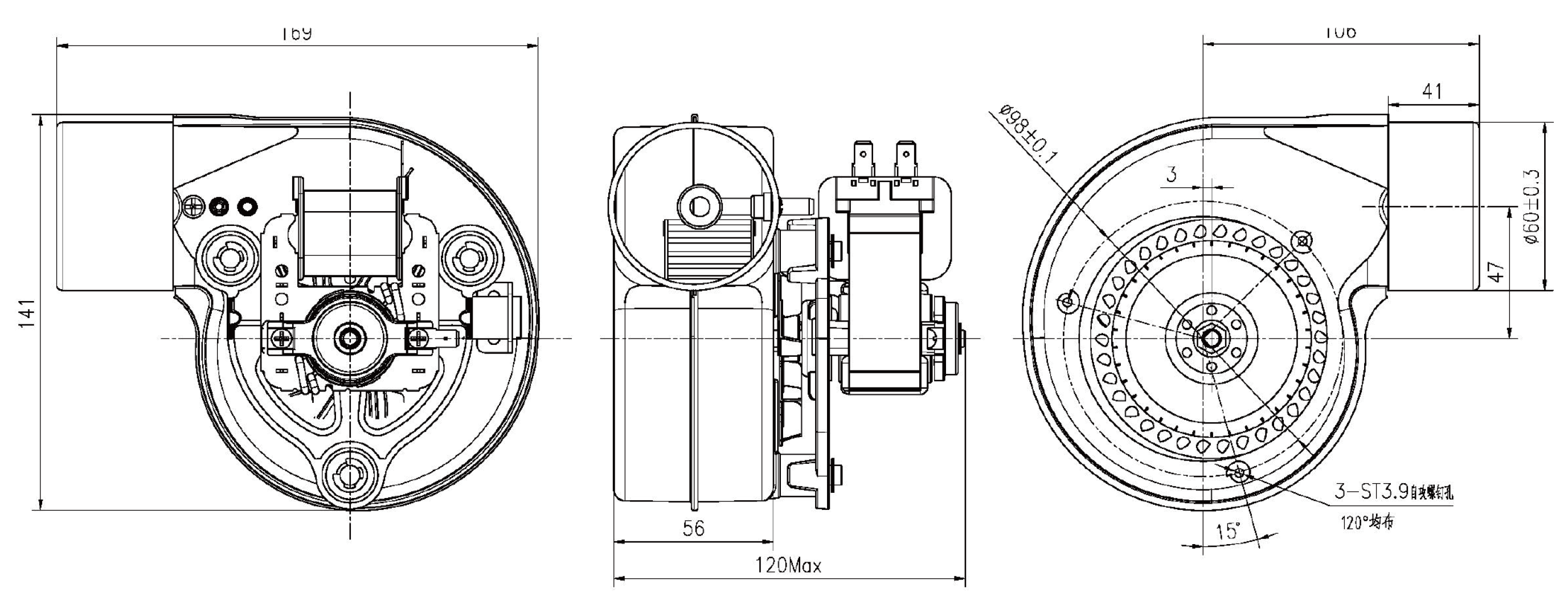

Drawing
Download
