Description
Technical Description
| Material | Galvanised sheet steel |
| Type of Protection | IP55 |
| Insulation Class | B |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | EC |
| Diameter of Rotor | 72mm |
| Nominal Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 0.67A |
| Power Input | 90W |
| Speed | 3230RPM |
| Static Pressure(Max) | 412Pa |
| Air Flow(Max) | 350m³/h |
| Noise | 67dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

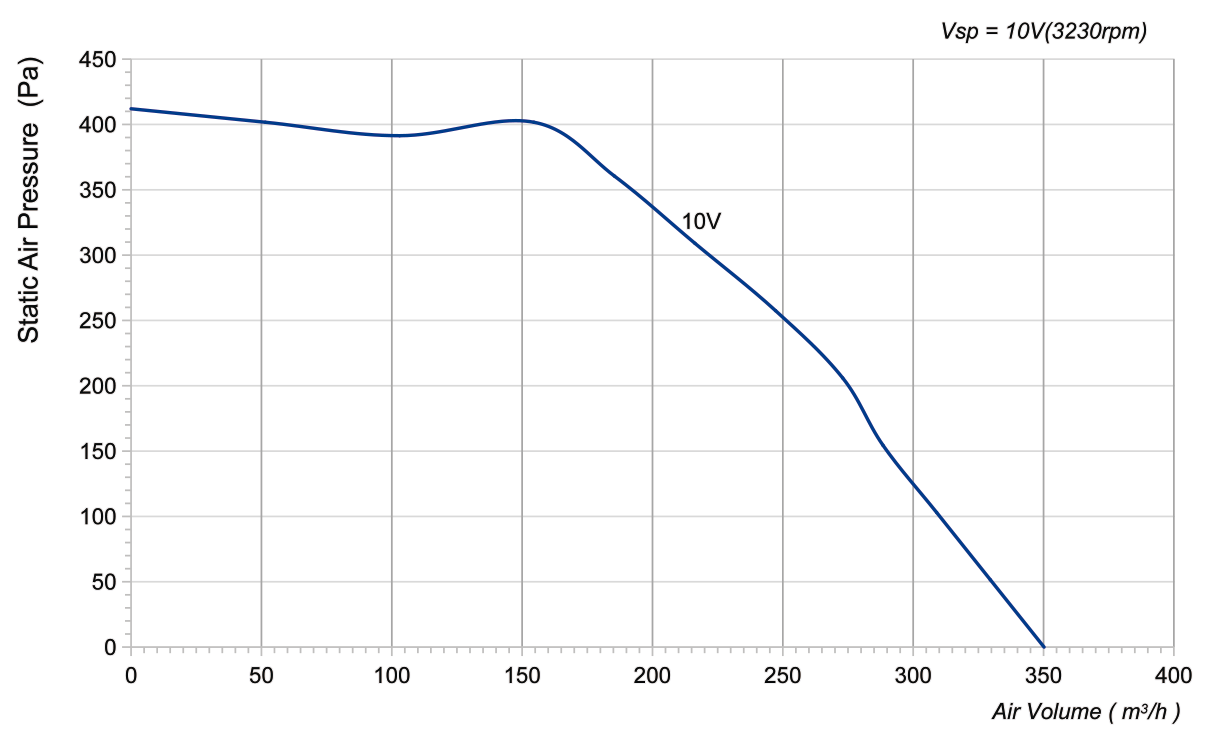

Curves

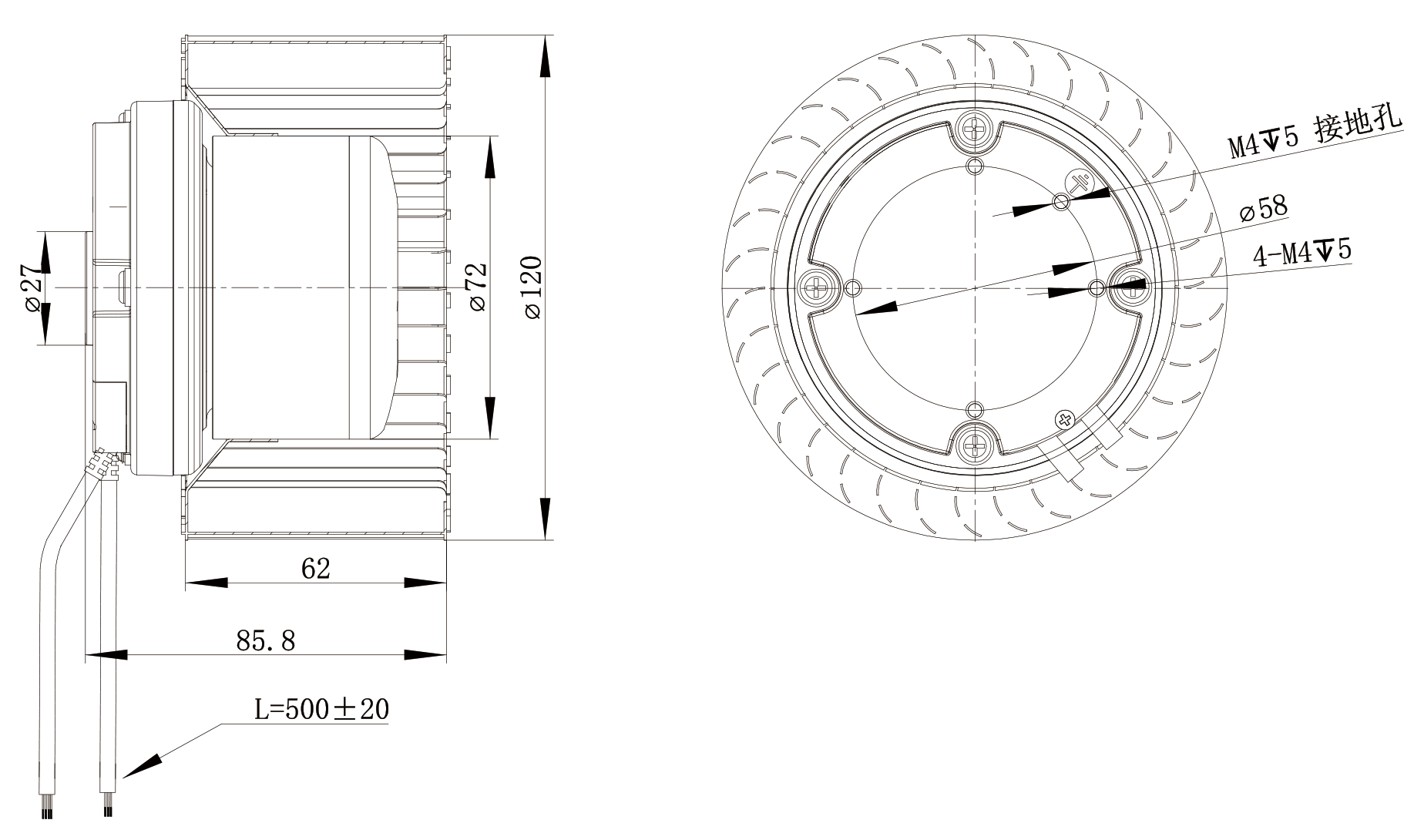

Drawing
Download
