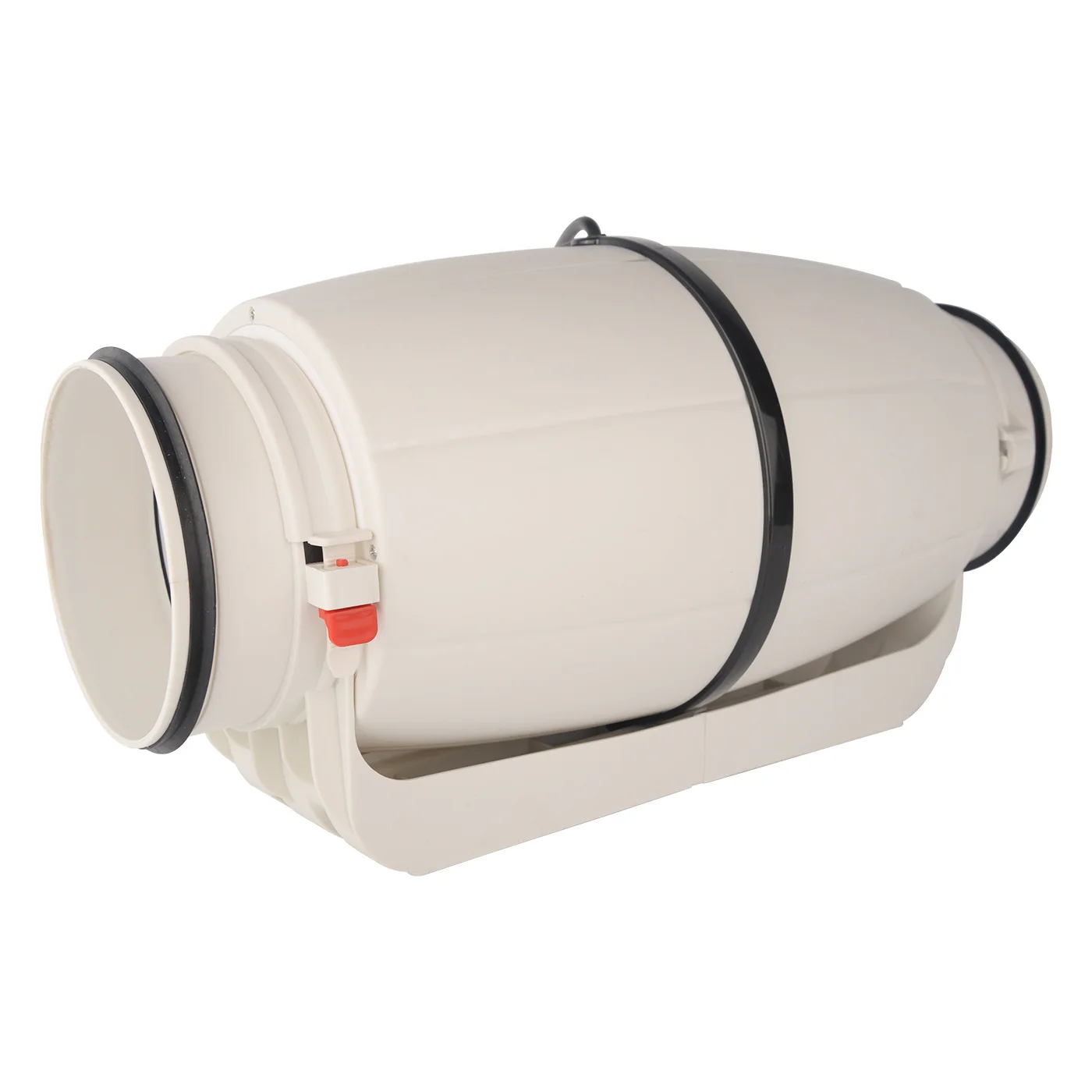

Description
Technical Description
| Material | Plastic |
| Motor Type | AC External rotor motor |
| Fan Type | Super silent type |
| Type of Protection | IP44 |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Inlet | 200mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Power Input | 130W |
| Speed | 2500RPM |
| Static Pressure(Max) | 391Pa |
| Air Flow(Max) | 1236m³/h |
| Noise | 29dB(A) |
| Min.ambient Temp | -20℃ |
| Max.ambient Temp | 50℃ |
Curves
Drawing
Download
