Description
Technical Description
| Impeller Material | Plastic PA66 |
| Type of Protection | IP54 |
| Insulation Class | F |
| Mode of Operation | S1 |
| Bearing | Maintenance-free ball bearings |
Nominal data
| Type of Voltage | AC |
| Diameter of Rotor | 92mm |
| Nominal Voltage | 230V |
| Frequency | 50Hz |
| Current | 0.38/0.28/0.25A |
| Power Input | 85/60/50W |
| Speed | 1600/1100/800RPM |
| Static Pressure(Max) | 433/350/288Pa |
| Air Flow(Max) | 319/206/146m³/h |
| Noise | 56/47/40dB(A) |
| Min.ambient Temp | -30℃ |
| Max.ambient Temp | 60℃ |

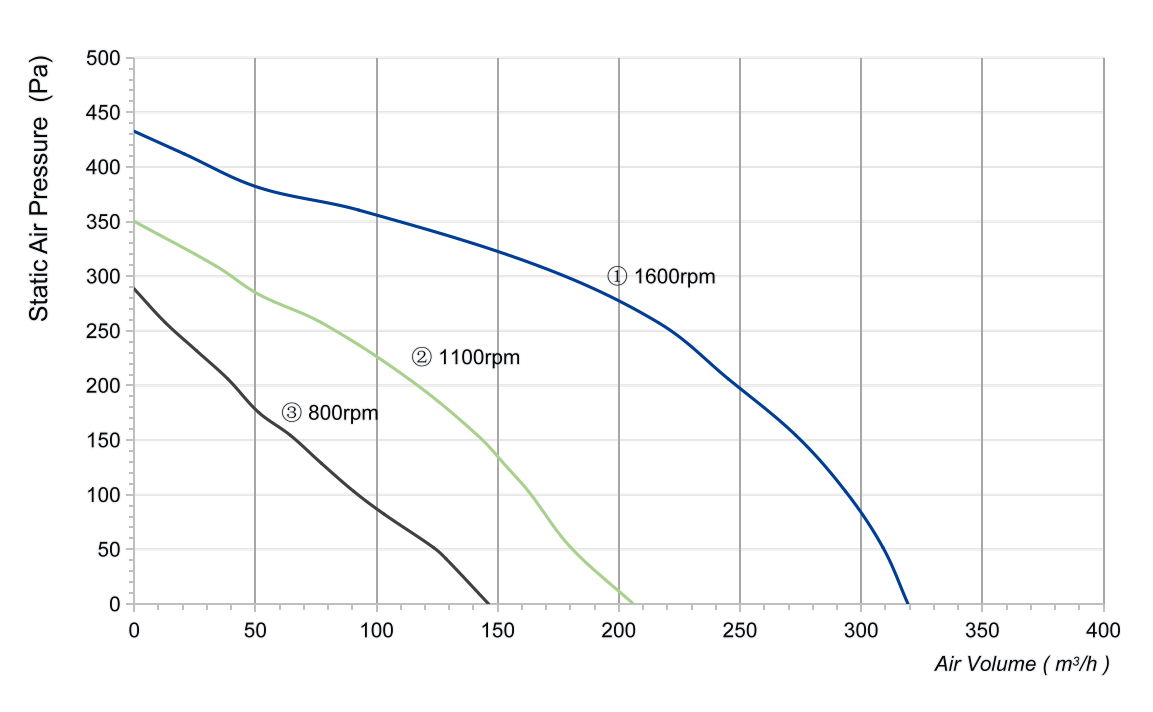

Curves

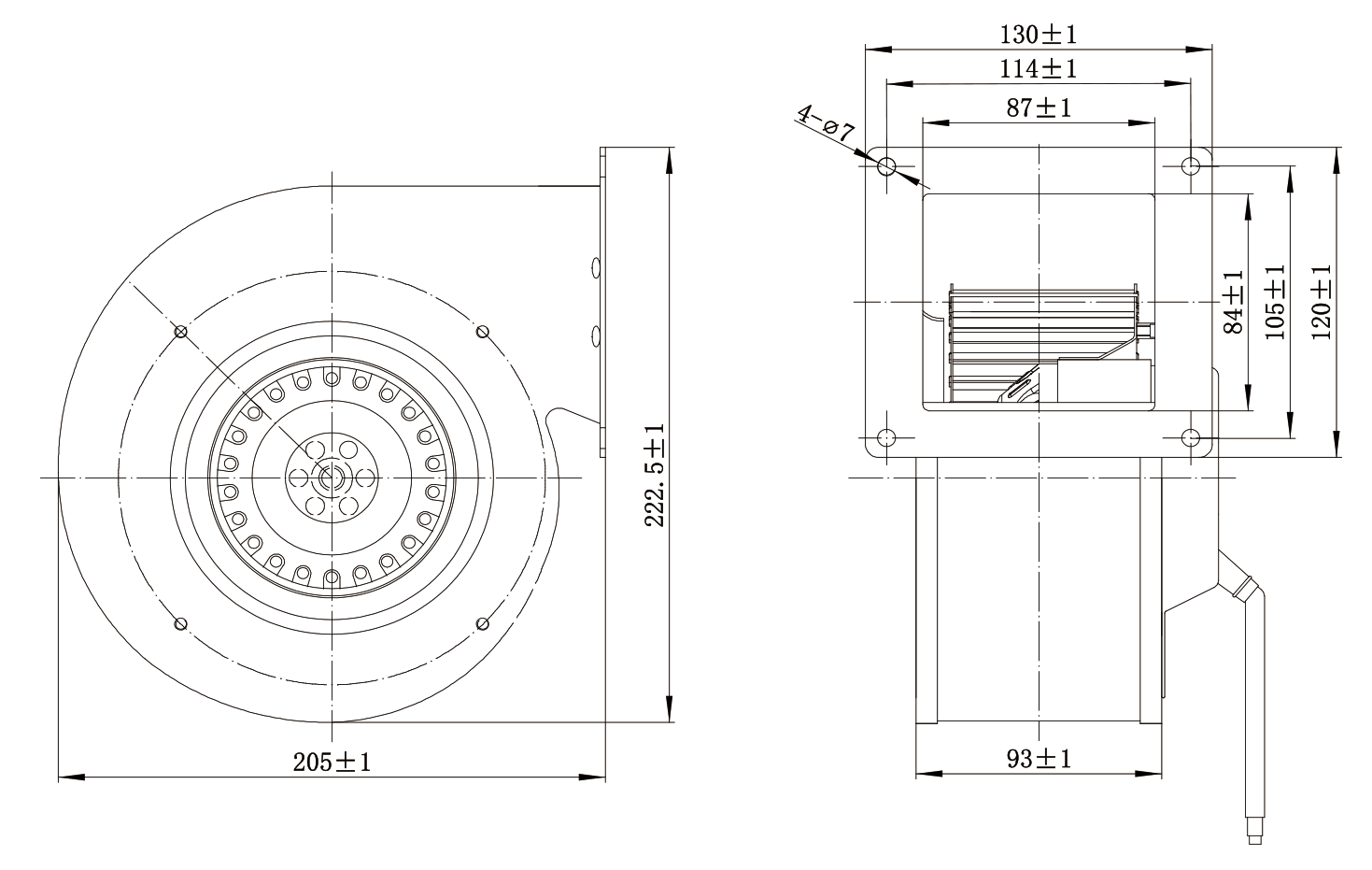

Drawing
Download
