LONGWELL Industrial Fan, Industrial Ventilation Fan – LW-200MM

Voltage 36VDC, 15VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 160

Category: Tags: , ,
CategorySolar Panel Roof Fans
TagsDC FanExhaust FanGreenhouse Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Solar Panel Roof Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

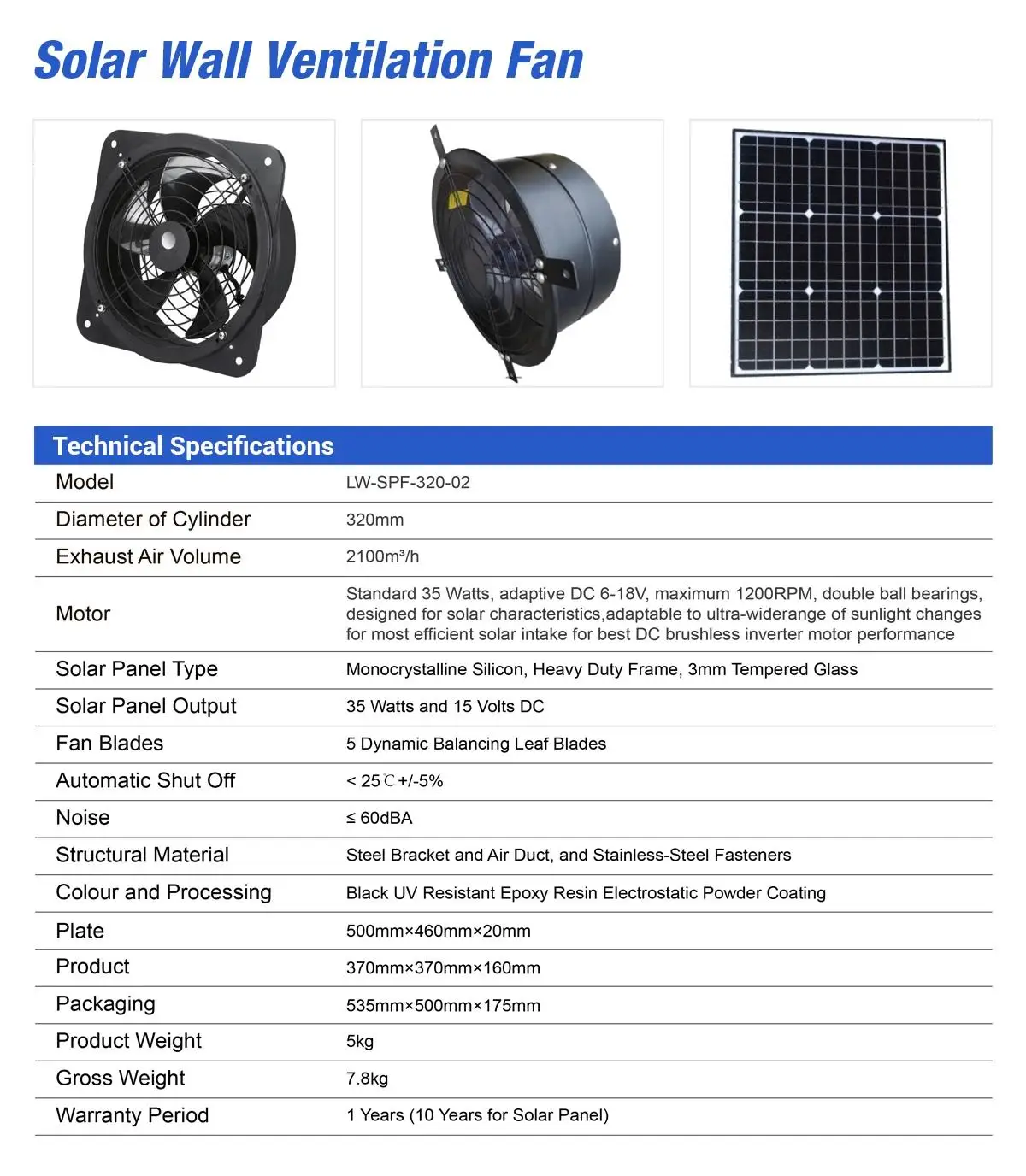

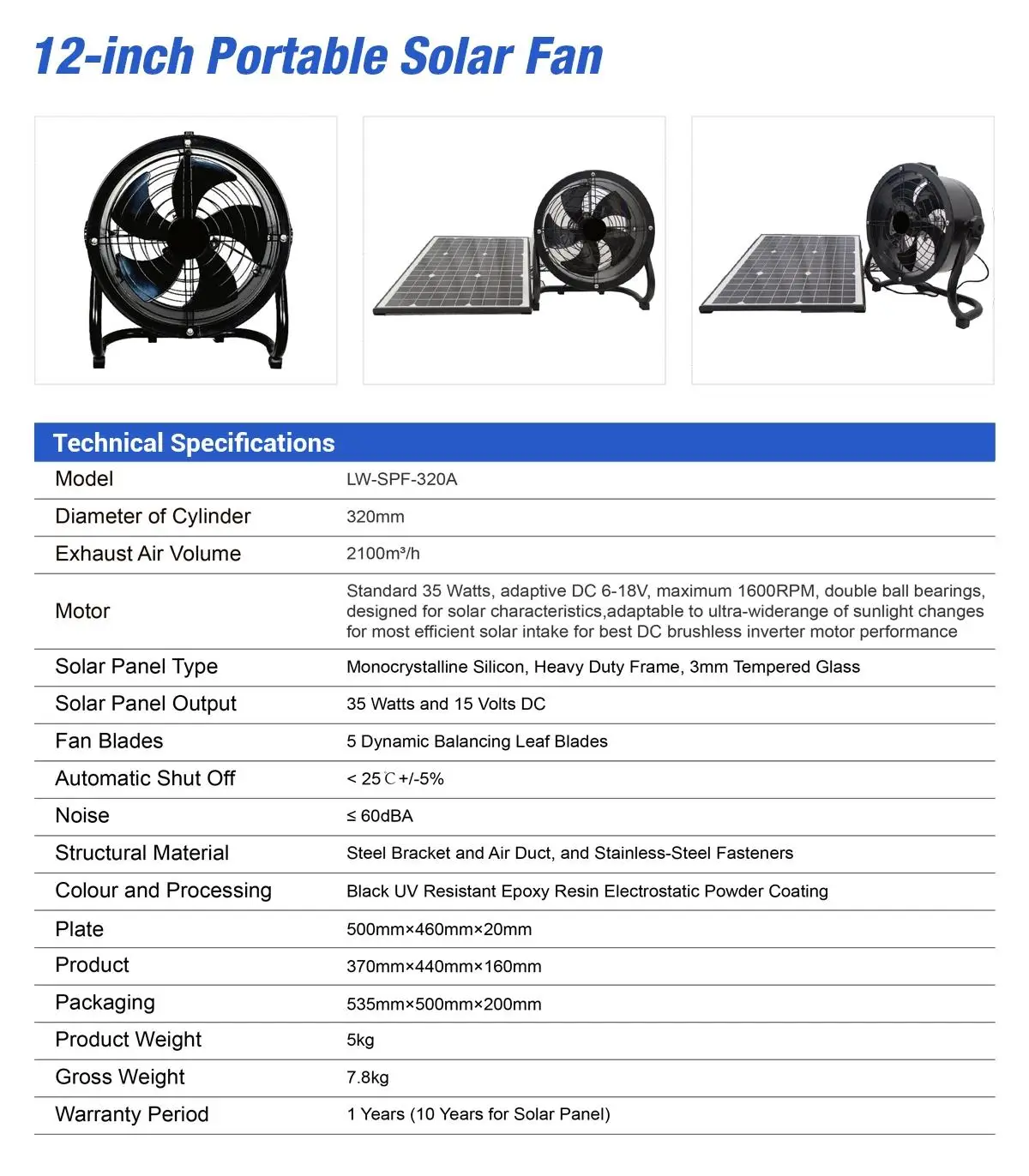

Description

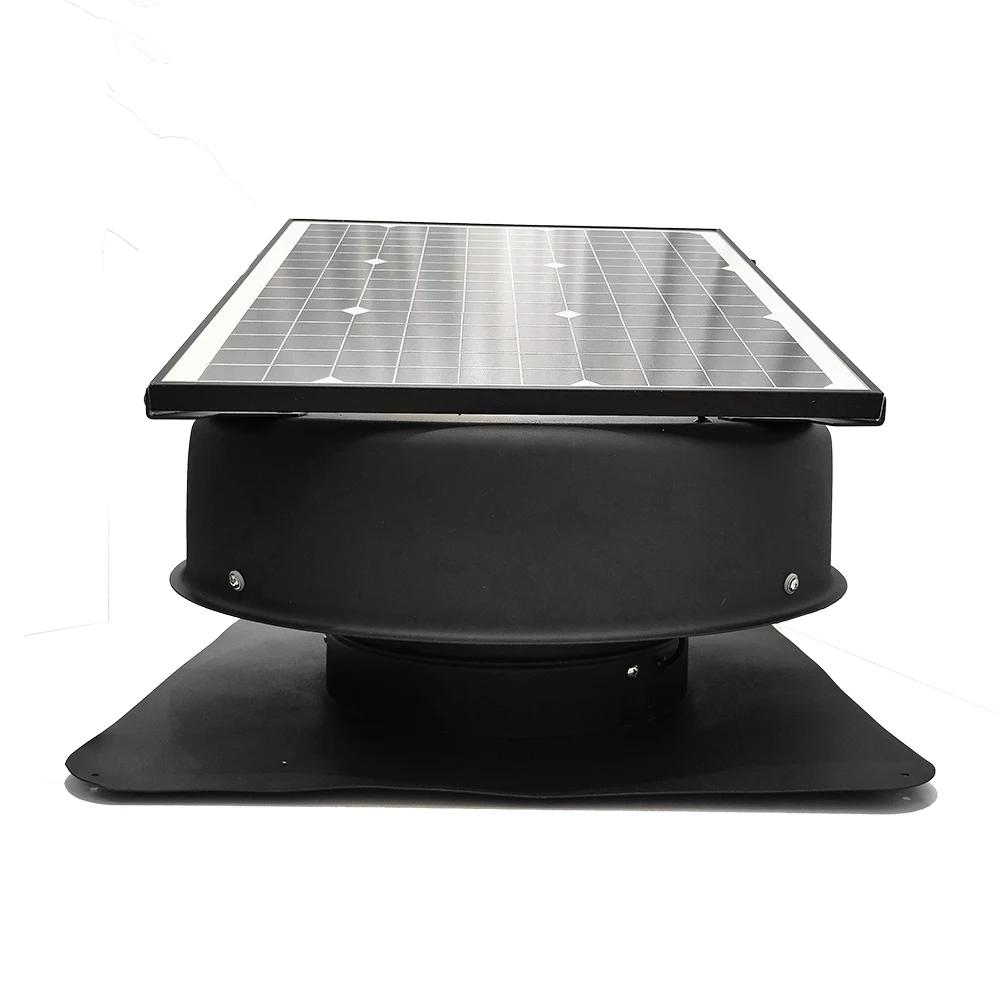

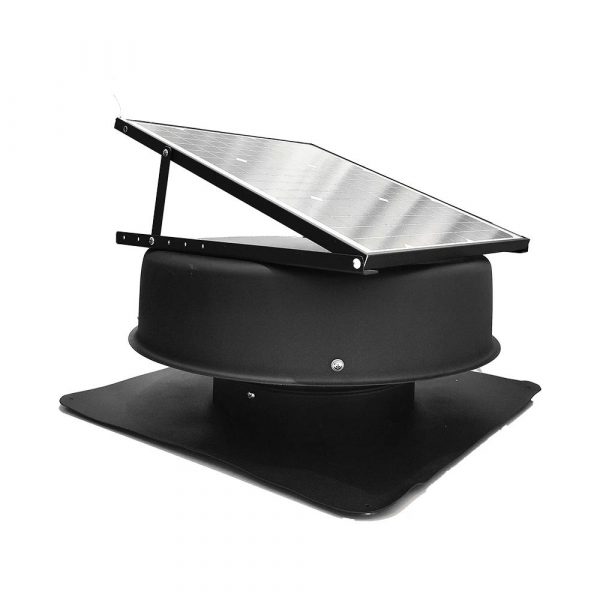

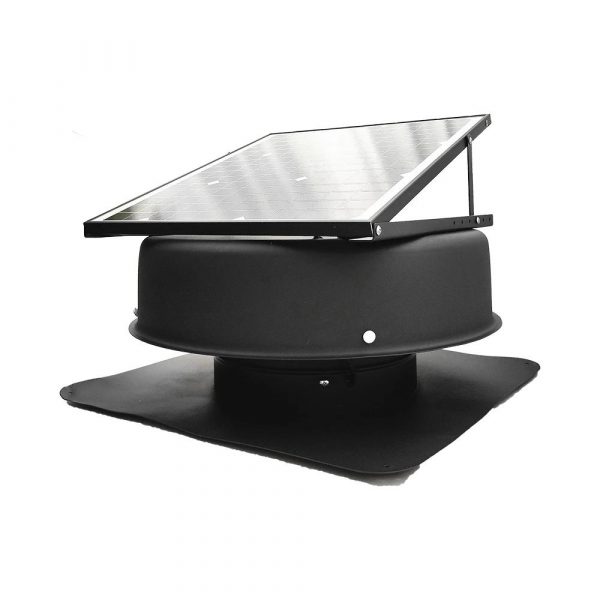

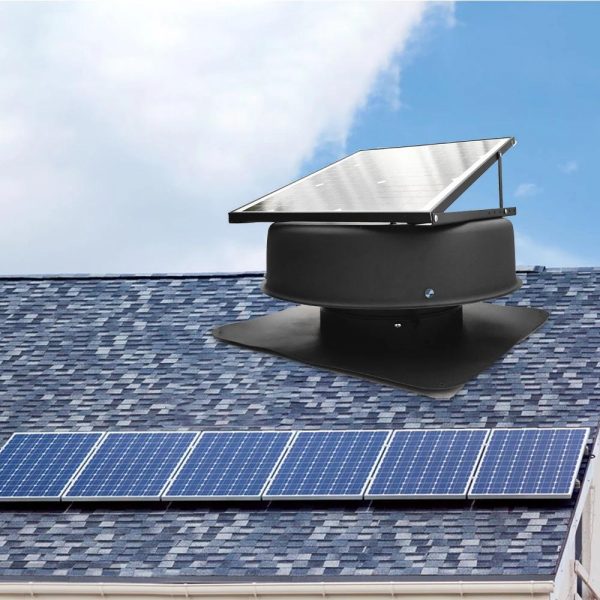

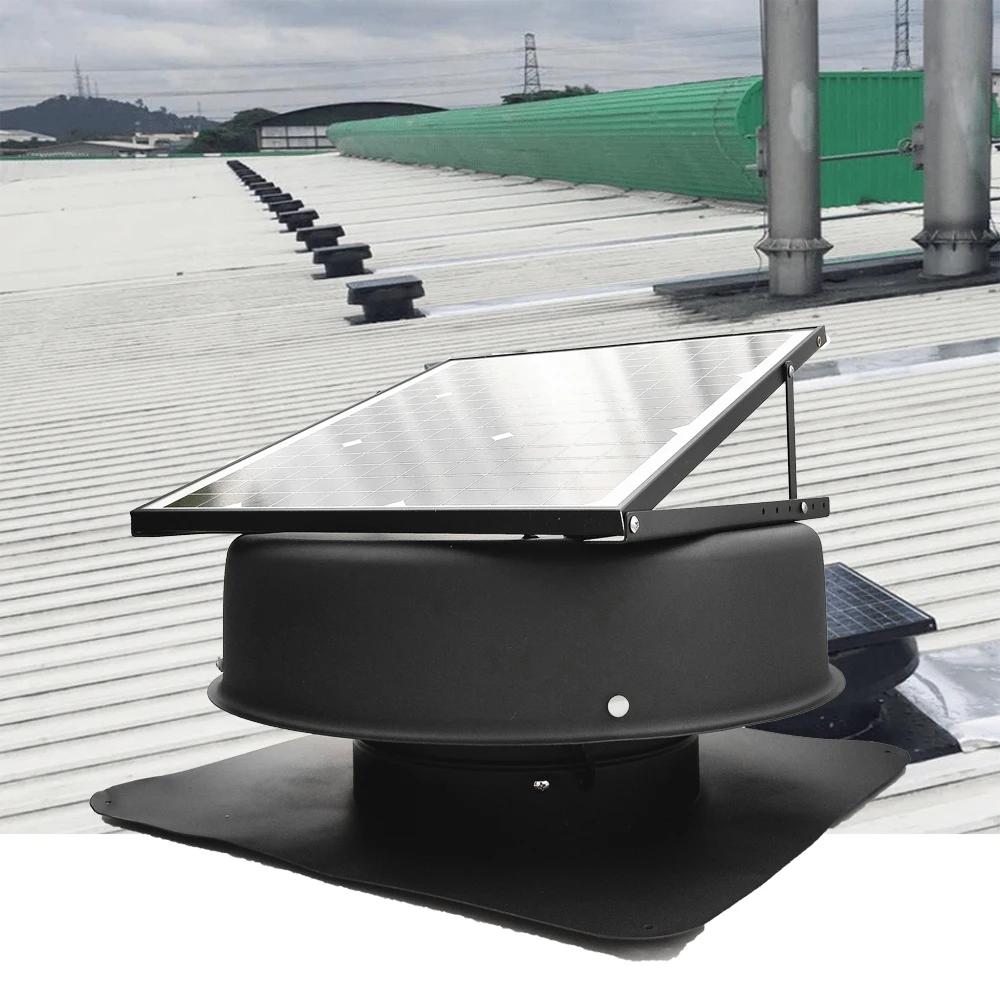

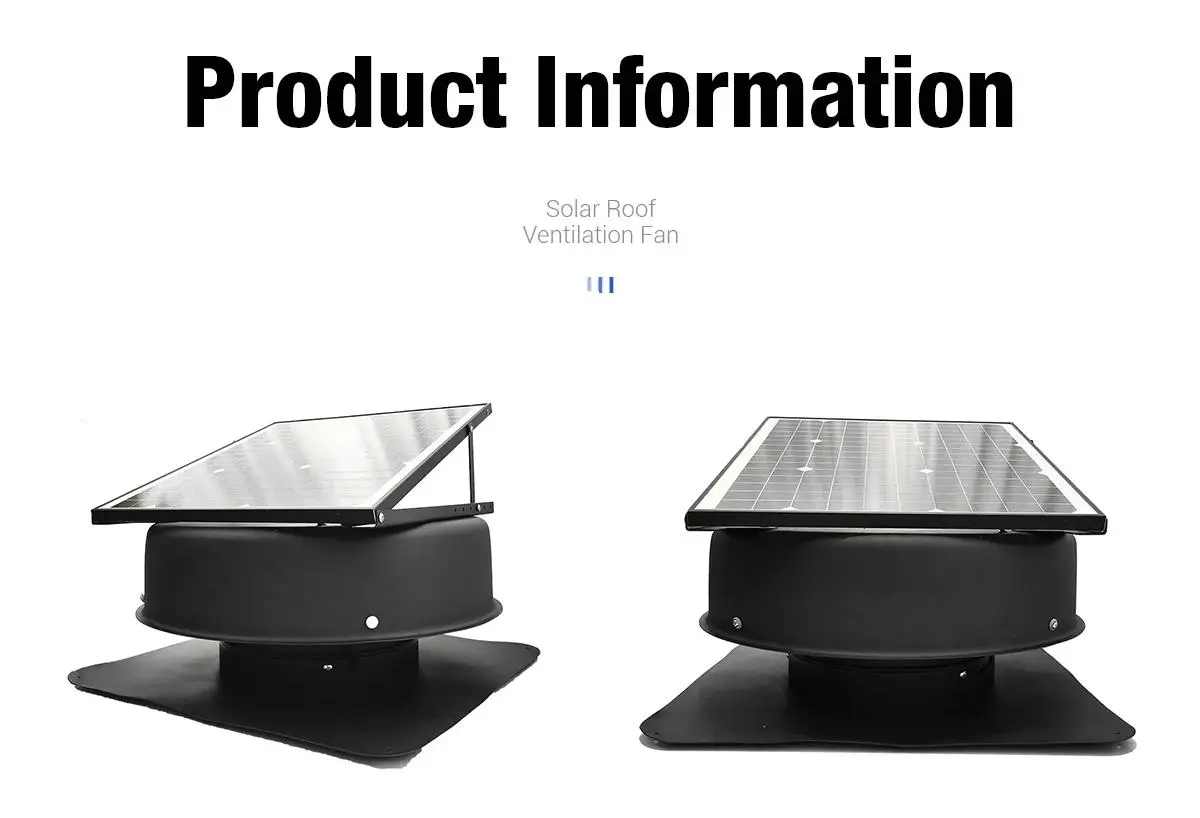

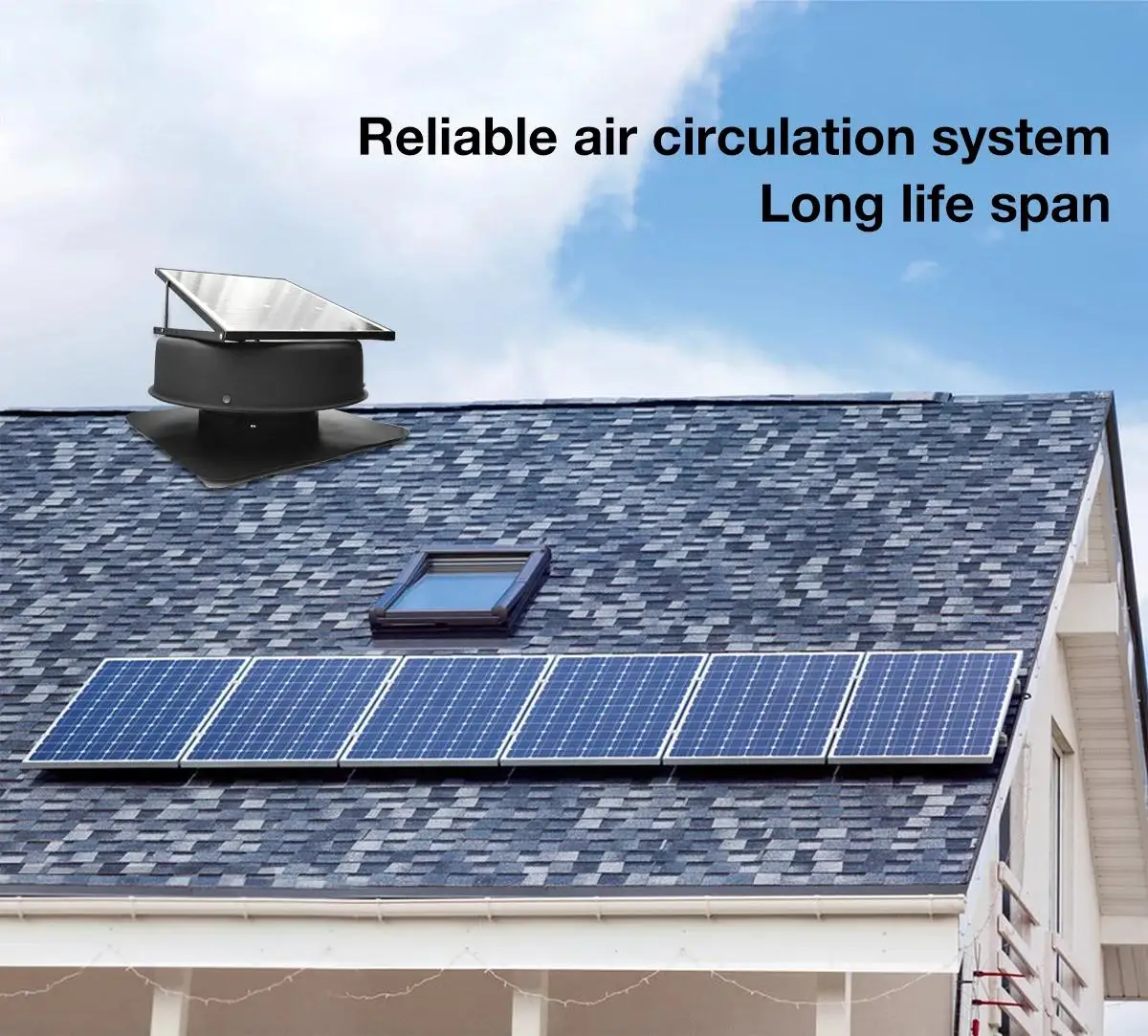

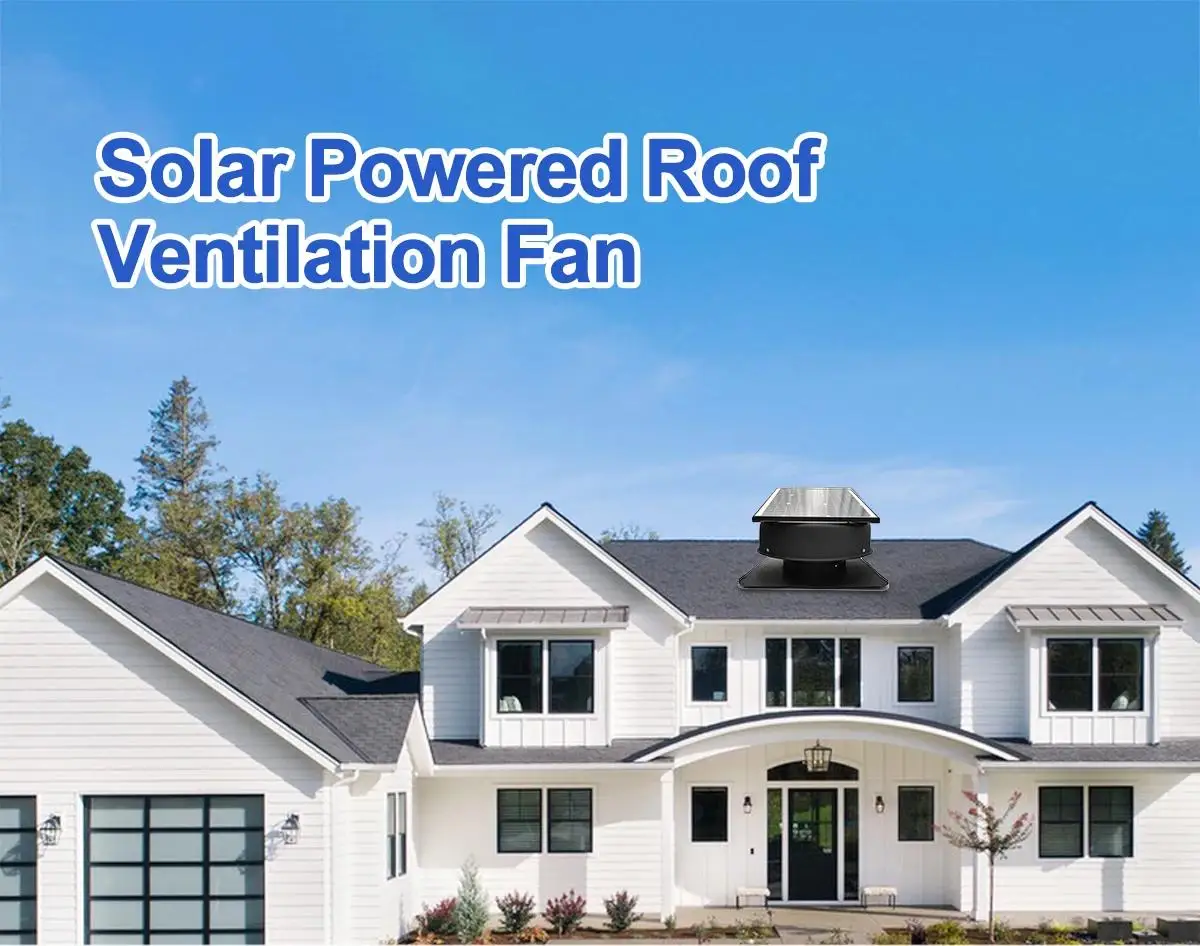

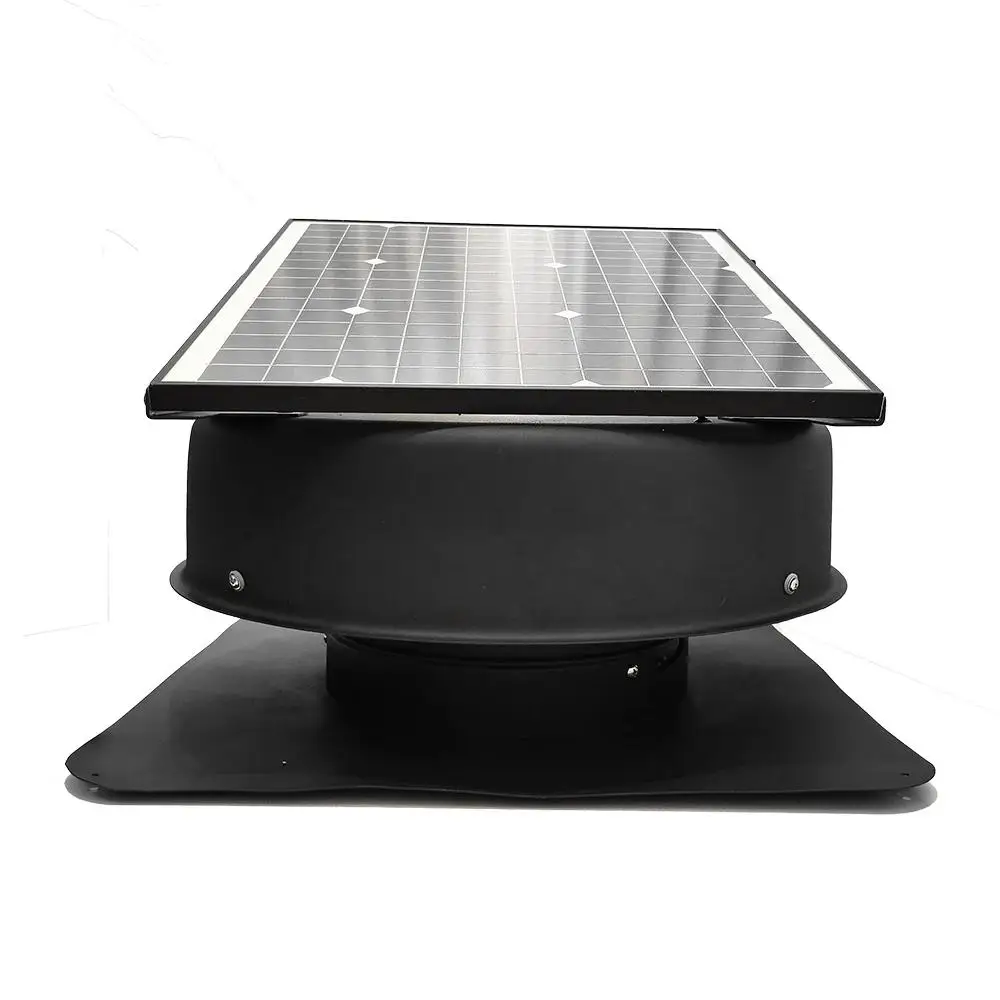

Greenhouse Heat Extraction Cooling Vent Solar panel Powered Attic fan Solar Air Blower Roof Mount DC Exhaust Fan

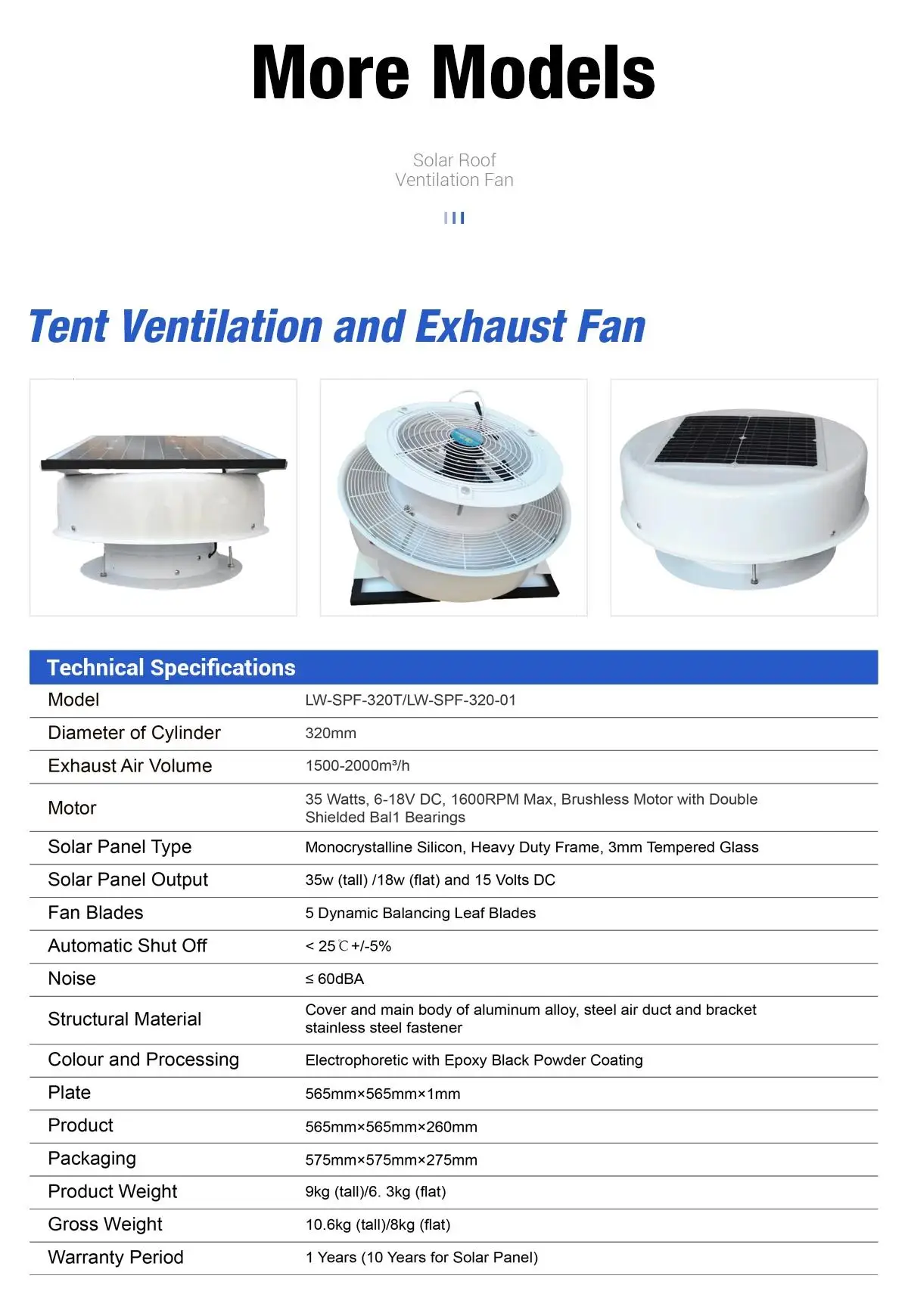

Model :
LW-SPF-320D/LW-SPF-320E,
LW-SPF-320F,LW-SPF-320G
LW-SPF-600A,LW-SPF-600B
Diameter of Cylinder:
320mm
600mm
Exhaust Air Volume:
1500-2500m³/h
6000-7000m³/h
Solar Panel Type :
Monocrystalline Silicon ,Heavy Duty Frame 3mm Tempered Glass
Solar Panel Output:
25/30/35/45 watts and 15 volts DC
150/180 watts and 36 volts DC
Fan Blades :
5 Dynamic Balancing Leaf Blades
3 Dynamic Balancing Leaf Blades
Automatic Shut Off ：
＜25℃±5%
Noise :
≤60 dBA
≤80 dBA

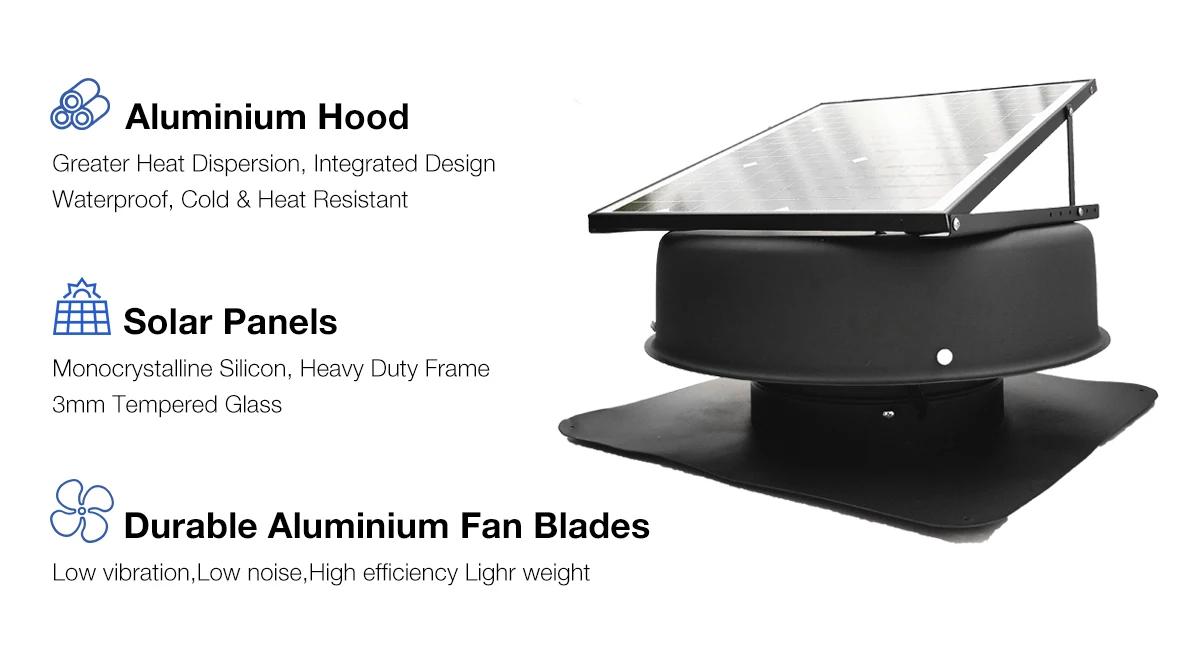

Structural Material :
Aluminum Alloy Cover and Main Body .Steel bracket and Air Duct , and Stainless-steel Fasteners
Colour and Processing:
Black UV Resistant Epoxy Resin Electrostatic Power Coating
Plate :
565mmx565mmx1mm
930mmx930mmx1mm
Product Size :
565mmx565mmx260mm
1130mmx1130mmx380mm
Packing Dimensions :
575mmx575mmx275mm
1160mmx1160mmx400mm
Product Weight :
7.2/7.5/7.8/8.4kg
30/31kg
Gross Weight :
9/9.3/9.6/10.2kg
35/36kg
Warranty :
1 Year ( 10 years for Solar Panel )

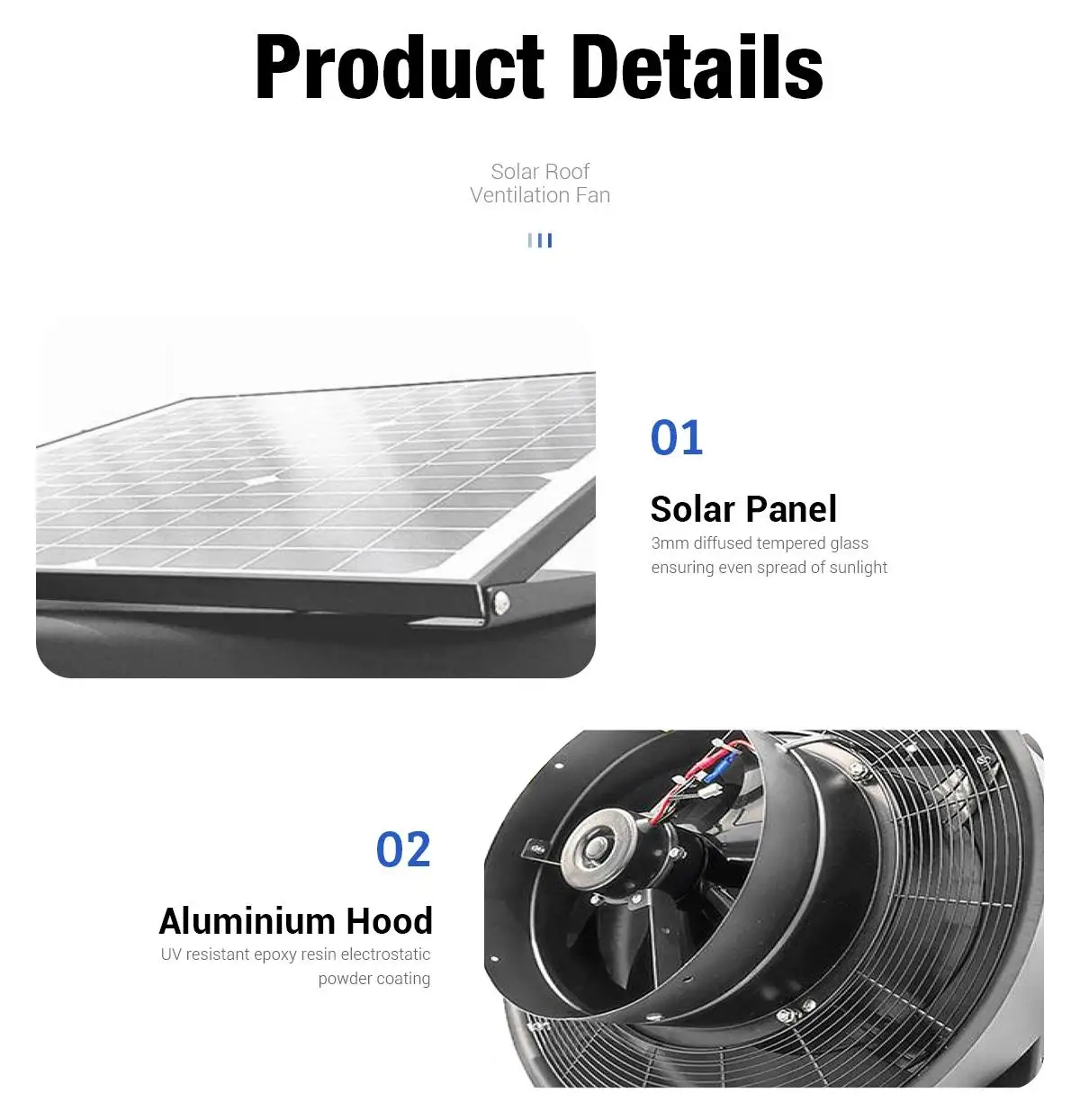

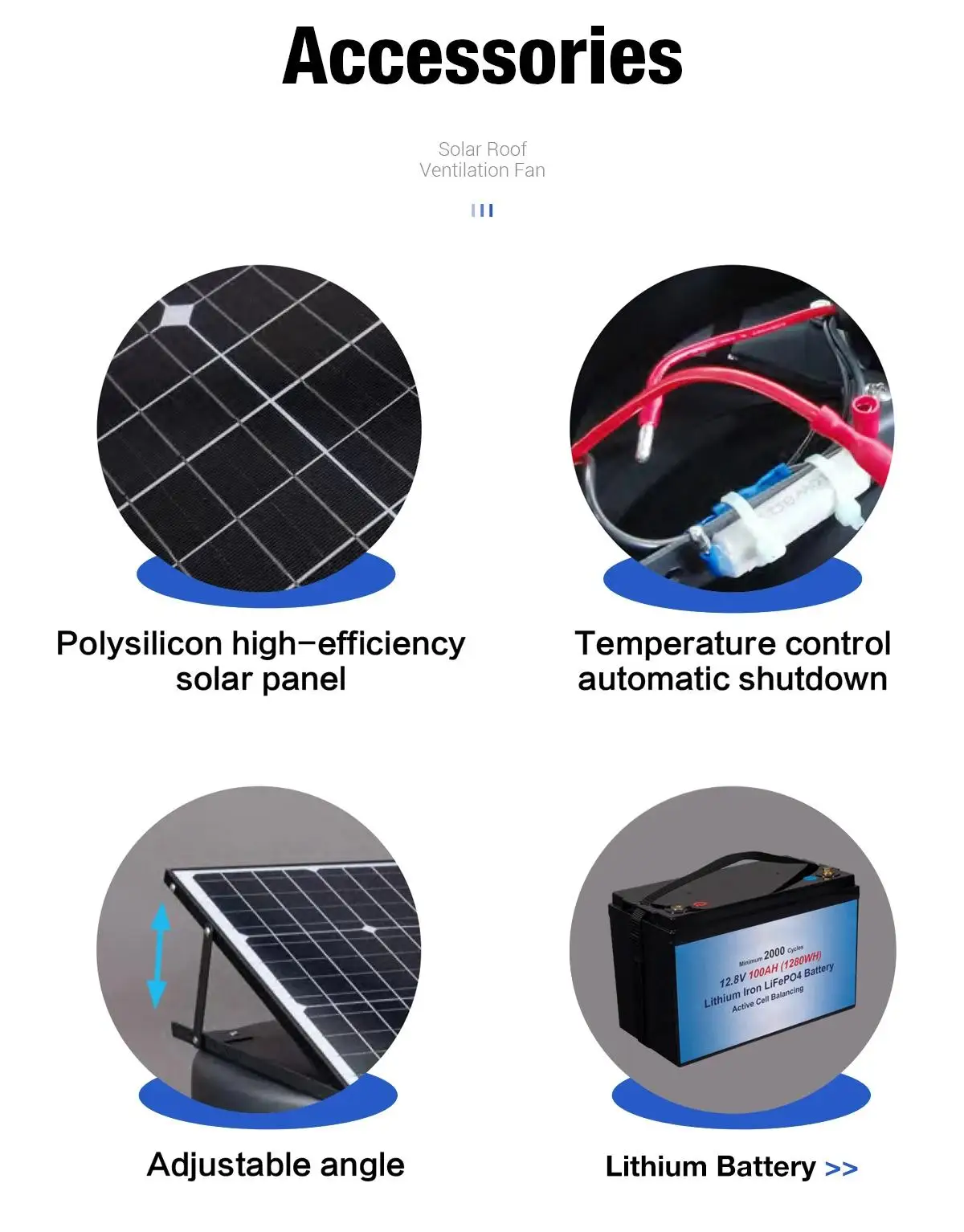

Polysilicon High -efficiency solar panel
Monocrystalline Silicon, Heavy Duty Frame,

3mm Tempered Glass
Lithium Battery Option
12V150-300Ah，12V100-150Ah Check details with our sales team

Additional information

mounting type

FREE STANDING
Voltage

36VDC, 15VDC
speed

2500rpm, 3000RPM, 4500rpm, 2700RPM, 2100rpm, 1350RPM, 14000Rpm
Power Source

Electric
Type

Duct Axial Fan
blade material

Cast Iron
bearing type

Ball Bearing
customized support

OEM, ODM
place of origin

Zhejiang, China
brand name

Longwell
model number

LW-200mm
warranty

1 Year
after-sales service provided

Free spare parts
Material

Stainless Steel
Product name

Solar panel Powered Attic fan
Solar Panel Power

25/30/35Watts
Diameter of Cylinder

320mm/600mm
Solar Panel Type

Monocrystalline silicon ,Heavy Duty Frame 3mm Tempered Glass
Fan Blades

5 Dynamic Balancing leaf Blades
Noise Level

≤ 60 dBA
Application

Solar type Roof Fans
Leading time

23 ~ 25 days
Exhaust air Volume

1500-2500m³/h(320) -6000-700m³/h(600)
Selling units

Single item
Single package size

58X58X28 cm
Single gross weight

8.000 kg
