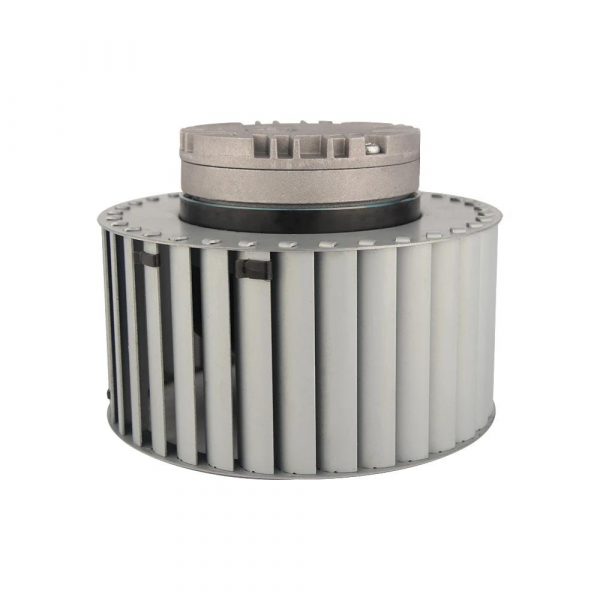

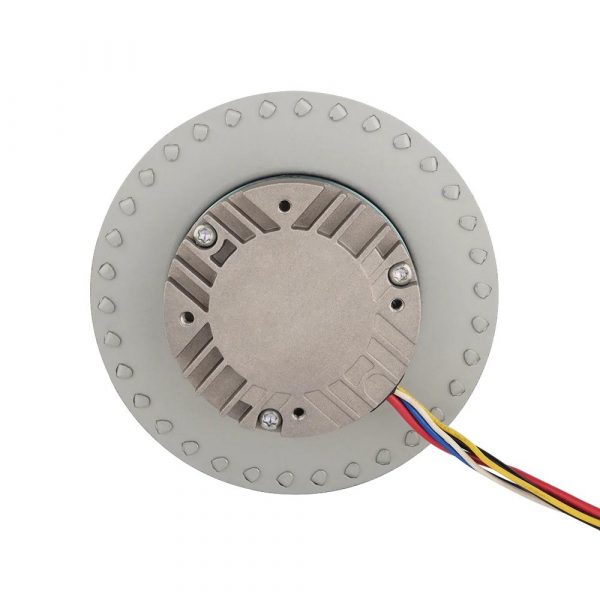

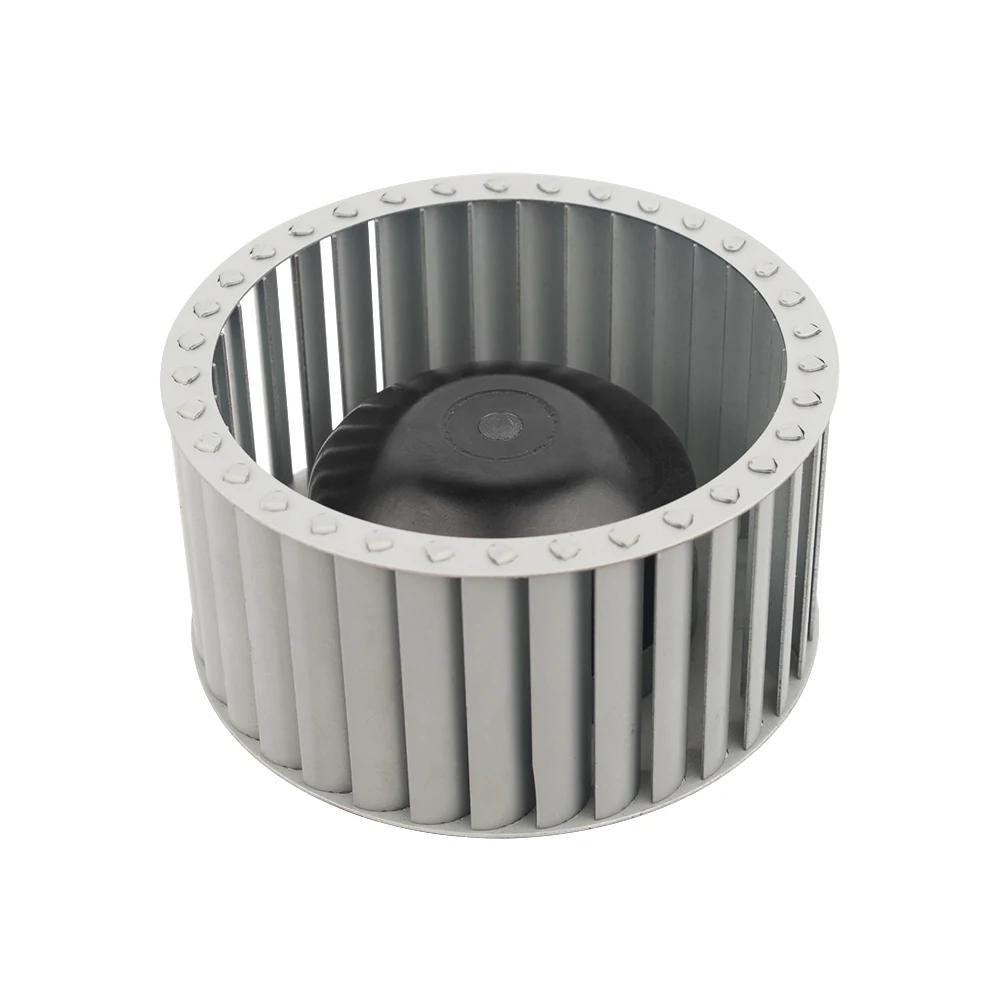

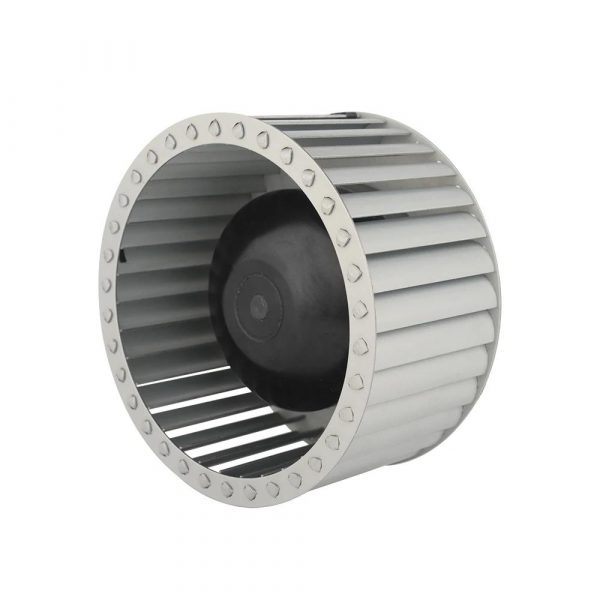

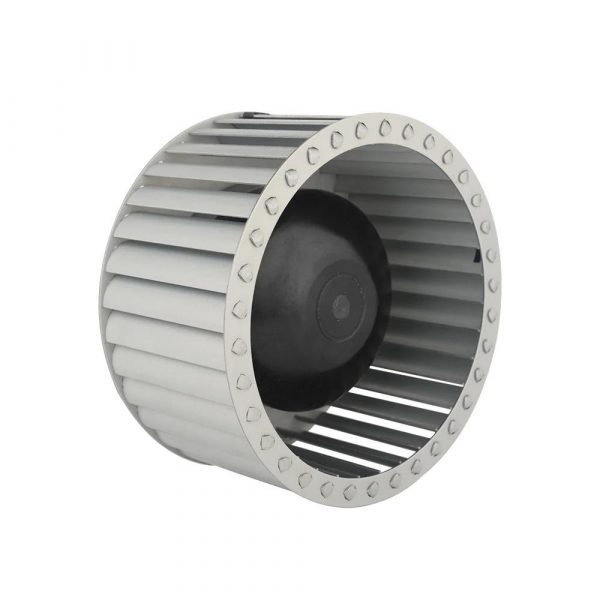

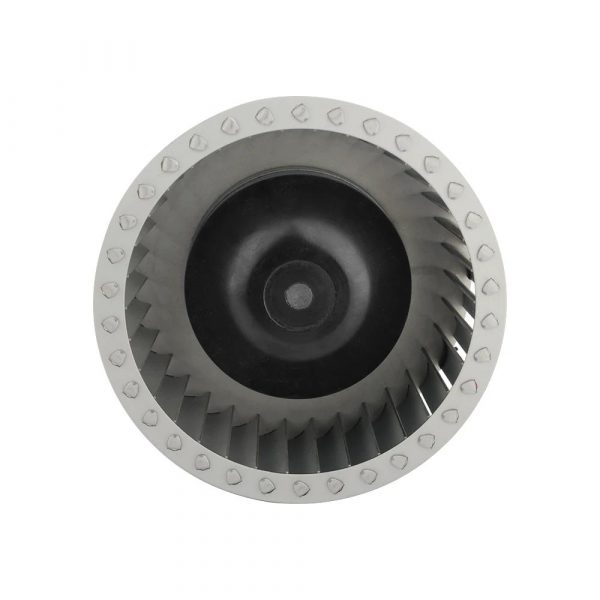

LONGWELL AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V, for AHU, FFU, Fan Coil Units

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsCentrifugal Blower FanExternal Rotor MotorKitchen Exhaust
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL forward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search forward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

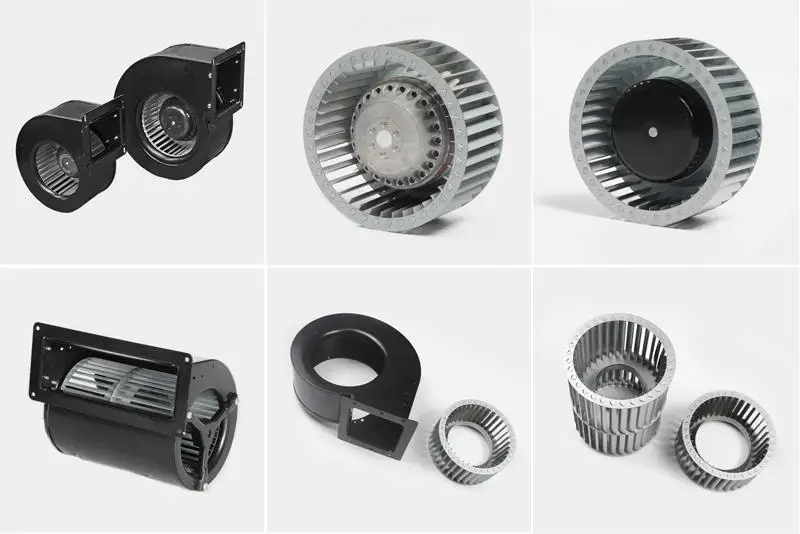

ac 230v centrifugal blower fan
Product Description
  • Size :120mm~180mm
  • Voltage : 230 V / 115V ( 50Hz / 60 Hz )
  • Impeller Material: Galvanized Sheet Steel;
  • Housing Material : Cast Iron / Galvanized Metal;
  • Protection: Thermal Overload Protector(TOP)wired internally;
  • Type of Protection: IP44;
  • Direction of Rotation: Clockwise,see on the lead;
  • Bearing Type: Ball Bearing;
  • Approvals: CE,UL,CCC;
  • Operation Model: (S1);
  • Amb.Temp: -10~+60℃;
  • Motor Insulation: B/F.
Model Voltage Frequency Power Current Speed Air Flow Air pressure Noise Capacitor
  V V W A RPM m³/h Pa dBA μF
LWFBSH120-4E 230 50 45 0.2 1460 255 400 53 2
LWFBSH120-2E 230 50 81 0.37 2670 135 190 60 2
LWFBSH133-4E 230 50 48 0.21 1470 260 405 55 2
LWFBSH133-2E 230 50 85 0.39 2680 140 210 62 2
LWFBSH140-4E 230 50 55 0.26 1470 230 230 56 2
LWFBSH140-2E 230 50 110 0.51 2680 430 460 63 3
LWFBSH150-4E 230 50 55 0.35 1460 295 315 59 3
LWFBSH150-2E 230 50 110 0.76 2650 525 545 65 6
LWFBSH160-4E 230 50 69 0.36 1460 435 355 59 3
LWFBSH160-2E 230 50 203 0.91 2460 610 585 53 6

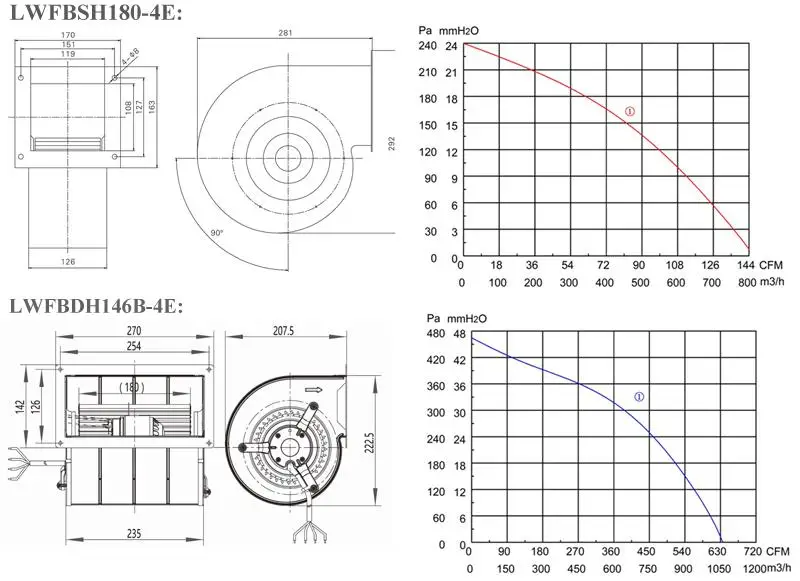

LWFBSH180-4E 230 50 145 0.66 1400 810 240 63 4
LWFBSH180-4D 380 50 145 0.36 1400 810 240 63 /
LWFBDH120-4E 230 50 105 0.48 1720 460 310 60 2
LWFBDH133A-4E 230 50 180 0.81 1500 650 390 68 4
LWFBDH133B-4E 230 50 260 1.16 1450 960 435 68 6
LWFBDH146B-4E 230 50 280 1.25 1350 1050 465 69 8

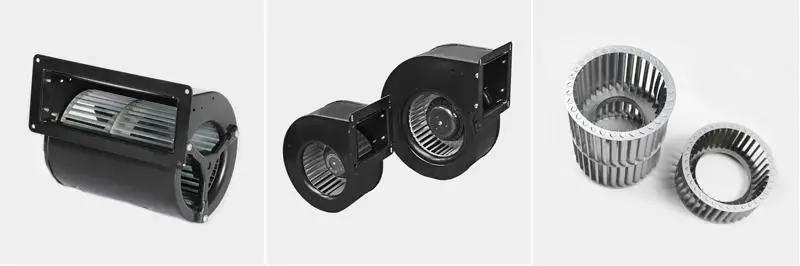

ac 230v centrifugal blower fan

ac 230v centrifugal blower fan

Inquiry Us ,please click here .

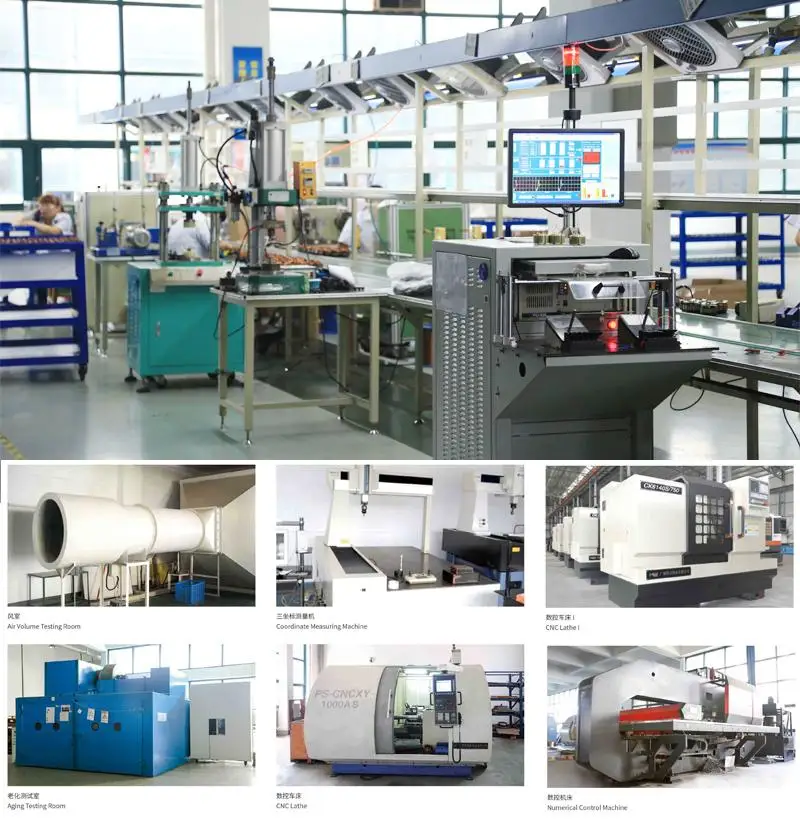

Company Information

Longwell co.,ltd are typically purchased as OEM solutions by manufacturering companies or as aftermarket solutions and replacement parts for HVAC,FCU,FFU,AHU system .

Customers can select form the large variety of preexisting products developed by Longwell including but not limited to :

AC motorized centrifugal fans & blowers ;

Brushless DC/EC motorized backward / forward centrifugal fans & blowers ;

cross flow fan / wheel / blower with motor ( plastic or metal metal ) ;

axial fans / blades with plastic or metal material ;

Shaded Pole Motors ;

Duct fans ;

Parts or assemble parts or repair parts for HVAC,AHU,FCU,FFU,etc.

ac 230v centrifugal blower fan

Buying Guides

ac 230v centrifugal blower fan

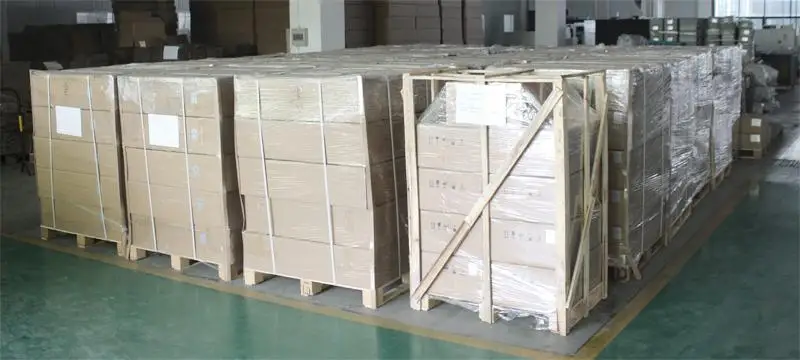

Packaging & Shipping
  • Sample :7~10 days ;
  • Bulk order : 18~23 days after receiving order information .
  • Package : Standard exporting package , carton with pallet . ( package can be customized )
  • Shippment : Air express ,sea shippment , EXW ,LCL ,etc all available .

ac 230v centrifugal blower fan

ac 230v centrifugal blower fan

Contact information

Contact Us

Inquiry Us ,please click here



Additional information

Voltage

110v /220v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

STAINLESS STEEL
customized support

OEM, ODM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

ac 230v centrifugal blower fan
power input

115/230/380V
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

30X30X30 cm
Single gross weight

3.000 kg
