LONGWELL Industrial Fan, Industrial Ventilation Fan, 110V

Voltage 110v /220v
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 8

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryDuct Fan Booster
TagsCentrifugal FanHydroponicsInline Duct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Duct Fan Booster range. The Fan Selector lists every LONGWELL duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

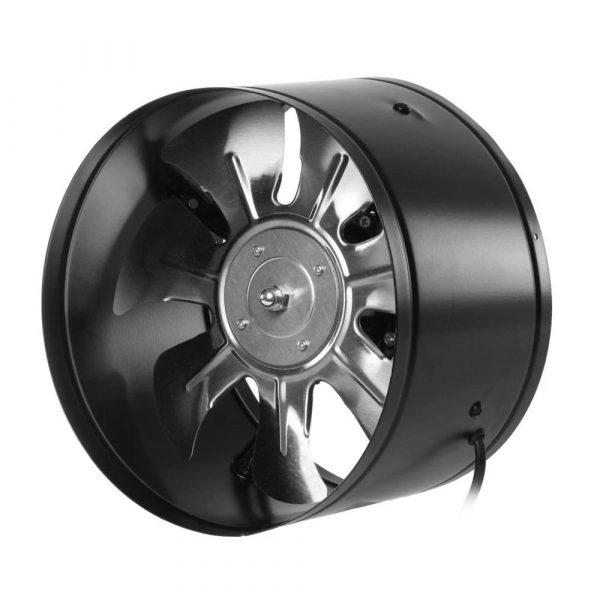

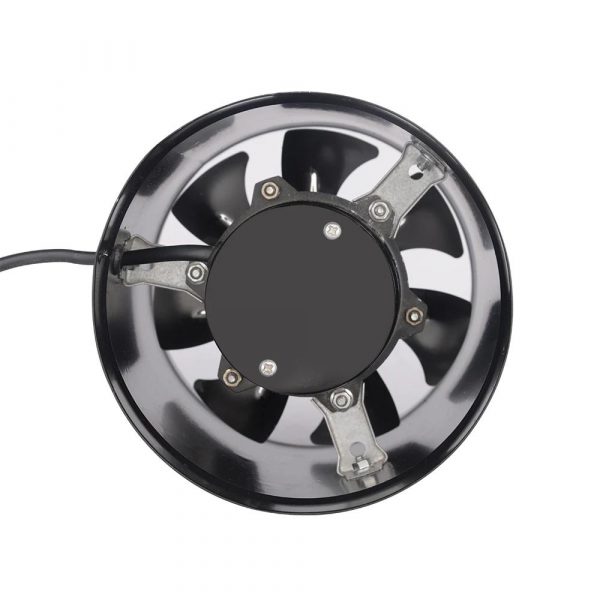

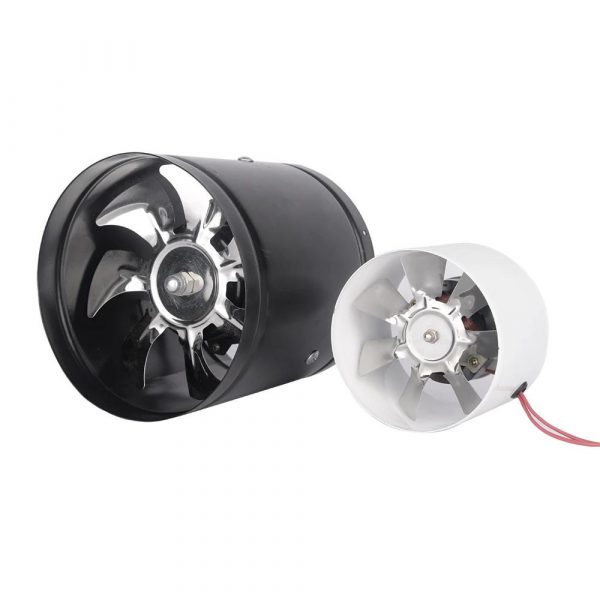

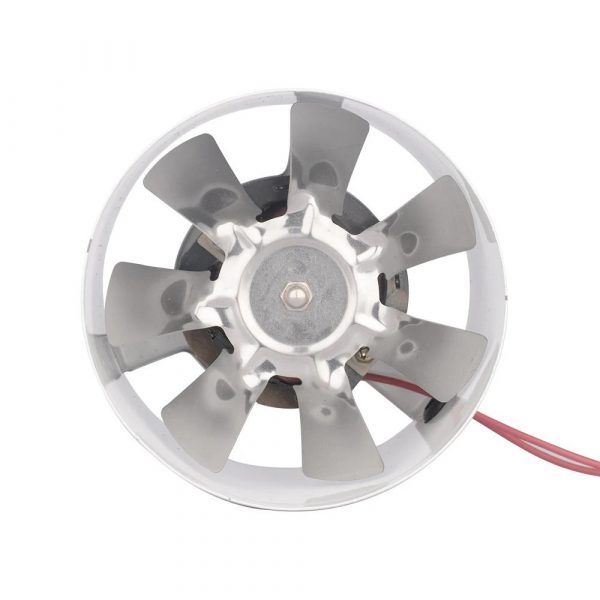

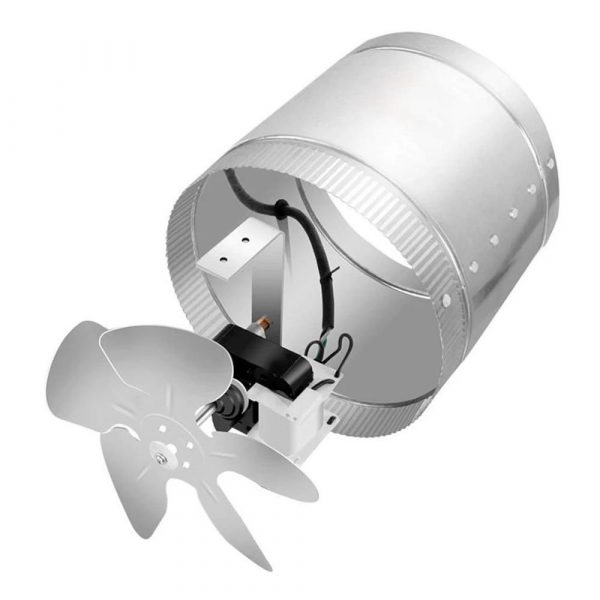

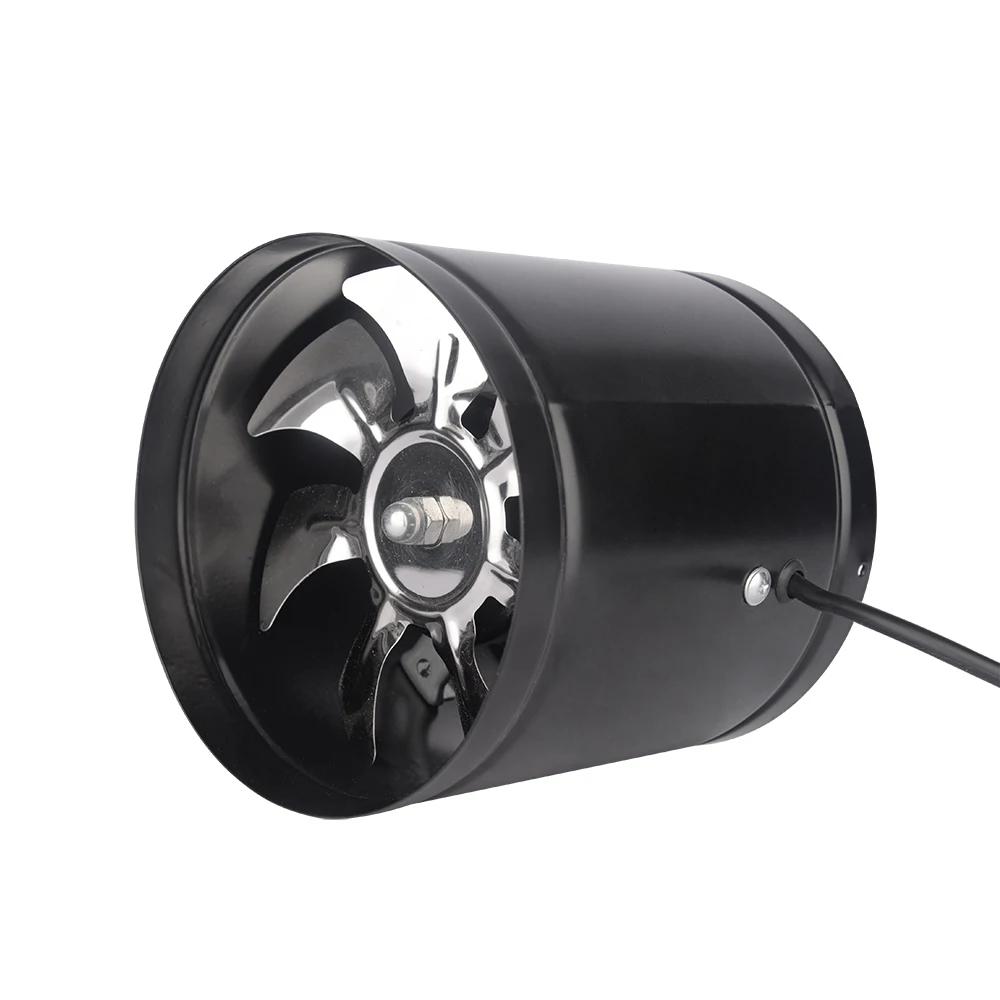

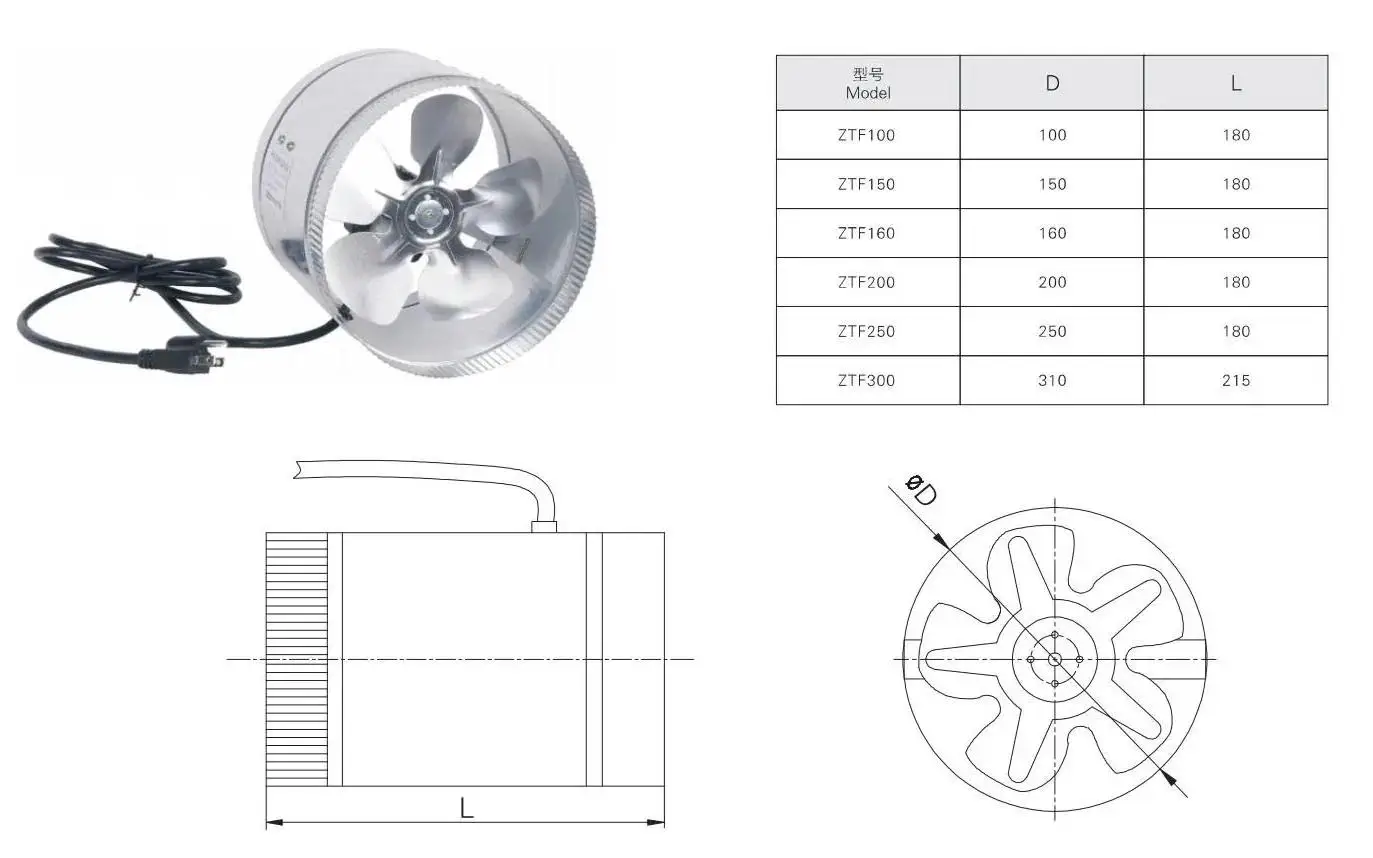

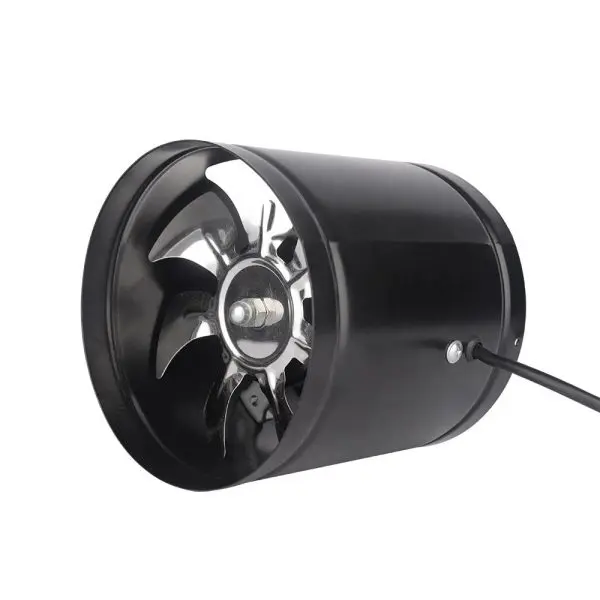

6” Inch Inline Duct Booster Fan Ventilator Booster Exhaust Hydroponic Vent Air
Model No,
Voltage
Frequency
Power Input
Current
Speed
Air Flow
V
Hz
W
A
RPM
m³/h
ZTF-100
110-120
60
12
0.35
2930
195
220-240
50
15
0.34
2550
170
ZTF-150
110-120
60
37
0.64
2963
467
220-240
50
30
0.8
2590
408
ZTF-160
110-120
60
39
0.65
2963
480
220-240
50
32
0.82
2590
420
ZTF-200
110-120
60
42
0.80
2970
791
220-240
50
43
0.70
2680
714
ZTF-250
110-120
60
98
0.82
2850
1583
220-240
50
95
0.74
2540
1411
ZTF-300
220-240
50
165
0.8
2300
2130
220-240
50
85
0.35
1400
1600

Additional information

Voltage

110v /220v
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Stainless Steel
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

Duct Booster Fan
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

Stainless Steel, Plastic, aluminum alloy, Steel
Type

Hydroponics Centrifugal Duct Fan
power input

AC 110/230
casing material

Plastic & Metal
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,Rohs ,ETL, CCC
Motor type

AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

40X40X30 cm
Single gross weight

6.000 kg
