LONGWELL 133mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, 72 W, for Cold Storage, Air Purifiers, HVAC Systems

$ 100

Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsBackward Curved Centrifugal FanEC MotorOEM Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

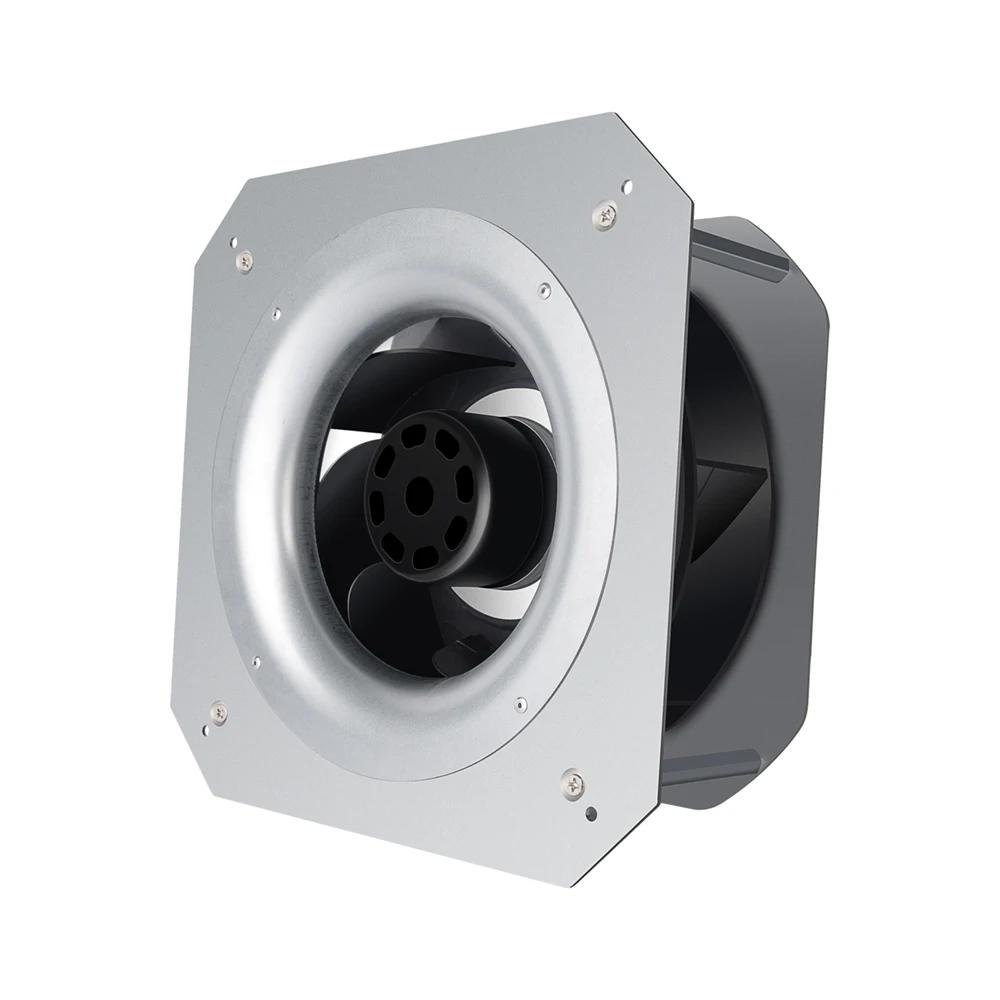

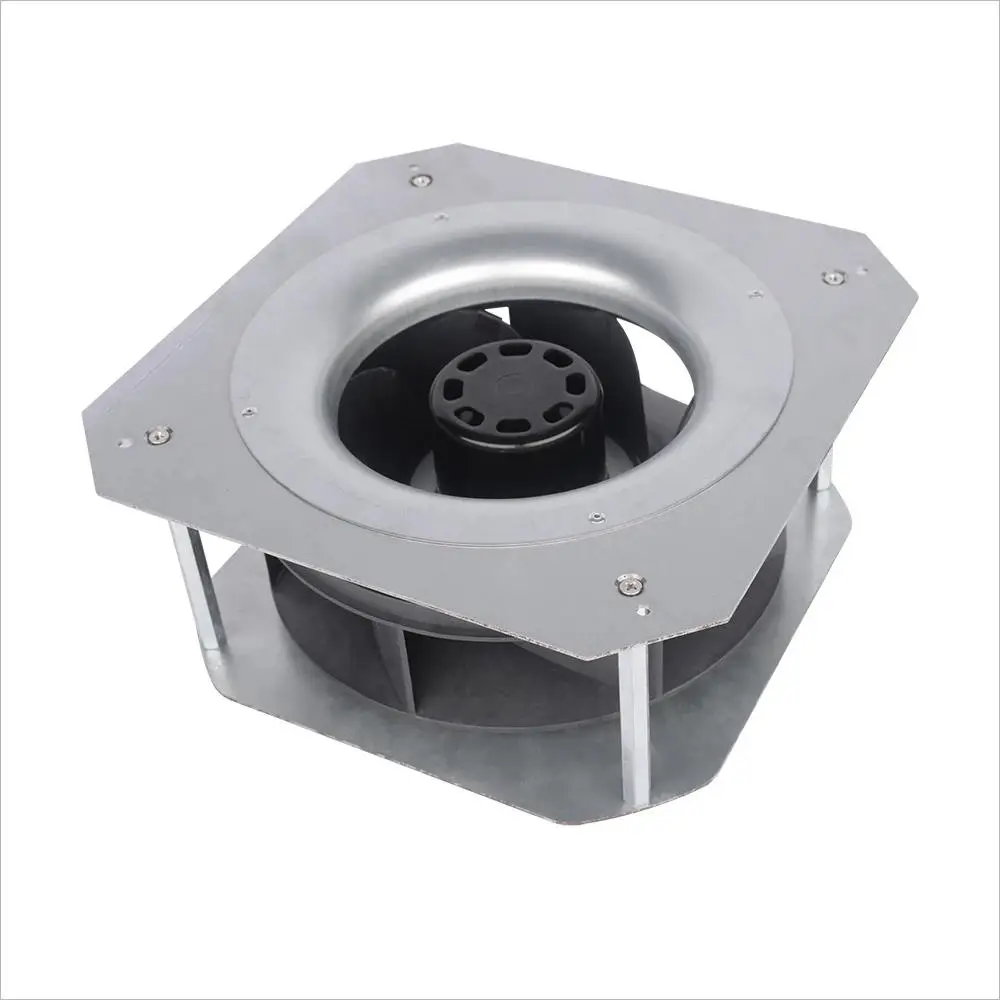

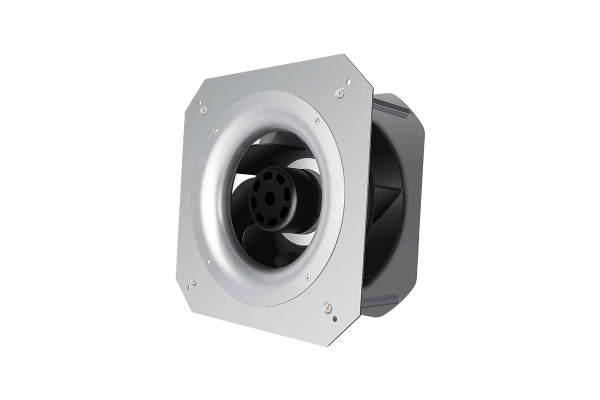

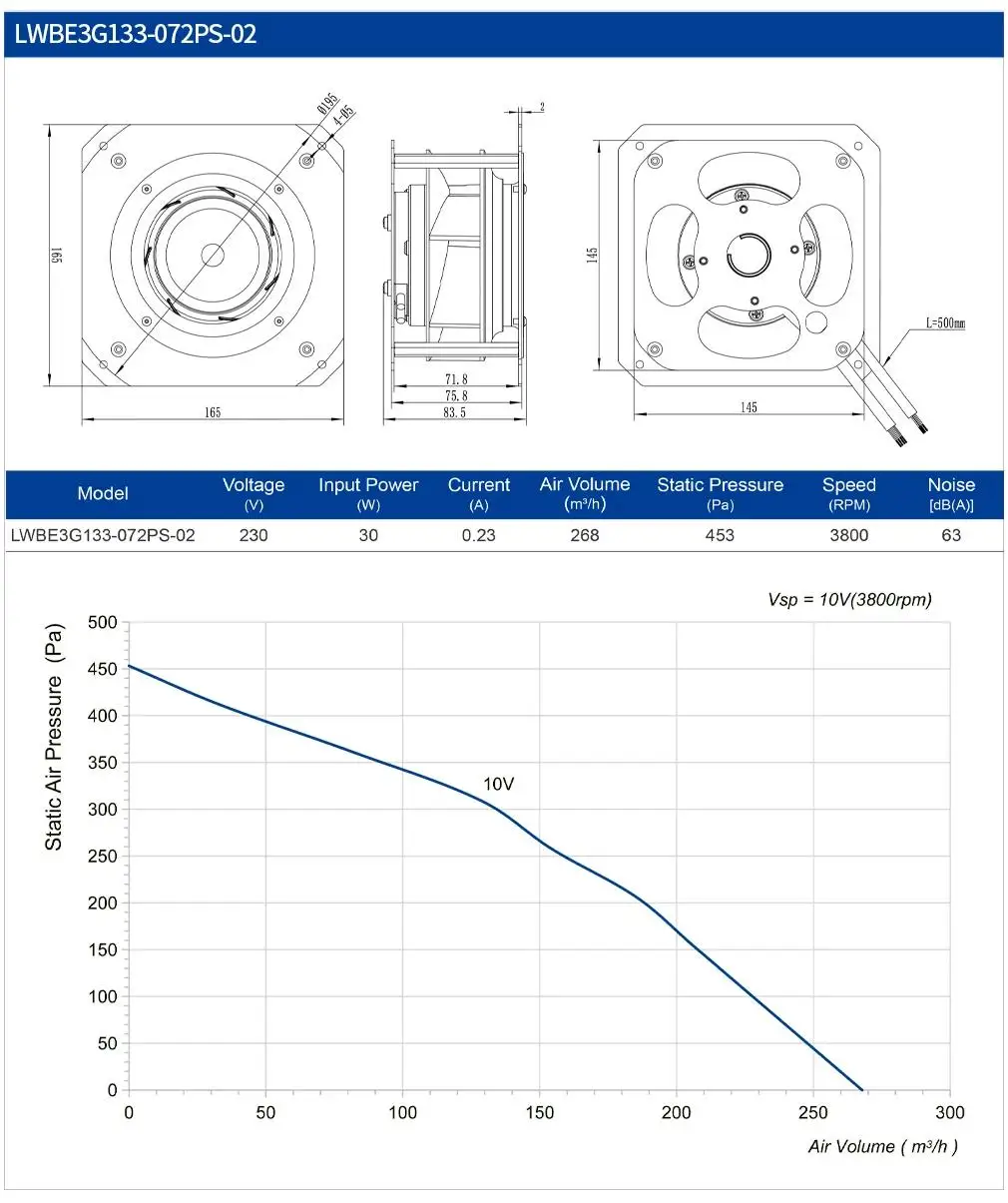

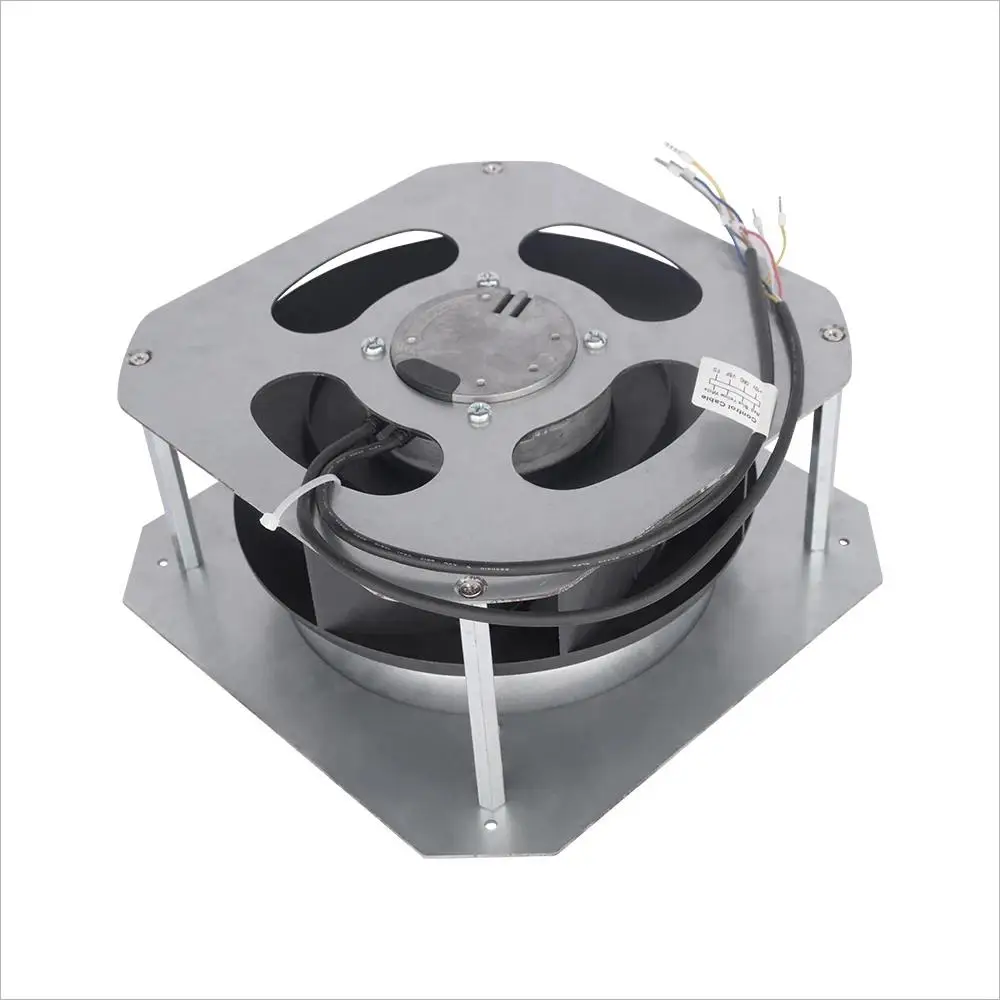

LWBE3G 133mm 30W 152cfm 3800RPM EC backward curved centrifugal fan with support bracket and panel
Voltage Ranges :

115V,230V
Frequency :

50/60 Hz
Diamter :

133mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent/Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 133mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, 72 W, for Cold Storage, Air Purifiers, HVAC Systems”

Your email address will not be published. Required fields are marked *

More in this series

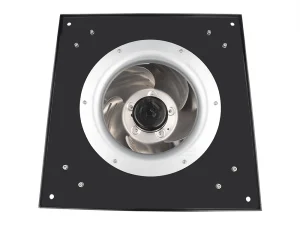

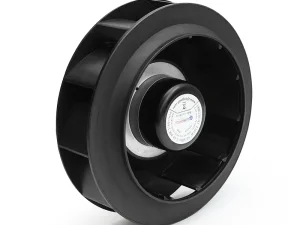

LONGWELL DC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 12V, for FFU, Fan Coil Units, HVAC SystemsLONGWELL DC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 12V, for FFU, Fan Coil Units, HVAC Systems12/24VDC/ 48VDCDC external rotor motorView & InquireLONGWELL LWBE3G355-102NT-25 EC Backward-Curved Centrifugal Fan — Ø355 mm Impeller, 380 VAC, Without housing / bracketLONGWELL LWBE3G355-102NT-25 EC Backward-Curved Centrifugal Fan — Ø355 mm Impeller, 380 VAC, Without housing / bracket102 mm6180 m³/h380 VDatasheet, curve & drawing →LONGWELL LWBE3G220-072NS-08 EC Backward-Curved Centrifugal Fan — Ø220 mm Impeller, 230 VAC, Without housing / bracketLONGWELL LWBE3G220-072NS-08 EC Backward-Curved Centrifugal Fan — Ø220 mm Impeller, 230 VAC, Without housing / bracket72 mm1184.5 m³/h230 VDatasheet, curve & drawing →LONGWELL 225mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, 115 W, for AHU, FFU, Data Center CoolingLONGWELL 225mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, 115 W, for AHU, FFU, Data Center Cooling4 in230 V4000 RPMView & InquireLONGWELL 450mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, Aluminum Alloy, for AHU, FFU, Data Center CoolingLONGWELL 450mm EC Plug Fan, EC Centrifugal Blower Fan, 230V, Aluminum Alloy, for AHU, FFU, Data Center Cooling4 in230 V4000 RPMView & InquireLONGWELL EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, Stainless Steel, for AHU, FFU, Data Center CoolingLONGWELL EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, Stainless Steel, for AHU, FFU, Data Center Cooling133mm230 V3500rpmView & InquireLONGWELL 225mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V, 120 W, for HVAC Systems, Cold Storage, Air PurifiersLONGWELL 225mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V, 120 W, for HVAC Systems, Cold Storage, Air PurifiersView & InquireLONGWELL 92mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 2523.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G310-092PS-08LONGWELL 92mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 2523.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G310-092PS-0892 mm2523.5 m³/h230 VView & InquireLONGWELL AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355LONGWELL AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, for AHU, Air Purifiers, HVAC Systems – LWBE3G355230V2800rpmEC external rotor motorView & InquireLONGWELL 92mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP44, 700 m³/h Airflow, 180 Pa Static Pressure – LWBA4E250-092NS-01LONGWELL 92mm AC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP44, 700 m³/h Airflow, 180 Pa Static Pressure – LWBA4E250-092NS-0192 mm700 m³/h230 VDatasheet, curve & drawing →
