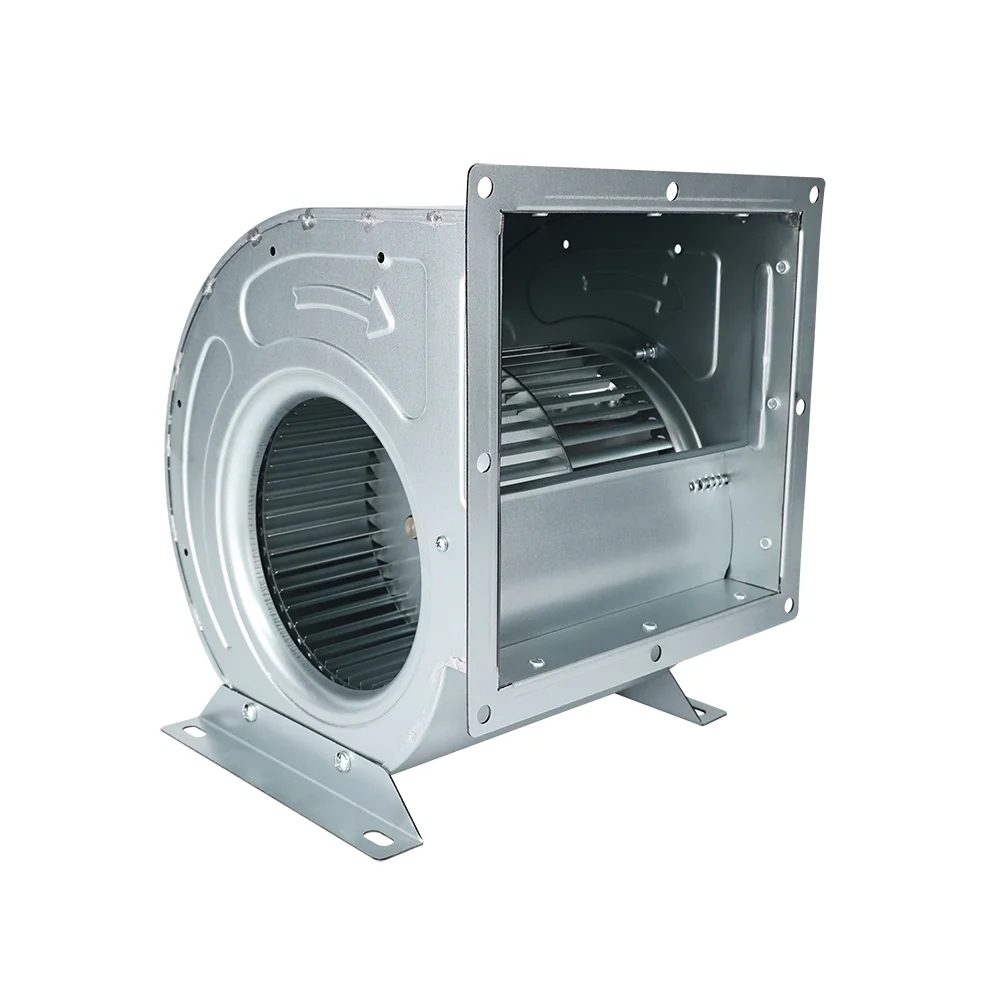

LONGWELL 10mm AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, 450 W

Inlet Ø 10-10
Voltage 230 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

High efficiency and energy-saving design,intelligent control and integration,low noise and low vibration,compact structure and high reliability,diverse application scenarios,easy maintenance and environmental characteristics

Specifications
Motor
AC
Speed
850 RPM
Power Input
450W 6P
Frequency
50 Hz
Category: Tags: , ,
CategoryIndustrial Centrifugal Fans
TagsAC FanIndustrial Centrifugal FanIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fans range. The Fan Selector lists every LONGWELL industrial centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search industrial centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Material Metal
Technical Feature High efficiency and energy-saving design,intelligent control and integration,low noise and low vibration,compact structure and high reliability,diverse application scenarios,easy maintenance and environmental characteristics

Nominal data

Type of Voltage AC
Dimensions 10-10
Nominal Voltage 230V
Frequency 50Hz
Current 3.5A
Power Input 450W 6P
Speed 850RPM
Static Pressure(Max) /
Air Flow(Max) /
Noise /

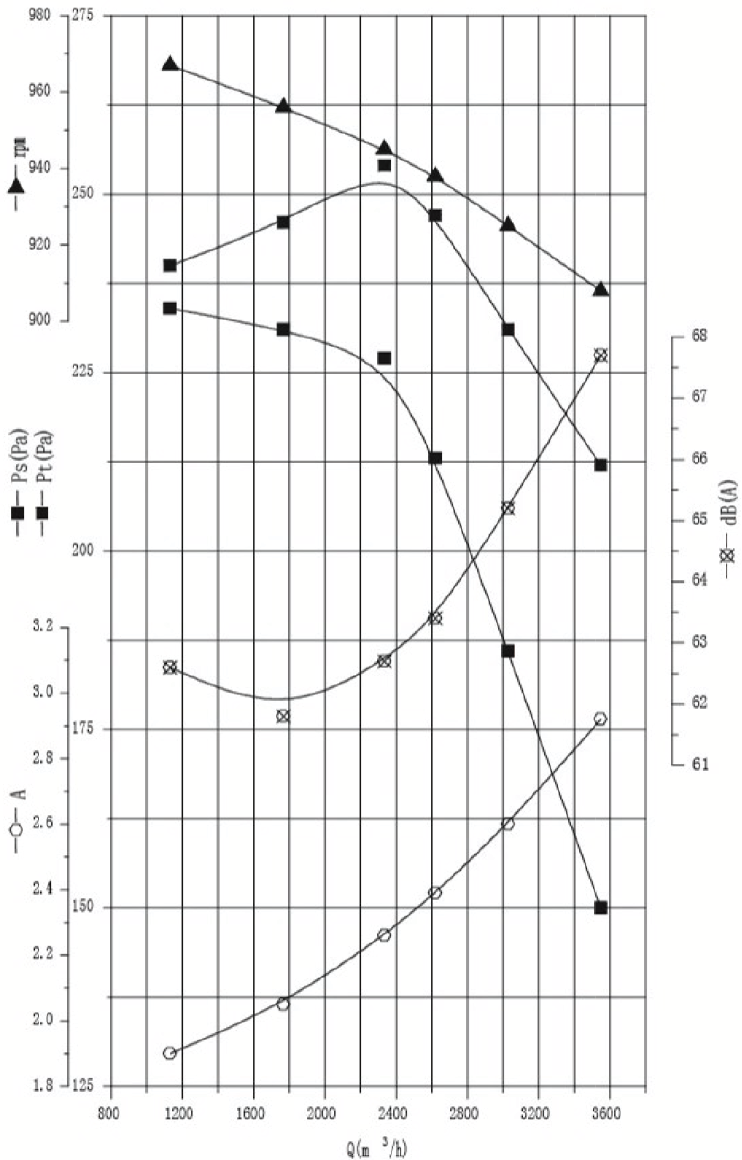

Curves

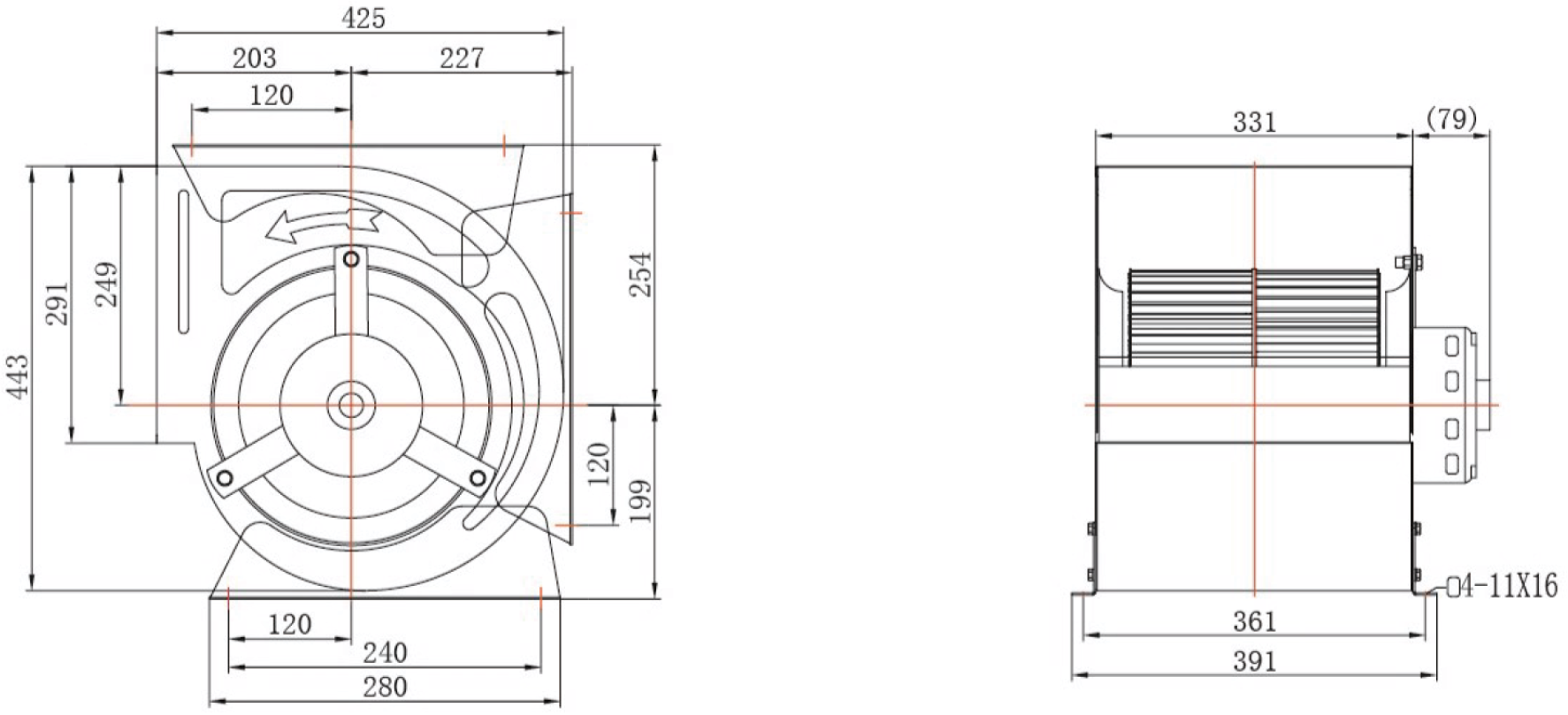

Drawing

Download

The Company Longwell Leading Fan and Motor Innovator Worldwide

As a leading supplier of ventilation and drive technology, LONGWELL is a highly respected engineering partner in many industries. With over than 20,000 different products, we provide the right solution for every need. And we have always worked according to the highest economic and ecological standards.

As part of the logical next step in the development of our high-efficiency BLEC MOTOR technology, we believe that industrial digitalization offers the best prospects for our customers in the future. LONGWELL already offers intelligently interconnected complete solutions that are second to none worldwide and ensure that our customers always remain that decisive step ahead.

LONGWELL Product Line

LONGWELL product line

LONGWELL Certificate

LONGWELL Certificate

Trusted by top Brands

LONGWELL Trusted by top Brands

Additional information

airflow

/
ac dc ec

AC
Material

Metal
type

AC
speed

850.0
voltage

230.0
frequency

50.0
current

3.5
sound power

450W 6P
noise

/
dimensions

10-10
sound pressure

/

Reviews

There are no reviews yet.
