Description
Technical Description
| Technical Feature | 1.Low noise,high wind volume.Silver bull independent research and development design,for the first time in China. 2.New standard rivet nuts (embedded) to facilitate user docking and reduce flange costs. 3.On the basis of the old model,a new impeller design is adopted to increase the wind pressure and volume. 4.And in the fan intake side of the integrated molding,optimize the intake diversion,increase strength. |
Nominal data
| Dimensions | / |
| Voltage | 220V/380V |
| Frequency | 50Hz |
| Power | 1.5KW |
| Speed | 2840r/min |
| Total Head | 1510-1390Pa |
| Air Flow | 2500-3100m³/h |
| Noise | 83dB(A) |
Curves

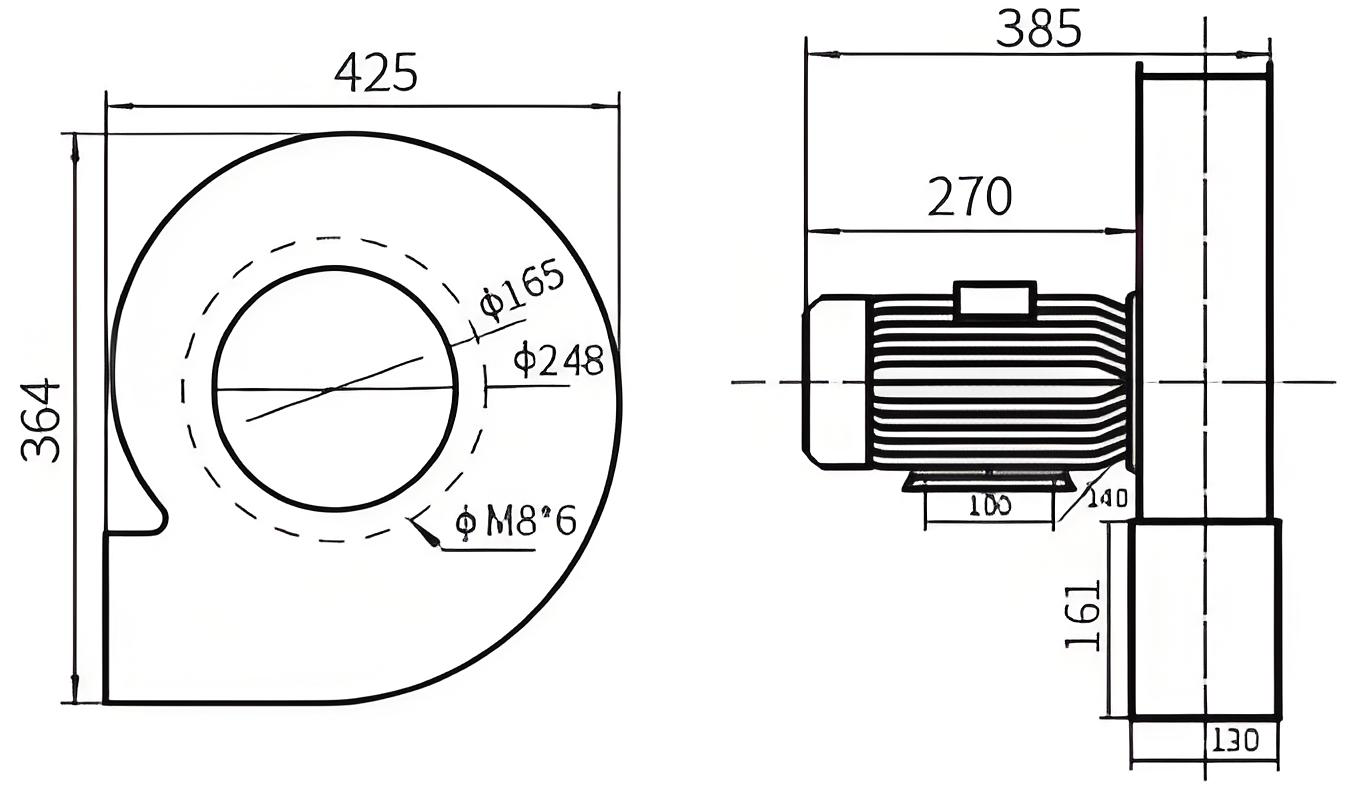

Drawing
Download
