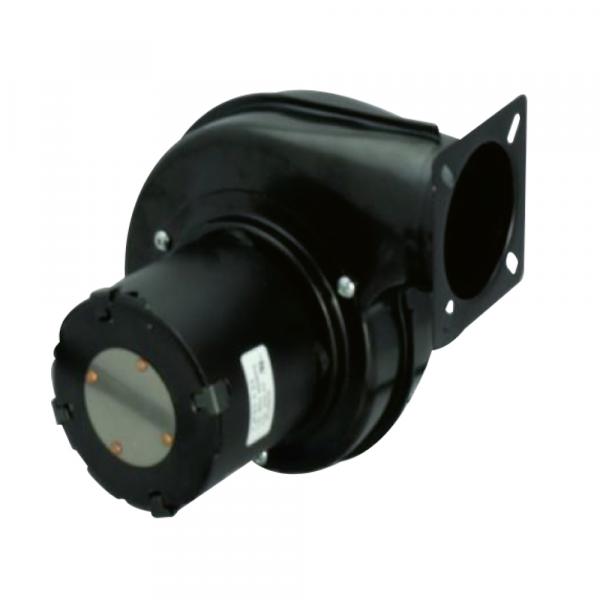

LONGWELL Gas Blower, Industrial Gas Blower Fan – LWGE097U-08

Air Flow 124 m³/h
Static Pressure 288 Pa
Voltage 115 V

$ 10

Specifications
Motor
EC
Speed
2820 RPM
Power Input
60 W
Frequency
60 Hz
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Gas Blowers range. The Fan Selector lists every LONGWELL gas blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search gas blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø20–2,038 mm, single units up to about 79,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Impeller Material Plastic
Housing Material Aluminum
Protection Class /
Insulation Class B
Connection Port /
Bearings Maintenance-free ball bearings
Way to Install /
Flue Temperature /
Technical Feature Thermally protected,motor anti-vibration mounted

Nominal data

Dimensions /
Nominal Voltage 115V
Frequency 60Hz
Power Input 60W
Current 0.9A
Speed 2820RPM
Static Pressure(Max) 288Pa
Air Flow(Max) 124m³/h
Noise /
Net Weight /

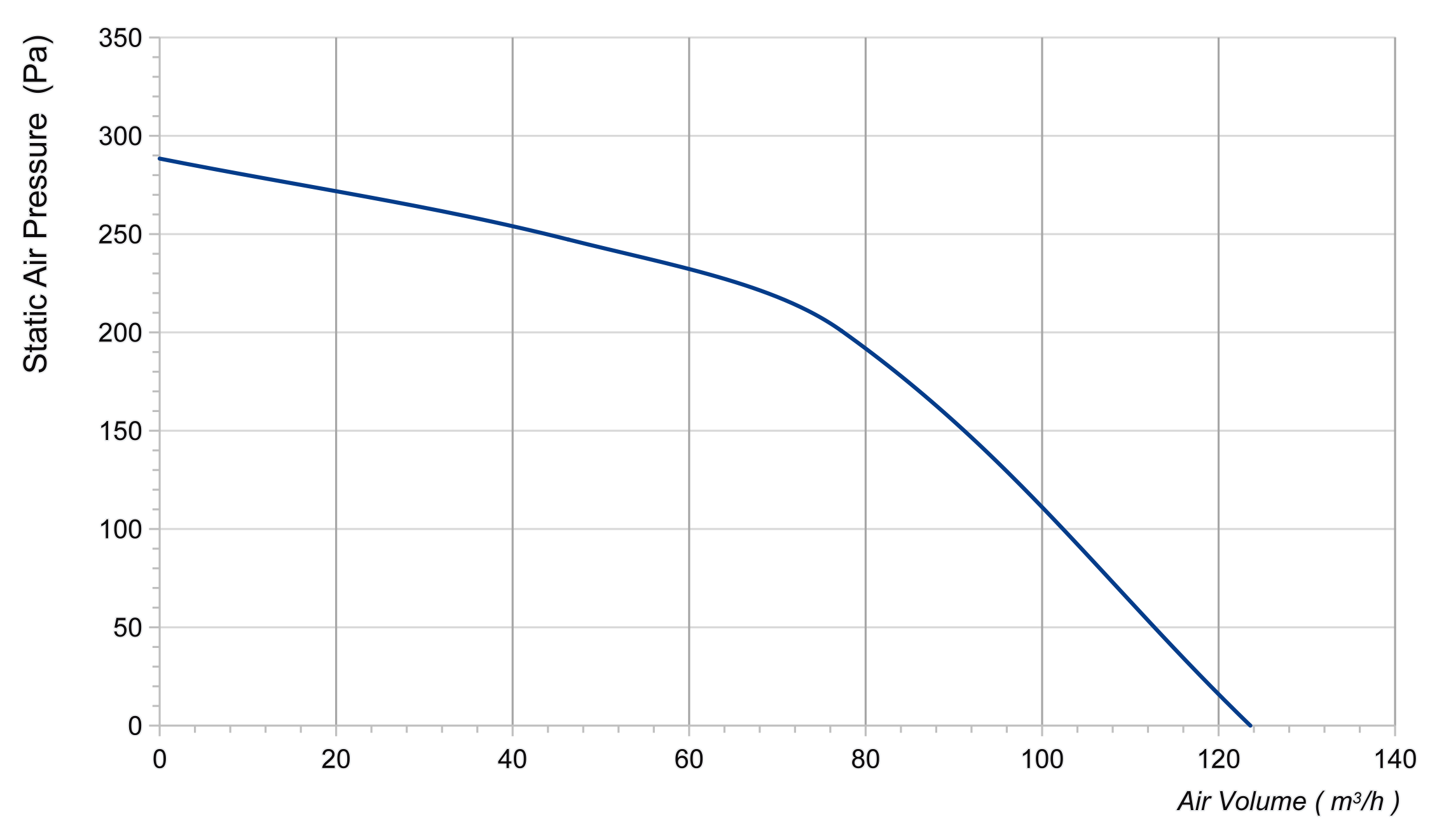

Curves

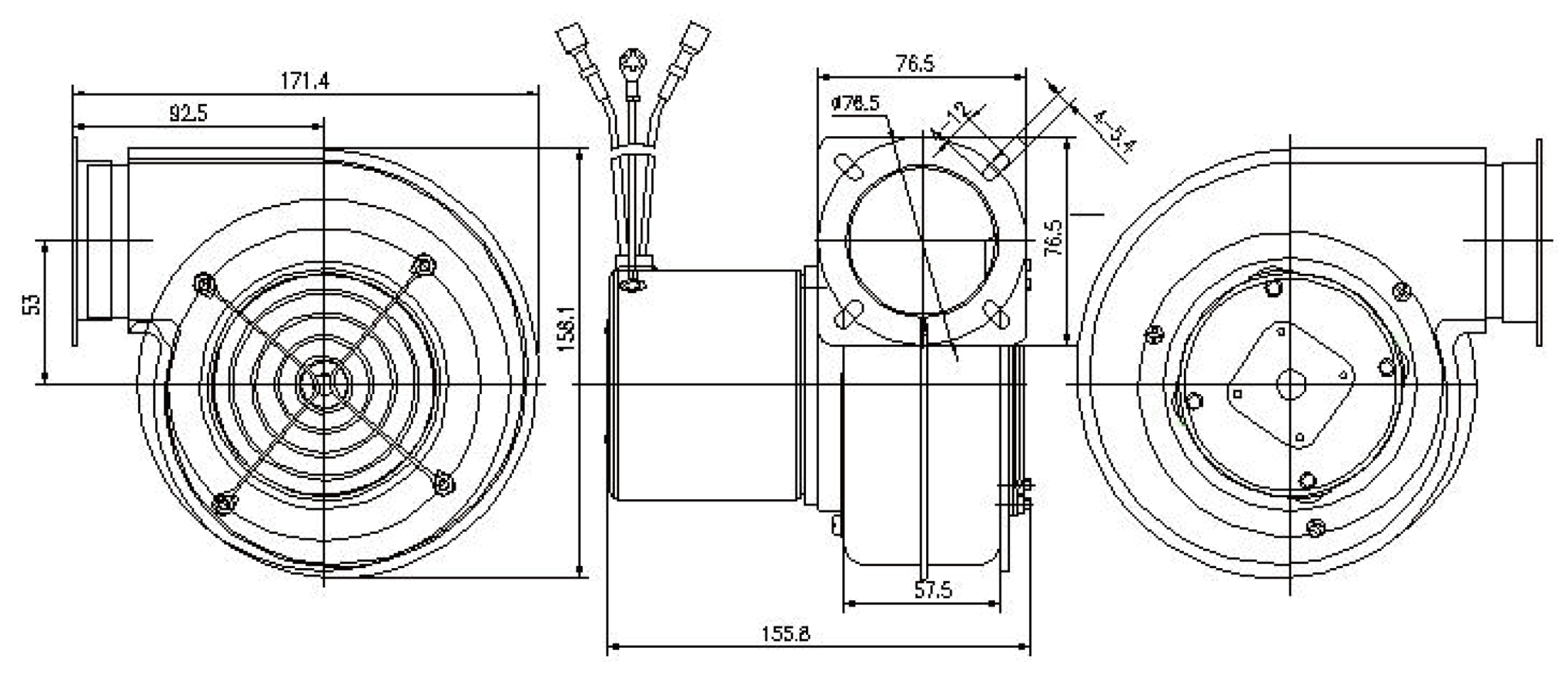

Drawing
