LONGWELL 92mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 2678 m³/h Airflow, 607.7 Pa Static Pressure – LWFE3G310-092PS-07

Air Flow 2678 m³/h
Static Pressure 607.7 Pa
Inlet Ø 92 mm
Voltage 230 V

Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity Over-voltage protection,Soft Start Protection.

Specifications
Noise
63 dB(A)
Protection
IP55
Motor
EC
Speed
1500 RPM
Power Input
175 W
Impeller
Aluminum Alloy
Frequency
50/60
Ambient Temp
-25℃~+60℃
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø20–2,038 mm, single units up to about 79,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Technical Description

Impeller Material Aluminum Alloy
Mode of Operation S1
Protection Class IP55
Insulation Class F
Bearing Maintenance-free ball bearings
Technical Feature Control input 0-10VDC/PWM,Tach output,Locked-Rotor protection,Reverse Polarity Over-voltage protection,Soft Start Protection.

Nominal data

Type of Voltage EC
Diameter of Rotor 92mm
Nominal Voltage 230V
Frequency 50/60Hz
Current 1.3A
Power Input 175W
Speed 1500RPM
Static Pressure(Max) 607.7Pa
Air Flow(Max) 2678m³/h
Noise 63dB(A)
Min.ambient Temp -25℃
Max.ambient Temp 60℃

Curves

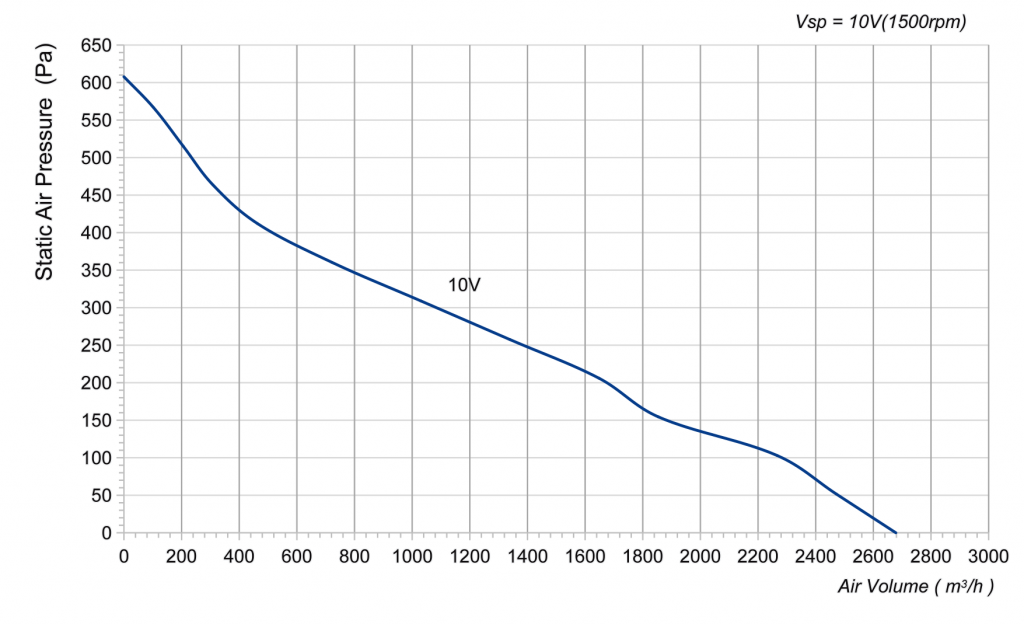

310-092PS-07 Backward Curved Centrifugal Fans Curve

Drawing

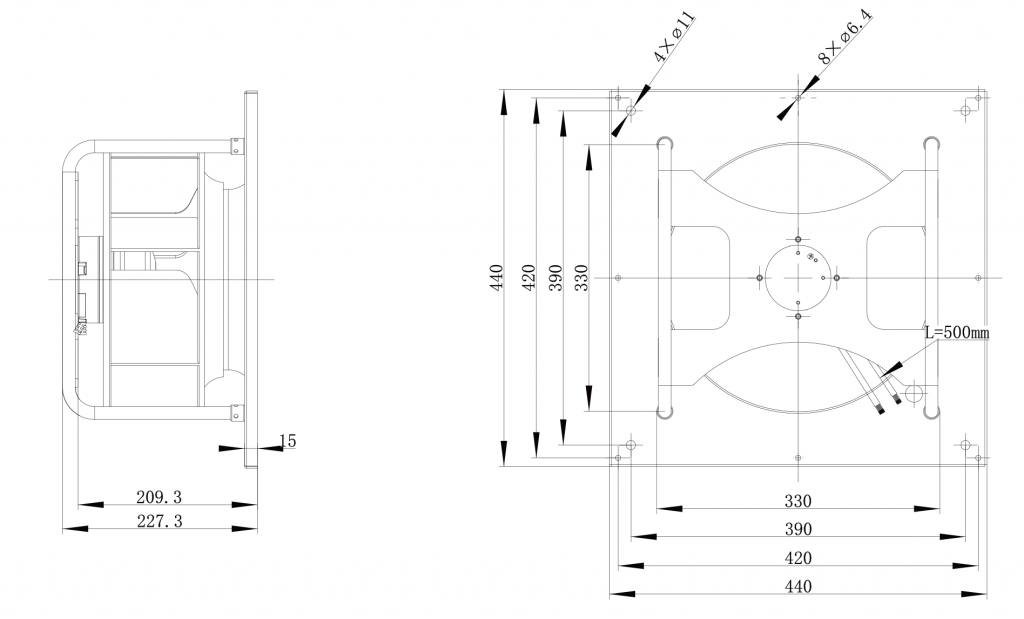

310-092PS-07 Backward Curved Centrifugal Fans drawing

Download

The Company Longwell Leading Fan and Motor Innovator Worldwide

As a leading supplier of ventilation and drive technology, LONGWELL is a highly respected engineering partner in many industries. With over than 20,000 different products, we provide the right solution for every need. And we have always worked according to the highest economic and ecological standards.

As part of the logical next step in the development of our high-efficiency BLEC MOTOR technology, we believe that industrial digitalization offers the best prospects for our customers in the future. LONGWELL already offers intelligently interconnected complete solutions that are second to none worldwide and ensure that our customers always remain that decisive step ahead.

LONGWELL Product Line

LONGWELL product line

LONGWELL Certificate

LONGWELL Certificate

Trusted by top Brands

LONGWELL Trusted by top Brands

Additional information

Insulation Class

F

type

EC

speed

1500

Bearing

Maintenance-free ball bearings

frequency

50/60

current

1.3

sound power

175.0

noise

63

Min.ambient Temp Max.ambient Temp

-25℃~+60℃

sound pressure

607.7

airflow

2678

ac dc ec

EC

Impeller Material

Aluminum Alloy

voltage

230

Protection Class

IP55

Mode of Operation

S1

dimensions

92

ErP 2026 scope check — Regulation (EU) 2024/1834

EU fan efficiency documentation for LWFE3G310-092PS-07. Regulation (EU) 2024/1834 sets minimum-efficiency requirements from 24 July 2026. For most applicable fans, the assessment uses BEP-based values.

Separate partial-load or specified-duty information requirements apply from 24 July 2027. Confirm the full model, verified BEP electrical input power, test configuration, exclusions and any applicable transition. Catalogue ratings and motor efficiency classes alone do not establish conformity.

Read the efficiency requirements → Request BEP test data & documentation →

Send your airflow, static or total pressure, voltage and control requirements to request configuration-specific test data and documentation, and separately verify performance at the actual duty point. See the ErP 2026 requirements guide.
