Description
Technical Description
| Material | Metal |
| Technical Feature | 1.Explosion-proof type 2.Used in chemical,oil refining,shipbuilding,and other plants for ventilation and air exchange purposes |
Nominal data
| Dimensions | 710mm |
| Voltage | 380V |
| Frequency | / |
| Power | 3KW |
| Speed | 1450RPM |
| Air Flow | 26120m³/h |
| Air Pressure | 373Pa |
| Noise | / |
Curves

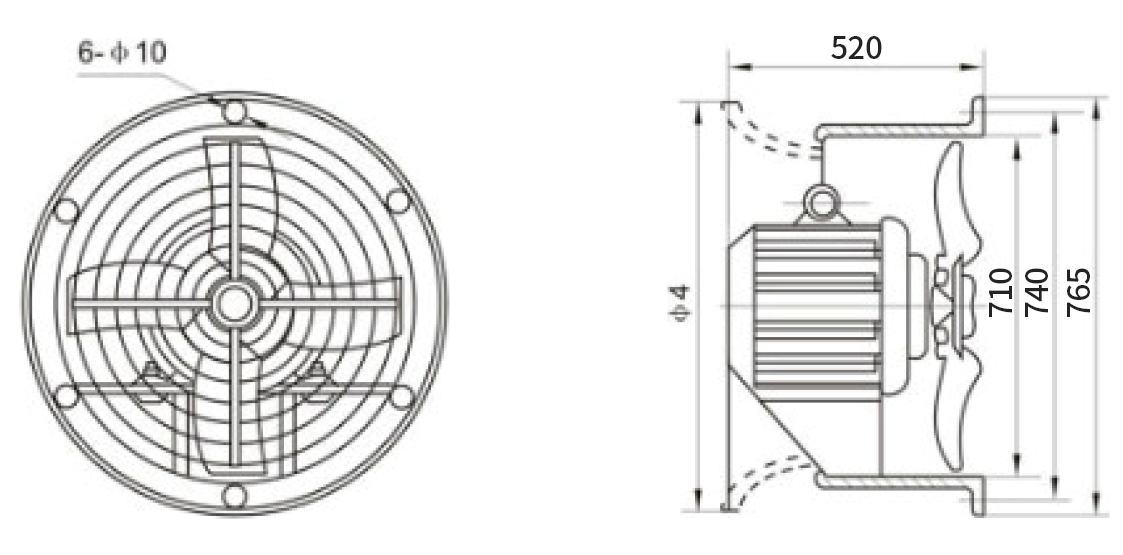

Drawing
Download
